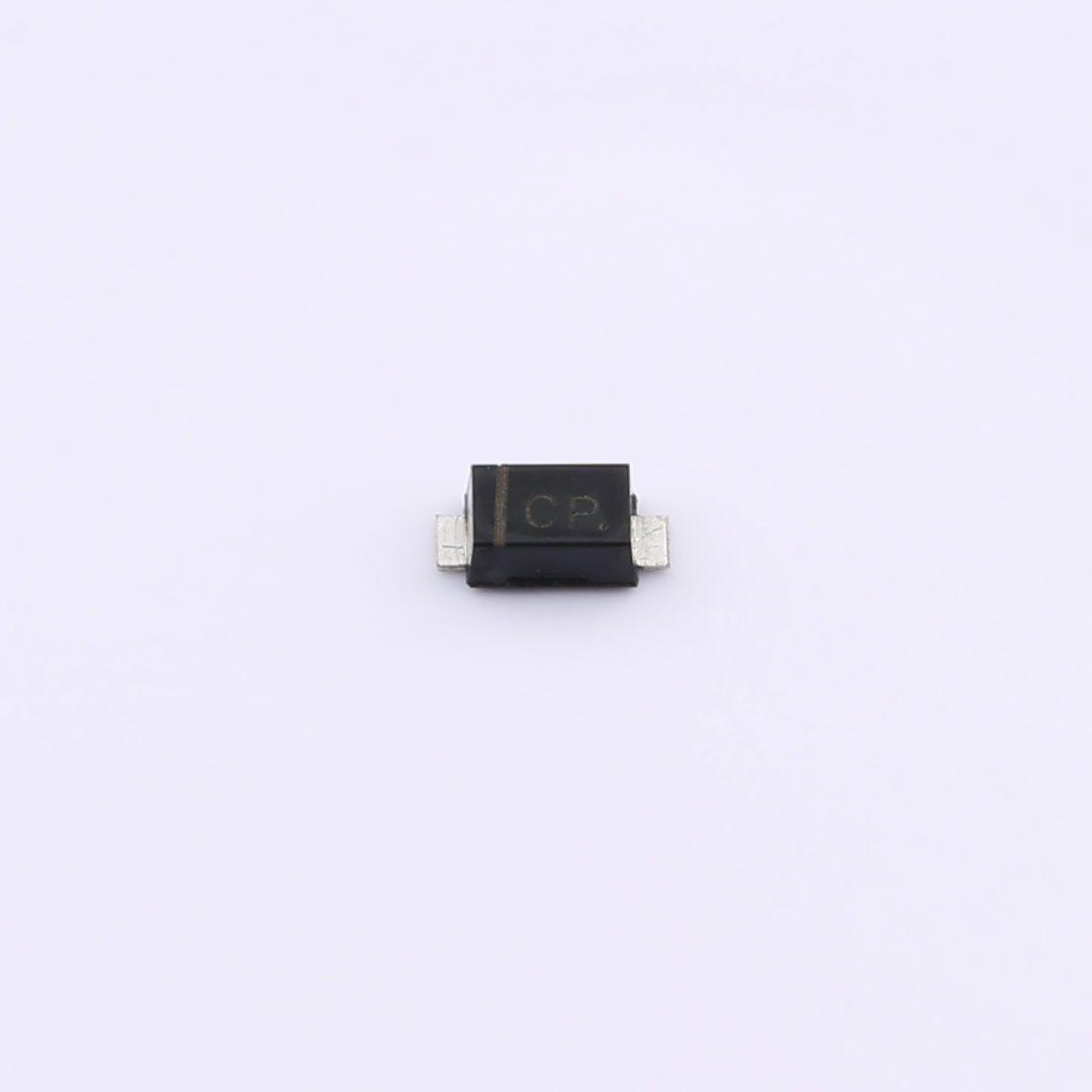

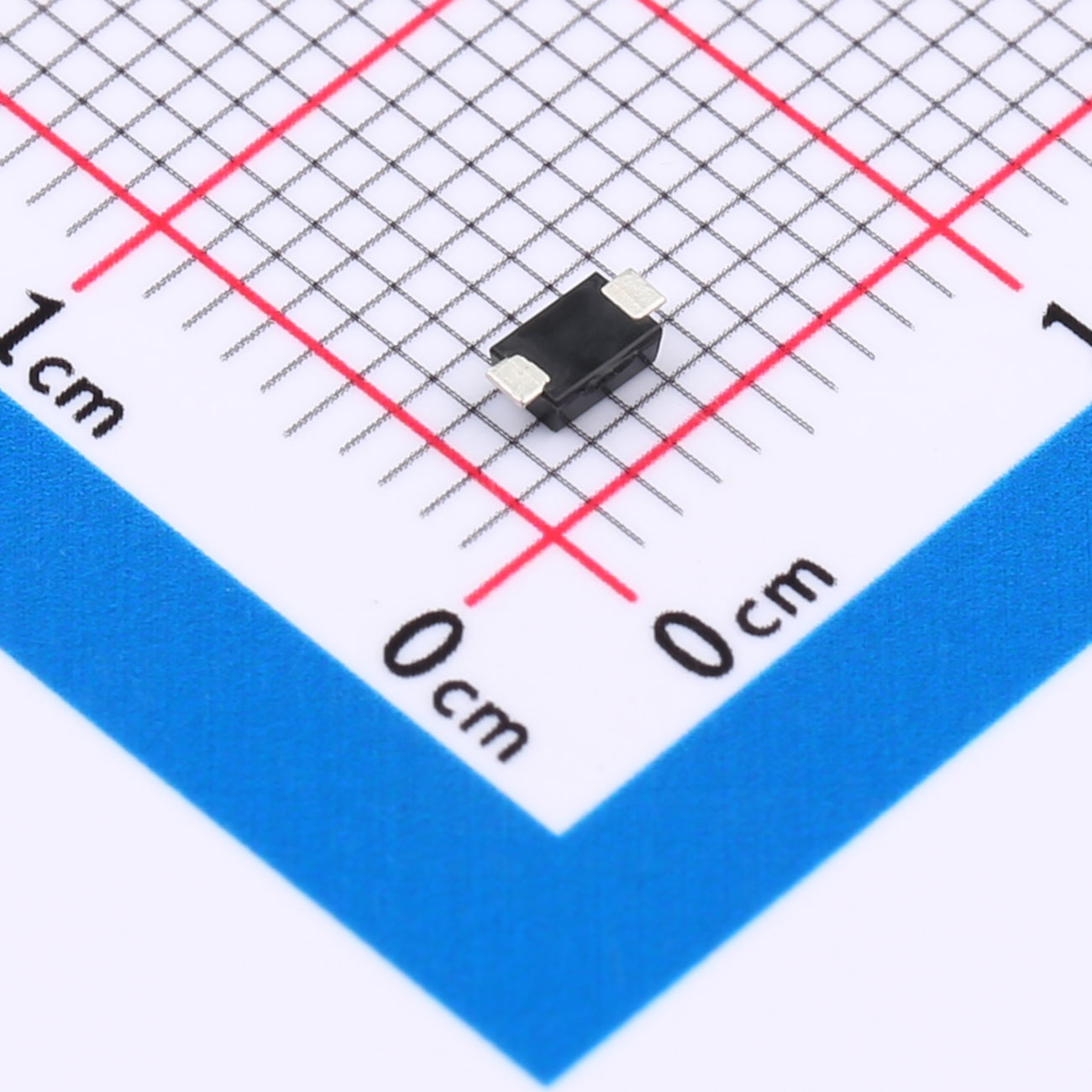

The SMF36A Bidirectional TVS Diodes SOD-123FL is a high-performance semiconductor designed for voltage regulation and over-voltage protection. Featuring a maximum Reverse Working Voltage (VRWM) of 36V, it is ideal for stabilizing and controlling voltage levels in various electronic circuits. With its precision Zener breakdown voltage range between 40V and 44.2V, this diode ensures reliable and consistent voltage regulation in demanding applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SMF36A Bidirectional TVS Diodes SOD-123FL is a high-performance semiconductor designed for voltage regulation and over-voltage protection. Featuring a maximum Reverse Working Voltage (VRWM) of 36V, it is ideal for stabilizing and controlling voltage levels in various electronic circuits. With its precision Zener breakdown voltage range between 40V and 44.2V, this diode ensures reliable and consistent voltage regulation in demanding applications.
Features
● For surface mounted applications
● Low profile package
● Low incremental surge resistance, excellent clamping capability
● 200W peak pulse power capability with a 10/1000 μs wave from,repetition rate (dutycycle):0.01%
● High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals
Applications
● Voltage Regulation: Ensures stable voltage levels in power supply circuits and provides a reference voltage in various electronic devices.
● Over-voltage Protection: Shields sensitive electronic components from transient voltage spikes and surges, enhancing circuit durability.
● Signal Clamping: Utilized in signal processing to clamp and limit voltage levels, maintaining signal integrity and protecting downstream components.
| File Name | Title | Description |
|---|---|---|
| SMF11CA SOD-123FL.PDF | SMF11CA SOD-123FL | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
This TVS Diode is engineered to deliver exceptional protection against transient voltage spikes. With a maximum Reverse Working Voltage (VRWM) of 26V and a minimum Breakdown Voltage (VBR) of 28.9V, it ensures your components remain safe under unexpected voltage surges.
The SMF20CA Bidirectional TVS Diodes SOD-123FL TVS Diode is engineered to safeguard circuits against transient voltage surges, ensuring durability and optimal performance of your devices. With a maximum reverse working voltage (VRWM) of 20V and a minimum breakdown voltage (VBR) of 22.2V, it provides robust protection under various conditions.
The SMF36CA Bidirectional TVS Diodes SOD-123FL is designed for precision voltage regulation and protection in a compact SOD-123FL package. This diode ensures reliable operation in a range of electronic applications, providing robust performance with minimal power loss. With its specific voltage characteristics, it's ideal for circuits requiring stable voltage reference and over-voltage protection.
The SMF26CA Bidirectional TVS Diodes SOD-123FL is designed for precision voltage regulation and protection in a compact SOD-123FL package. This diode ensures reliable operation in a range of electronic applications, providing robust performance with minimal power loss. With its specific voltage characteristics, it's ideal for circuits requiring stable voltage reference and over-voltage protection.
SMF16CA Bidirectional TVS Diodes SOD-123FL is designed for precision voltage regulation and protection in a compact SOD-123FL package. This diode ensures reliable operation in a range of electronic applications, providing robust performance with minimal power loss. With its specific voltage characteristics, it's ideal for circuits requiring stable voltage reference and over-voltage protection.
VRWM(max): 5V VBR(min): 6.4V IR(max): 400uA VC(max): 9.2V Package:SOD-123FL
VRWM (max): 13V VBR(min): 14.4V VBR(max): 15.9V IR(max): 5µA VC(max): 21.5V Package: SMA
Our diode offers precise voltage control with a maximum VRWM of 5V, ensuring reliable performance in your circuits. With a breakdown voltage (VBR) range from 6V to 9V, it delivers stable operation across various conditions. The diode's low reverse leakage current (IR) of just 1μA enhances circuit efficiency and minimizes power loss. Encased in a compact DFN1006 package, it’s well-suited for space-constrained applications.
