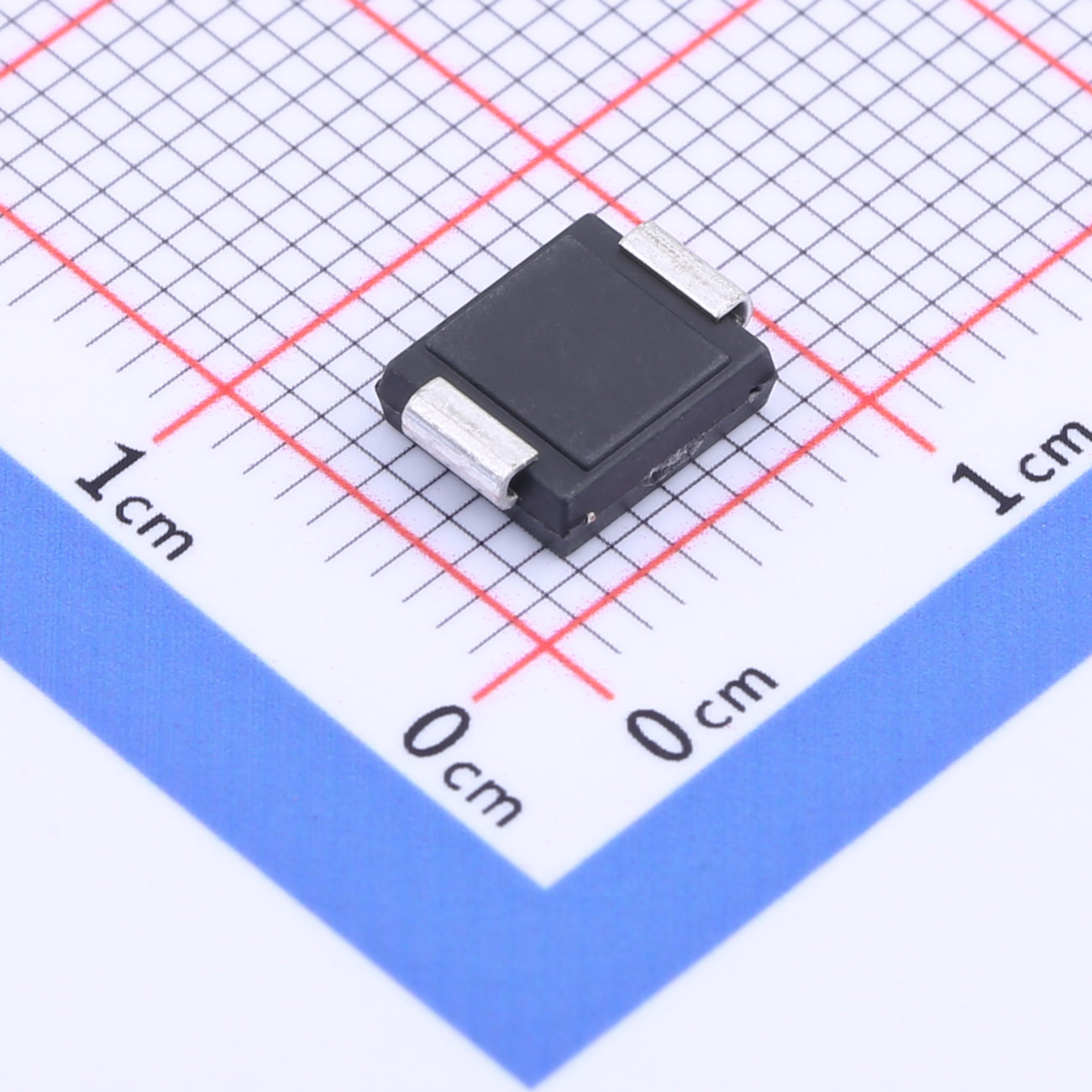

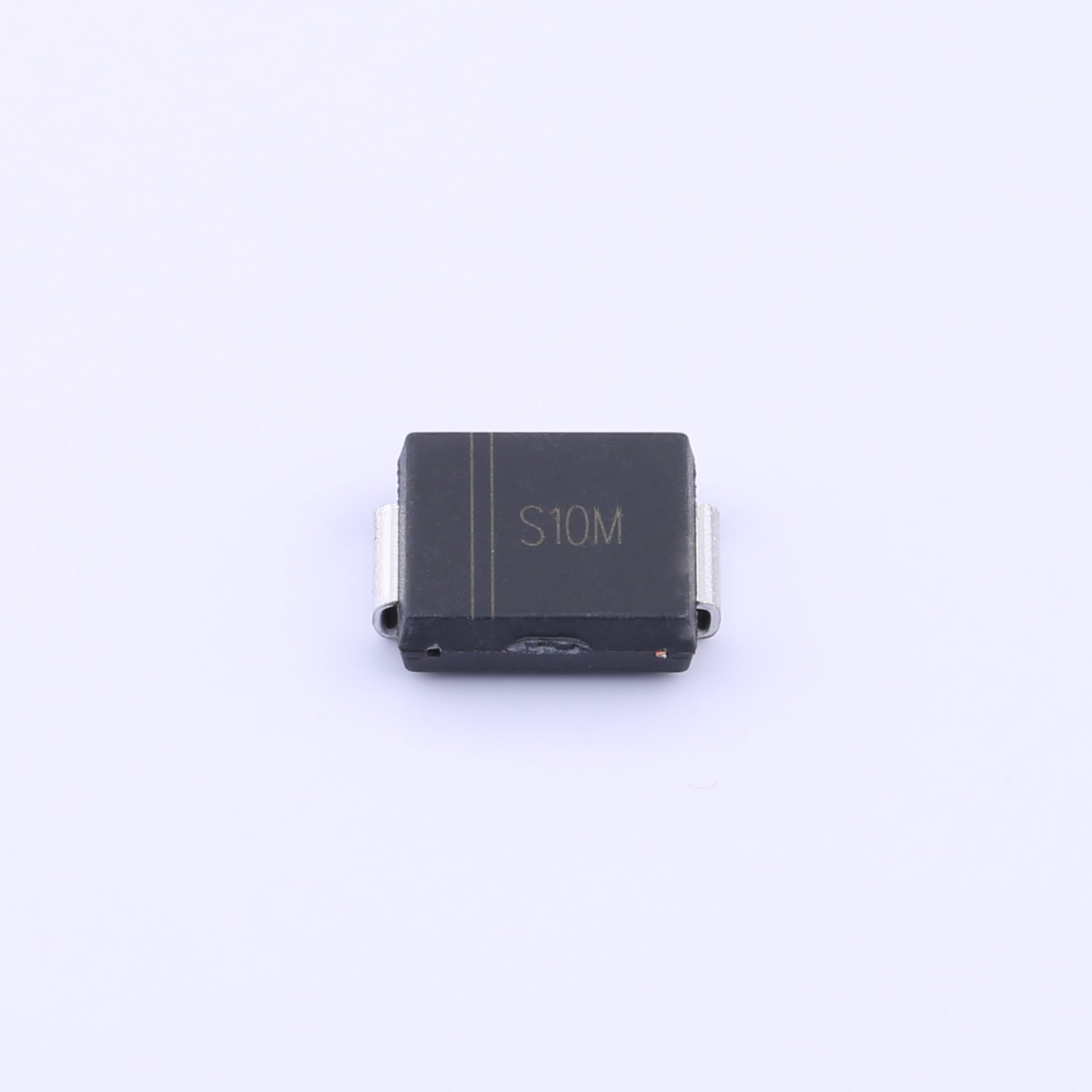

The S10MC is an advanced general-purpose rectifier diode designed to provide robust performance and efficient energy conversion in various electronic circuits. With a maximum reverse voltage (Vr) rating of 1000V and a forward current (Io) capability of 10A, the S10MC diode is ideal for applications requiring high power rectification. It features a low forward voltage drop (Vf) of 1V at 10A, minimizing power dissipation and enhancing energy efficiency. Additionally, the diode exhibits a low reverse leakage current (Ir) of only 5μA at 1000V, ensuring stable and reliable operation in demanding environments.
Download datasheet Inquiry
Surface Mount General Purpose Silicon Rectiflers
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The S10MC is an advanced general-purpose rectifier diode designed to provide robust performance and efficient energy conversion in various electronic circuits. With a maximum reverse voltage (Vr) rating of 1000V and a forward current(Io)capability of 10A, the S10MC diode is ideal for applications requiring high power rectification. It features a low forward voltage drop (Vf) of 1V at 10A, minimizing power dissipation and enhancing energy efficiency. Additionally, the diode exhibits a low reverse leakage current (Ir) of only 5μA at 1000V, ensuring stable and reliable operation in demanding environments.
Features
● For surface mounted applications
● Low profile package
● Glass Passivated Chip JunctionEasy to pick and place
● Lead free in comply with EU RoHS 2011/65/EU directives
Applications
● Power Supplies: Used in AC to DC converters, power supply units, and inverters to efficiently convert and regulate electrical power.
● Industrial Equipment: Integrated into motor drives, welding equipment, and UPS systems for effective power management and control.
● Renewable Energy: Applied in solar inverters and wind power systems for converting and managing electrical energy from renewable sources.
● Consumer Electronics: Found in televisions, computers, and home appliances where reliable rectification is essential for smooth operation.
● Automotive: Utilized in automotive charging systems and LED lighting circuits for efficient energy conversion and regulation.
| File Name | Title | Description |
|---|---|---|

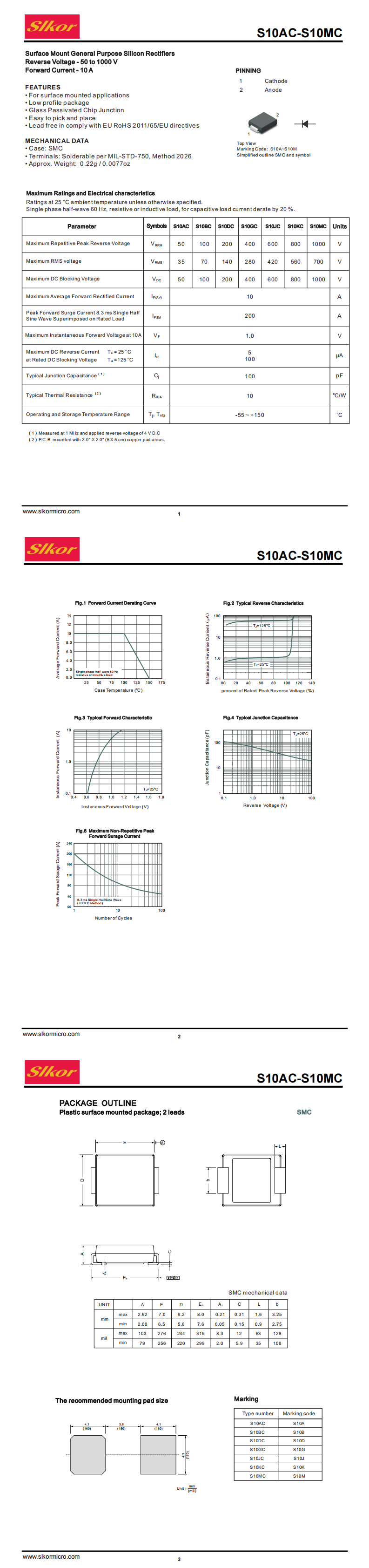

| S10MC.pdf | S10MC | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The S3MC is a versatile general-purpose diode designed to provide efficient rectification and reliable voltage regulation across a wide range of electronic applications. Featuring a robust maximum reverse voltage (Vr) of 1000V, a forward current (Io) rating of 3A, and optimized electrical characteristics, it ensures stable and efficient operation in demanding environments.
The 1N4007WS is a robust rectifier diode designed for general-purpose electronic circuits where efficient rectification of AC to DC voltage is essential. With a maximum reverse voltage (Vr) rating of 300V and a forward current (Io) handling capability of 300mA, this diode offers reliable performance across a wide range of applications. Featuring a low forward voltage drop (Vf) of 1V and a reverse leakage current (Ir) of 100μA, the 1N4007WS ensures efficient power conversion and stable operation in both forward and reverse bias conditions.
The 1SS400 is a high-performance small signal diode designed for applications requiring precision rectification and low forward voltage drop. With a maximum reverse voltage (Vr) rating of 9V and a forward current (Io) handling capability of 100mA, the 1SS400 is ideal for use in low-power circuits where efficiency and reliability are paramount. It features a low forward voltage drop (Vf) of 1.2V at 1A, minimizing power loss and enhancing energy efficiency. The diode also boasts an ultra-low reverse leakage current (Ir) of only 0.1μA, ensuring stable operation even in sensitive electronic circuits.
The 1N4001W is a widely-used general-purpose rectifier diode renowned for its robust performance and versatility in electronic circuits. Designed with a maximum reverse voltage (Vr) of 50V, a forward current (Io) rating of 1A, and optimized electrical characteristics, it ensures r eliable rectification and voltage regulation in a variety of applications.
The S6MC is a high-performance general-purpose rectifier diode designed to deliver efficient rectification and reliable performance in diverse electronic circuits. Featuring a maximum reverse voltage (Vr) rating of 1000V and a forward current (Io) rating of 6A, the S6MC diode is capable of handling high-power applications with ease. It offers a low forward voltage drop (Vf) of 1.15V at 6A, minimizing power loss and ensuring efficient energy conversion. Additionally, the diode exhibits a low reverse leakage current (Ir) of 5μA at 1000V, ensuring stable operation and reliability in demanding environments.
The S5MC is a versatile general-purpose rectifier diode designed to provide efficient and reliable performance in a wide range of electronic applications. With a maximum reverse voltage (Vr) rating of 1000V and a forward current (Io) capability of up to 5A, the S5MC diode is well-suited for circuits requiring robust rectification and voltage regulation. It features a low forward voltage drop (Vf) of 1V at 5A, minimizing power dissipation and improving energy efficiency. Additionally, the diode exhibits a low reverse leakage current (Ir) of only 5μA at 1000V, ensuring stable operation and reliability in diverse electronic designs.

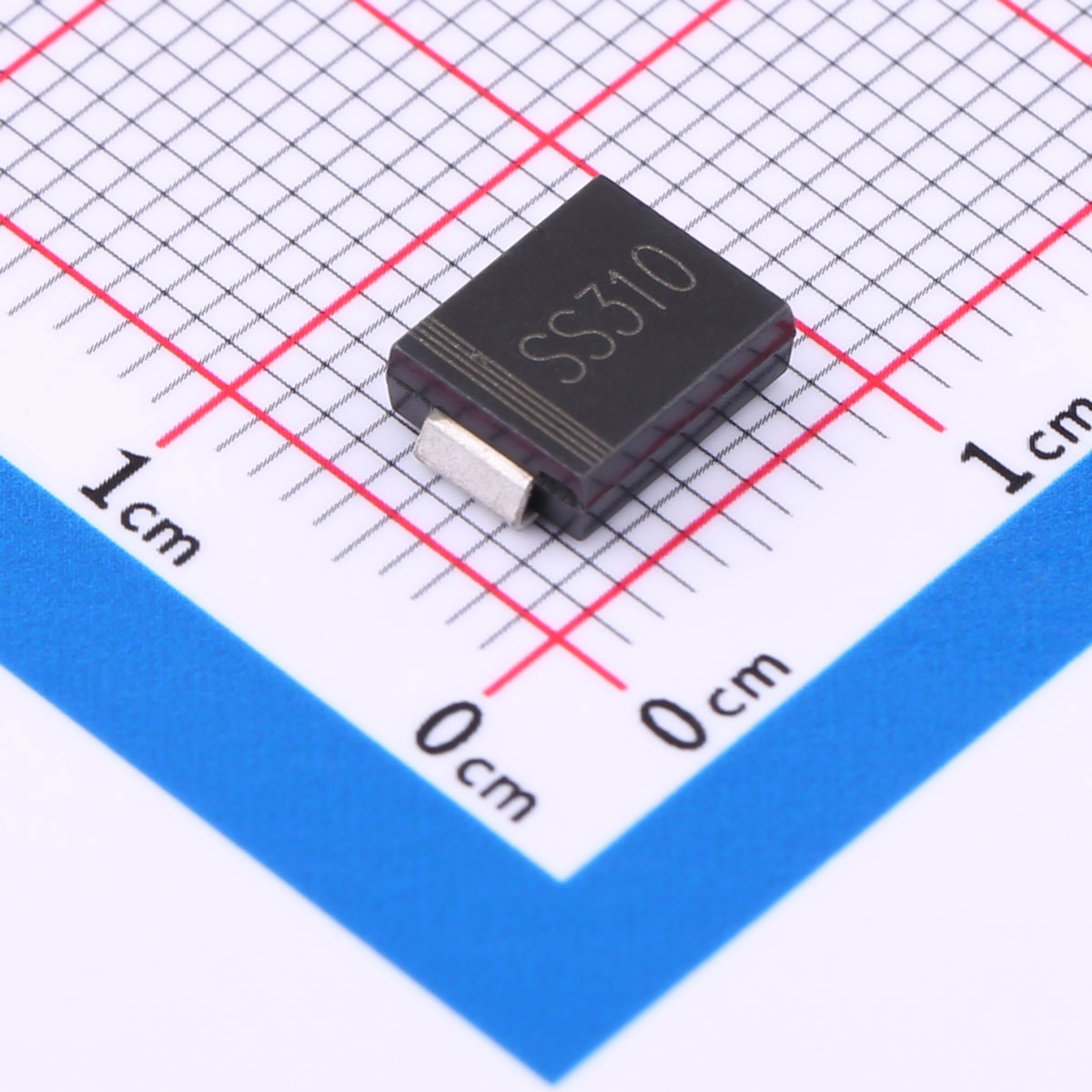

SS310C Power Schottky Diodes SMC

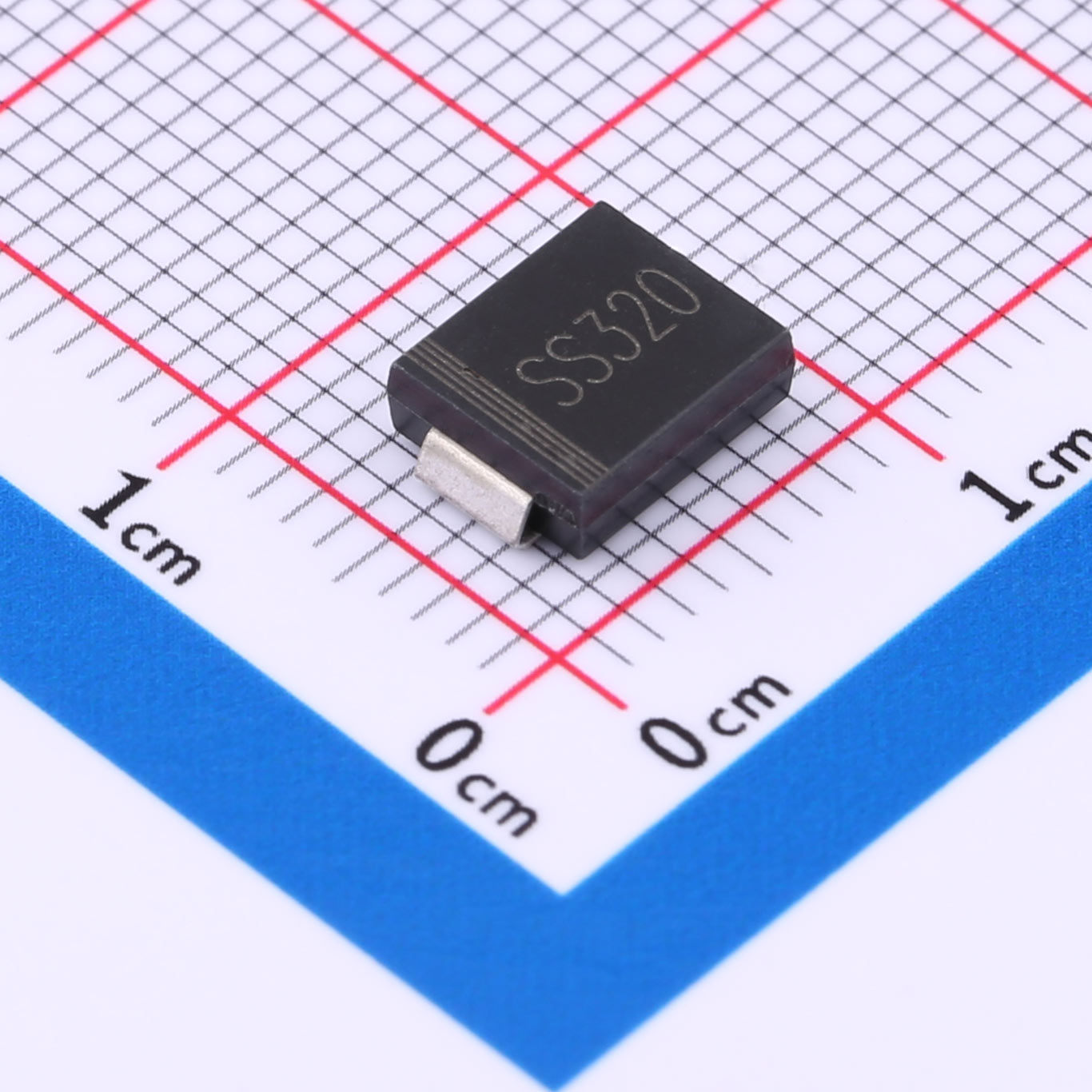

SS320C Power Schottky Diodes SMC
