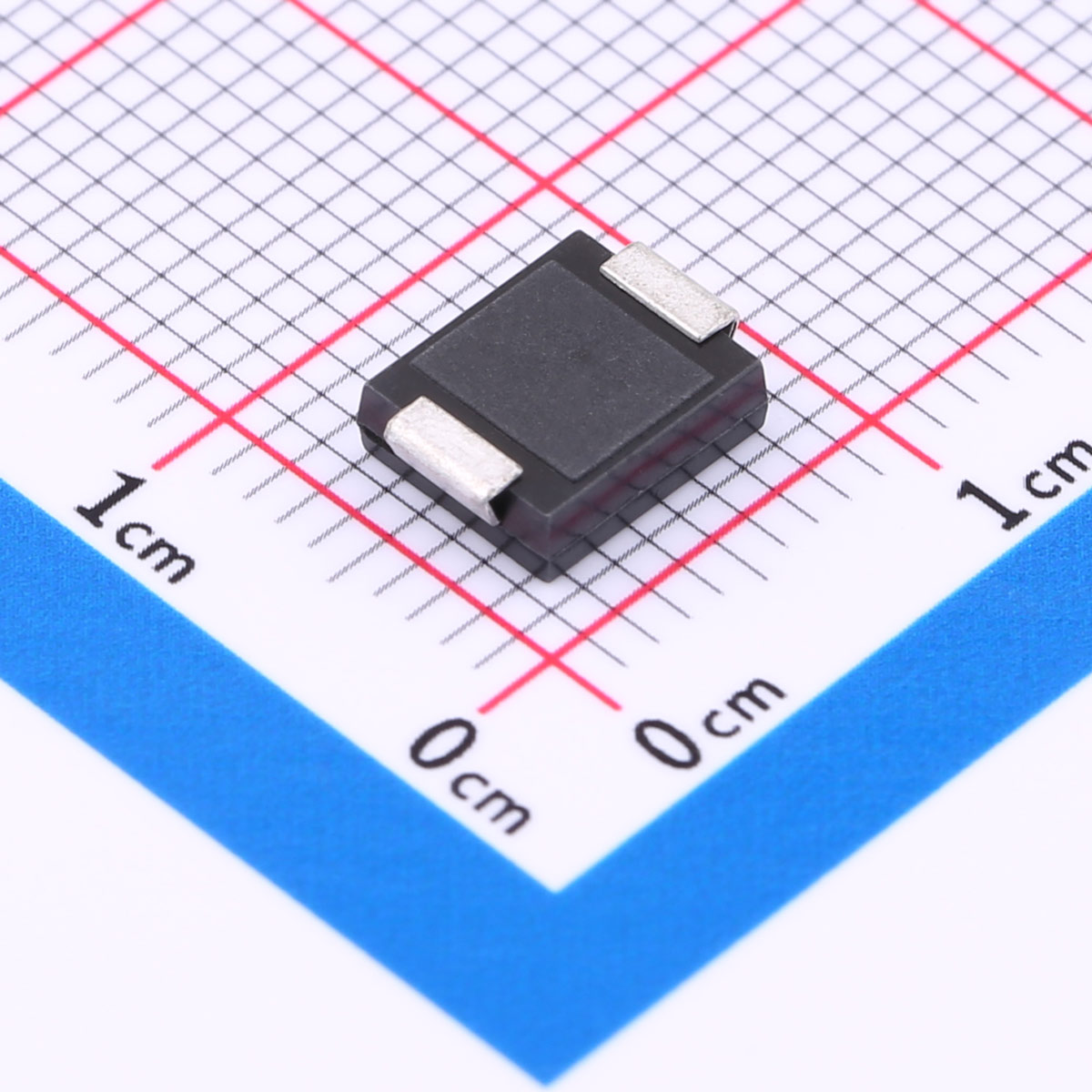

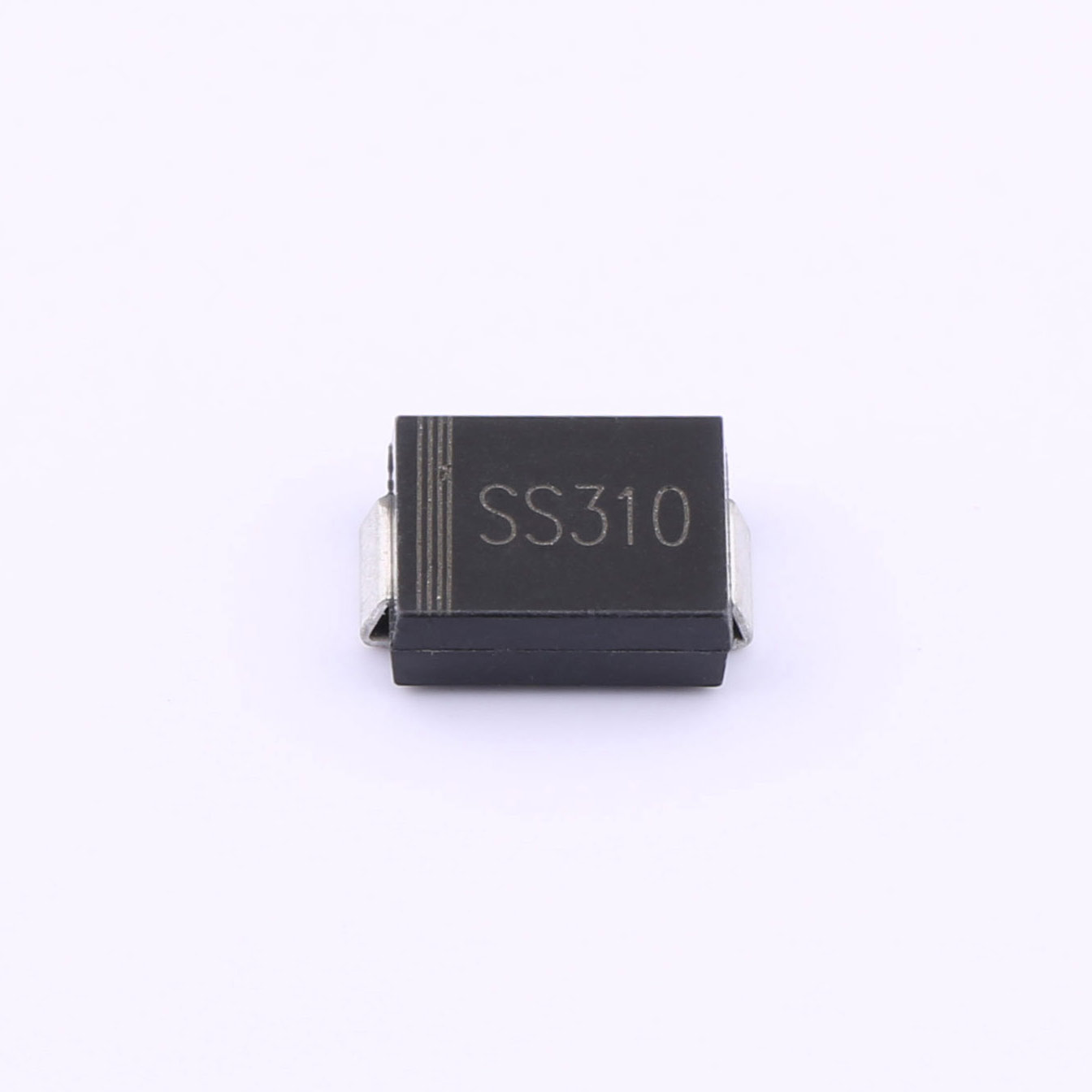

SS310C Power Schottky Diodes SMC
Download datasheet Inquiry
FEATURES
? The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
? For surface mounted applications
? Metal silicon junction,majority carrier conduction
? Low power loss,high efficiency
? Built-in strain relief,ideal for automated placement
? High forward surge current capability
? High temperature soldering guaranteed:250 C/10 seconds at terminals
MECHANICAL DATA
? Case:JEDEC DO-214AB molded plastic body
? Terminals: leads solderable per MIL-STD-750,Method 2026
? Polarity: Color band denotes cathode end
? Mounting Position: Any
? Weight:0.22 grams

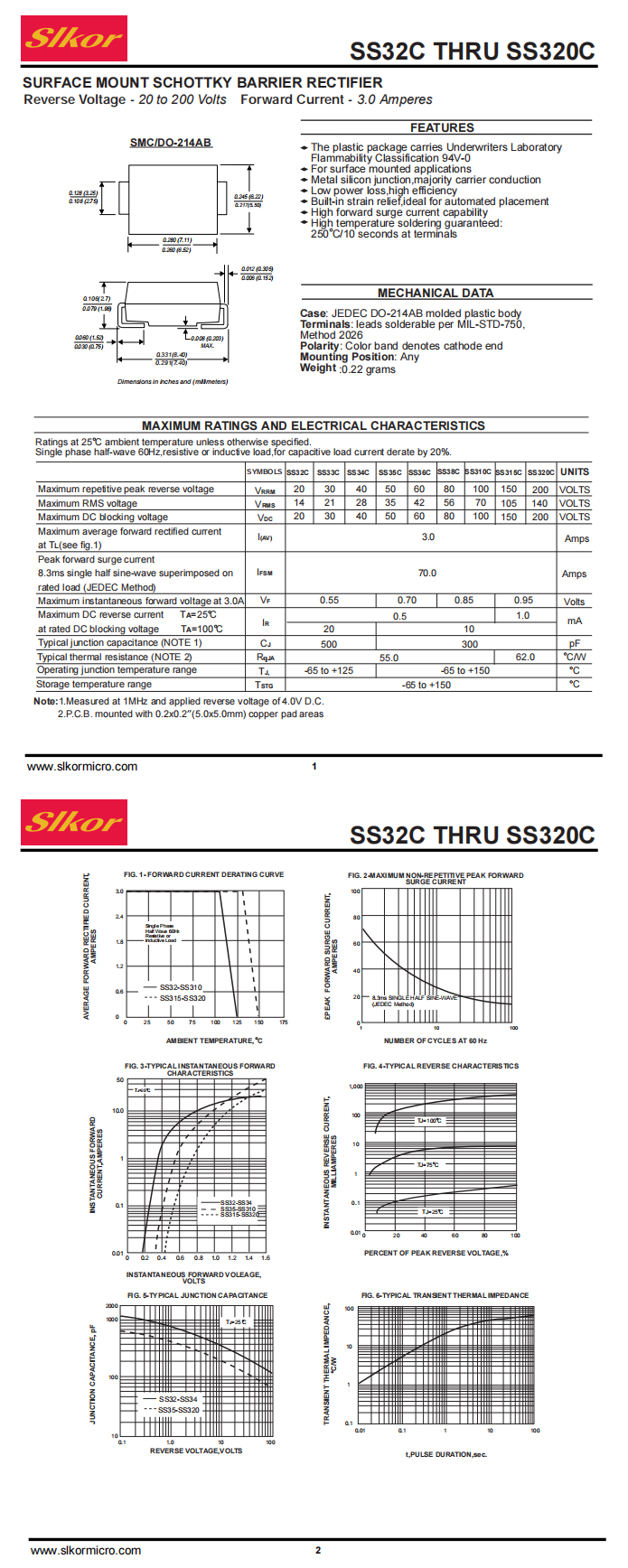

| File Name | Title | Description |
|---|---|---|
| SS310C SMC.pdf | SS310C SMC | - |
