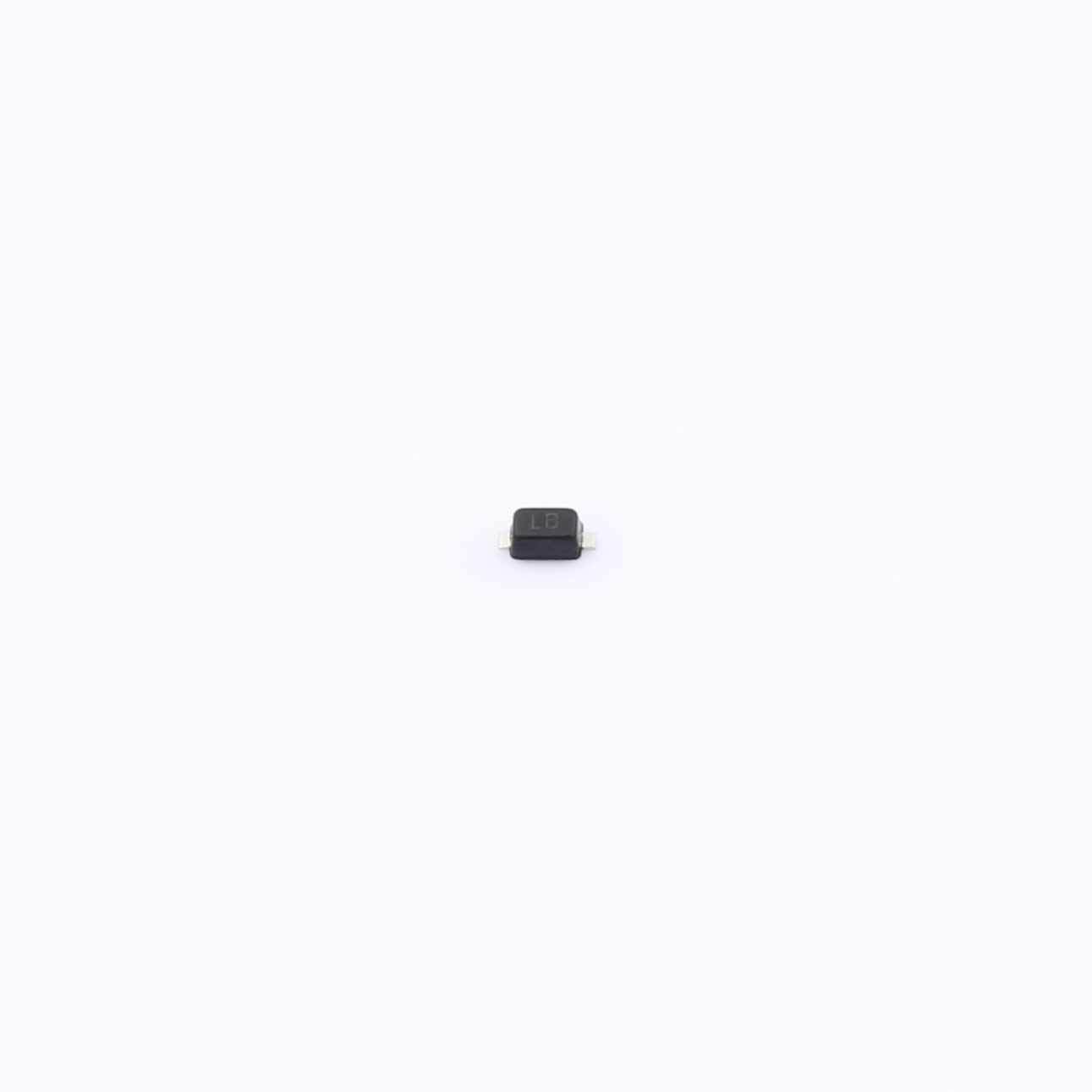

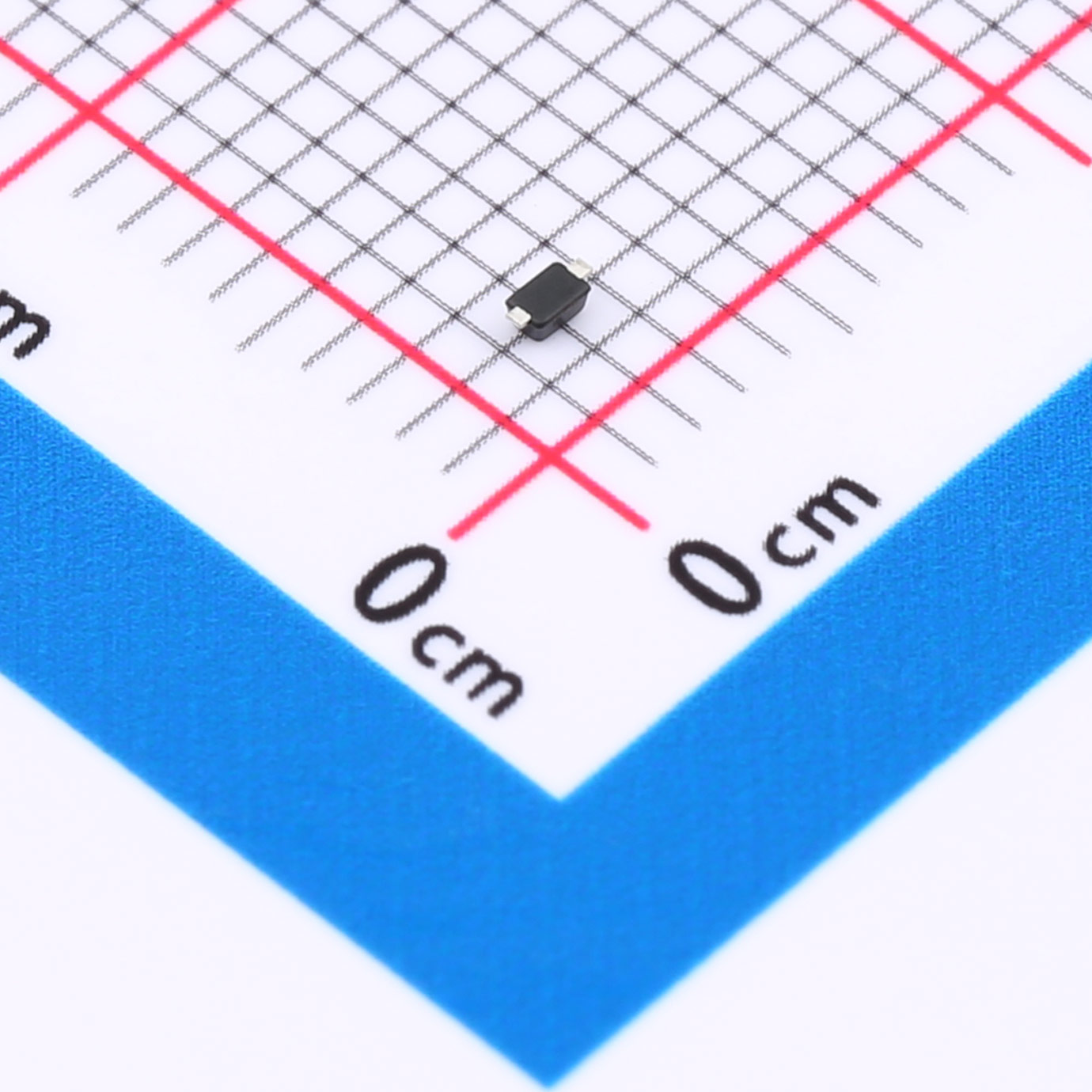

The SLESD5B5CL is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many ther portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed, VGA, DVI, SDI and other high speed line applications. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients).
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD5B5CL is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many ther portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed, VGA, DVI, SDI and other high speed line applications. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients).
Features
● IEC61000-4-2 (ESD) ±8kV (Contact), ±15kV (Air)
● IEC61000-4-4 (EFT) 40A (5/50ηs)
● Peak power dissipation: 40W (8/20μs)
● Protects one I/O line
● Low clamping voltage
● Working voltages : 5V
● Low leakage current
● Low capacitance
Applications
● High Speed Line :USB1.0/2.0, VGA, DVI, SDI
● Serial and Parallel Ports
● Notebooks, Desktops, Servers
● Projection TV
● Cellular handsets and accessories
● Portable instrumentation
● Peripherals
| File Name | Title | Description |
|---|---|---|

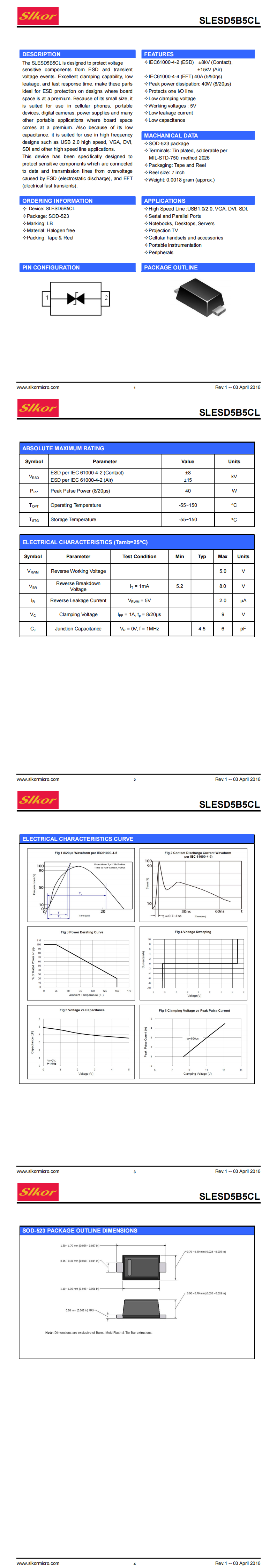

| SLESD5B5CL SOD-523.pdf | SLESD5B5CL SOD-523 | - |
