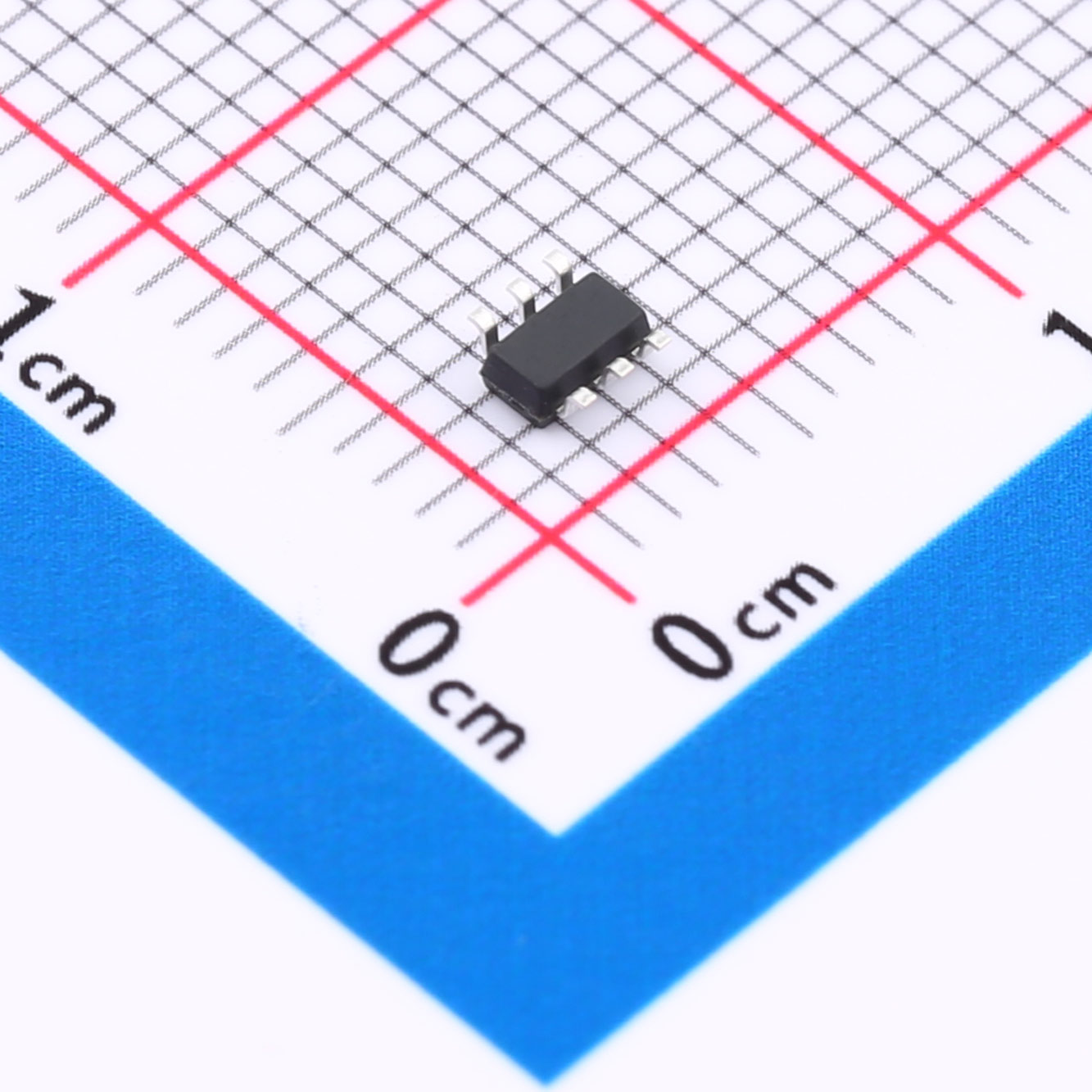

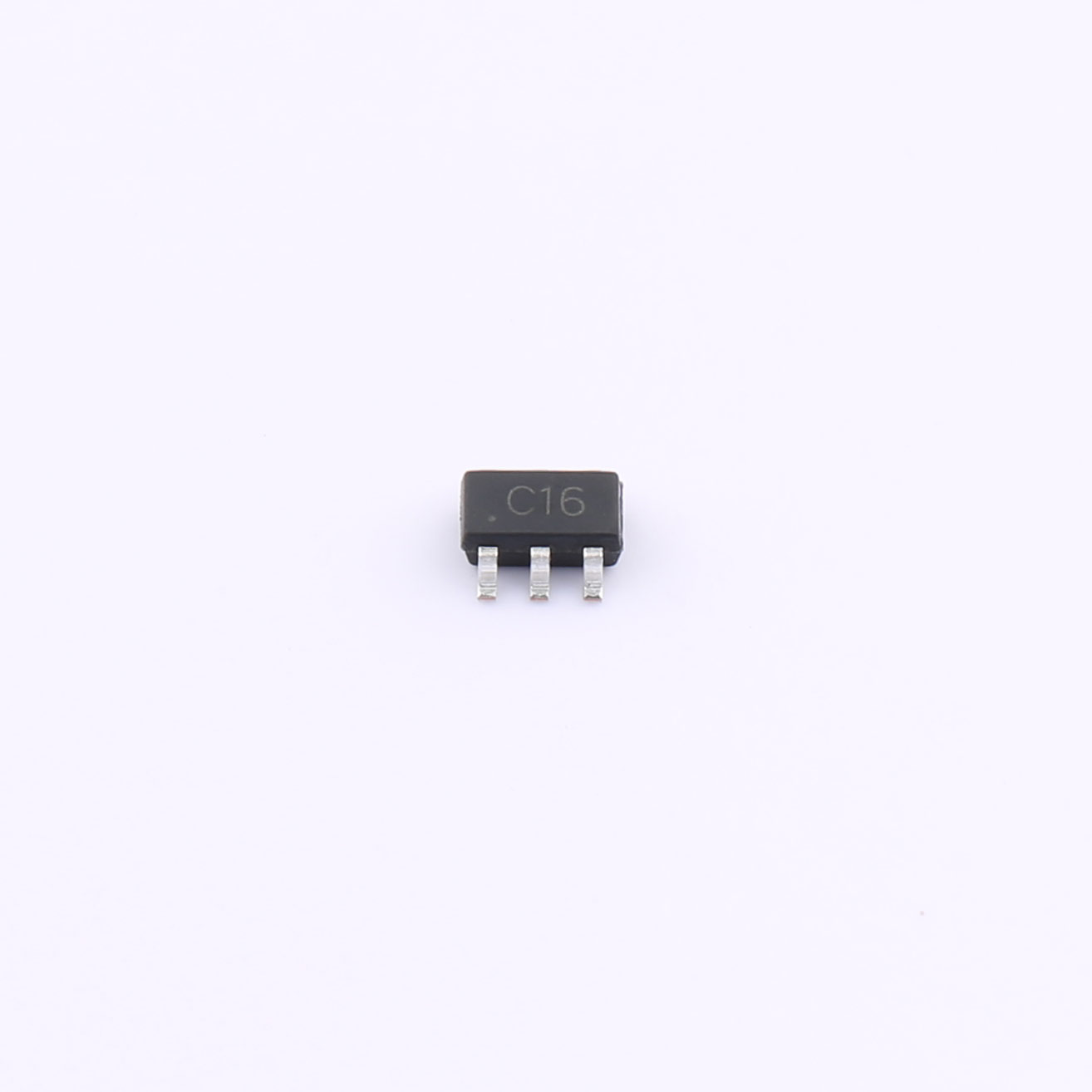

SLESD0514TL is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD0514TL is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±15KV air, ±8KV contact discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. SLESD0514TL uses small SOT-23-6L package. Each SLESD0514TL device can protect four high-speed data lines one Vcc line. The combined features of ultra-low capacitance, small size and high ESD robustness make SLESD0514TL ideal for high-speed data ports and high-frequency lines (e.g., HDMI & DVI) applications. The low clamping voltage of the SLESD0514TL guarantees a minimum stress on the protected IC.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
SLESD0514TL is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD0514TL is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±15KV air, ±8KV contact discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. SLESD0514TL uses small SOT-23-6L package. Each SLESD0514TL device can protect four high-speed data lines one Vcc line. The combined features of ultra-low capacitance, small size and high ESD robustness make SLESD0514TL ideal for high-speed data ports and high-frequency lines (e.g., HDMI & DVI) applications. The low clamping voltage of the SLESD0514TL guarantees a minimum stress on the protected IC.
Features
● Transient protection for high-speed data lines
● IEC 61000-4-2(ESD) ±20KV(Contact)
● IEC 61000-4-2(ESD) ±25KV(Air)
● IEC 61000-4-4(EFT) 40A(5/50ns)
● Package optimized for high-speed lines
● Small package(2.9mm*2.8mm*1.1mm)
● Protects four data lines and one Vcc line
● Low capacitance: 0.2pF (I/O to I/O)
● Low leakage current
● Low clamping voltage
Applications
● SOT-23-6L package
● Flammability Rating: UL 94V-0
● Terminal: Matte tin plated.
● High temperature soldering guaranteed: 260℃/10s
● Packaging: Tape and Reel
● Reel size: 7 inch
| File Name | Title | Description |
|---|---|---|

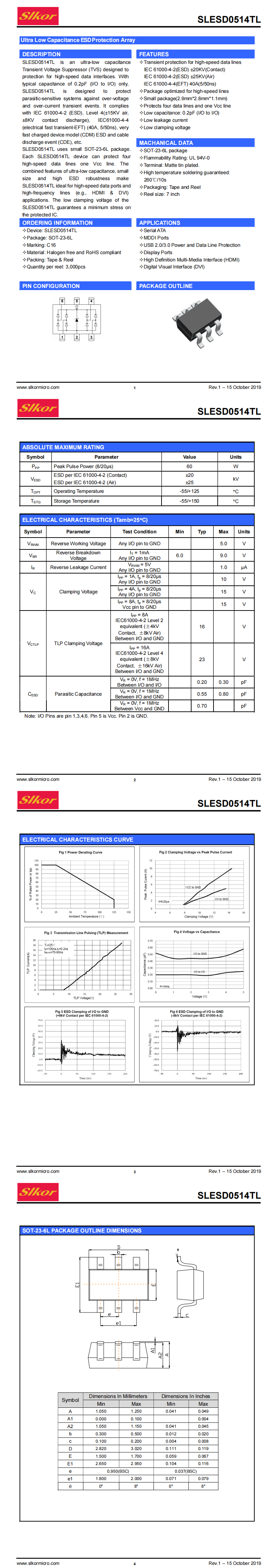

| SLESD0514TL SOT-23-6L.pdf | SLESD0514TL SOT-23-6L | - |
