The AZC199-04 has a low capacitance of 0.4pFmaximum and operates with virtually no insertion loss to 1GHz. This makes the device ideal for protection of high-speed data lines such as USB 2.0, Firewire, DVI, and gigabit Ethernet interfaces. The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance construction minimizes voltageovershoot during high current surges. They may be used to meet the ESD immunity requirements of IEC61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The AZC199-04 has a low capacitance of 0.4pFmaximum and operates with virtually no insertion loss to 1GHz. This makes the device ideal for protection of high-speed data lines such as USB 2.0, Firewire, DVI, and gigabit Ethernet interfaces. The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance construction minimizes voltageovershoot during high current surges. They may be used to meet the ESD immunity requirements of IEC61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
Features
● rotects four I/O lines and one Vcc line
● Low capacitance
● Working voltages : 5V
● Low leakage current
● Low capacitance for high-speed interfaces
● No insertion loss to 2.0GHz
● Response Time is < 1 ns
● Solid-state silicon avalanche technology
● ROHS compliant
Applications
● Digital Visual Interface (DVI)
● USB 1.1/2.0/OTG
● IEEE 1394 Firewire Ports
● Notebooks & Handhelds
● Projection TV & Monitors
● Set-top box
● Flat Panel Displays
● PCI Express
| File Name | Title | Description |
|---|---|---|

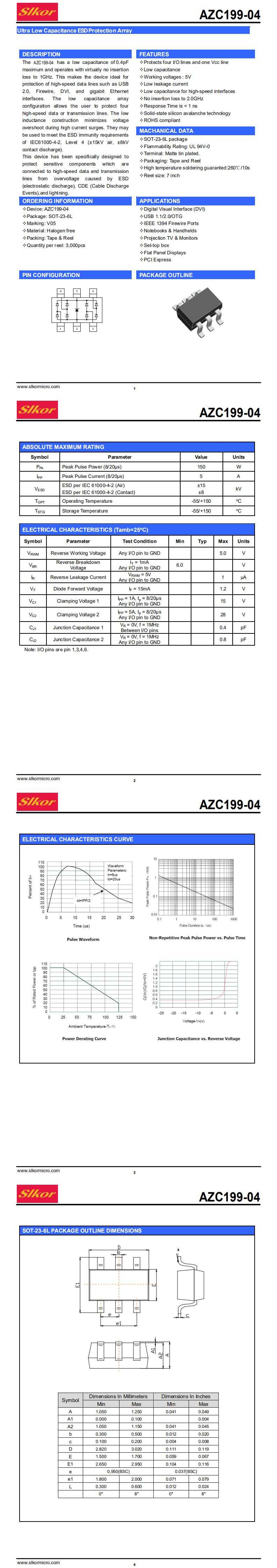

| AZC199-04 SOT-23-6L.pdf | AZC199-04 SOT-23-6L | - |
