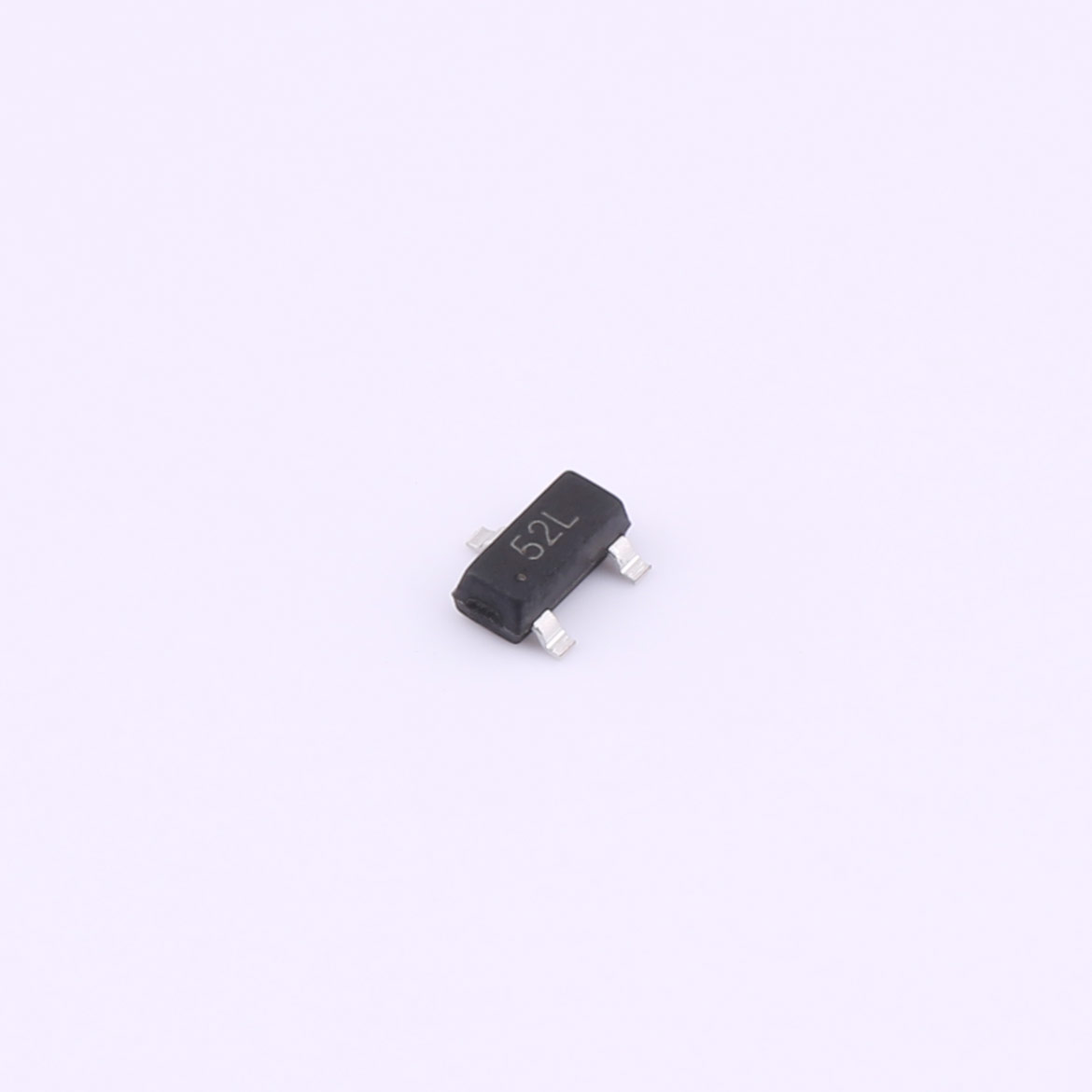

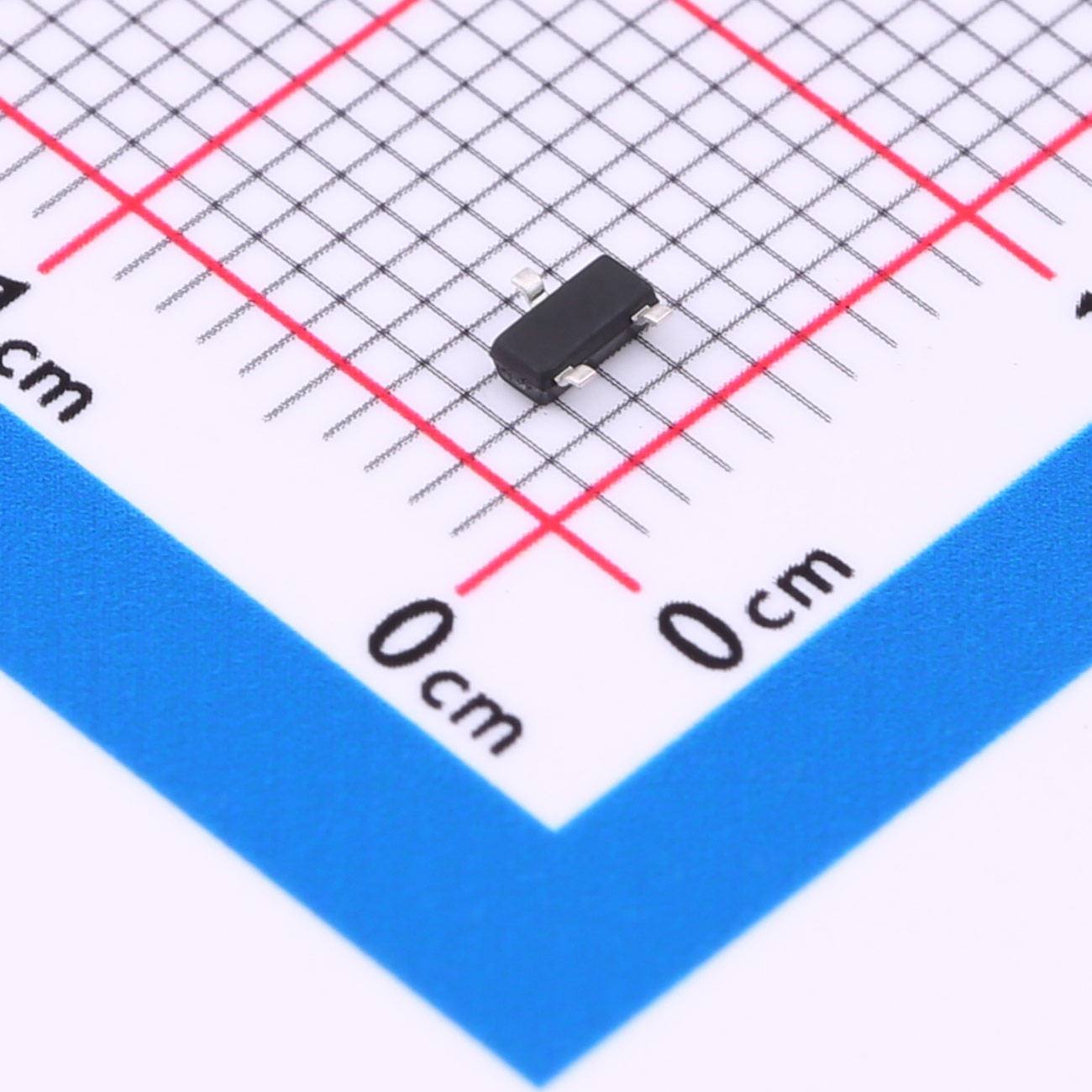

The SLESD0502TL Ultra Low Capacitance TSD/ESD Diodes SOT-23-6L is designed to safeguard sensitive electronic components from voltage spikes and transient surges. With a maximum working voltage (VRWM) of 5V, this diode ensures reliable protection in various electronic applications. Housed in a compact SOT-23 package, it combines robust performance with a space-saving design.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD0502TL Ultra Low Capacitance TSD/ESD Diodes SOT-23-6L is designed to safeguard sensitive electronic components from voltage spikes and transient surges. With a maximum working voltage (VRWM) of 5V, this diode ensures reliable protection in various electronic applications. Housed in a compact SOT-23 package, it combines robust performance with a space-saving design.
Features
● Maximum Working Voltage (VRWM): 5V
● Breakdown Voltage (VBR): Minimum 6V, ensuring effective suppression of transient voltages.
● Leakage Current (IR): Maximum 100nA, providing minimal interference with circuit operations.
● Clamping Voltage (VC): Maximum 10V, offering strong protection against voltage spikes.
● Package: SOT-23, allowing for easy integration into space-constrained designs.
Applications
Ideal for use in various electronic circuits, this diode is perfect for protecting microprocessors, communication devices, and consumer electronics from damaging transient voltages. It is well-suited for applications including power supply protection, signal line protection, and general-purpose electronic circuits where reliable surge protection is crucial. The SOT-23 package makes it an excellent choice for modern, compact devices requiring efficient space utilization without compromising on performance
| File Name | Title | Description |
|---|---|---|
| SLESD0502TL SOT-23.pdf | SLESD0502TL SOT-23 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The AZC199-04 has a low capacitance of 0.4pFmaximum and operates with virtually no insertion loss to 1GHz. This makes the device ideal for protection of high-speed data lines such as USB 2.0, Firewire, DVI, and gigabit Ethernet interfaces. The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance construction minimizes voltageovershoot during high current surges. They may be used to meet the ESD immunity requirements of IEC61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
The SLESD11D5.0CT5G is a bi-directional TVSdiode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protect voltage sensitive data and power line. The SLESD11D5.0CT5G complies with the IEC 61000-4-2(ESD) standard with ±15 kV air and ±8 kV contact discharge. It is assembled into an ultra-small 0.6x0.3x0.3mm lead-free 0201 package. The small ZSLESD11D5.0CT5G an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
SLESD0514TL is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD0514TL is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±15KV air, ±8KV contact discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. SLESD0514TL uses small SOT-23-6L package. Each SLESD0514TL device can protect four high-speed data lines one Vcc line. The combined features of ultra-low capacitance, small size and high ESD robustness make SLESD0514TL ideal for high-speed data ports and high-frequency lines (e.g., HDMI & DVI) applications. The low clamping voltage of the SLESD0514TL guarantees a minimum stress on the protected IC.
Our diode offers precise voltage control with a maximum VRWM of 5V, ensuring reliable performance in your circuits. With a breakdown voltage (VBR) range from 6V to 9V, it delivers stable operation across various conditions. The diode's low reverse leakage current (IR) of just 1μA enhances circuit efficiency and minimizes power loss. Encased in a compact DFN1006 package, it’s well-suited for space-constrained applications.
The SLESD3V3D5 Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
The SLESD5B5CL is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many ther portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed, VGA, DVI, SDI and other high speed line applications. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients).
The SLESDBL7V0D3 Series is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers ,printers ,business machines , communication systems, medical equipment and other applications . These devices are ideal for situations where board space is at a premium. This series has been specifically designed to protect sensitive components which are connected to power、data and transmission lines from overvoltage caused by ESD ( electrostatic discharge ), CDE (Cable Discharge Events),and EFT (electrical fast transients)
SLESDTU5V0A1 is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.25pF, SLESDTU5V0A1 is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. SLESDTU5V0A1 uses ultra-small DFN1006 .Each SLESDTU5V0A1 device canprotect one high - speed data line. It offers system designers flexibility to protect single data line where space is a premium concern. The combined features of low capacitance, ultra-small size and high ESD robustness make ideal for highspeed data port and high -frequency line applications, such as cellular phones and HD visual devices.
