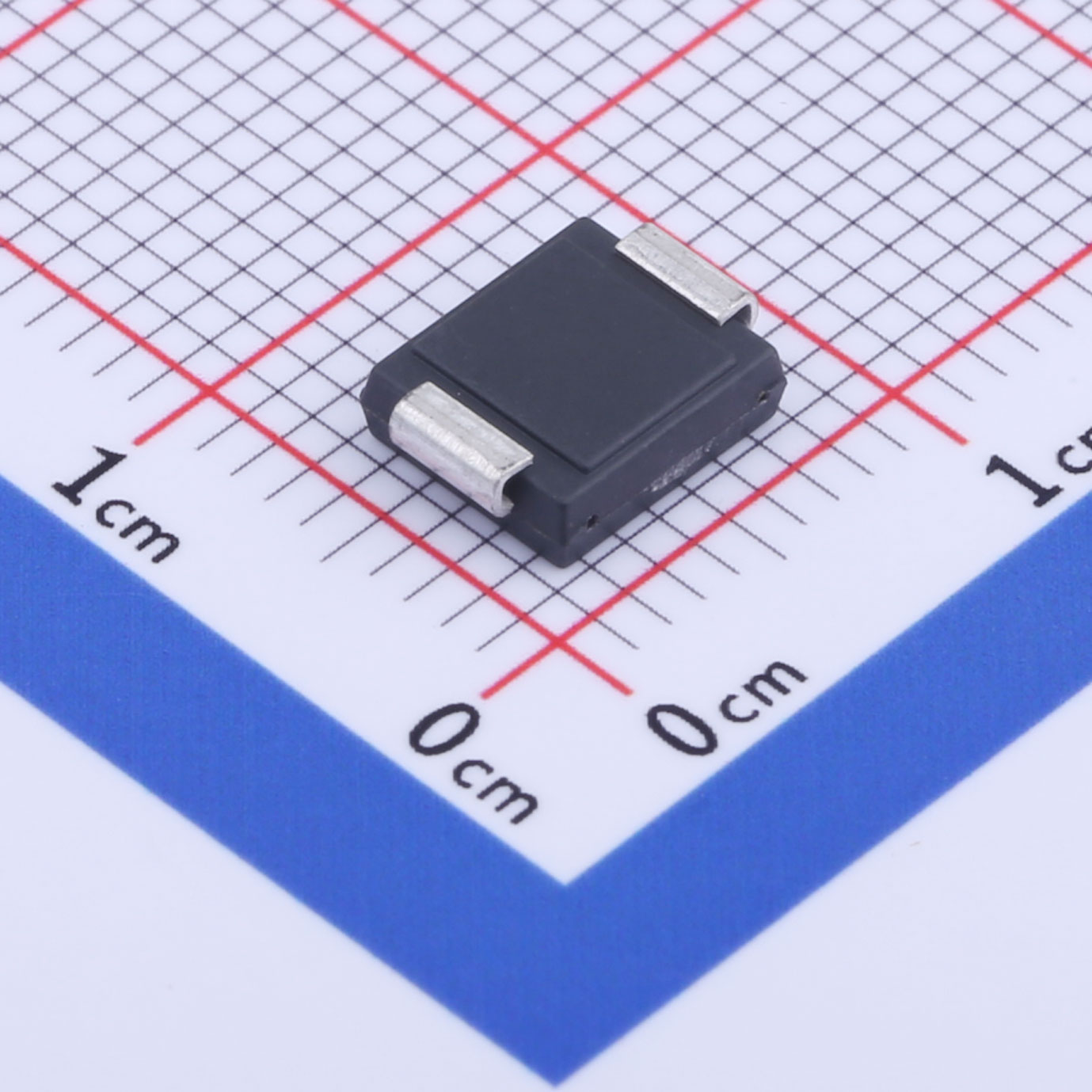

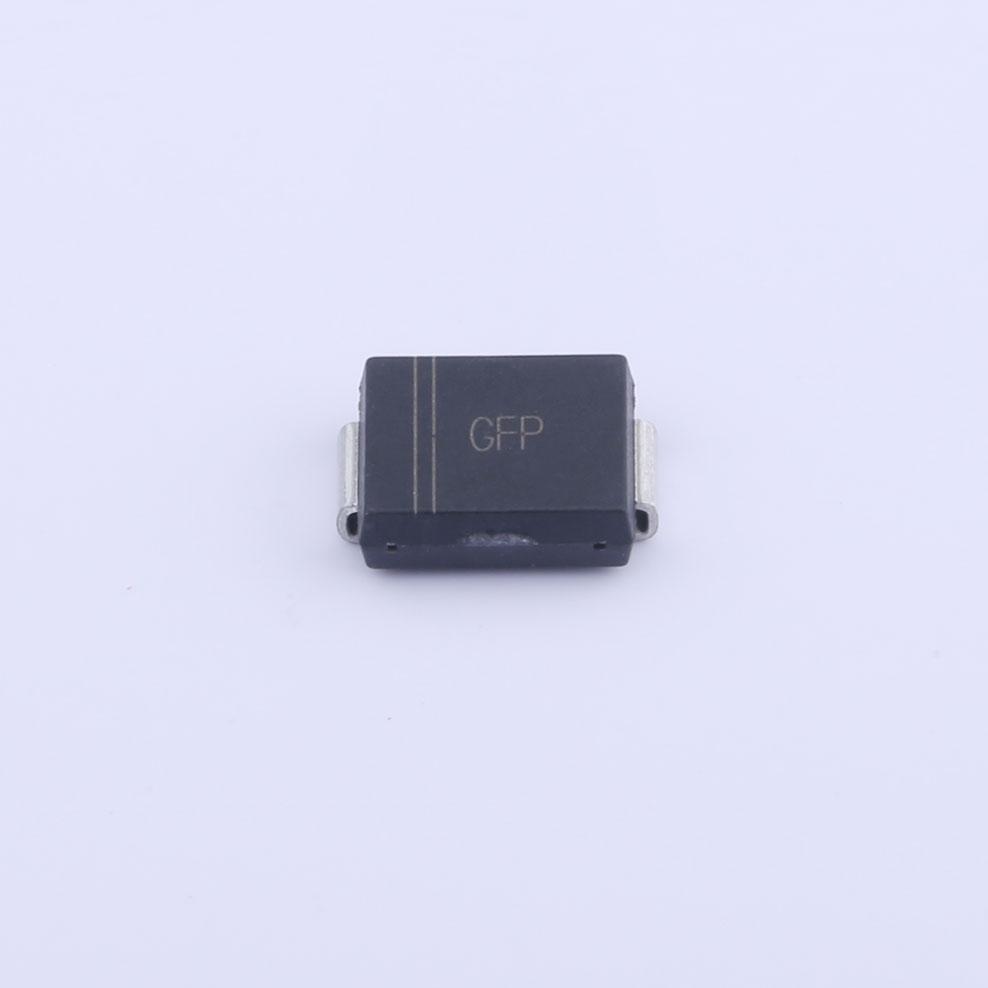

The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is a specialized semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes and surges. Operating with a VRWM (Working Peak Reverse Voltage) of 36V, this diode effectively clamps transient voltages that exceed its breakdown voltage (VBR), which ranges from 40V (minimum) to 44.2V (maximum). It features ultra-low reverse leakage current (Ir) of 1μA, ensuring minimal power dissipation during normal operation. The diode can handle peak pulse currents (Ipp) of up to 25.9A and transient power dissipation (Ppp) of 1500W for 10/1000μs pulses, making it highly reliable in protecting sensitive electronics.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is a specialized semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes and surges. Operating with a VRWM (Working Peak Reverse Voltage) of 36V, this diode effectively clamps transient voltages that exceed its breakdown voltage (VBR), which ranges from 40V (minimum) to 44.2V (maximum). It features ultra-low reverse leakage current (Ir) of 1μA, ensuring minimal power dissipation during normal operation. The diode can handle peak pulse currents (Ipp) of up to 25.9A and transient power dissipation (Ppp) of 1500W for 10/1000μs pulses, making it highly reliable in protecting sensitive electronics.
Features
● 1500W peak pulse power capability at 10/1000μs waveform
● For surface mounted applications to optimize board space
● Glass passivated chip junction
● Halogen free and RoHS compliant
Mechanical Data
● Case: SMC
● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 0.22g (0.0077oz)
Applications
● Telecommunications
● Industrial Electronics
● Consumer Electronics
● Automotive Electronics
