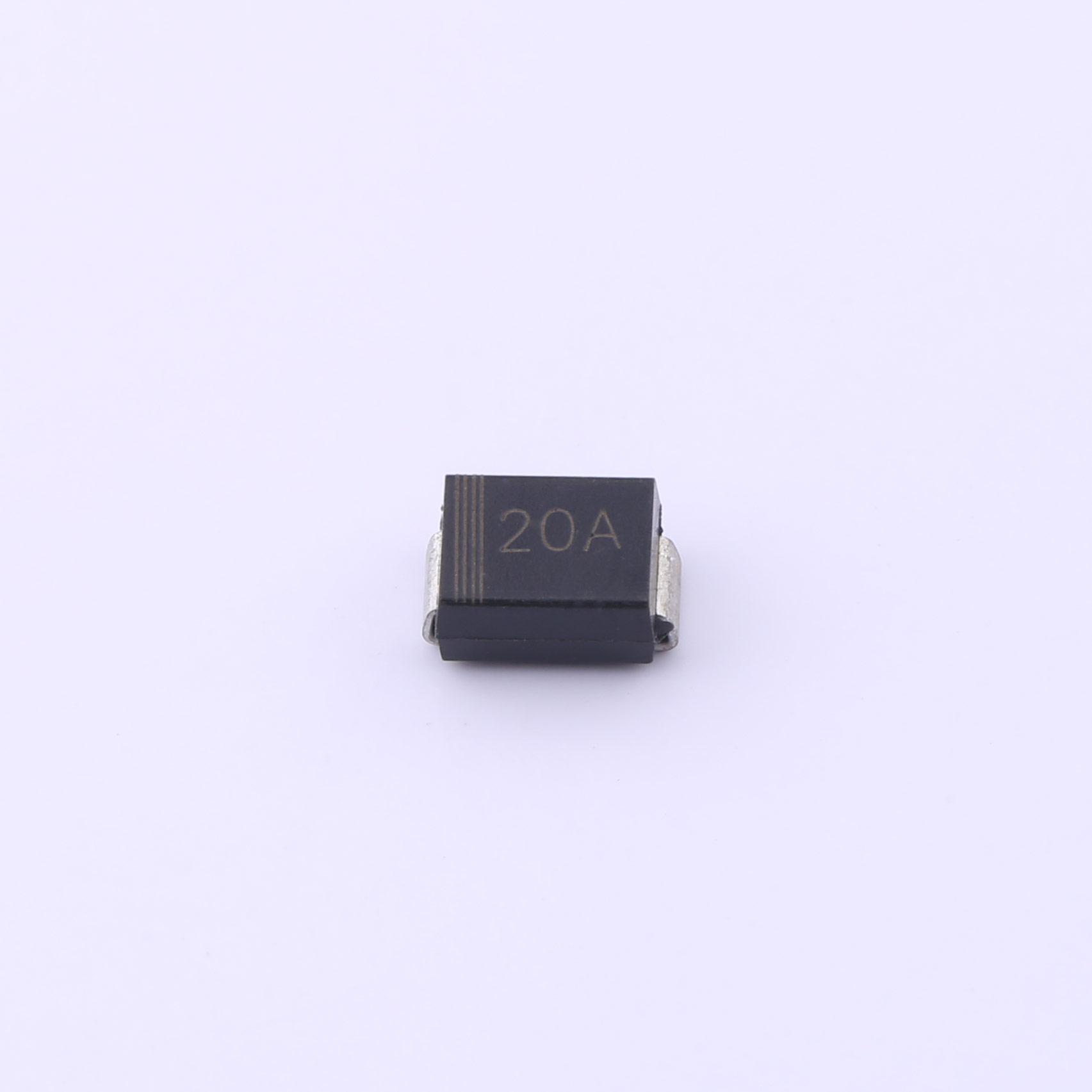

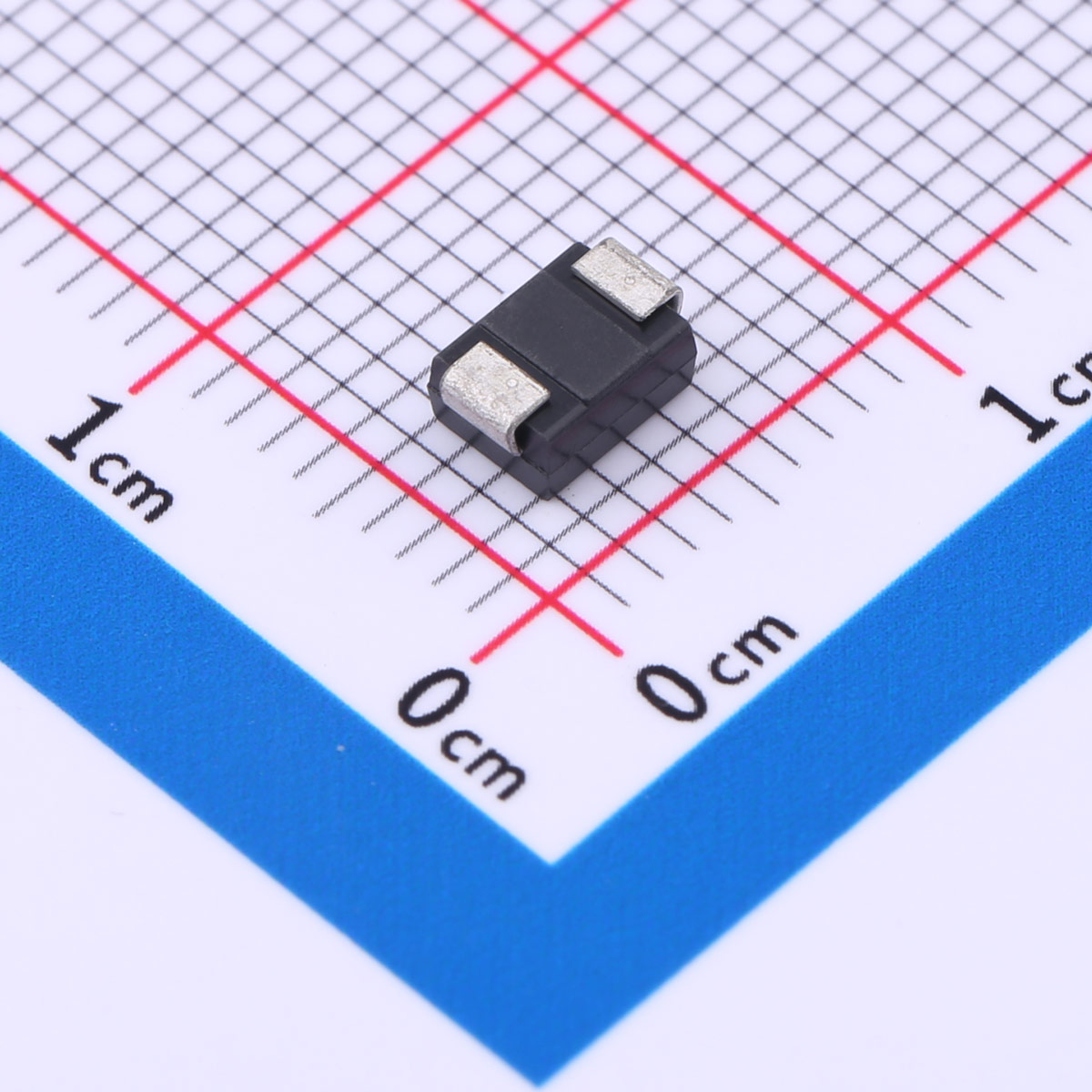

This high-power TVS (Transient Voltage Suppression) Diode, featuring a color-banded cathode for easy identification, is designed to offer superior protection against transient voltage spikes. With its high breakdown and clamping voltages, this diode is ideal for safeguarding sensitive electronics in demanding applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
This high-power TVS (Transient Voltage Suppression) Diode, featuring a color-banded cathode for easy identification, is designed to offer superior protection against transient voltage spikes. With its high breakdown and clamping voltages, this diode is ideal for safeguarding sensitive electronics in demanding applications.
Features
● 600W peak pulse power
● Excellent clamping capability
● Small clamping voltage
● Fast response time: uni-directional less than 1.0ps from 0V to VBR, bi-directional less than 5.0ns
Mechanical characteristics
● Package: Molded package
● Encapsulation material: Flame-retardant epoxy recognized by UL94V-O
● Terminals: Tin-plated
● Polarity: Cathode indicated by color band
● Mounting position: Any
Applications
● Industrial Equipment
● Power Supplies
● Telecom and Networking
● Automotive Systems
| File Name | Title | Description |
|---|---|---|
| 2.pdf | 2 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vrwm:9.4V VBR(min):10.5V VBR(max):11.6V Ir:5μA VC:15.6V Ppp@10/1000μs:600W
The High-Performance TVS Diode is designed to provide superior protection against transient voltage spikes, ensuring the safety and reliability of your electronic devices. With its robust specifications, this diode is an ideal choice for safeguarding sensitive components in various applications.
The High-Performance TVS Diode is designed to provide superior protection against transient voltage spikes, ensuring the safety and reliability of your electronic devices. With its robust specifications, this diode is an ideal choice for safeguarding sensitive components in various applications.
This diode boasts a maximum VRWM of 8.5V and a minimum VBR (Breakdown Voltage) of 9.44V, ensuring robust protection against voltage spikes. With a low maximum leakage current (IR) of 20μA and a maximum clamping voltage (VC) of 11.2V, it efficiently safeguards sensitive components. The diode features a maximum junction capacitance (Cj) of 120pF, optimizing signal integrity. Ideal for high-speed data lines, consumer electronics, and communication devices, this TVS diode provides reliable, high-performance protection in a compact SMB package.
This diode boasts a maximum VRWM of 6.5V and a minimum VBR (Breakdown Voltage) of 7.22V, ensuring robust protection against voltage spikes. With a low maximum leakage current (IR) of 500μA and a maximum clamping voltage (VC) of 11.2V, it efficiently safeguards sensitive components. The diode features a maximum junction capacitance (Cj) of 120pF, optimizing signal integrity. Ideal for high-speed data lines, consumer electronics, and communication devices, this TVS diode provides reliable, high-performance protection in a compact SMB package.
?The Polar Bidirectional TVS Diode is a high-performance semiconductor device designed to protect sensitive electronic circuits from transient voltage events in both directions. It effectively clamps excessive voltage levels and dissipates surge currents, ensuring the reliability and longevity of electronic systems.
The Polar Bidirectional TVS Diode is a robust semiconductor device designed to protect sensitive electronic circuits from transient voltage events in both directions. It efficiently clamps excessive voltage levels, safeguarding against potential damage and ensuring the reliability of electronic systems.
The Polar Bidirectional TVS Diode is a robust semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes. With a VRWM (Working Peak Reverse Voltage) of 30V, VBR (Breakdown Voltage) ranging from 33.3V to 38.3V, and an ultra-low reverse leakage current of 5μA, this diode offers reliable overvoltage protection to ensure the longevity and reliability of electronic systems.
