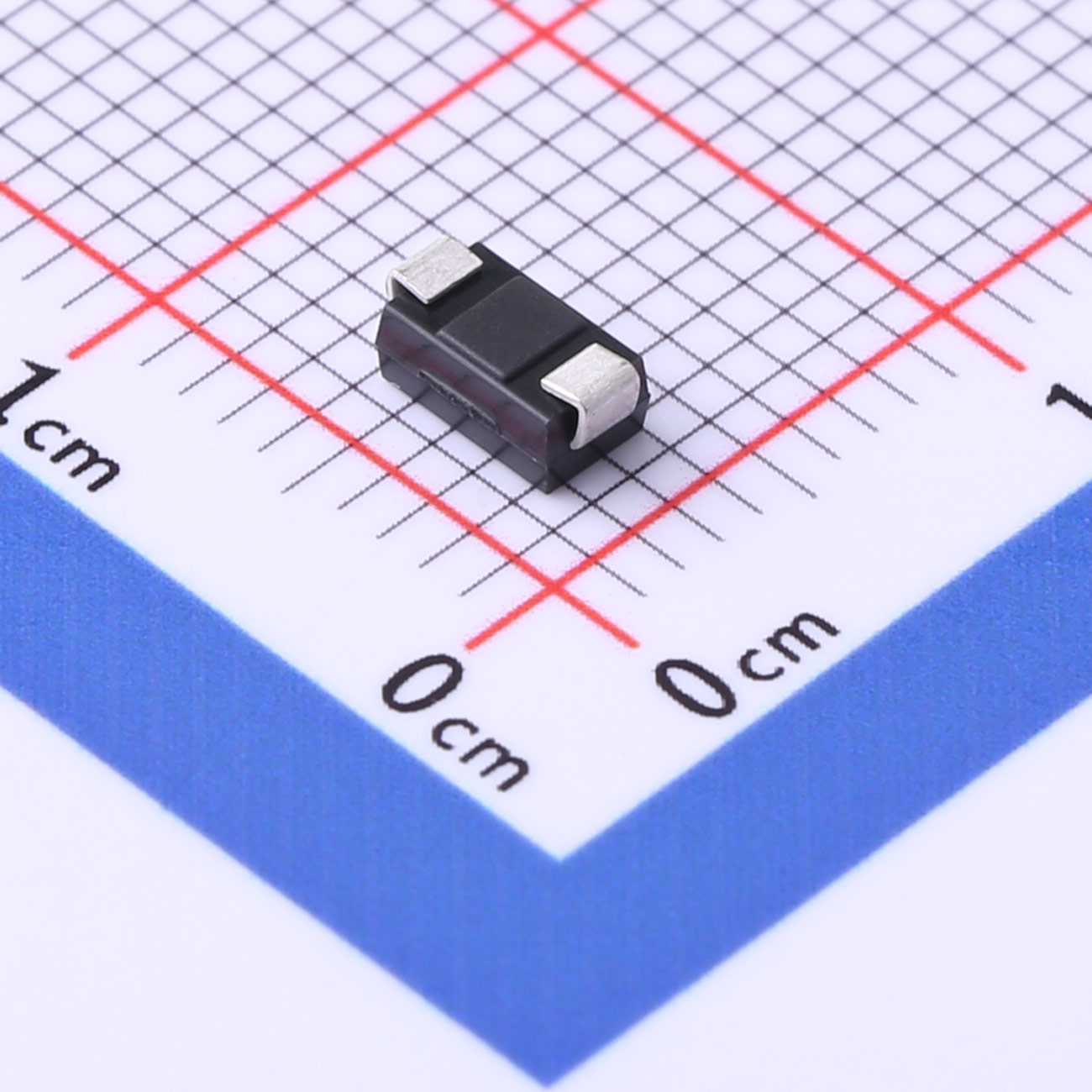

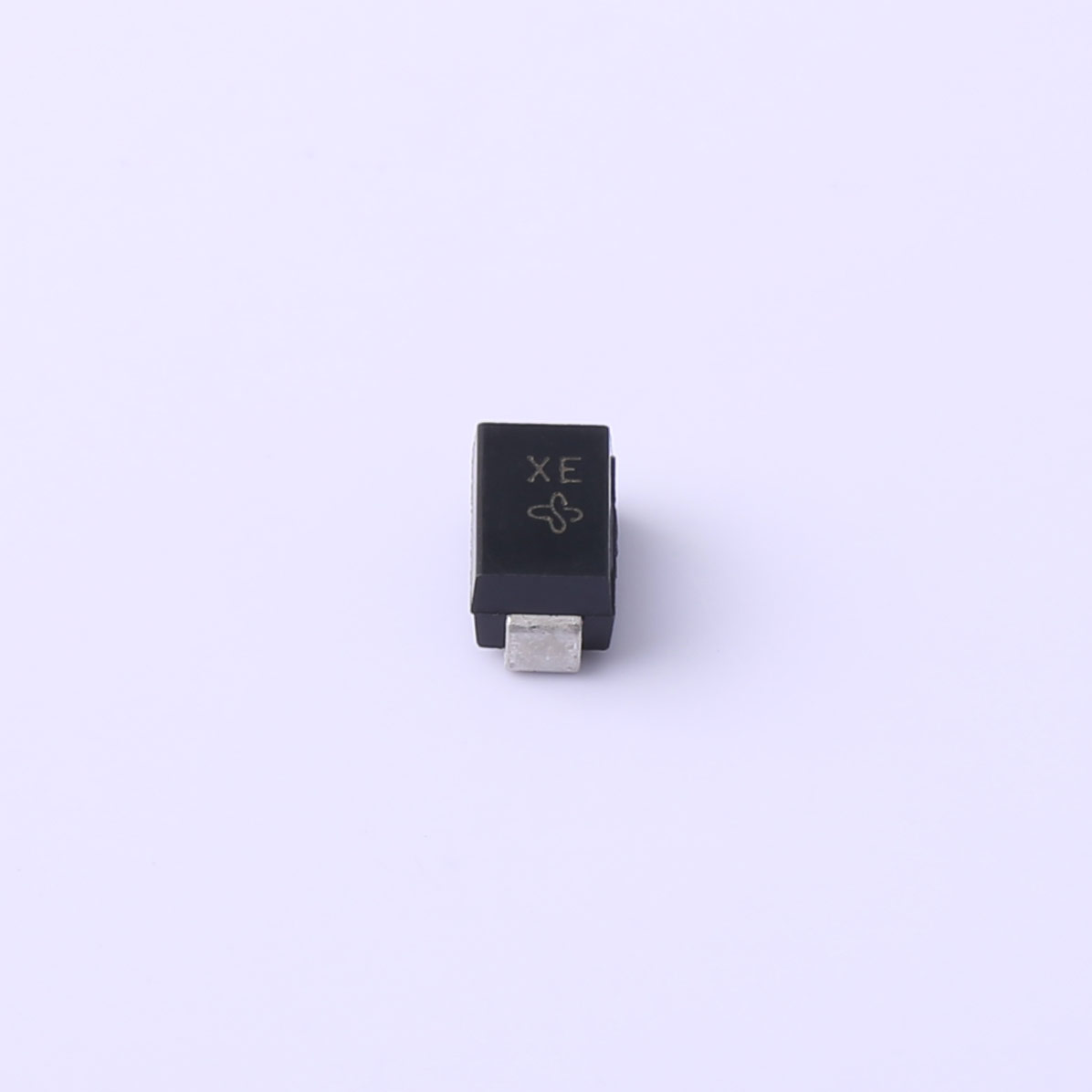

This high-performance TVS (Transient Voltage Suppression) Diode, housed in a compact DO-214AC package, is engineered to provide robust protection for electronic circuits against transient voltage spikes. Designed to handle a maximum working voltage (VRWM) of 12V, it ensures reliable operation and effective suppression of transient surges, safeguarding sensitive components in various applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
This high-performance TVS (Transient Voltage Suppression) Diode, housed in a compact DO-214AC package, is engineered to provide robust protection for electronic circuits against transient voltage spikes. Designed to handle a maximum working voltage (VRWM) of 12V, it ensures reliable operation and effective suppression of transient surges, safeguarding sensitive components in various applications.
Features
● Glass Passivated Die Construction
● Uni- and Bi-Directional Versions Available
● Excellent Clamping Capability
● Fast Response Time
● Plastic Material: UL Flammability
Applications
Overvoltage Protection
Circuit Protection
Power Supply Protection
Telecommunications
| File Name | Title | Description |
|---|---|---|
| SMAJ58A.pdf | SMAJ58A | - |
