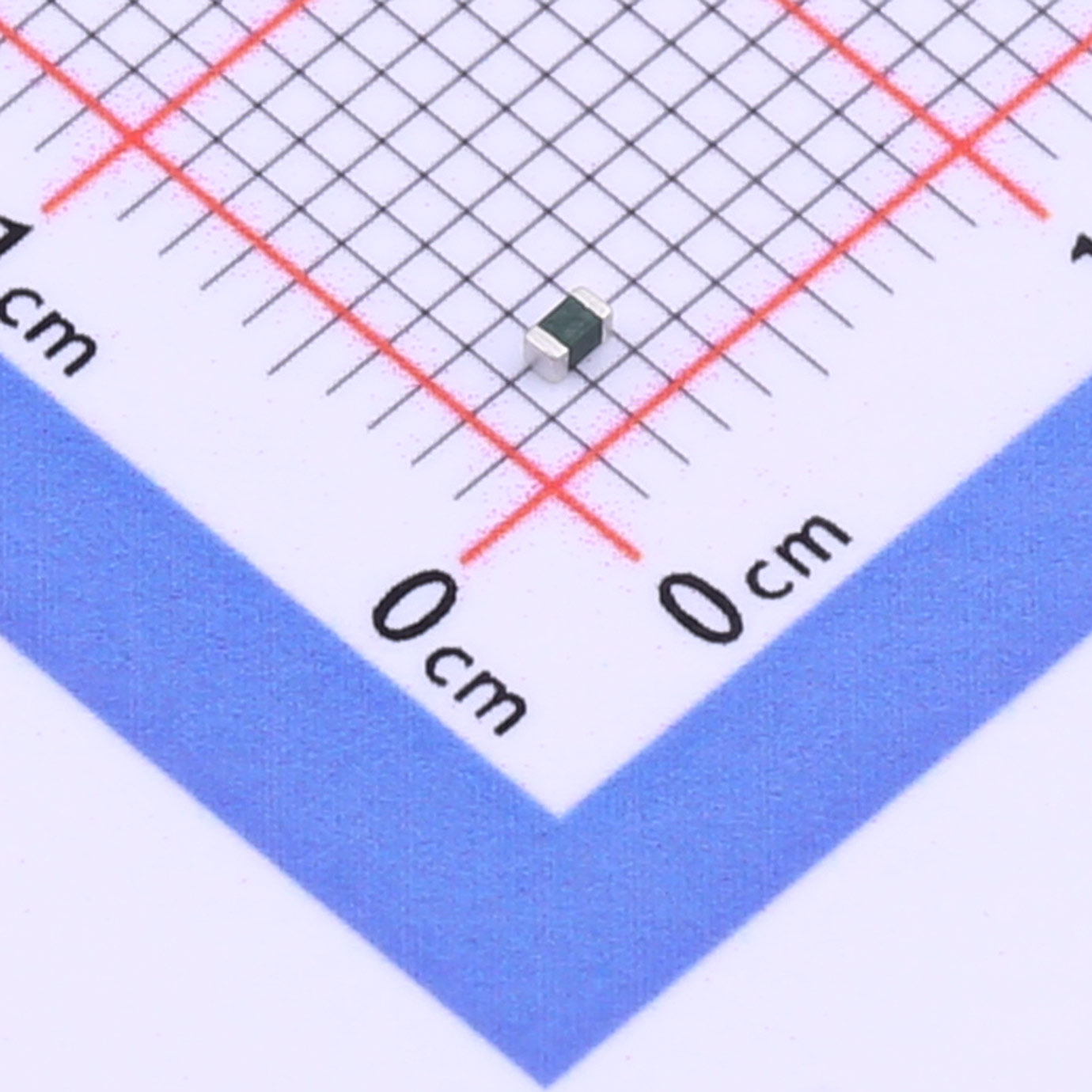

SLESDL0603-12 TVS Diode
Download datasheet InquiryFeatures
● 0603inch/ 1608mm foot print
● Ideal ESD protection for high frequency, low voltage applications.
● Exceeds testing requirements outlined in IEC 61000-4-2
● Ultra low capacitance (1.5pF typ.)
● Very low leakage current
● Fast response time
● Bi-directional
● MSL 3
Mechanical Data
● Surface mount
● RoHS Compliant
Applications
● High Speed Data Ports ( USB 2.0, IEEE 1394 )
● Computers & Peripherals ( Cell phone, PDA, HDTV, DVD players )
| File Name | Title | Description |
|---|---|---|

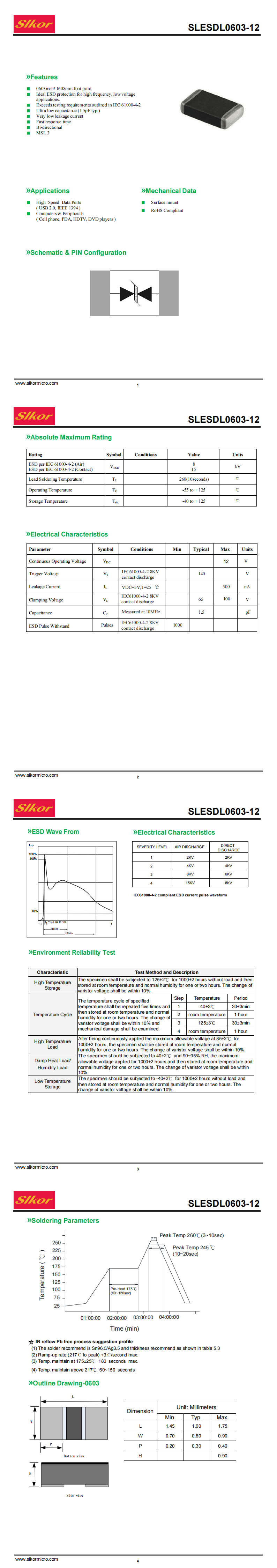

| SLESDL0603-12 0603.pdf | SLESDL0603-12 0603 | - |
