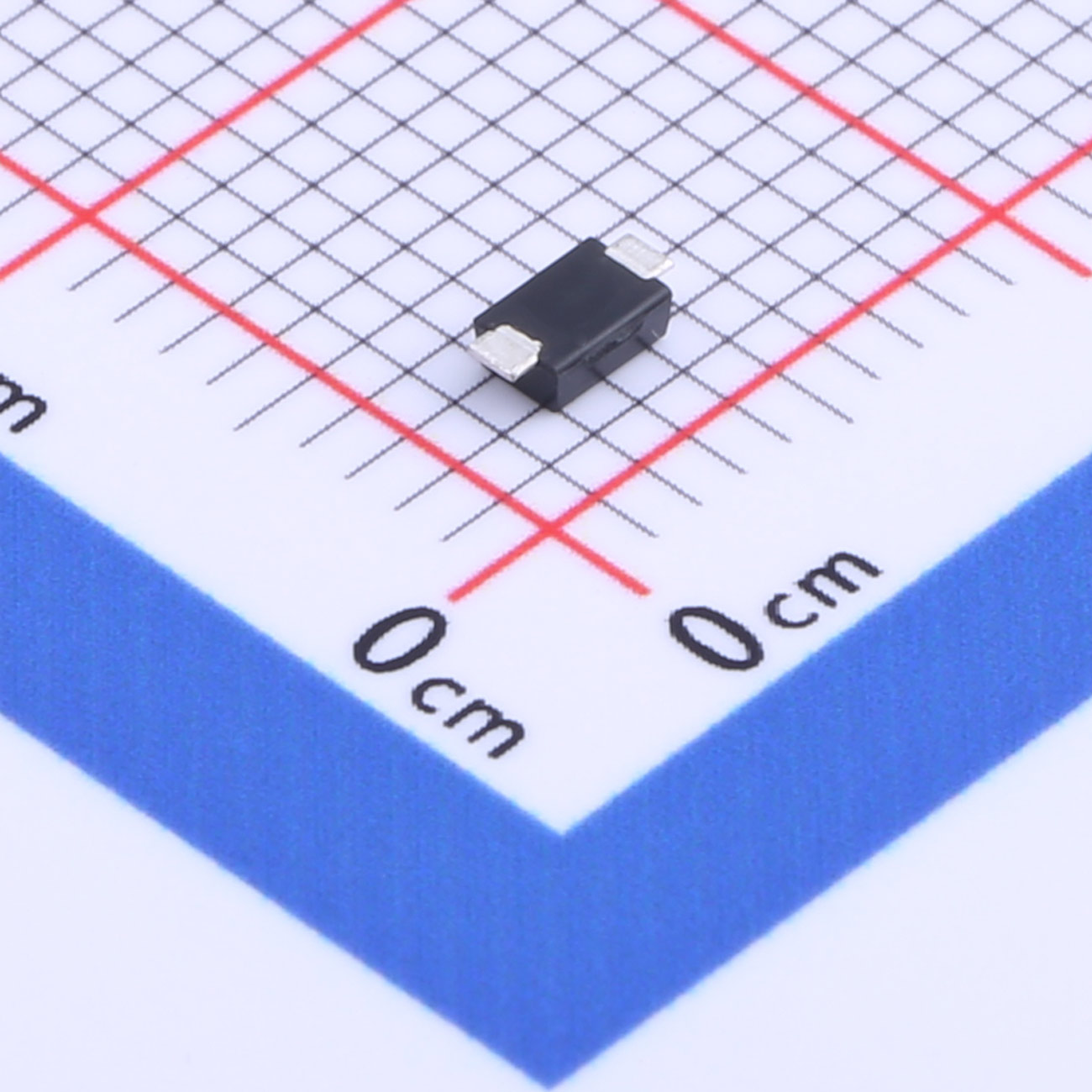

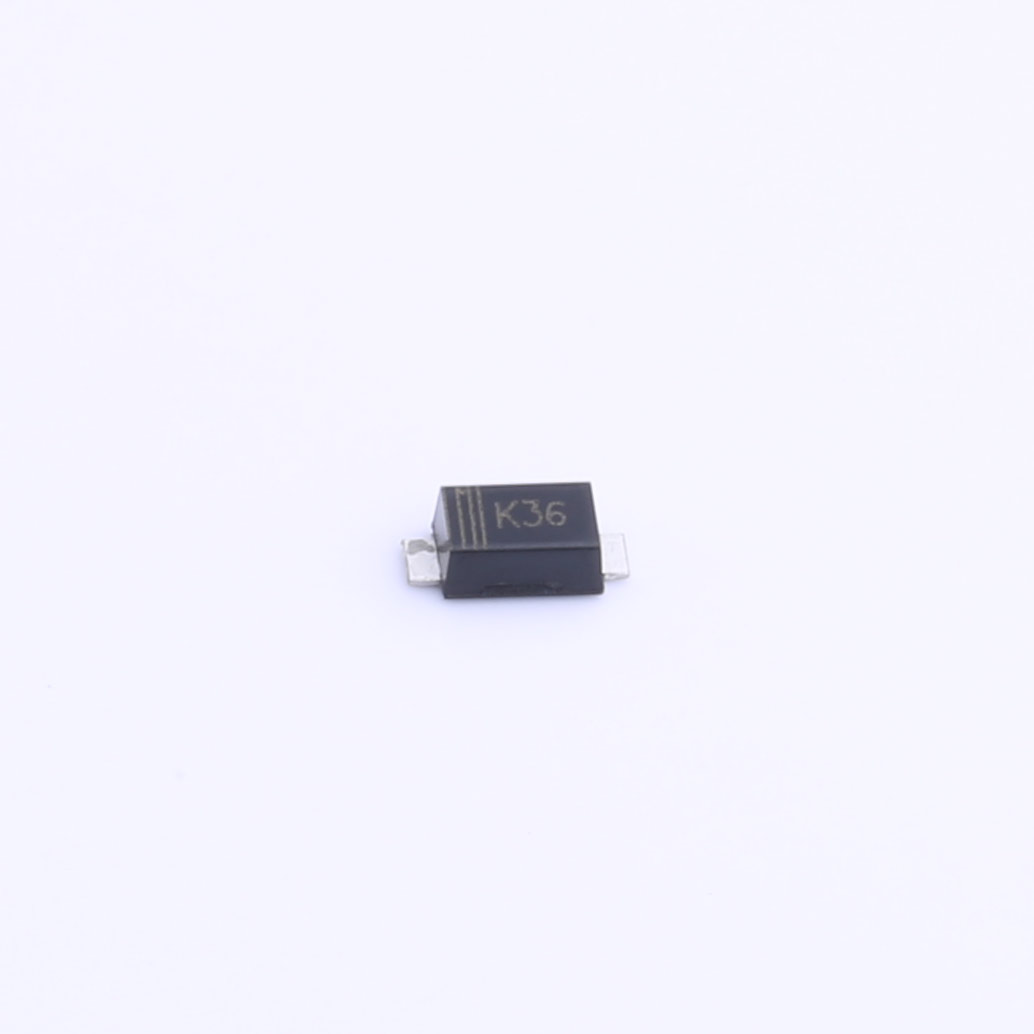

DSK36 Schottky Diode Rectifier SOD-123FL

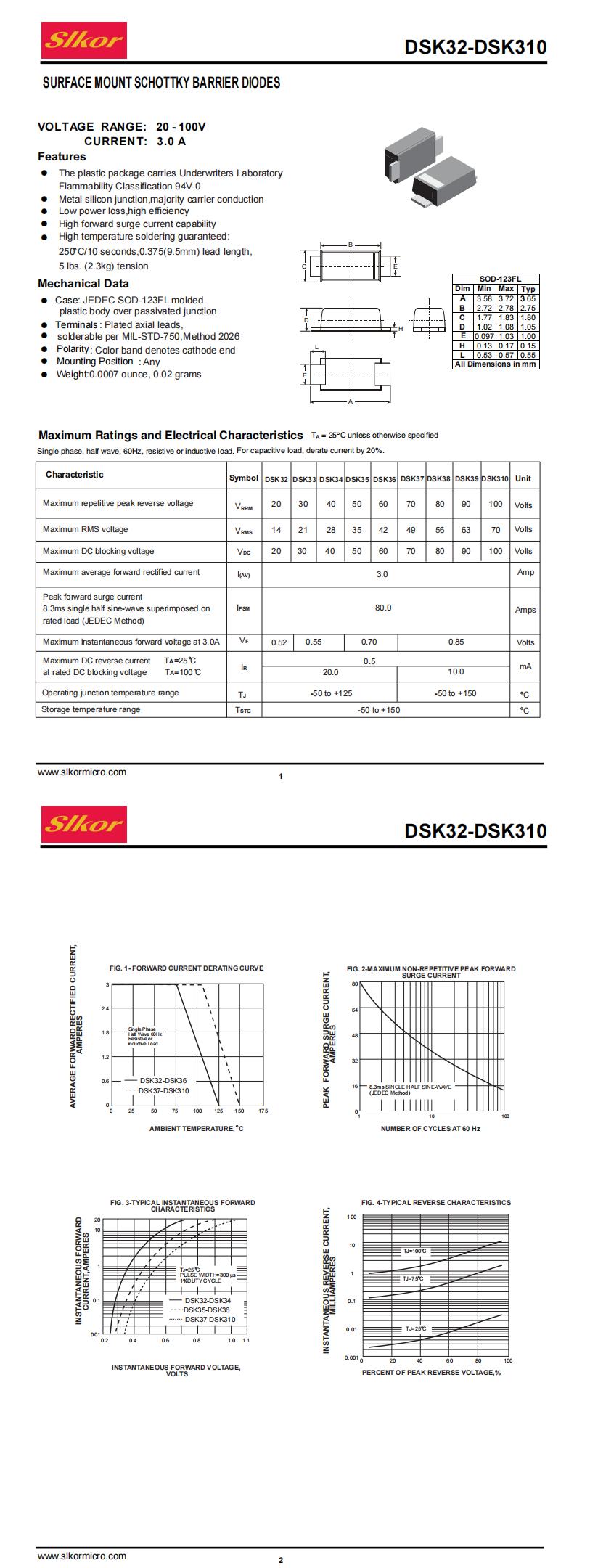

Download datasheet InquirySURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE:20-100V
CURRENT:3.0 A
Features
The plastic package camries Underwriters Laboratory
Flammability Classification 94V-0
Metal silicon junction,majority carrier conduction
Low power loss.high efficiency
High forward surge current capability
High temperature soldering guaranteed: 250 C/10 seconds,0.375(9.5mm)lead length, 5 Ibs.(2.3kg)tension
Mechanical Data
Case: JEDEC SOD-123FLmolded plastic body over passivated junction
Terminals: Plated axial leads solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.0007 ounce.0.02 grams
