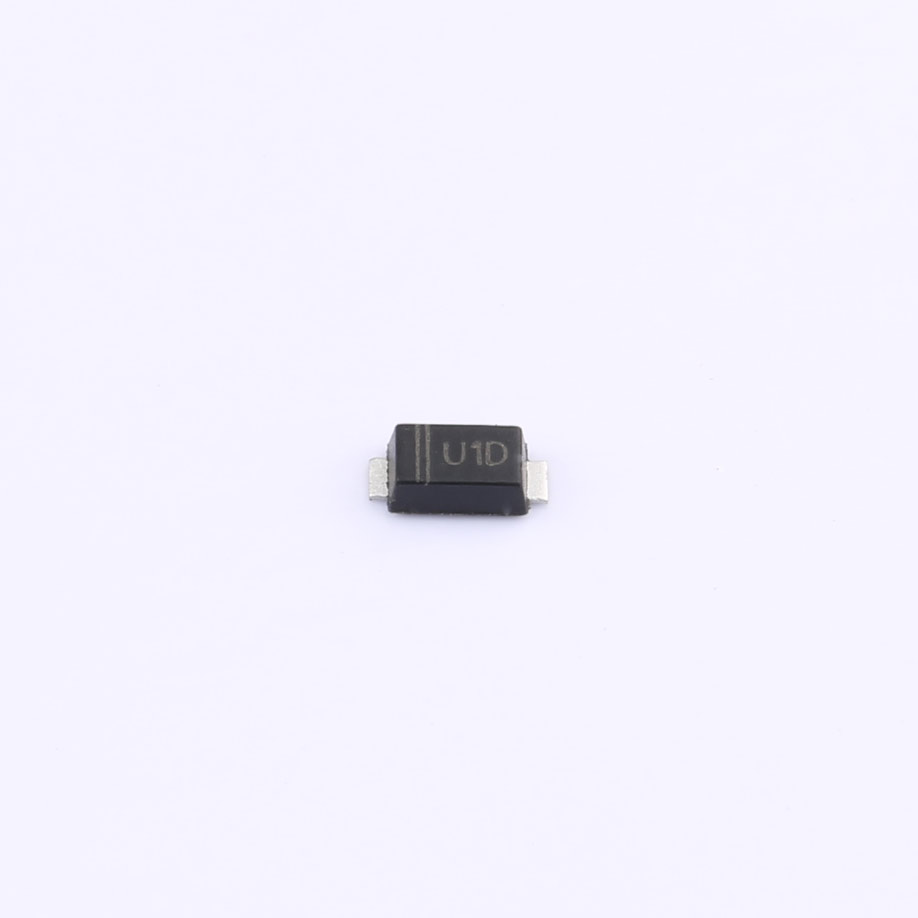

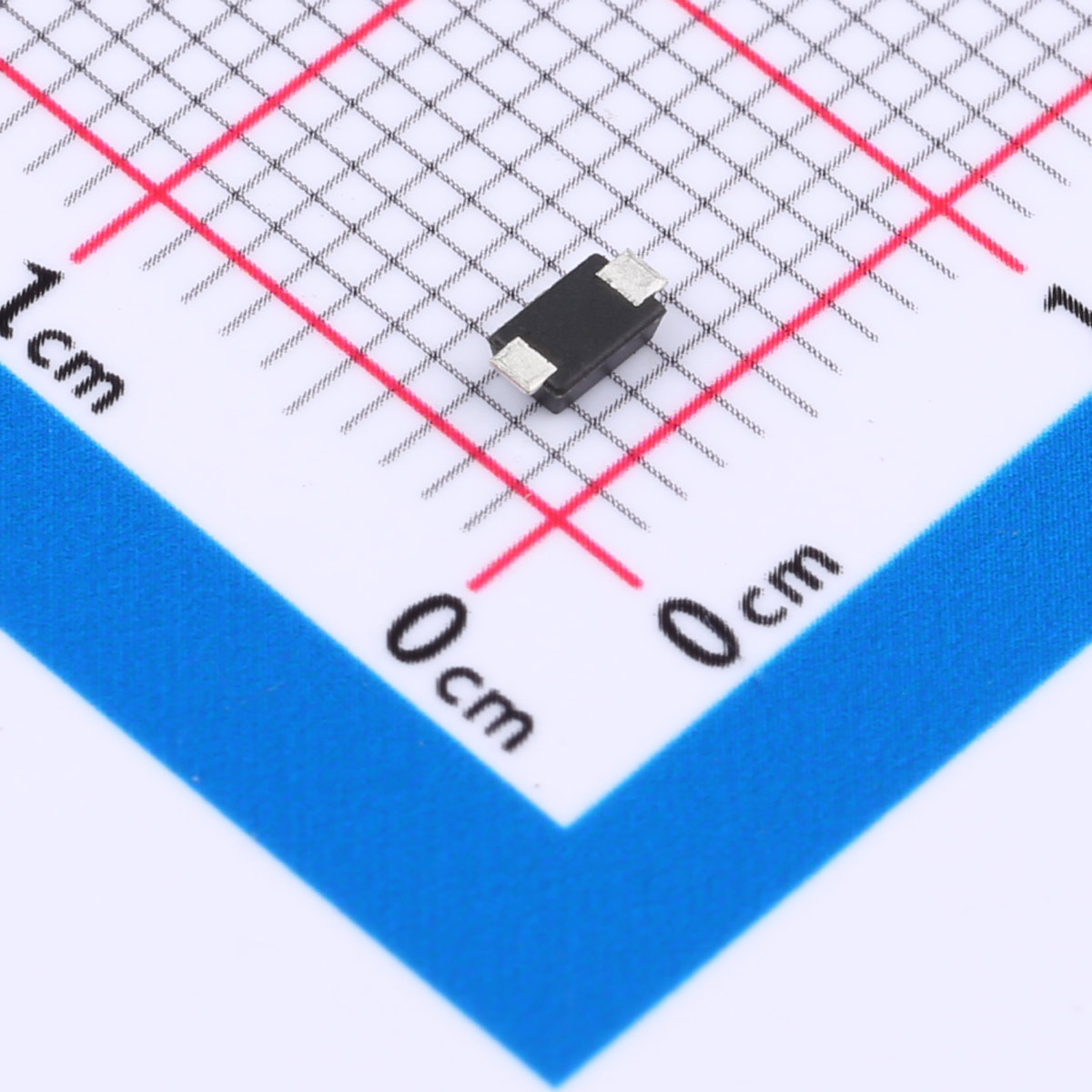

The US1DW is a fast recovery rectifier diode designed for high-speed switching applications where efficiency and reliability are critical. Encapsulated in a compact SOD-123FL package, this diode offers robust performance in a small footprint, making it suitable for space-constrained electronic designs.
Download datasheet InquirySurface Mount Fast Recovery Rectifiers
OUR ADVANTAGE
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
DESCRIPTION
The US1DW is a fast recovery rectifier diode designed for high-speed switching applications where efficiency and reliability are critical. Encapsulated in a compact SOD-123FL package, this diode offers robust performance in a small footprint, making it suitable for space-constrained electronic designs.
FEATURES
● For surface mounted applications
● Low profile package
● Glass Passivated Chip Junction
● High efficiency
● Lead free in comply with EU RoHS 2011/65/EU directives
APPLICATIONS
● Switching Power Supplies: Efficient rectification and switching in AC-DC converters.
● Voltage Clamping: Protection circuits in automotive electronics and industrial equipment.
● DC-DC Converters: High-frequency rectification in voltage step-down circuits.
● LED Lighting: Current control and rectification in LED driver circuits.
● Consumer Electronics: Power management and voltage regulation in portable devices.
| File Name | Title | Description |
|---|---|---|

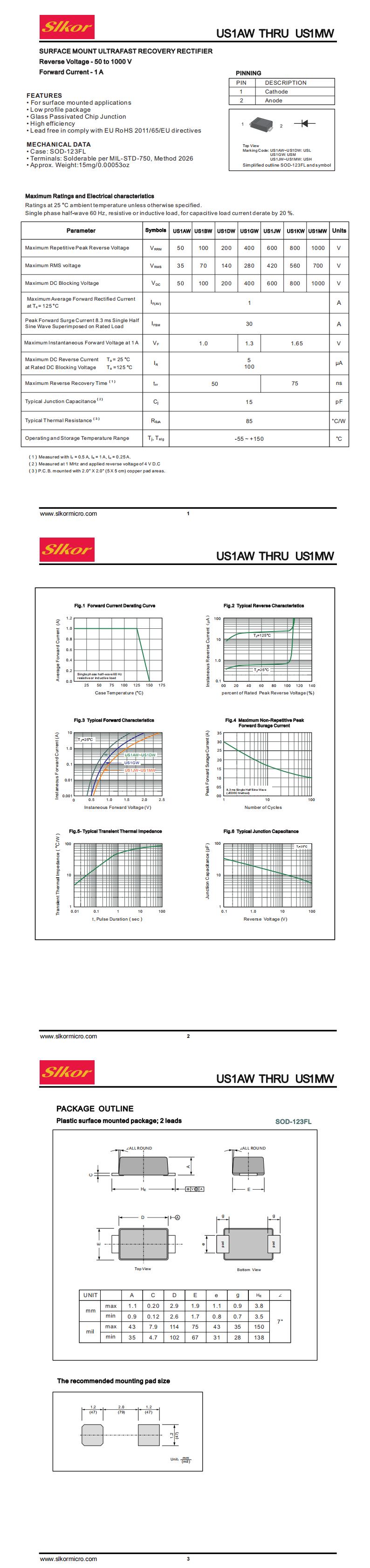

| US1DW SOD-123FL.pdf | US1DW SOD-123FL | - |
