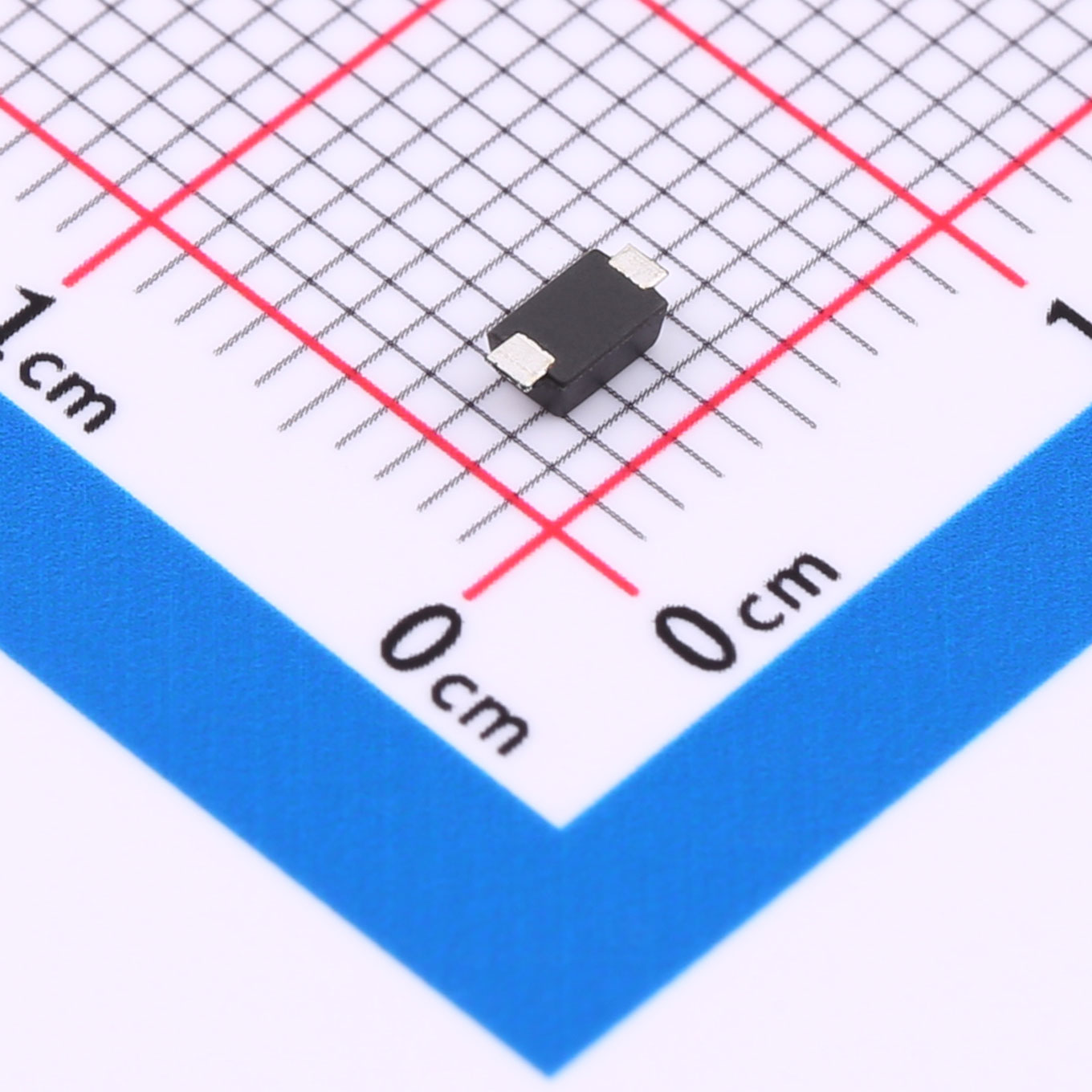

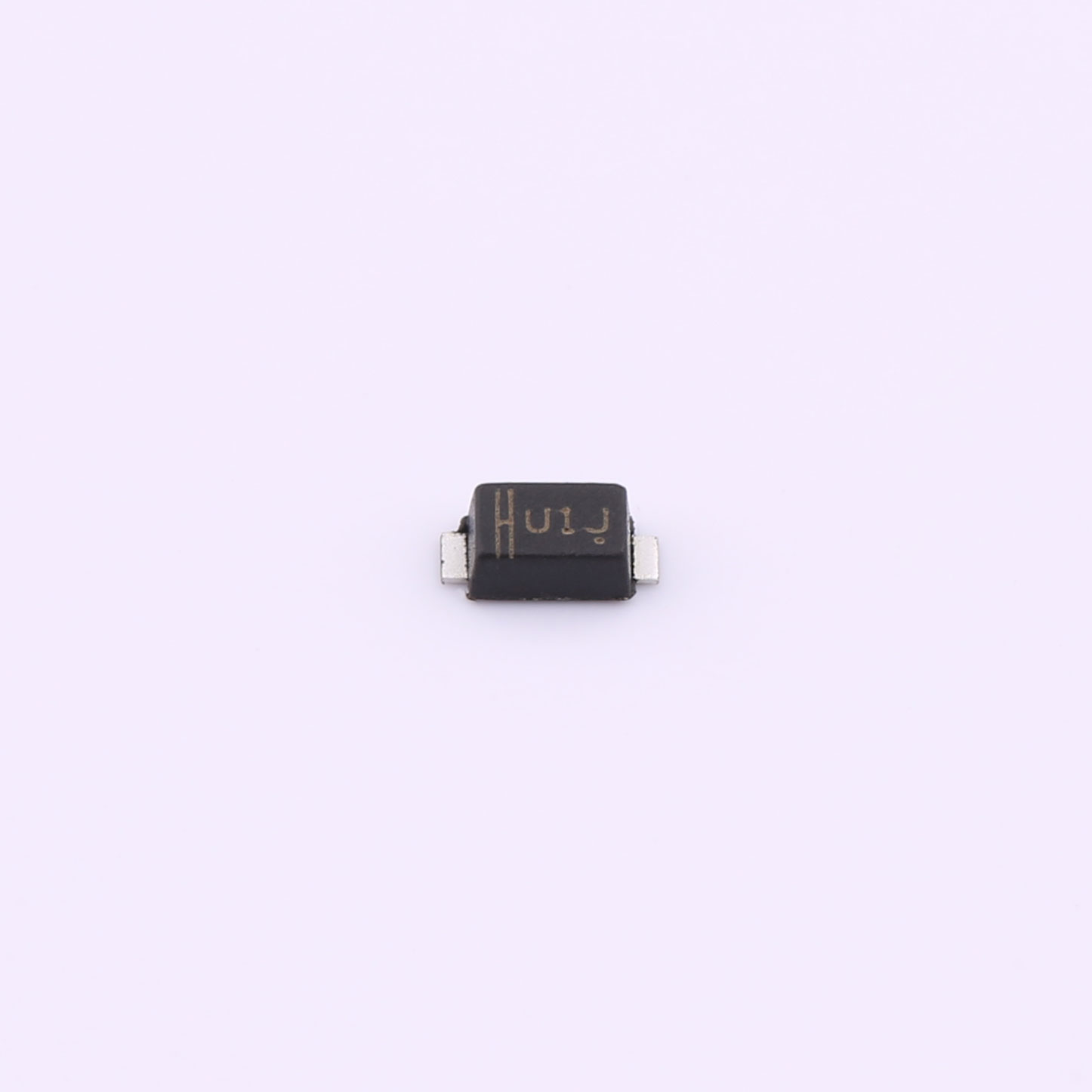

The US1JW Fast Recovery Rectifier Diode SOD-123FL is a high-performance semiconductor device designed for efficient power management in various electronic applications. With its advanced Schottky barrier technology, it offers superior speed and low forward voltage drop, making it ideal for modern electronic circuits that require reliable and efficient operation.
Download datasheet Inquiry
OUR ADVANTAGE
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
DESCRIPTION
The US1JW Fast Recovery Rectifier Diode SOD-123FL is a high-performance semiconductor device designed for efficient power management in various electronic applications. With its advanced Schottky barrier technology, it offers superior speed and low forward voltage drop, making it ideal for modern electronic circuits that require reliable and efficient operation.
FEATURES
● For surface mounted applications
● Low profile package
● Glass Passivated Chip Junction
● High efficiency
● Lead free in comply with EU RoHS 2011/65/EU directives
APPLICATIONS
● Power Rectification: Efficiently converts AC to DC in power supply circuits.
● Switching Circuits: Ideal for high-speed switching applications due to its fast reverse recovery time.
● Protective Diodes: Protects sensitive components from voltage spikes and reverse polarity.
● Voltage Clamping: Provides stable voltage regulation in clamping circuits.

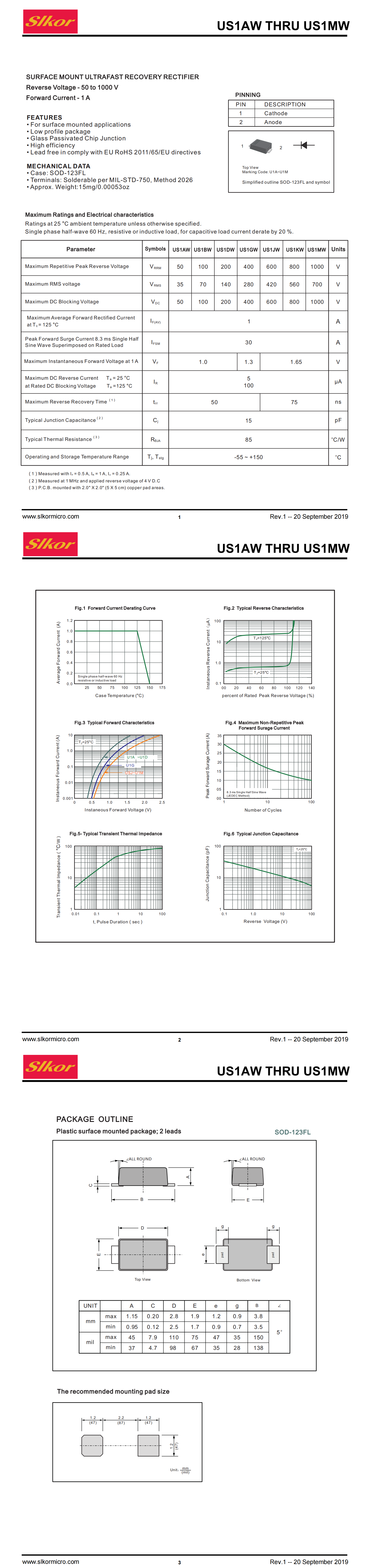

| File Name | Title | Description |
|---|---|---|
| US1MW SOD-123FL.pdf | US1MW SOD-123FL | - |
