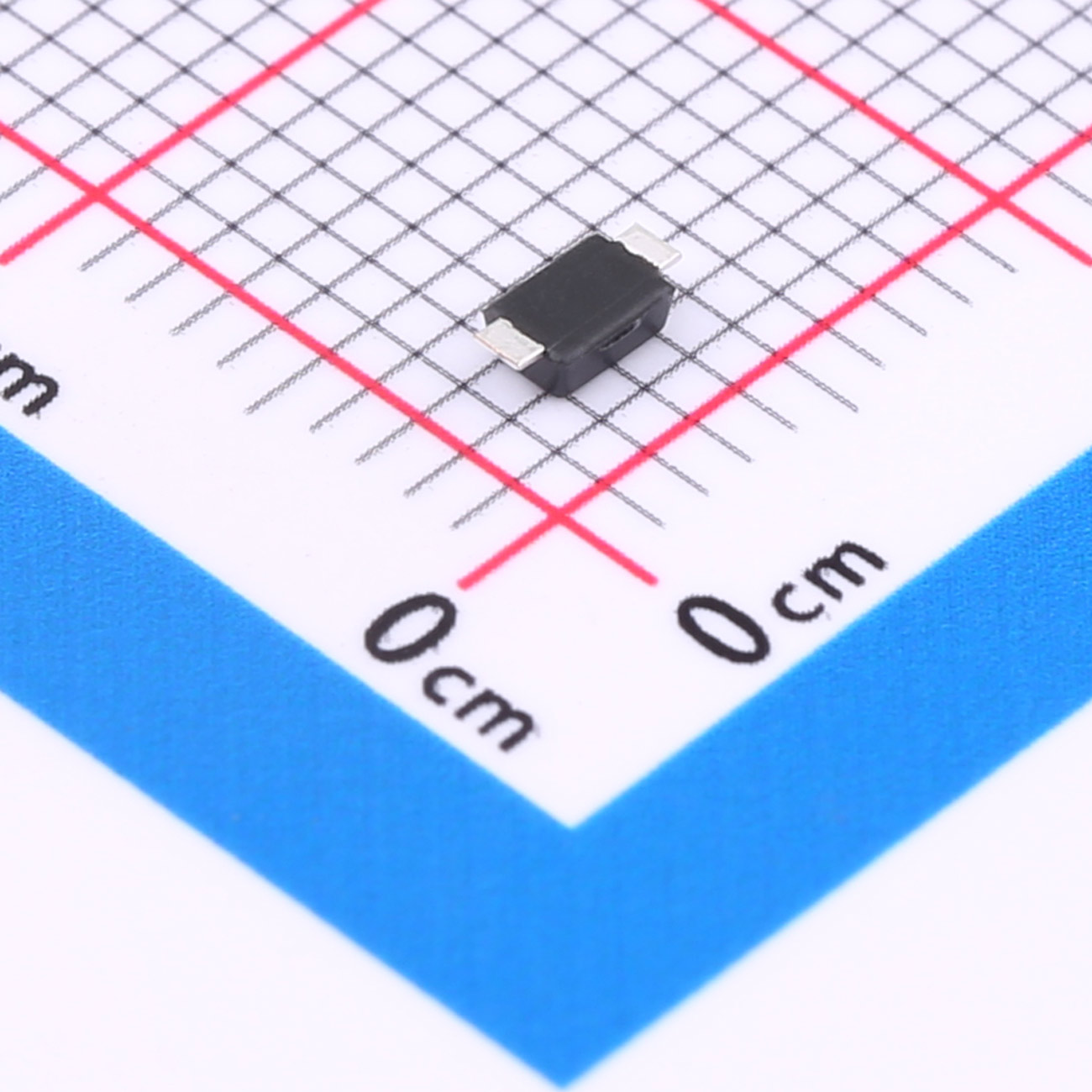

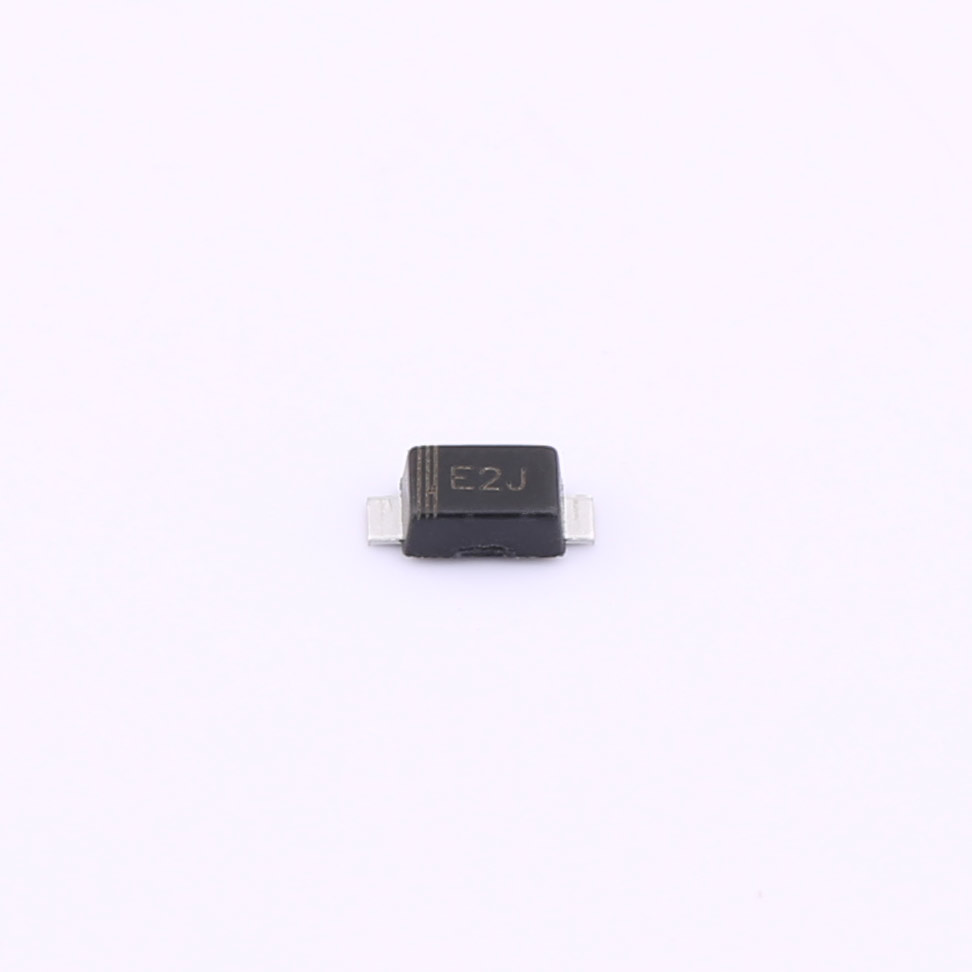

The ES2JW Fast Recovery Rectifier Diode SOD-123FL is designed to meet the demanding requirements of modern electronic applications. This rectifier diode, with a maximum reverse voltage (VRRM) of 50V and a forward current (IO) of 2A, ensures reliable and efficient performance in a compact SOD-123FL package. It features a low forward voltage drop (VF) of just 0.95V and an ultra-low reverse leakage current (IR) of 5μA, making it an ideal choice for high-efficiency circuits.
Download datasheet InquiryOUR ADVANTAGE
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
DESCRIPTION
The ES2JW Fast Recovery Rectifier Diode SOD-123FL is designed to meet the demanding requirements of modern electronic applications. This rectifier diode, with a maximum reverse voltage (VRRM) of 50V and a forward current (IO) of 2A, ensures reliable and efficient performance in a compact SOD-123FL package. It features a low forward voltage drop (VF) of just 0.95V and an ultra-low reverse leakage current (IR) of 5μA, making it an ideal choice for high-efficiency circuits.
FEATURES
● The plastic package carries Underwriters LaboratoryFlammability Classification 94V-0
● For surface mounted applications
● Low reverse leakage
● Built-in strain relief,ideal for automated placement
● High forward surge current capability
● High temperature soldering guaranteed:250*C/10 seconds at terminals
● Glass passivated chip junction
APPLICATIONS
● Power Supplies: Ideal for rectification in AC to DC converters and power supply units, ensuring stable output and reliable performance.
● Switching Regulators: Enhances efficiency in switching power supplies by minimizing power loss and improving switching speed.
● Motor Drives: Provides effective protection and rectification in motor drive circuits, supporting smooth and reliable motor operation.
● Consumer Electronics: Suitable for various consumer electronic devices requiring efficient and reliable rectification solutions.
● Automotive: Offers dependable performance in automotive electrical systems and charging circuits, withstanding harsh operating conditions.
| File Name | Title | Description |
|---|---|---|

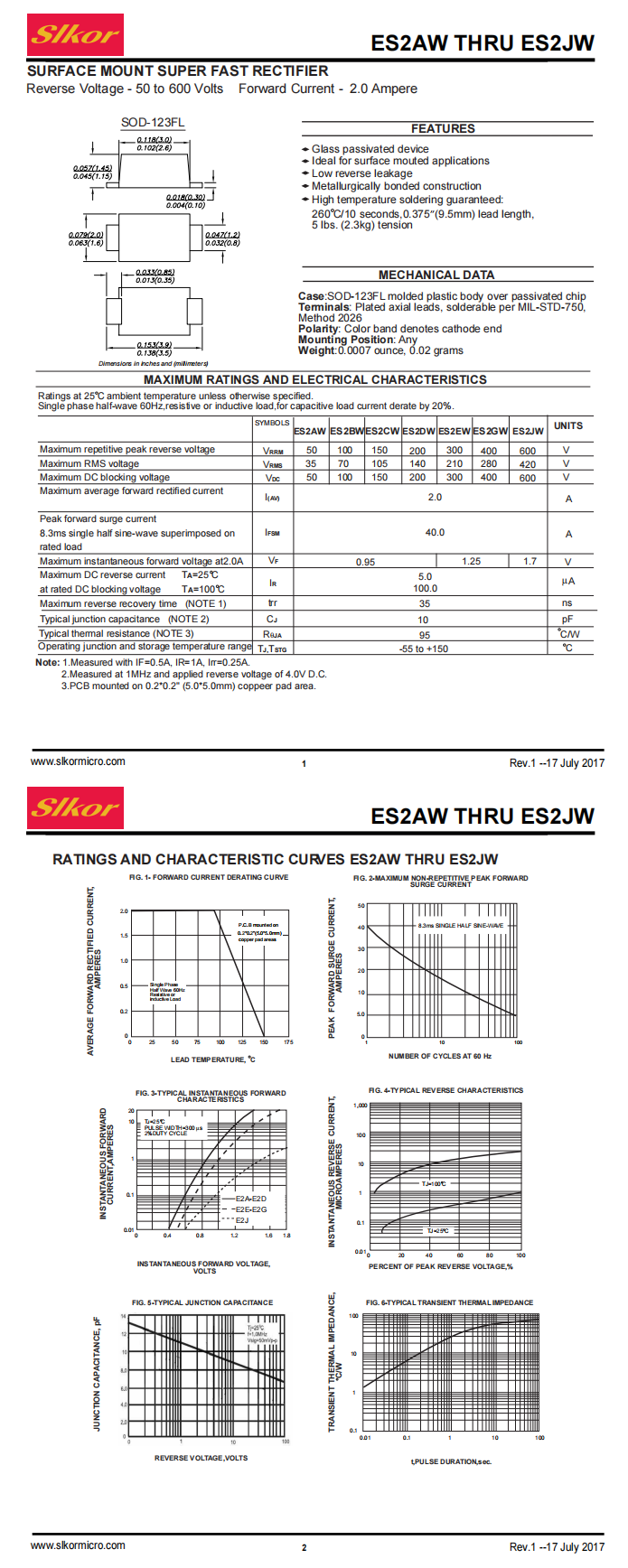

| ES2JW SOD-123FL.pdf | ES2JW SOD-123FL | - |
