Rugged and Reliable
Compact Industry Standard SOT-23 Surface Mount Package
Description

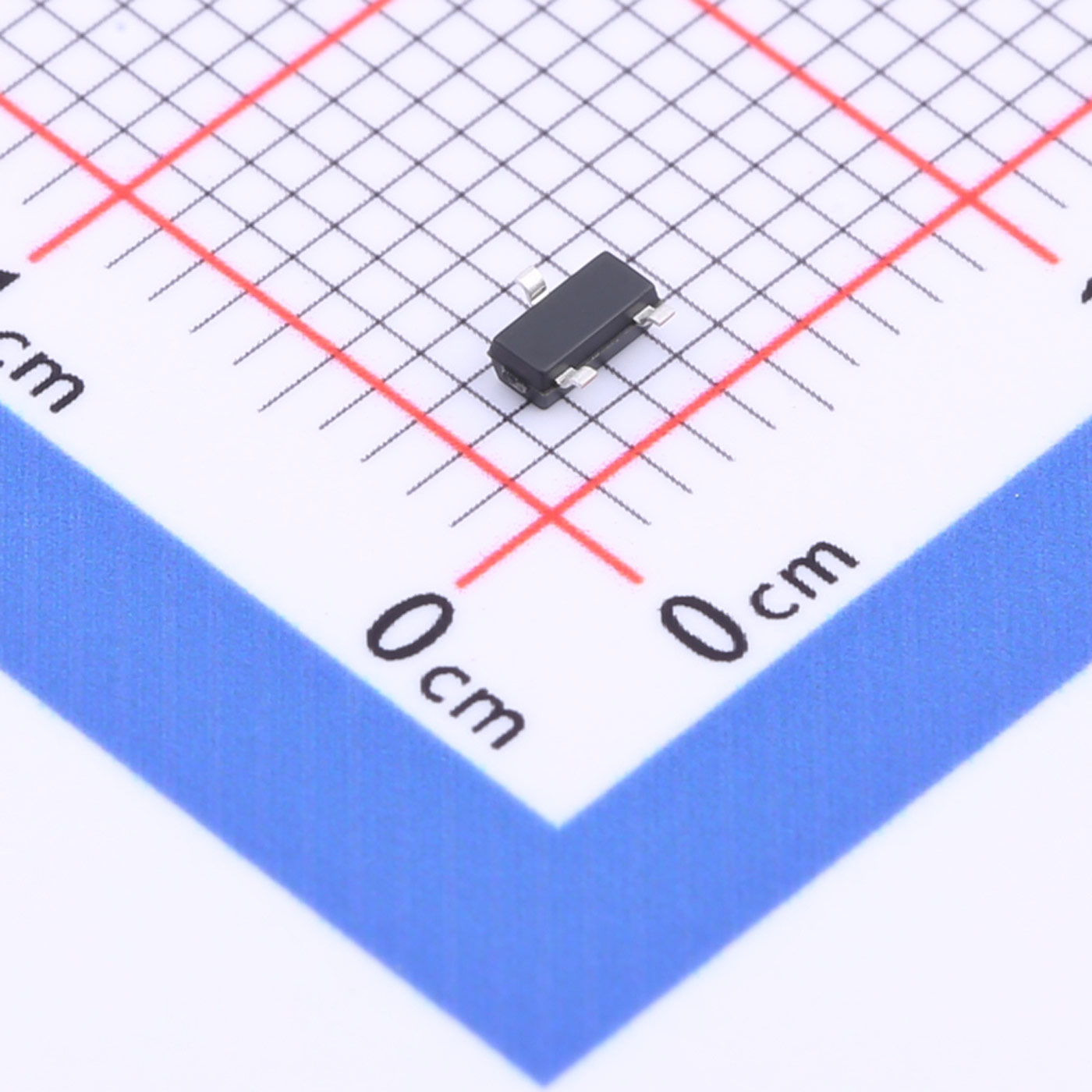

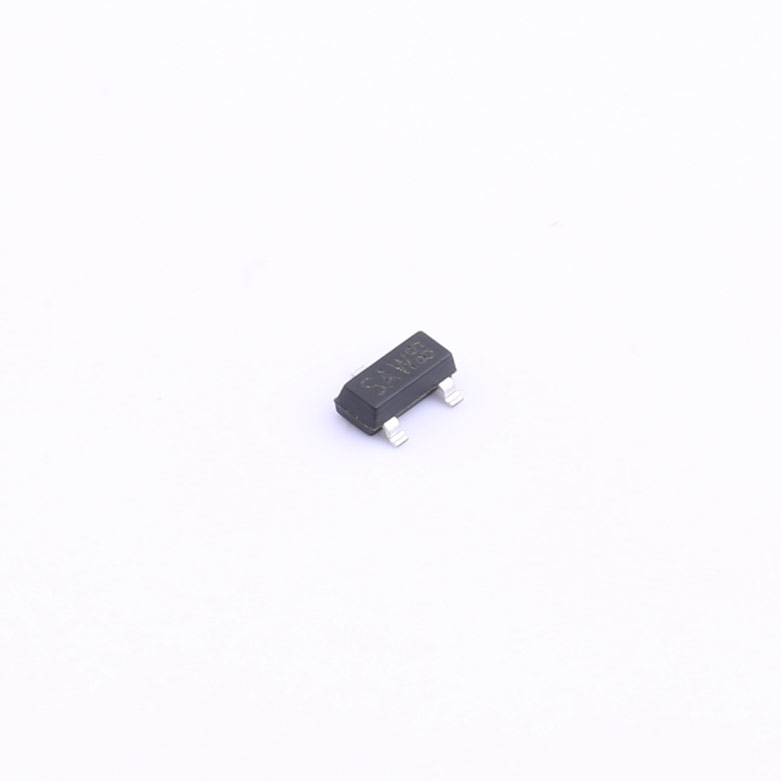

N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
The BSS123 is particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.
Features
Rugged and Reliable
Compact Industry Standard SOT-23 Surface Mount Package
Applications
This product is general usage and suitable for many different applications.
Small Servo Motor Control
Power MOSFET gate drivers
High-speed line driver
Relay driver
Telephone ringer
| File Name | Title | Description |
|---|---|---|
| BSS123.PDF | BSS123 | - |
| RoHS-1.pdf | RoHS | - |
| REACH.pdf | REACH | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
