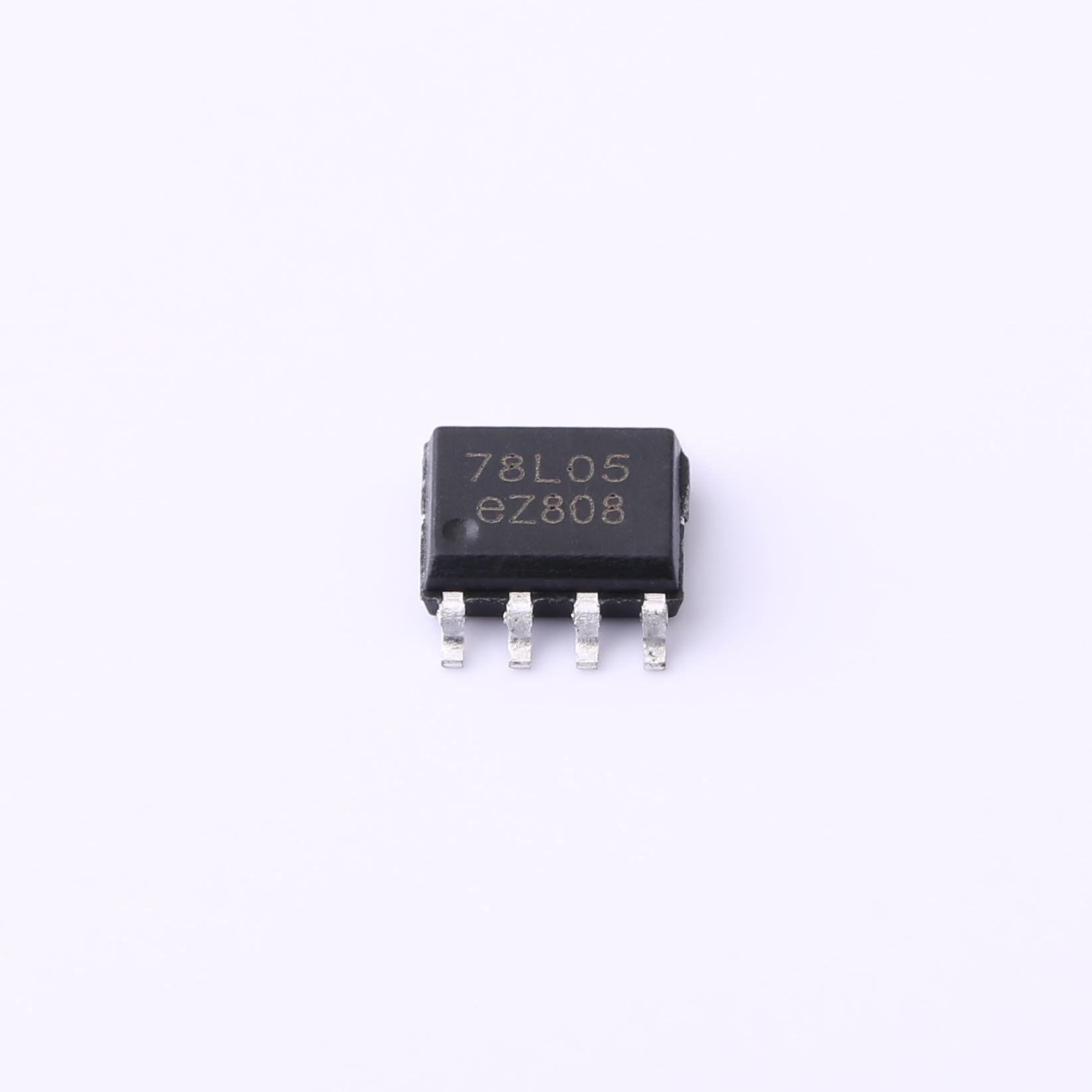

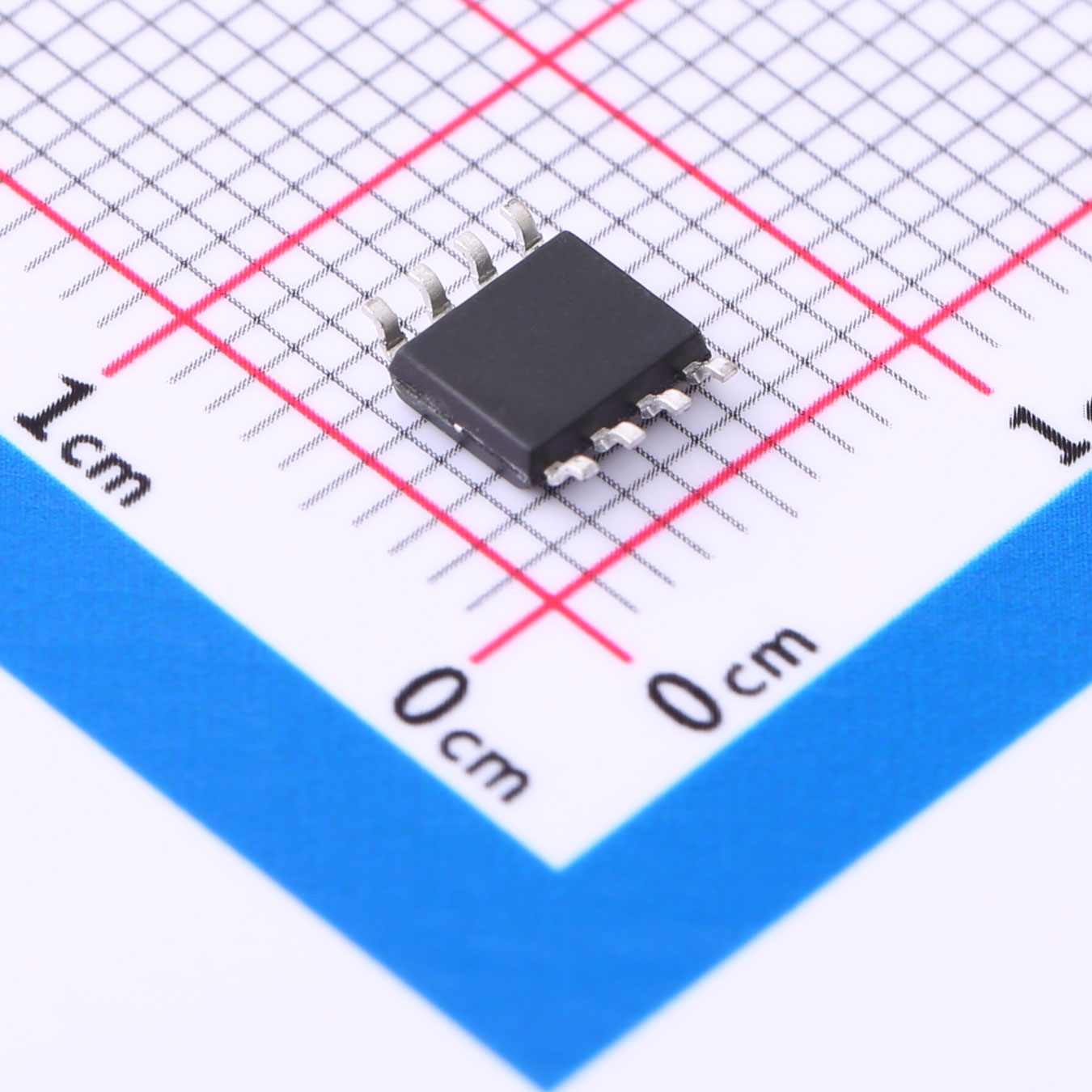

3-Terminal 0.1A Positive Voltage Regulators
Description
lThis series offixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-cardregulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high current voltage regulators. Each of these regulators can deliver up to 100mA of output current. The internal limiting and thermal shutdown features of these regulators make them essentially immune to overload. Current limiting is include to limit the to a safe value. When used as a replacement for azener diode-resistor combination.
Features
lOutput Current Up to100mA
lNo External Components
lInternal Thermal Overload Protection
lInternal Short-Circuit Limiting
lOutput Voltage of5V,6V,8V,9V,10V,12V,15V,18Vand 24V
lMoisture Sensitivity Level3
| File Name | Title | Description |
|---|---|---|
| LM78L05D SOP-8.pdf | LM78L05D SOP-8 | - |
