ESD Diode

TVS diode and ESD diode of these two circuit protection devices, the two work on the same principle, but in power, application occasions, packaging form, etc. are very different, specifically in: ESD diodes, the main function is to prevent static electricity, however, anti-static requirements of the junction capacitance value of the low value, generally in the 1 - 3.5PF between the best; and the junction capacitance value of TVS diodes is relatively high.ESD diodes, the main application of the ESD diodes are mainly used for board level protection; TVS diodes are used for primary and secondary protection.

Product Comparison Clear filters
Name
VRWM(V) VBR min(V) IR(uA) VC(V) CJ(pF) Package
3D model ESD Diode GBLC03CI ESD Protection Diode SOD-323
3D model GBLC05CI-正面 GBLC05CI ESD Protection Devices SOD-323

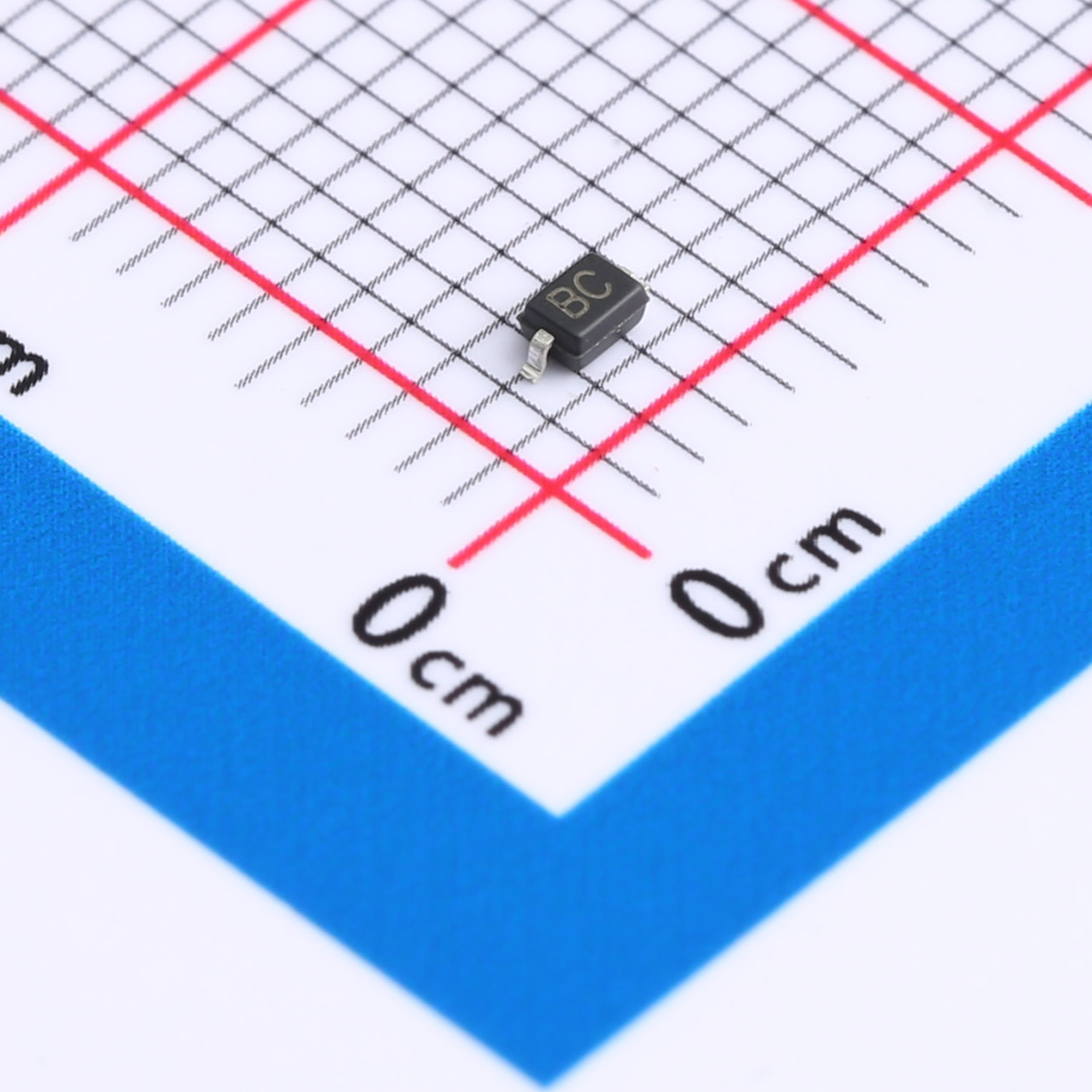

3D model GBLC08C-正面 GBLC08C ESD Protection Diode SOD-323

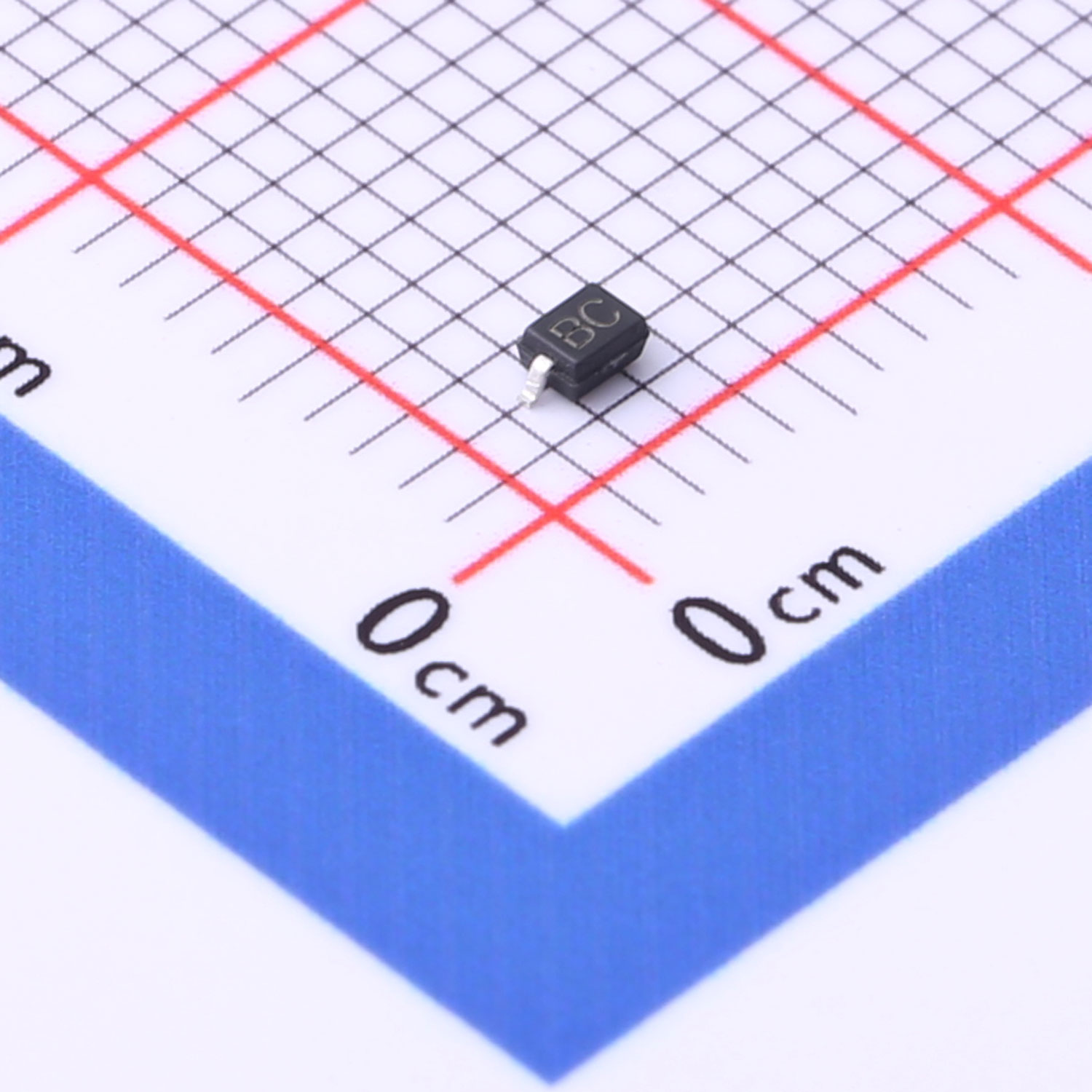

3D model GBLC08CI-正面 GBLC08CI ESD Protection Diode SOD-323

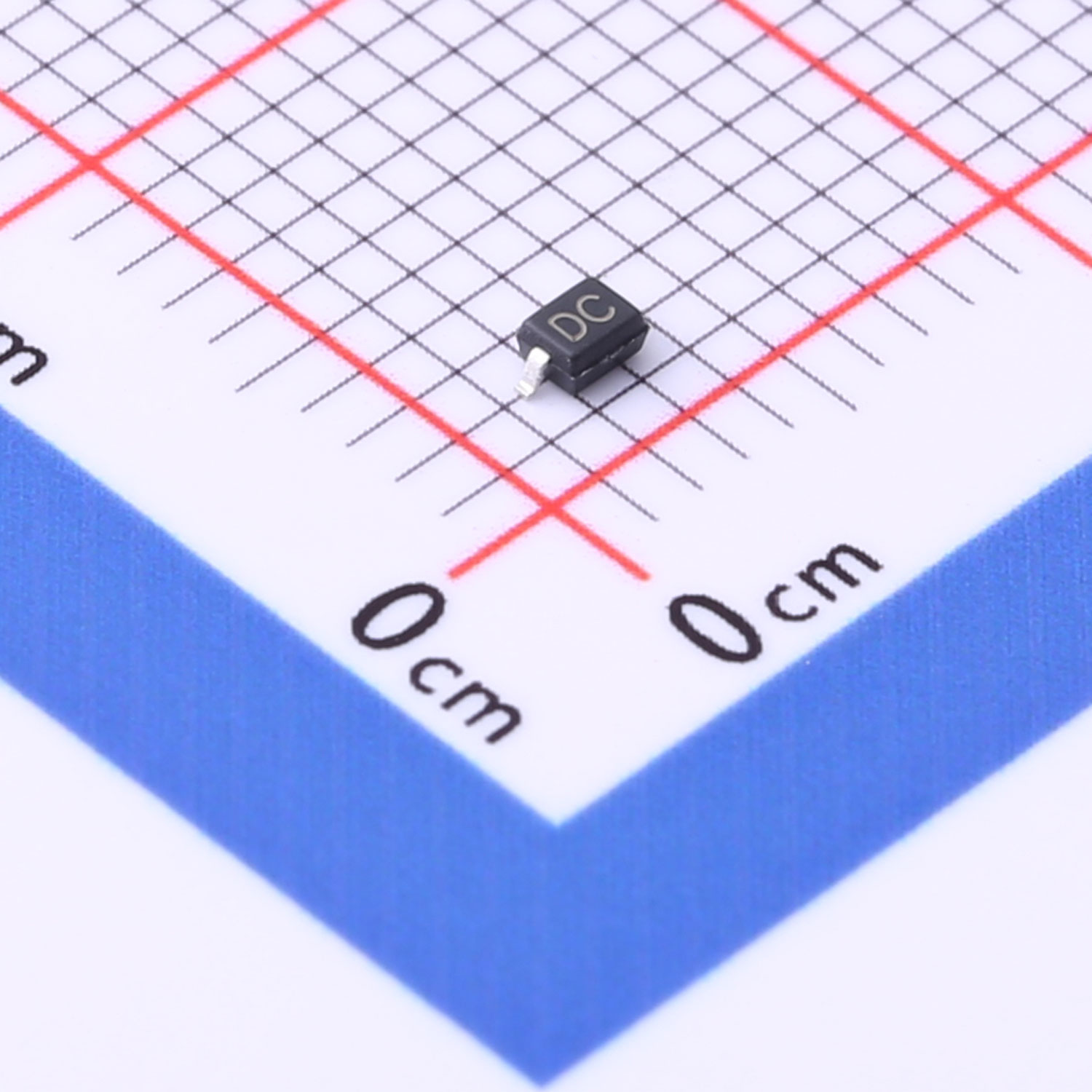

3D model GBLC12CI-正面 GBLC12CI ESD Protection Devices SOD-323
3D model ESD Diode GBLC15CI ESD Protection Diode SOD-323
3D model NUP2105LT1G-正面 NUP2105LT1G ESD Protection Devices SOT-23

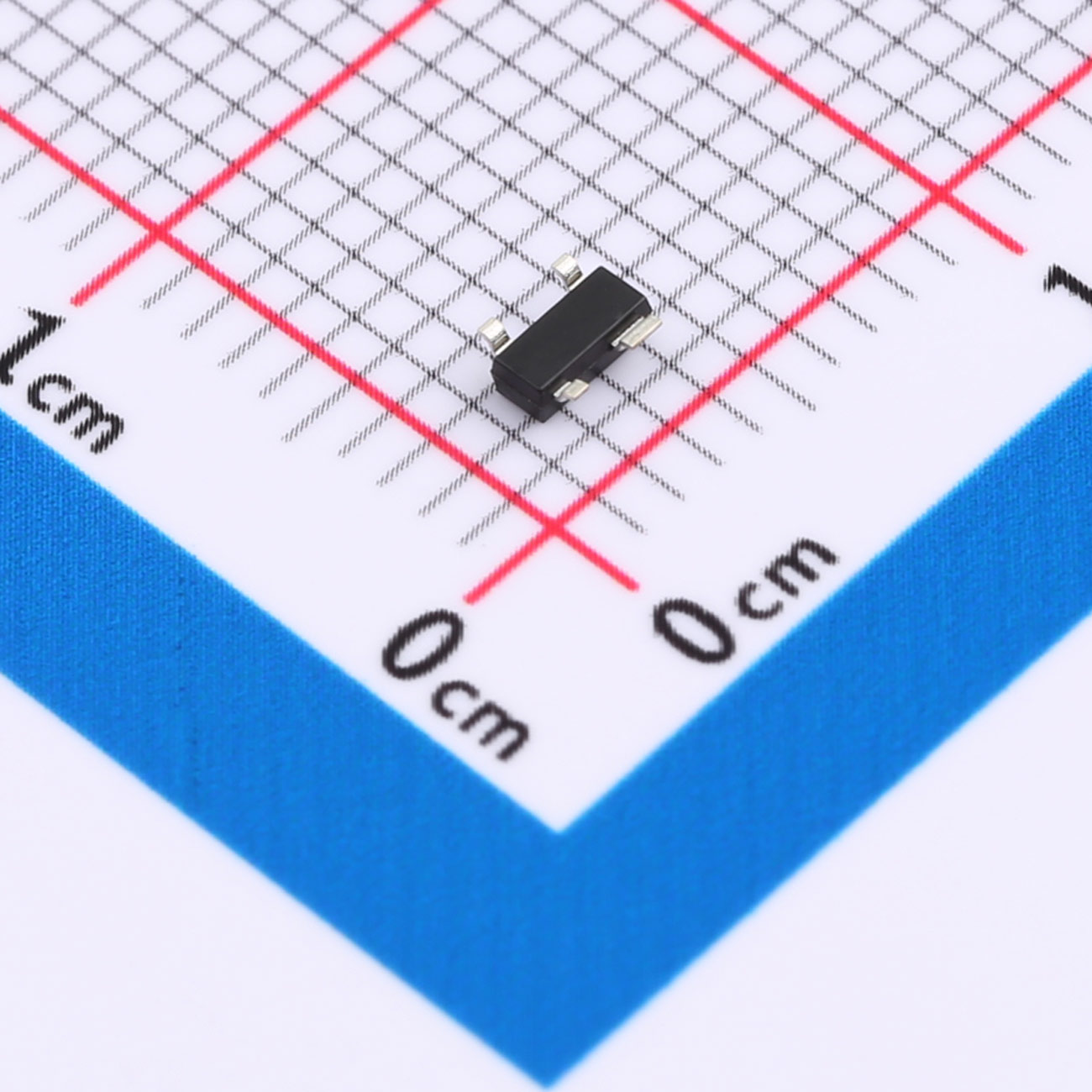

3D model PRTR5V0U2X-反面 PRTR5V0U2X ESD Protection Diode SOT-143

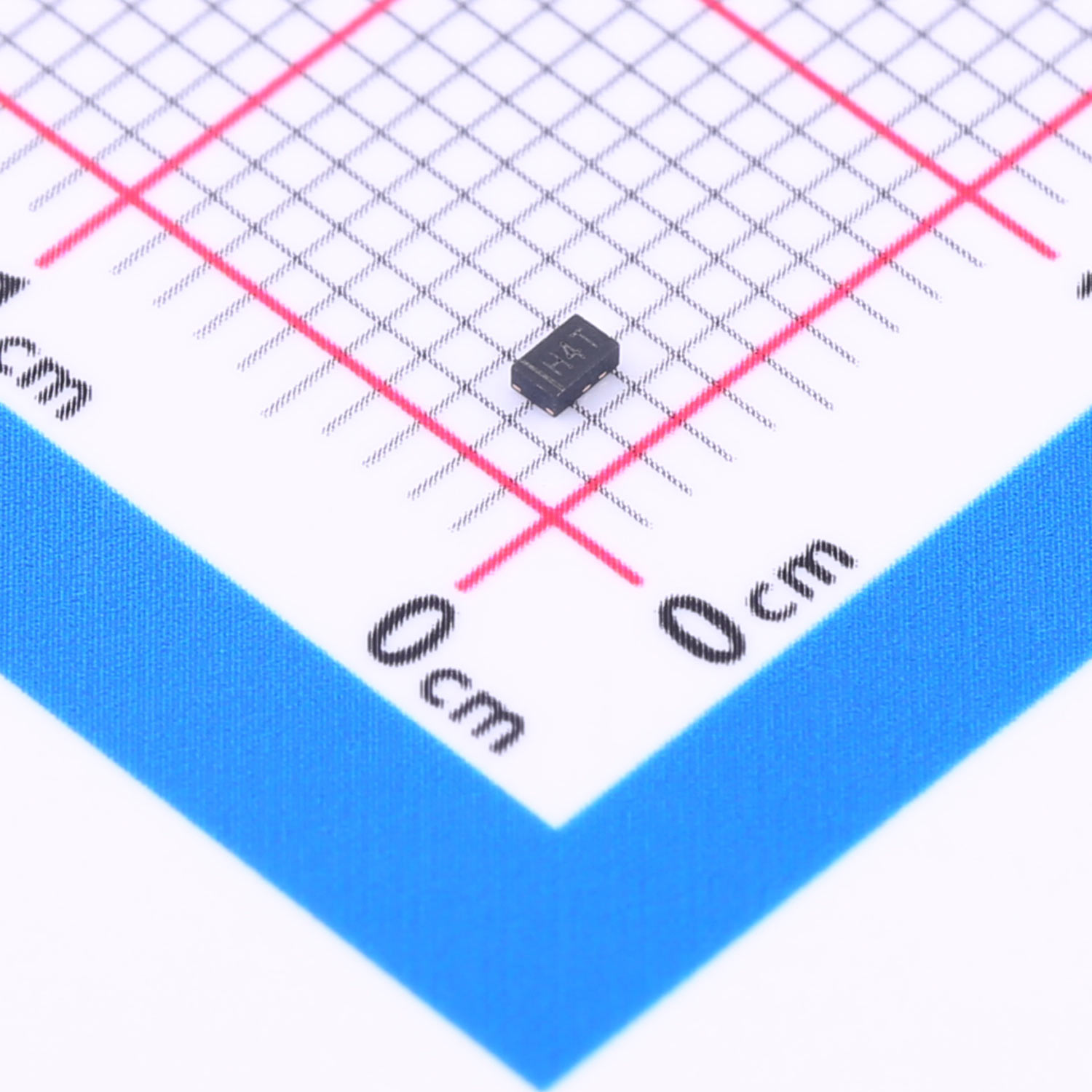

3D model PTVSHC2EN5VU-正面 PTVSHC2EN5VU ESD Protection Devices DFN1610

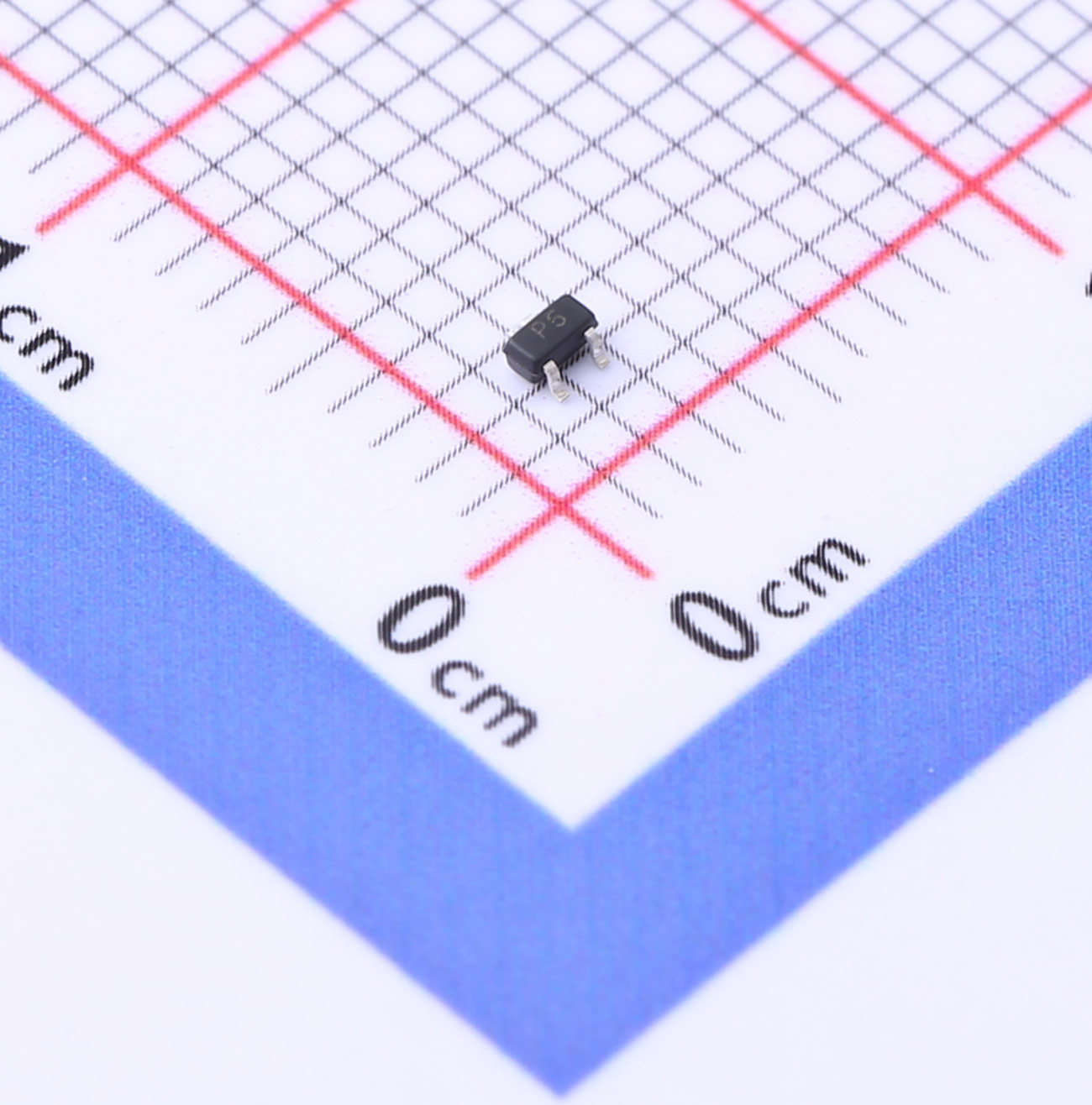

3D model RCLAMP0502B-正面 RCLAMP0502B ESD Protection Devices SOT-523

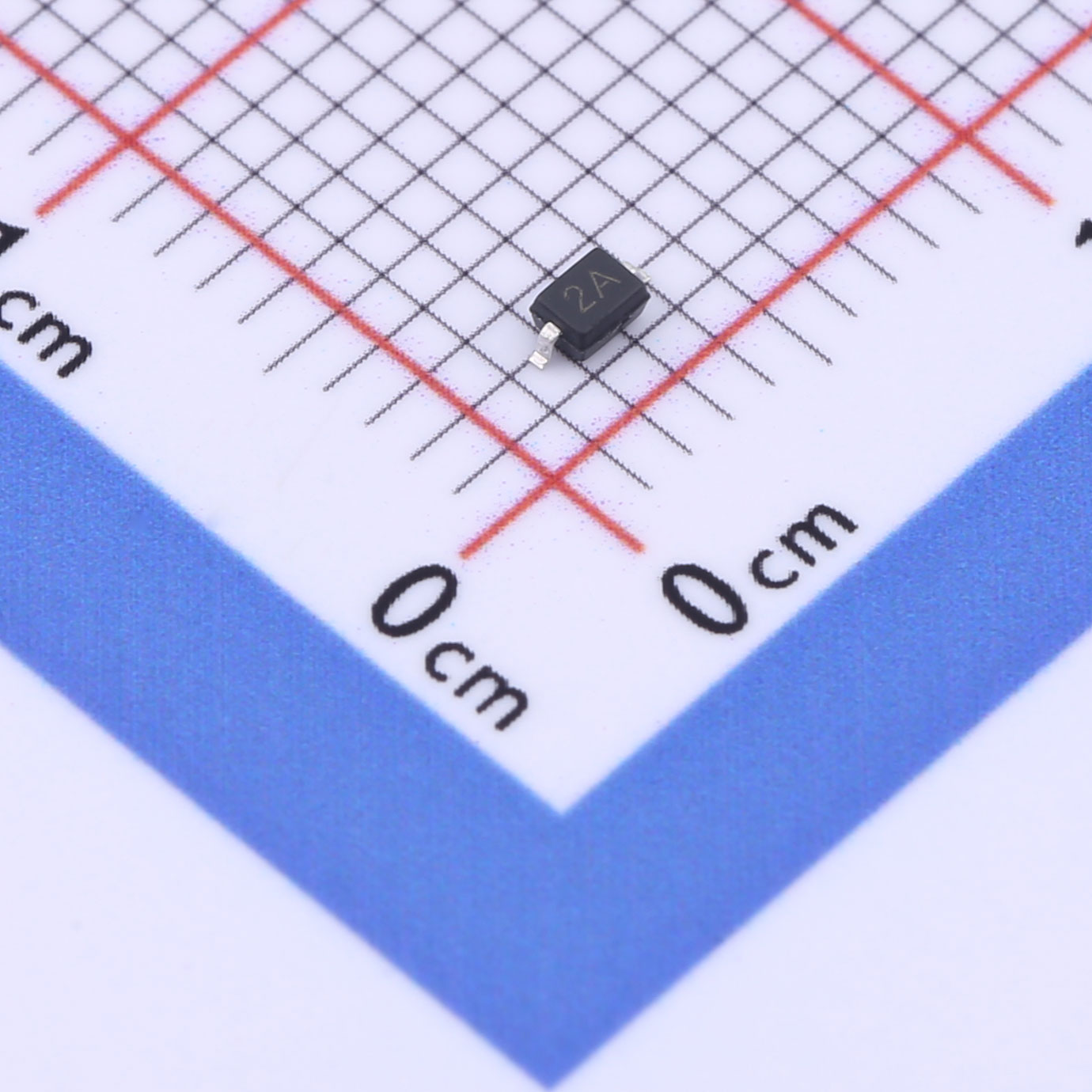

3D model RLSD32A031C-正面 RLSD32A031C ESD Protection Devices SOD-323

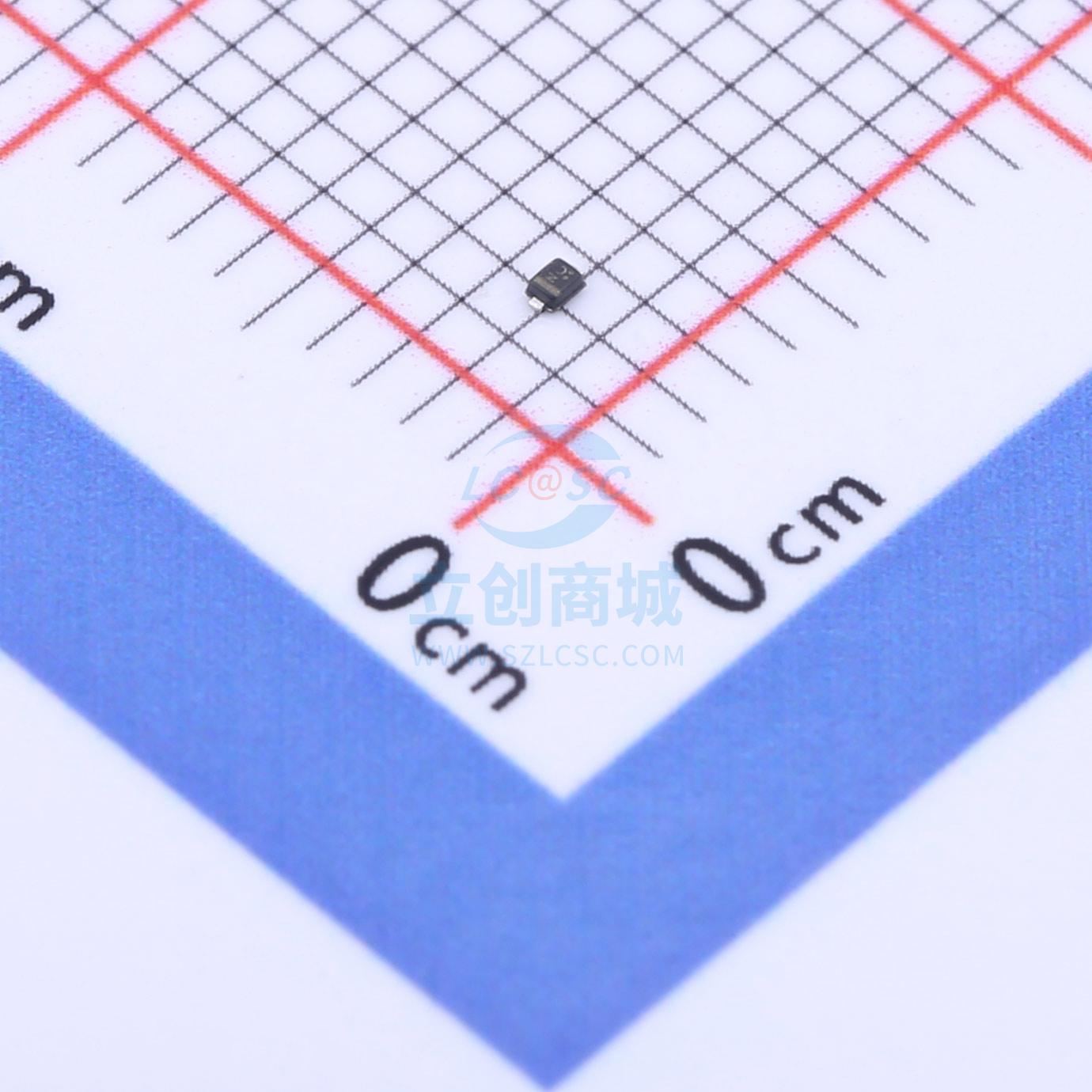

3D model RSAC6.8CST2RA-正面 RSAC6.8CST2RA ESD Protection Diode SOD-923
3D model ESD Diode RST9361MA ESD Protection Diode DFN1006

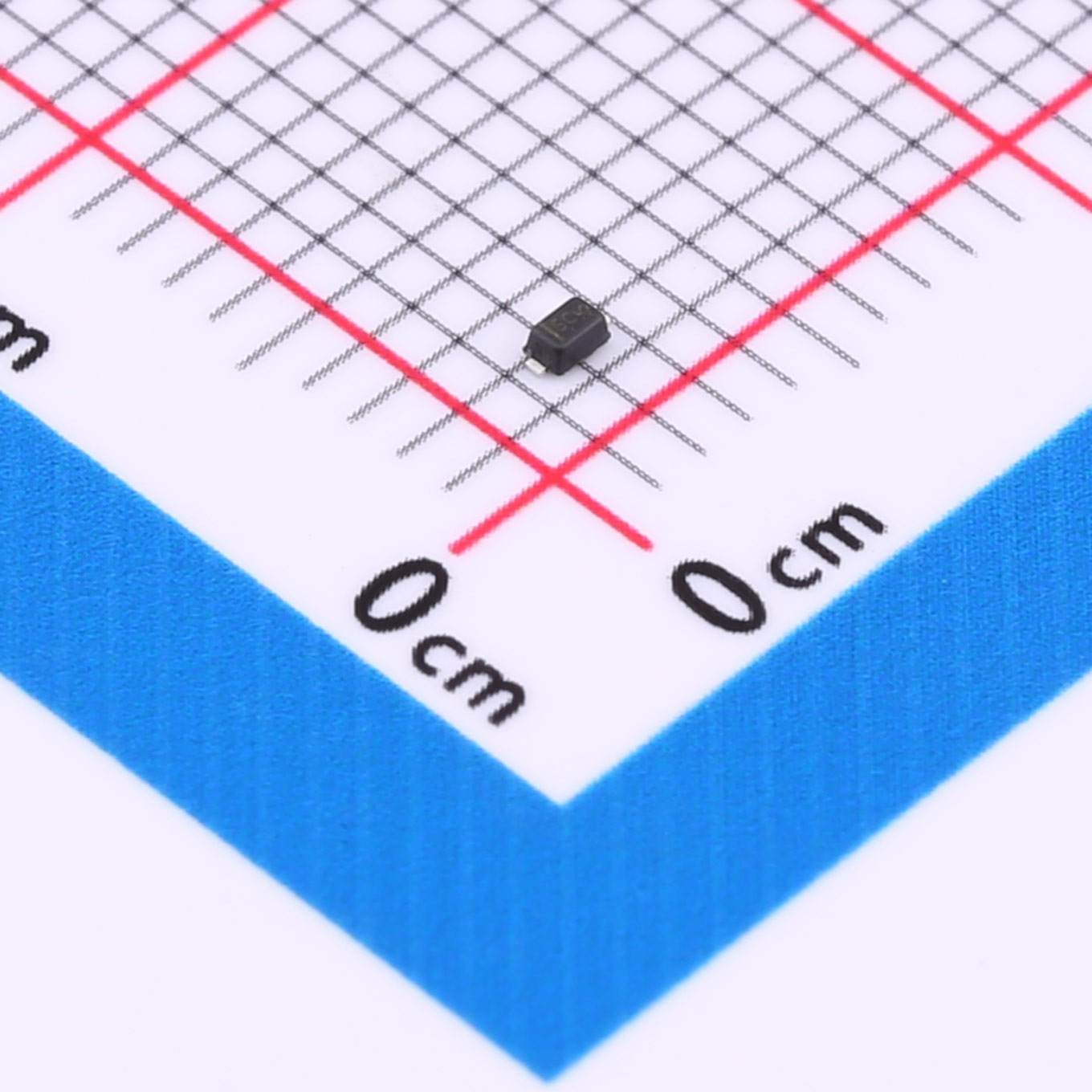

3D model SBD52C05L01-正面 SBD52C05L01 ESD Protection Diode SOD-523

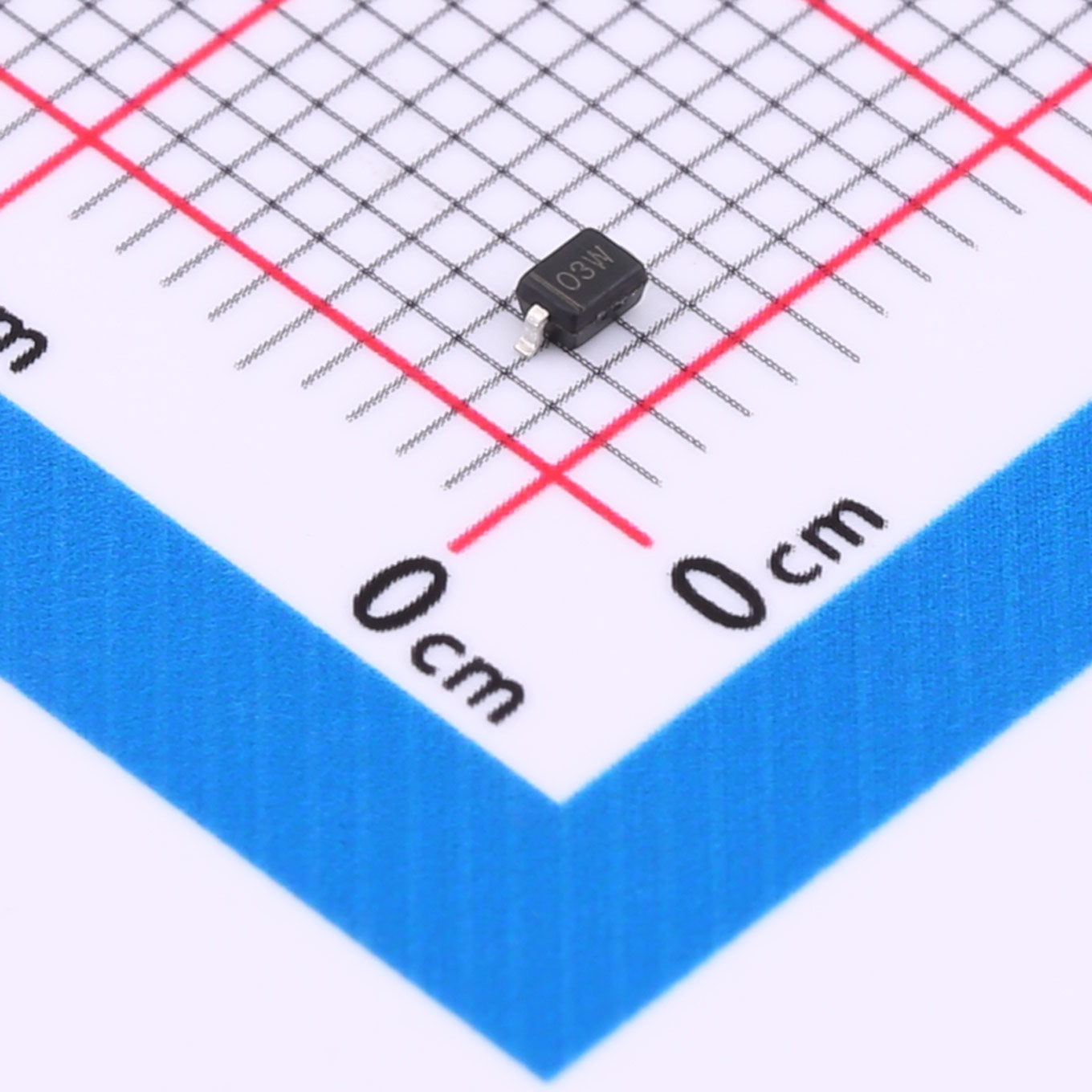

3D model SD03-正面 SD03 ESD Protection Diode SOD-323
3D model ESD Diode SD03C ESD Protection Diode SOD-323

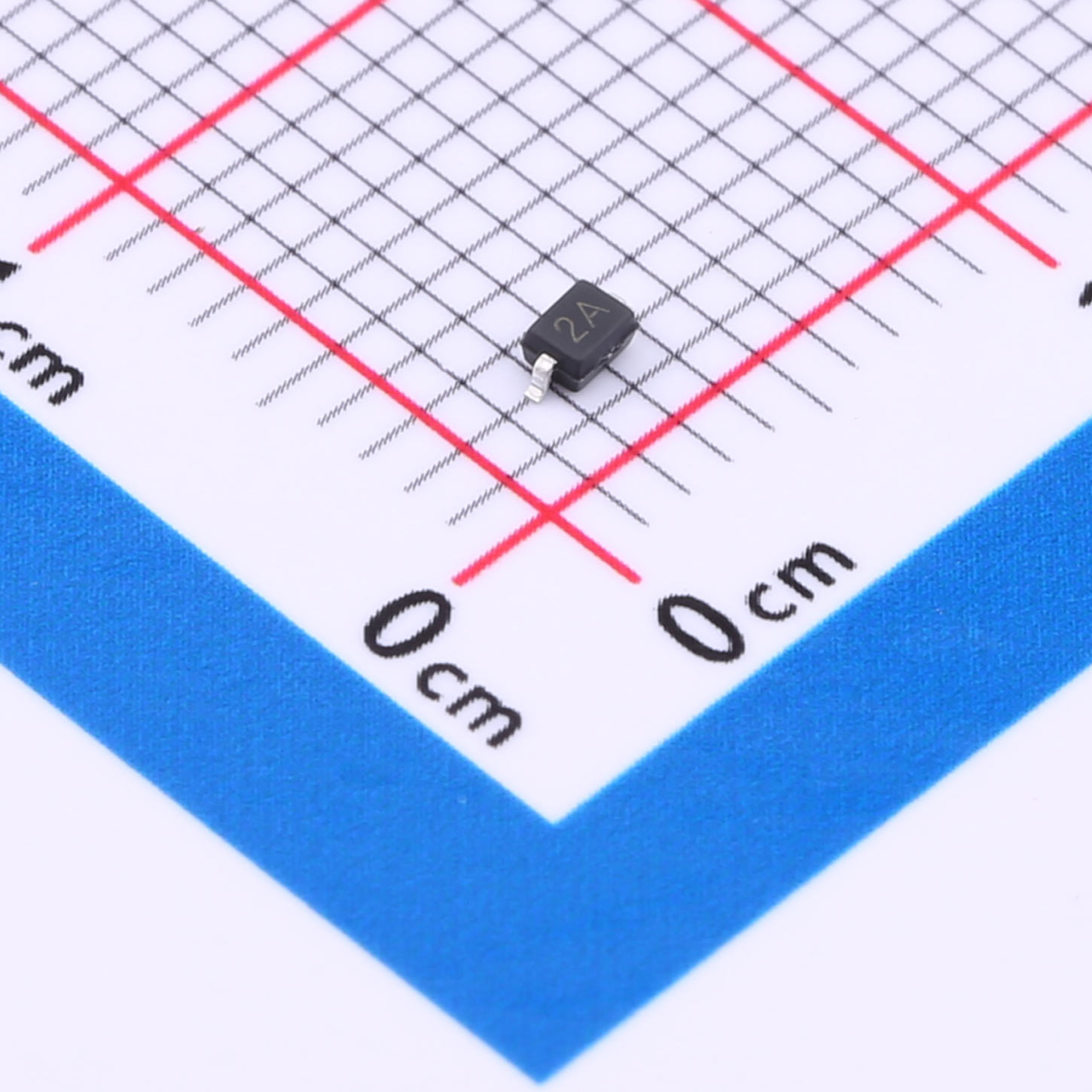

3D model SD03C-正面 SD03C protection diode DFN1006

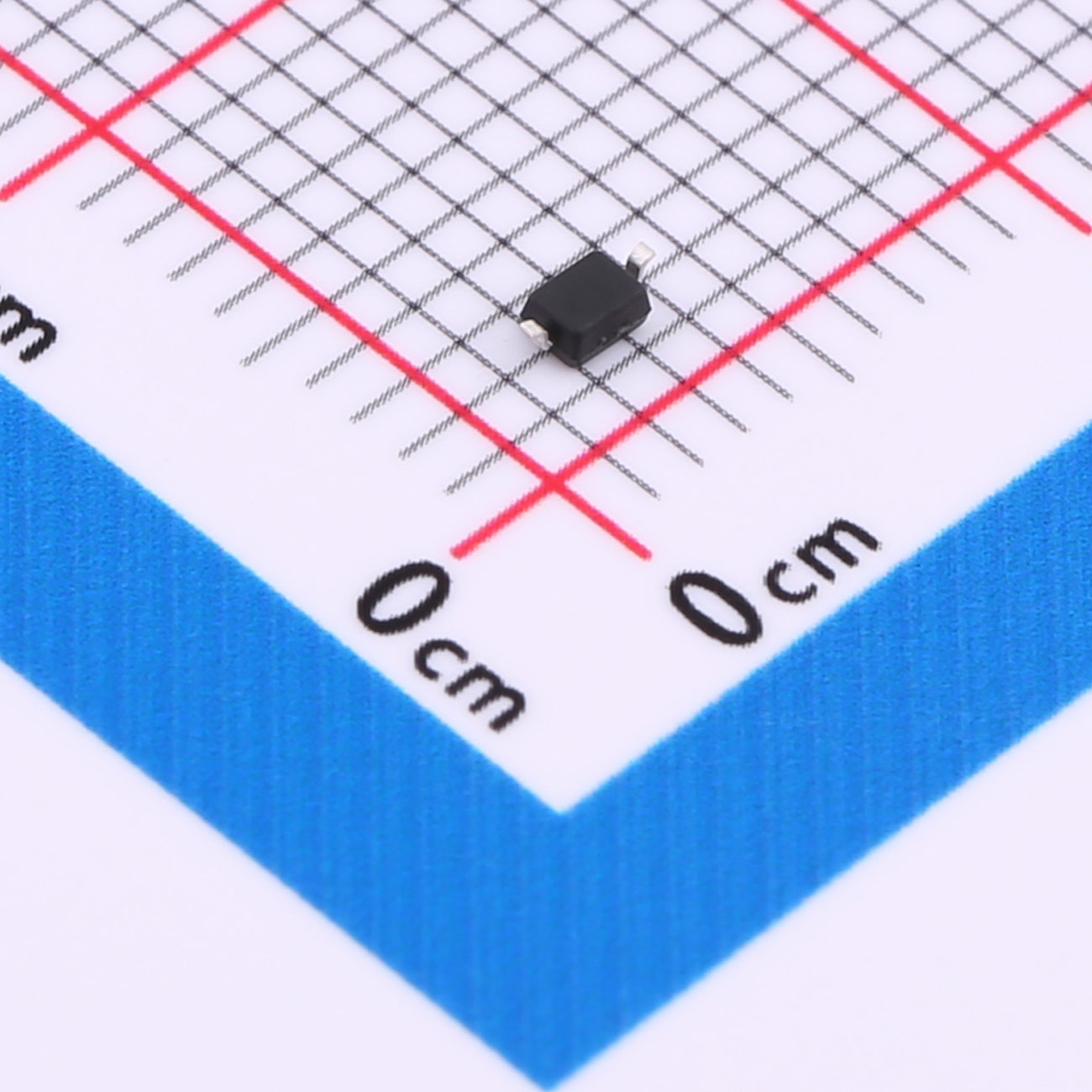

3D model SD05-反面 SD05 ESD Protection Diode SOD-323
3D model ESD Diode SD05C ESD Protection Devices SOD-323
3D model ESD Diode SD05C ESD Protection Diode SOD-323
8V 8.5V 1μA 13.4V 0.8pF SOD-323
5V 6V 1μA 18V 0.8pF SOD-323
8V 8.5V 1μA 13.4V 0.8pF SOD-323
8V 8.5V 1μA 13.4V 0.8pF SOD-323
12V 13.3V 1μA 24V 0.8pF SOD-323
15V 16.7V 1μA 24V 0.8pF SOD-323
24V 26.2V 1μA 36V 30pF SOT-23
5 6 1 15.5 0.6 SOT-143
6V 6.5V 1μA 8.5V 700pF DFN1610
5V 6V 1μA 17V 0.8pF SOT-523
3.3V 4V 1μA 6.5V@1A 45pF SOD-323
5V 5.4V 1mA 12.9V 0.9pF SOD-923
3.3V 4.2V 100nA 12V@1A 0.25pF DFN1006
5V 7.8V 1μA 16V 15pF SOD-523
3.3V 4V 40μA 14V 450pF SOD-323
36V 40V 1μA 60V 35pF SOD-323
3.3V 4V 1mA 13V@20A 450pF DFN1006
SOD-323
5V 6V 10μA 9.8V 200pF SOD-323
24V 26.7V 1μA 43V 50pF SOD-323
