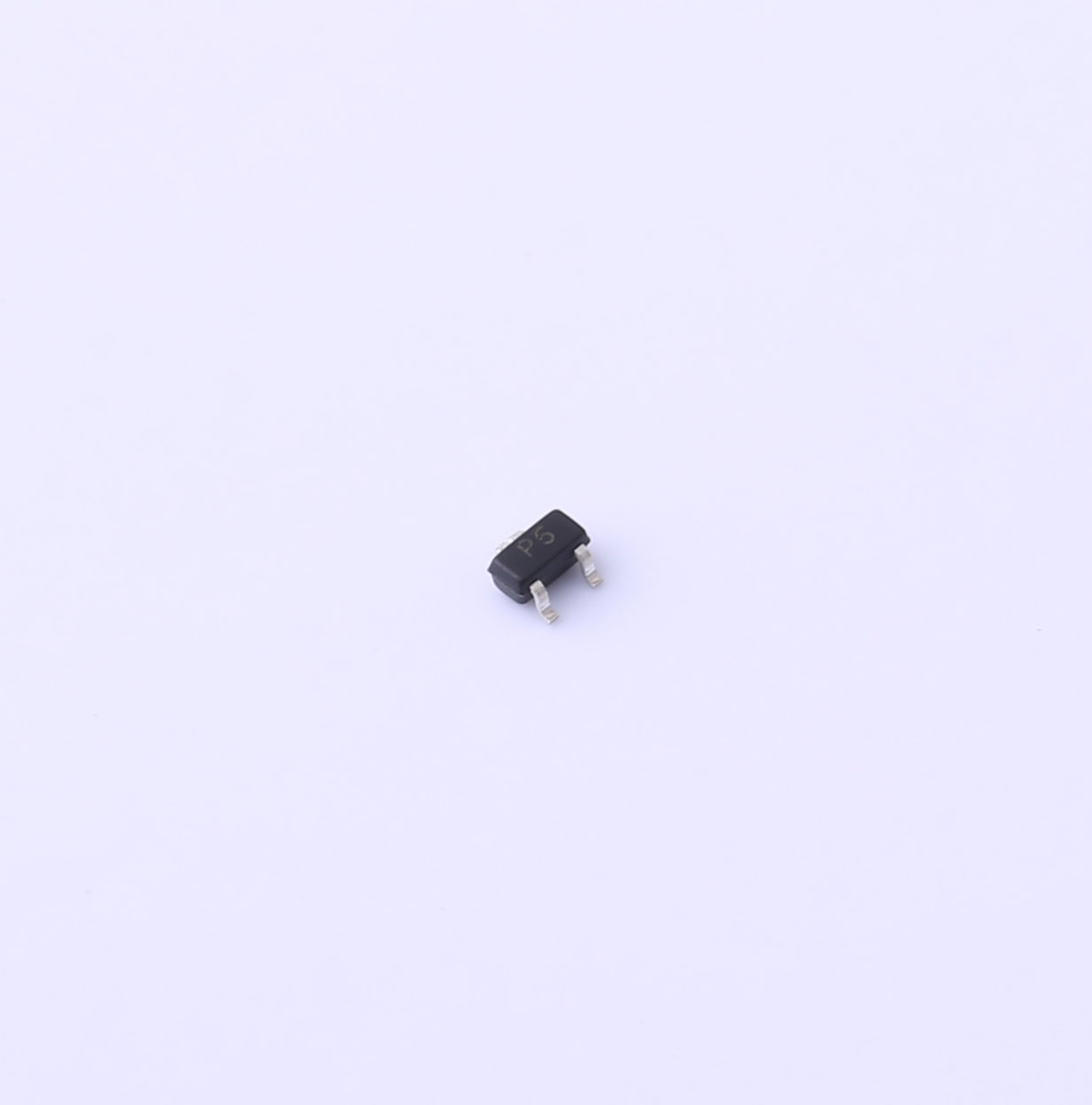

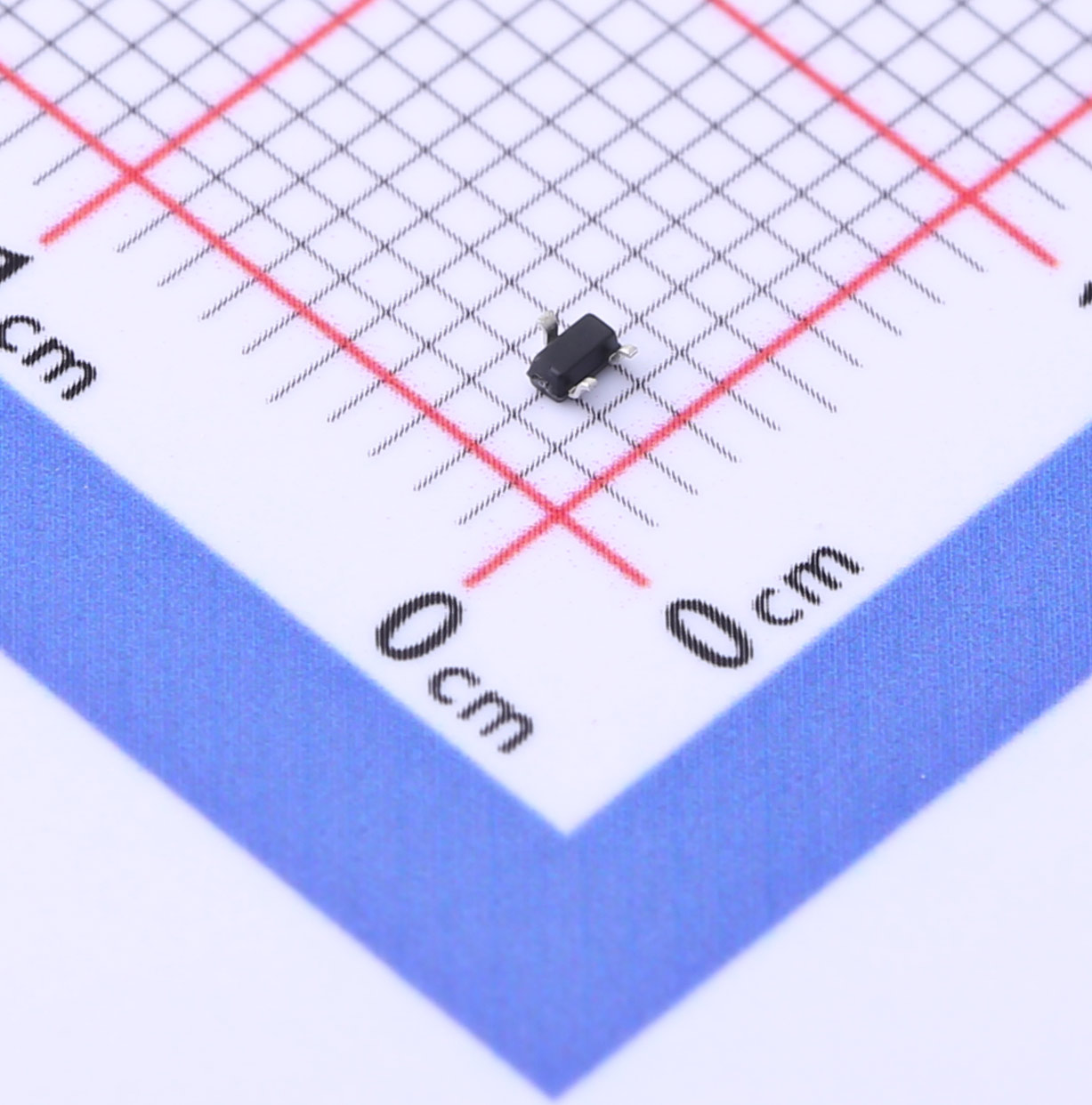

Introducing the RCLAMP0502B, a highly efficient transient voltage suppressor diode designed to protect sensitive electronic circuits from electrostatic discharge (ESD) and transient voltage events. Packaged in the compact SOT-523 form factor, this diode offers robust protection while minimizing space requirements on PCBs.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Introducing the RCLAMP0502B, a highly efficient transient voltage suppressor diode designed to protect sensitive electronic circuits from electrostatic discharge (ESD) and transient voltage events. Packaged in the compact SOT-523 form factor, this diode offers robust protection while minimizing space requirements on PCBs.
Features
● 45 Watts peak pulse power (tp = 8/20μs)
● Unidirectional configurations
● Solid-state silicon-avalanche technology
● Low clamping voltage
● Low leakage current
● Low capacitance (Cj=0.7 pF typ.)
● Protection two data lines
● IEC 61000-4-2 ±15V contact ±15kV air
● IEC 61000-4-4 (EFT) 40A(5/50ns)
● IEC 61000-4-5 (Lightning) 3.5A (8/20μs)
Applications
● Dataline
● Automatic Teller Machines
● Net works
● Power line

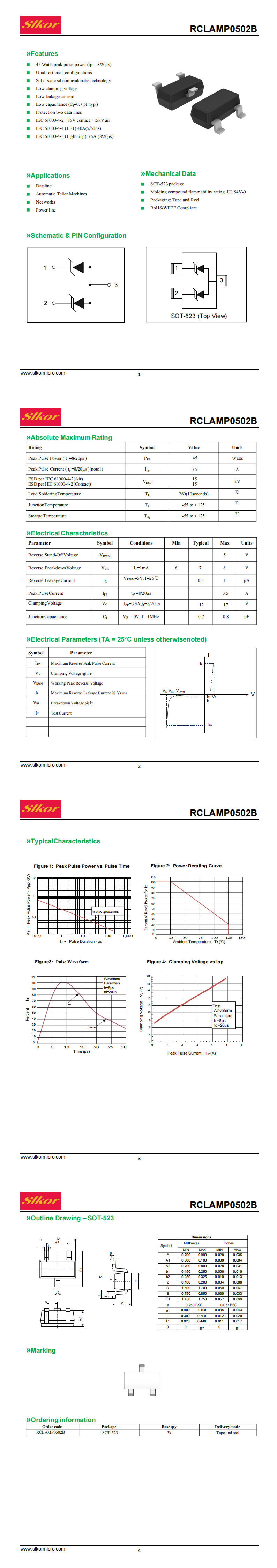

| File Name | Title | Description |
|---|---|---|
