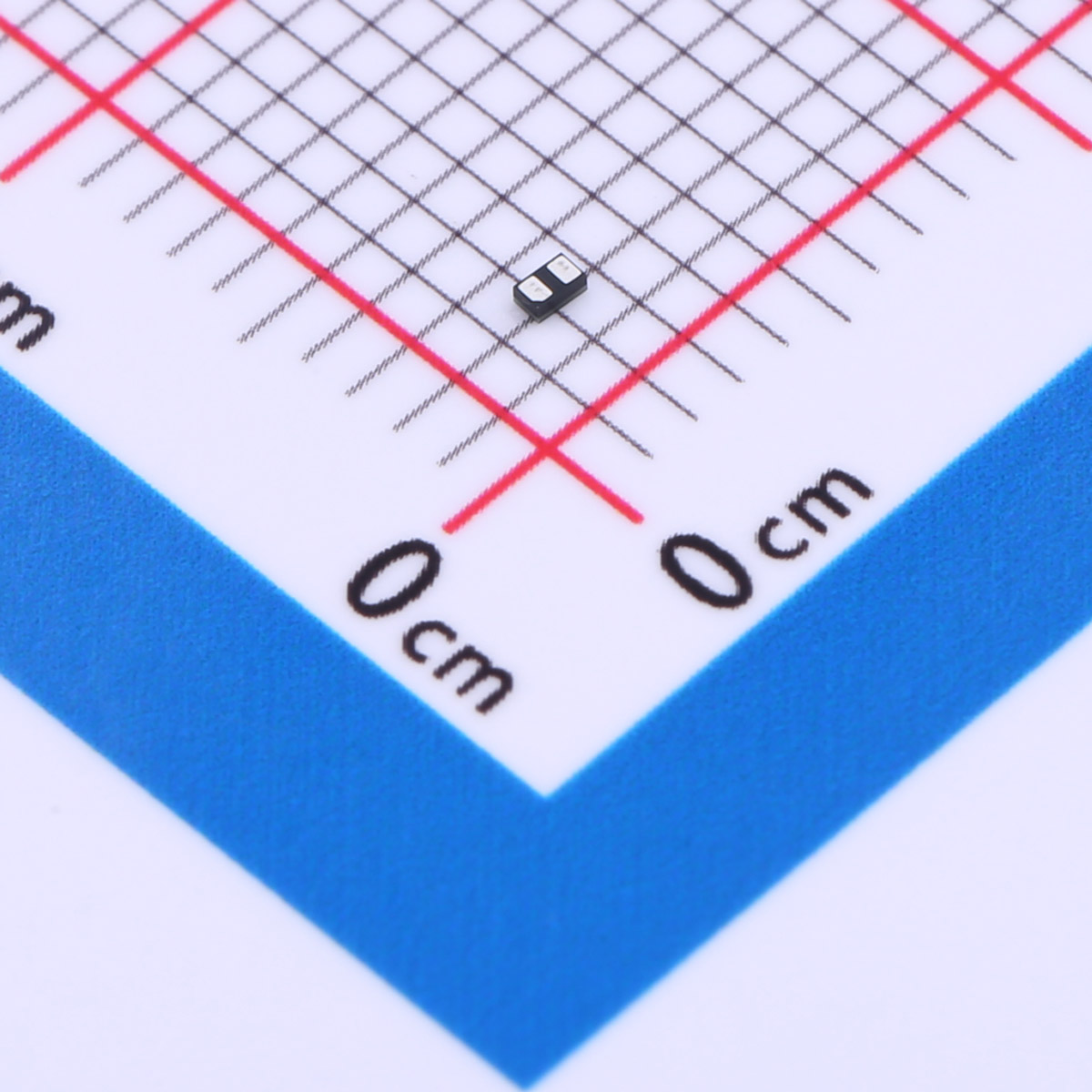

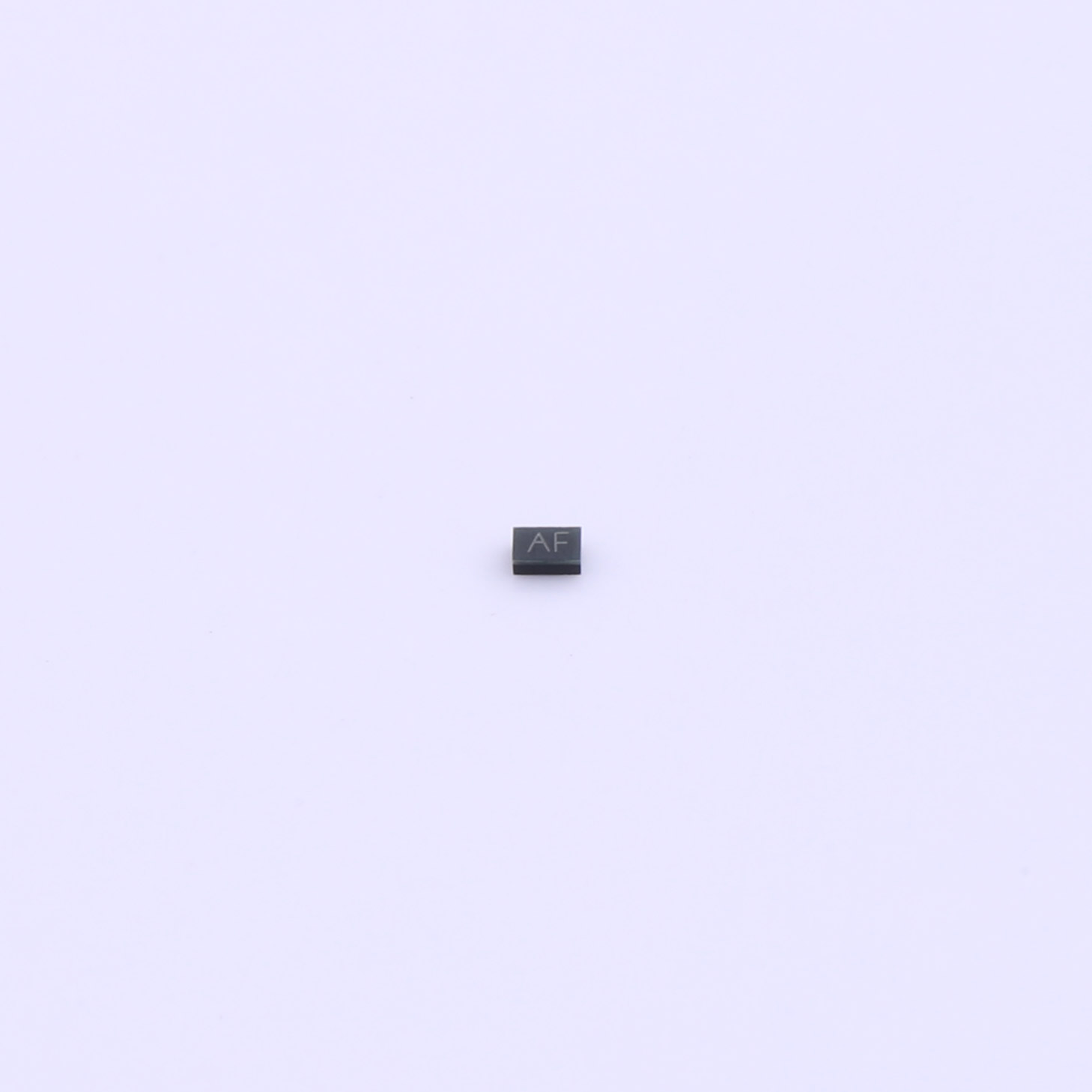

The SLESD12.0C ESD Protection Device is designed to deliver exceptional protection against electrostatic discharge (ESD) in a compact DFN1006 package. Its high-performance specifications make it ideal for safeguarding sensitive electronic components in demanding applications.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD12.0C ESD Protection Device is designed to deliver exceptional protection against electrostatic discharge (ESD) in a compact DFN1006 package. Its high-performance specifications make it ideal for safeguarding sensitive electronic components in demanding applications.
Features
● Low Capacitance: 8pF(typ.)
● Reverse Working Voltage: 12V
● IEC 61000-4-2 (ESD Air): ±30KV
IEC 61000-4-2 (ESD Contact): ±30KV
IEC 61000-4-5 (Lightning 8/20μs): 8A
Application
● Smart Phone and Tablet PC
● TV and Set Top Box
● Wearable Devices
● PDA
| File Name | Title | Description |
|---|---|---|

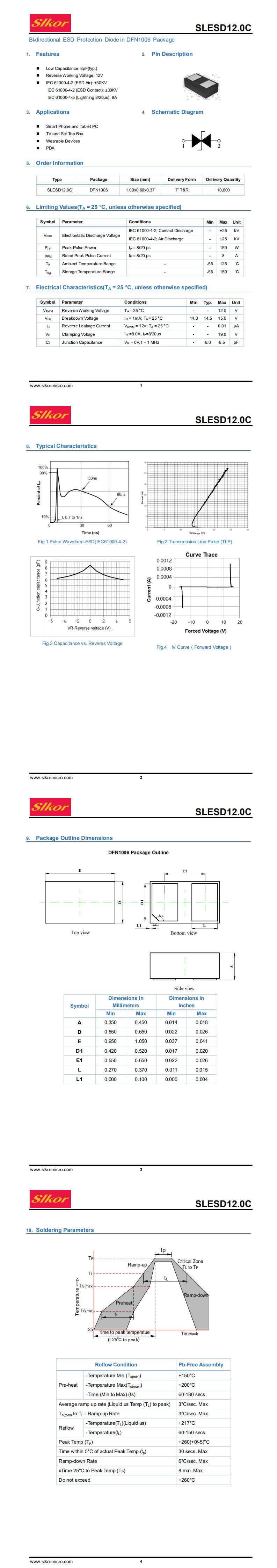

| SLESD12.0C DFN1006.pdf | SLESD12.0C DFN1006 | - |
