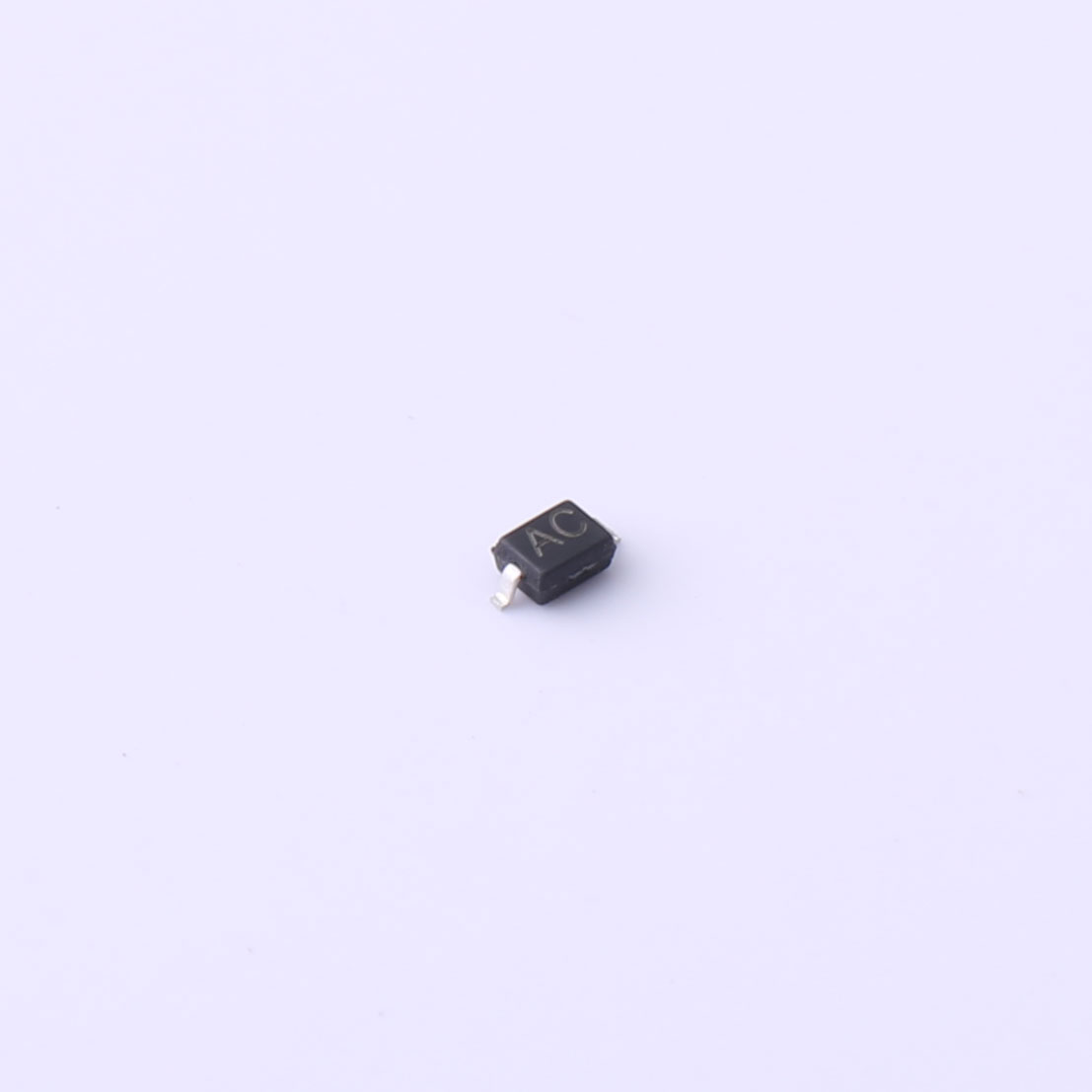

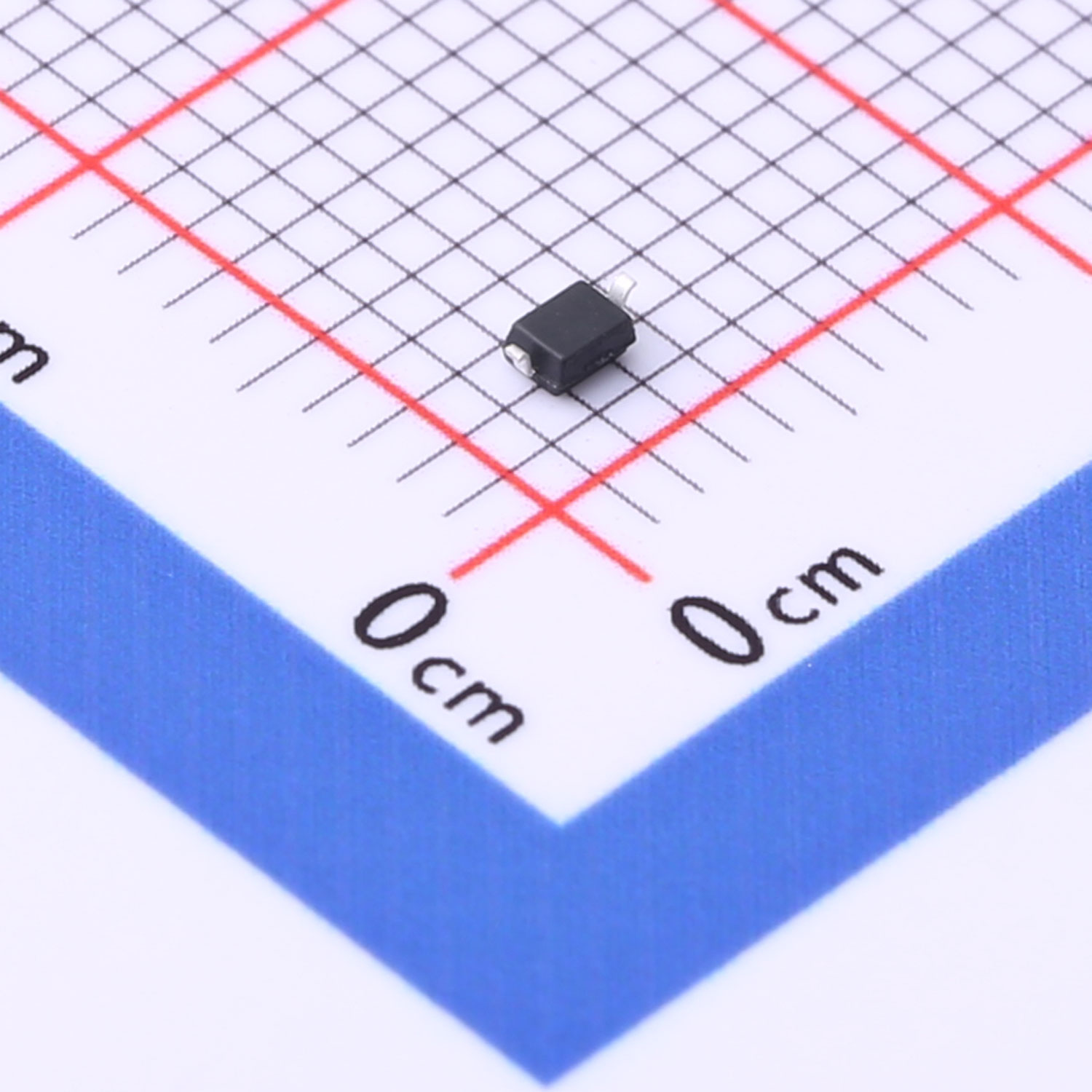

The GBLC03CI Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and smart phones.This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20us waveshape. The GBLC03CI and Series meets IEC 61000-4-2 (ESD)and IEC 61000-4-4 (EFT)requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
Download datasheet Inquiry
Bidirectional Ultra Low Capacitance TVS Array
Description
● The GBLC03CI Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and smart phones.This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20us waveshape.
● The GBLC03CI and Series meets IEC 61000-4-2 (ESD)and IEC 61000-4-4 (EFT)requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern.
● This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
Features
● IEC61000-4-2 (ESD)±15kV(air), ±8kV(contact)
● EC61000-4-4(EFTD40A(5/50nS)
● IEC61000-4-5 (Lightning)12A(8/20us)
● Protects one VO line (bidirectional)
● Low clamping voltage
● Working voltages: 3V,5V,8V,12V,15V,24V
● Low leakage current
● Response Time is<1ns
Applications
● Cell Phone Handsets and Accessories
● Microprocessor based equipment
● Personal Digital Assistants(PDA's)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Peripherals
● USB Interface
| File Name | Title | Description |
|---|---|---|
| GBLC03CI.PDF | GBLC03CI | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The SLESD3B5CM is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed, VGA, DVI, SDI and other high speed line applications.This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD(electrostatic discharge), and EFT (electrical fast transients).
The SD03C Series is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium.This series has been specifically designed to protect sensitive components which are connected to power、data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
The SLCESD3V3D3 is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as high speed line applications. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients).
The RLSD32A031C is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications where board space comes at a premium.Also because of its low capacitance, it is suited for use in high frequency designs such as high speed line applications. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients).
The GBLC03CI Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape. The GBLC03CI and Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
The GBLC03CI Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape. The GBLC03CI and Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
VRWM (max):5V VBR(min): 5.6V IR(max): 1μA VC(max): 9.5V Cj(max):15pF Package: DFN1006
VRWM (max):36V VBR(min): 40V IR(max): 1μA VC(max): 75V Cj(max):35pF Package: SOD-323
