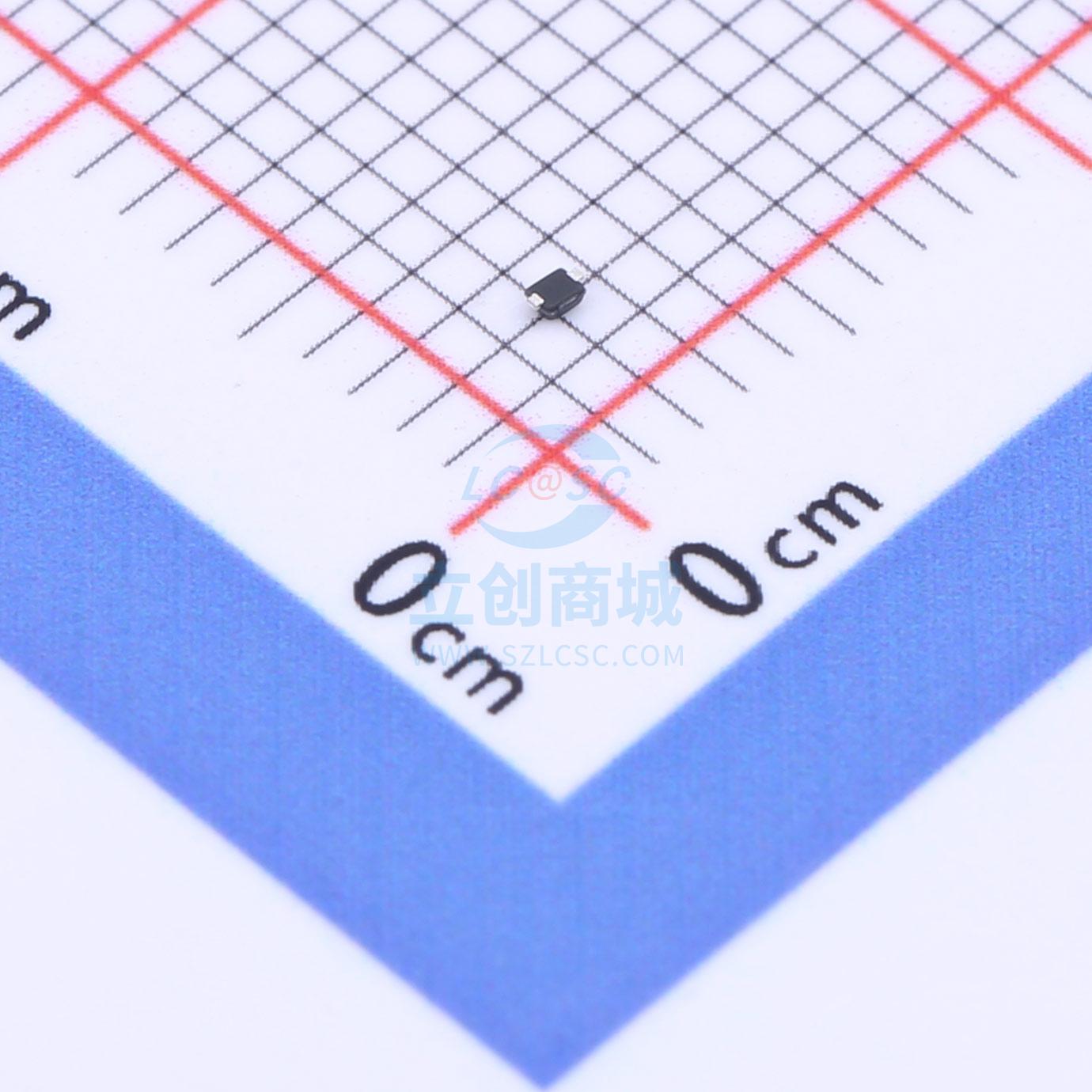

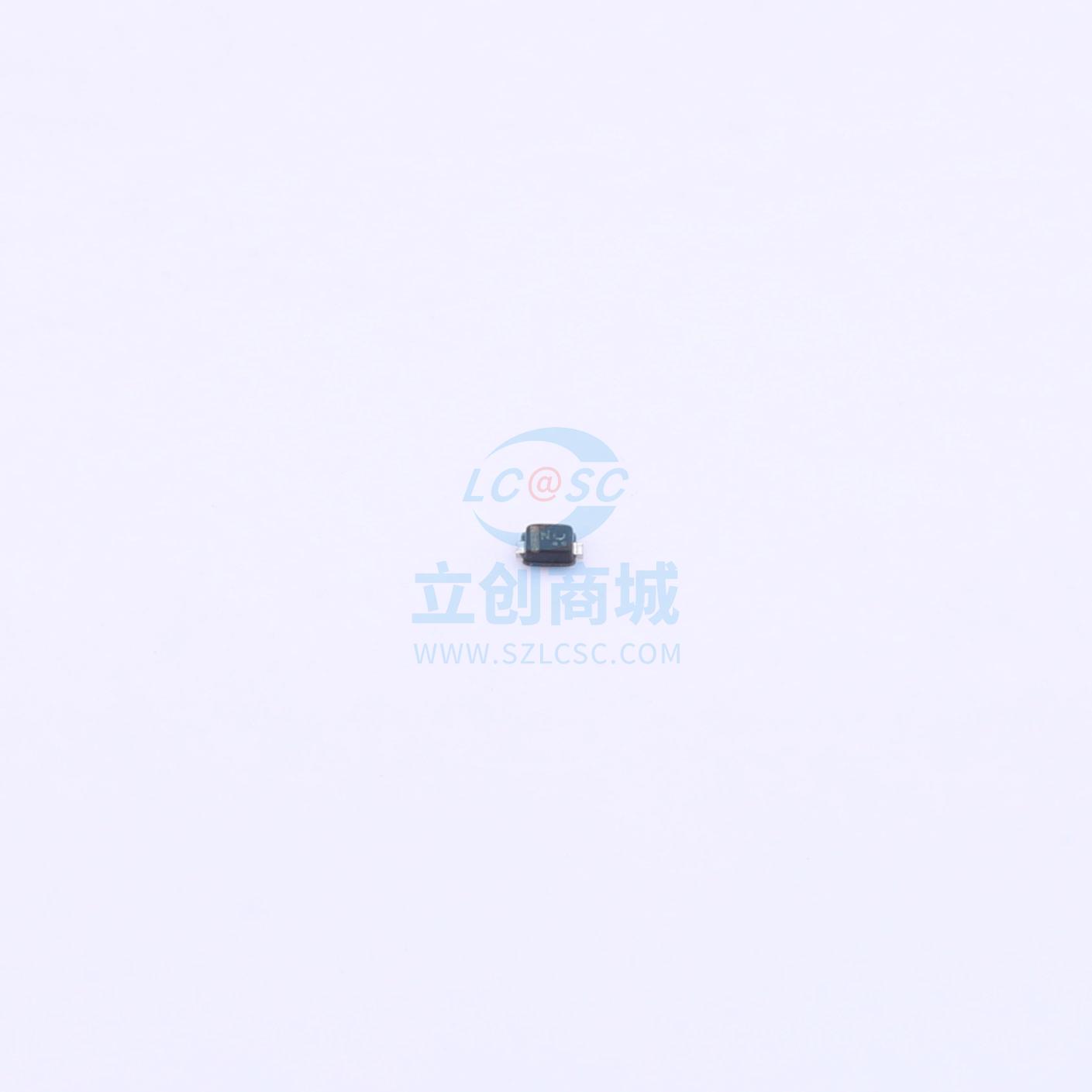

The RSAC6.8CST2RA is designed to protect voltage sensitive components that require ultra-low capacitance from ESD and transient Voltage events.Excellent clamping capability, low capacitance, low leakage,and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, itis suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications.
Download datasheet Inquiry
Transient Voltage Suppressors
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The RSAC6.8CST2RA is designed to protect voltage sensitive components that require ultra-low capacitance from ESD and transient Voltage events.Excellent clamping capability, low capacitance, low leakage,and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, itis suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications.
Features
● Voltage Regulation: Provides a stable 5.4V breakdown voltage (VBR min) with a tight tolerance for precise circuit protection.
● Low Leakage Current: Operates efficiently with a leakage current of only 1mA (IR), ensuring minimal power loss and extended battery life in portable devices.
● High Voltage Clamping: Capable of clamping voltages up to 12.9V (VC), safeguarding sensitive components against voltage spikes and transient events.
● Low Capacitance: Features a low junction capacitance of 0.9pF (CJ), minimizing signal distortion and ensuring high-speed signal integrity.
Applications
● Consumer Electronics: Used in smartphones, tablets, and portable media players for voltage regulation and ESD protection.
● Telecommunications: Ensures stable operation and protects sensitive circuitry in networking equipment and communication devices.
● Automotive Electronics: Provides reliable over-voltage protection in automotive control units and infotainment systems.
● Industrial Controls: Safeguards sensitive sensors and microcontrollers from electrical transients in industrial automation applications.
| File Name | Title | Description |
|---|---|---|

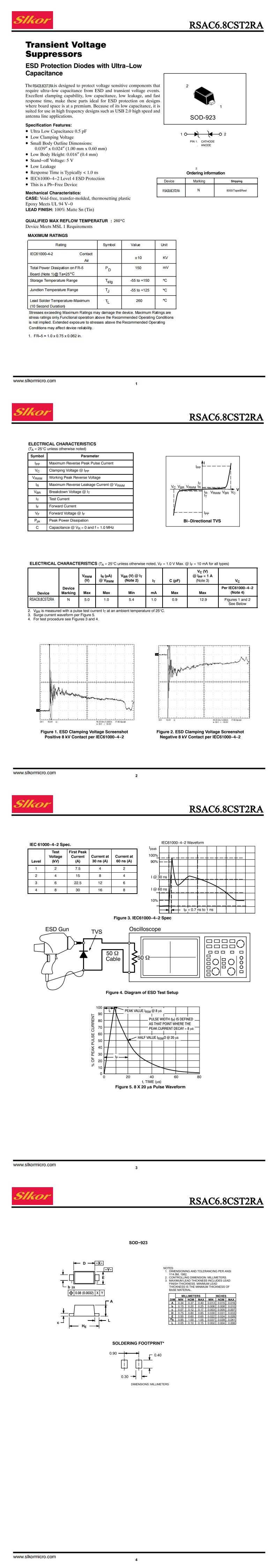

| RSAC6.8CST2RA SOD-923.pdf | RSAC6.8CST2RA SOD-923 | - |
