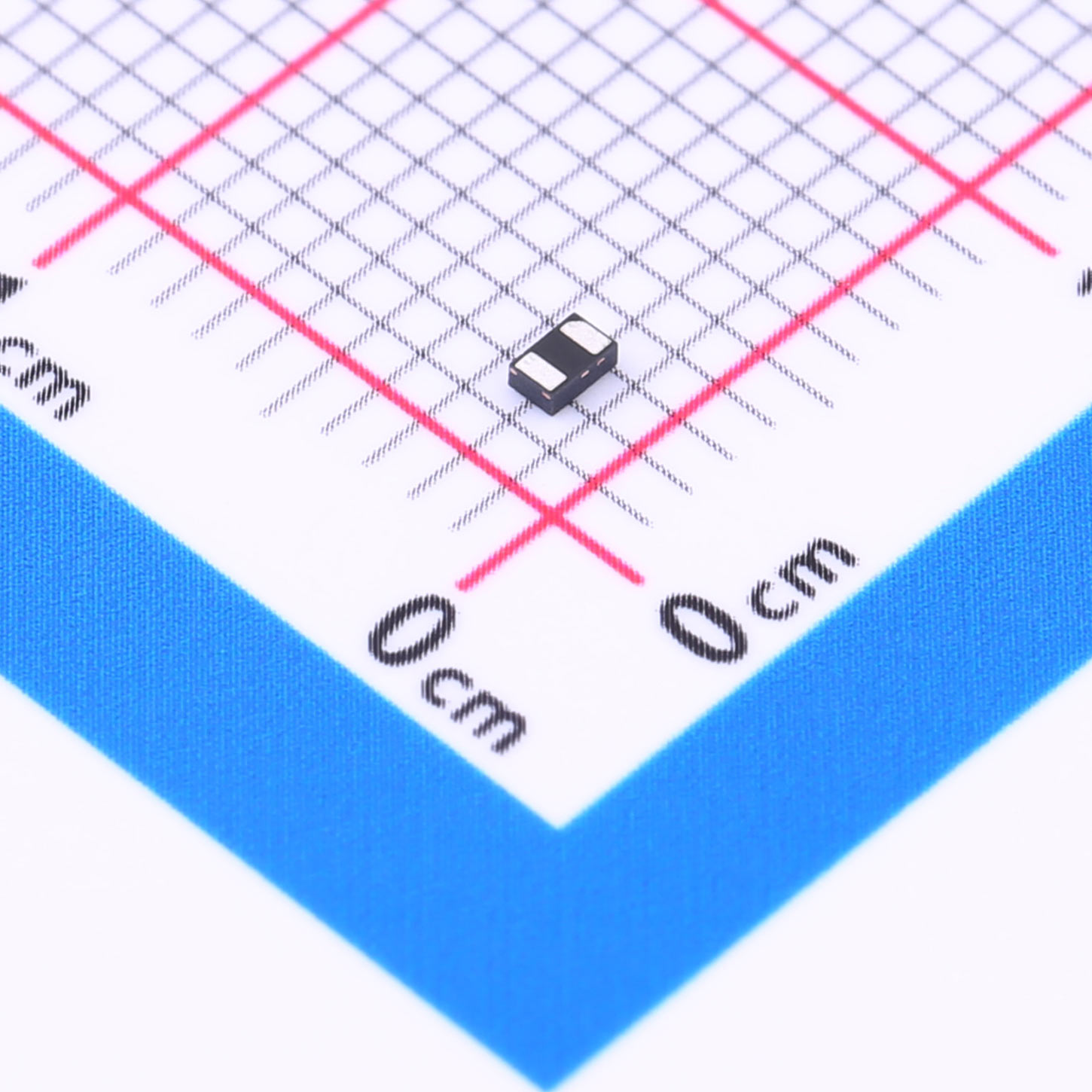

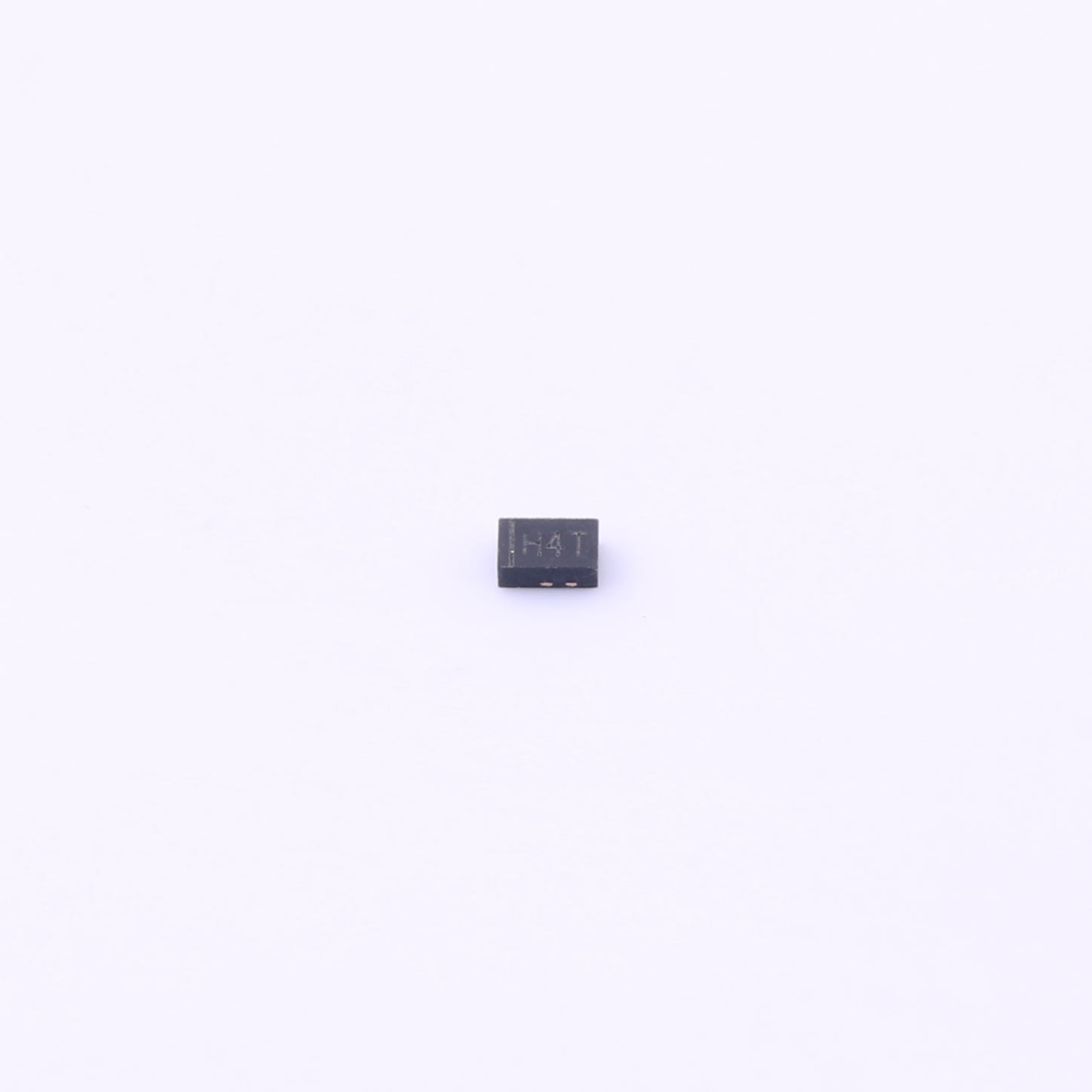

The PTVSHC2EN5VU is a transient voltage suppressor designed to protect power interfaces. It is suitable to replace multiple discrete components in portable electronics. The PTVSHC2EN5VU is specifically designed to protect power lines. The PTVSHC2EN5VU is available in DFN 1610-2L package. Standard products are Pbfree and Halogen-free.
Download datasheet Inquiry
Bi-directional ESD Protection Diode in DFN1006 Package
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The PTVSHC2EN5VU is a transient voltage suppressor designed to protect power interfaces. It is suitable to replace multiple discrete components in portable electronics. The PTVSHC2EN5VU is specifically designed to protect power lines. The PTVSHC2EN5VU is available in DFN 1610-2L package. Standard products are Pbfree and Halogen-free.
Features
● Transient protection for high-speed data lines
IEC 61000-4-2 (ESD) ±30kV (Contact)
±30kV (Air)
● Peak power dissipation: 1800W (8/20μs )
● Working voltages : 5V
● Ultra-small package (1.6mm×1.0mm×0.5mm)
● Solid-state silicon technology
● Low clamping voltage
Applications
● Power management
● Power supply protection
| File Name | Title | Description |
|---|---|---|

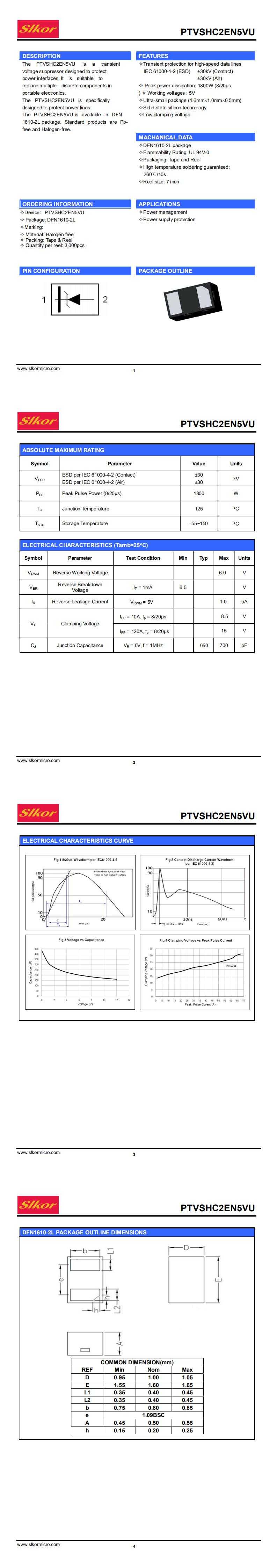

| PTVSHC2EN5VU DFN1610-2L.pdf | PTVSHC2EN5VU DFN1610-2L | - |
