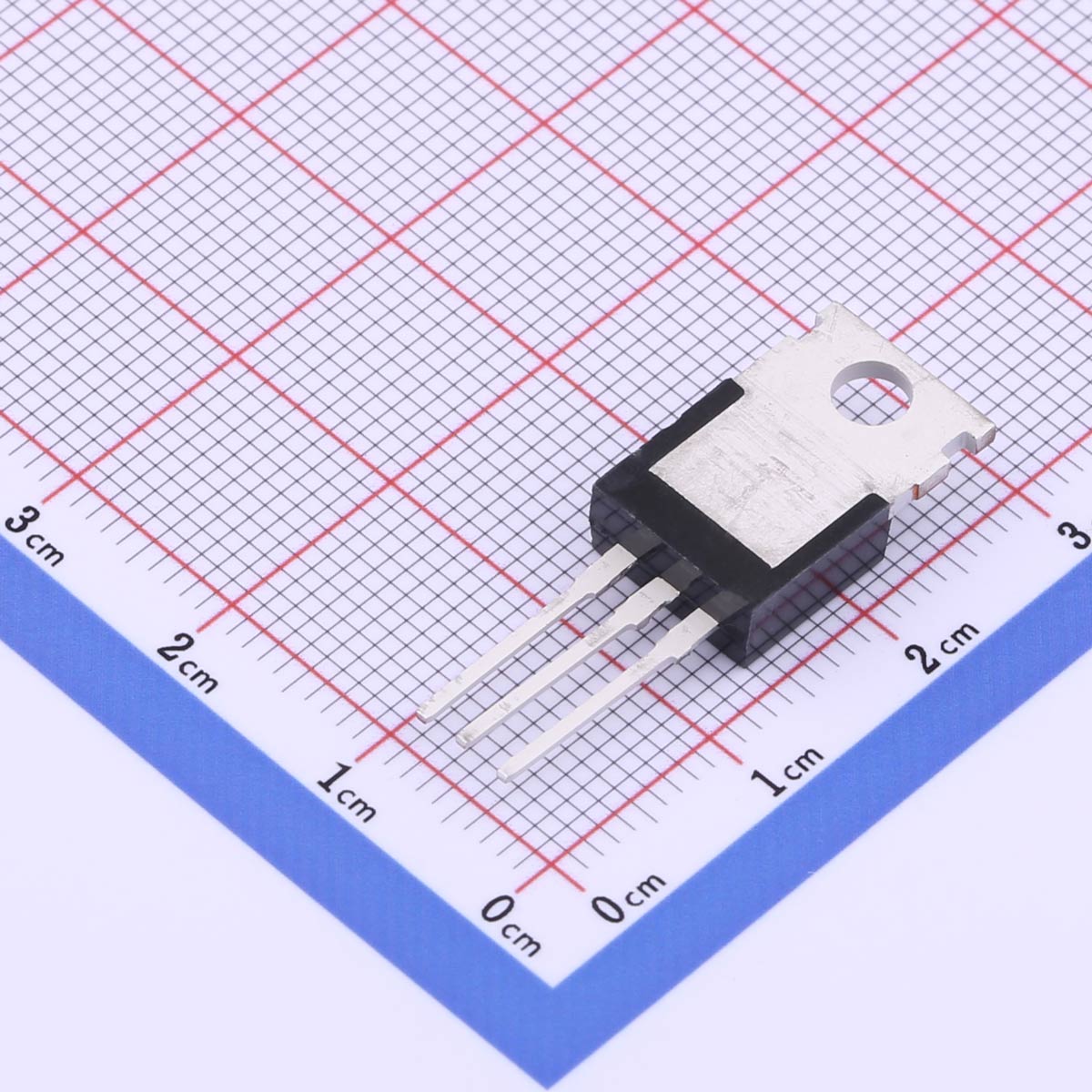

TIP32C Silicon Epitaxial Planar Transistor
Download datasheet Inquiry
Description
With TO-220 package
Complement to type TlP31/31A/31B/31C
Applications
Medium power linear and switching applications
| File Name | Title | Description |
|---|---|---|

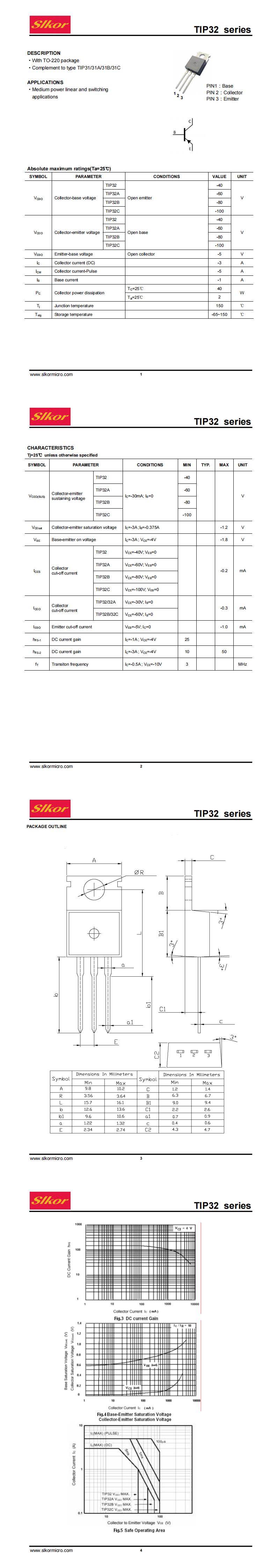

| TIP32C TO-220.pdf | TIP32C TO-220 | - |
