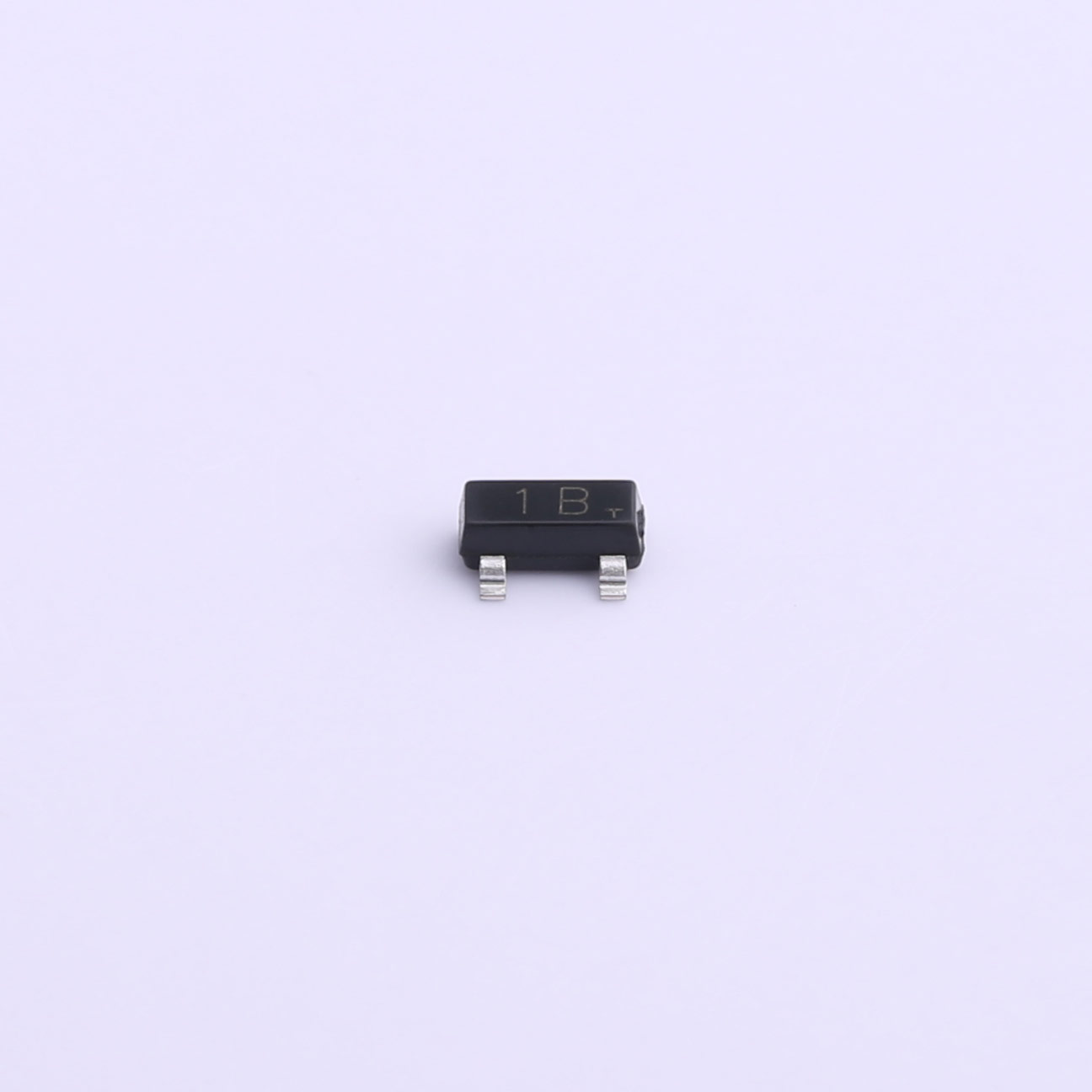

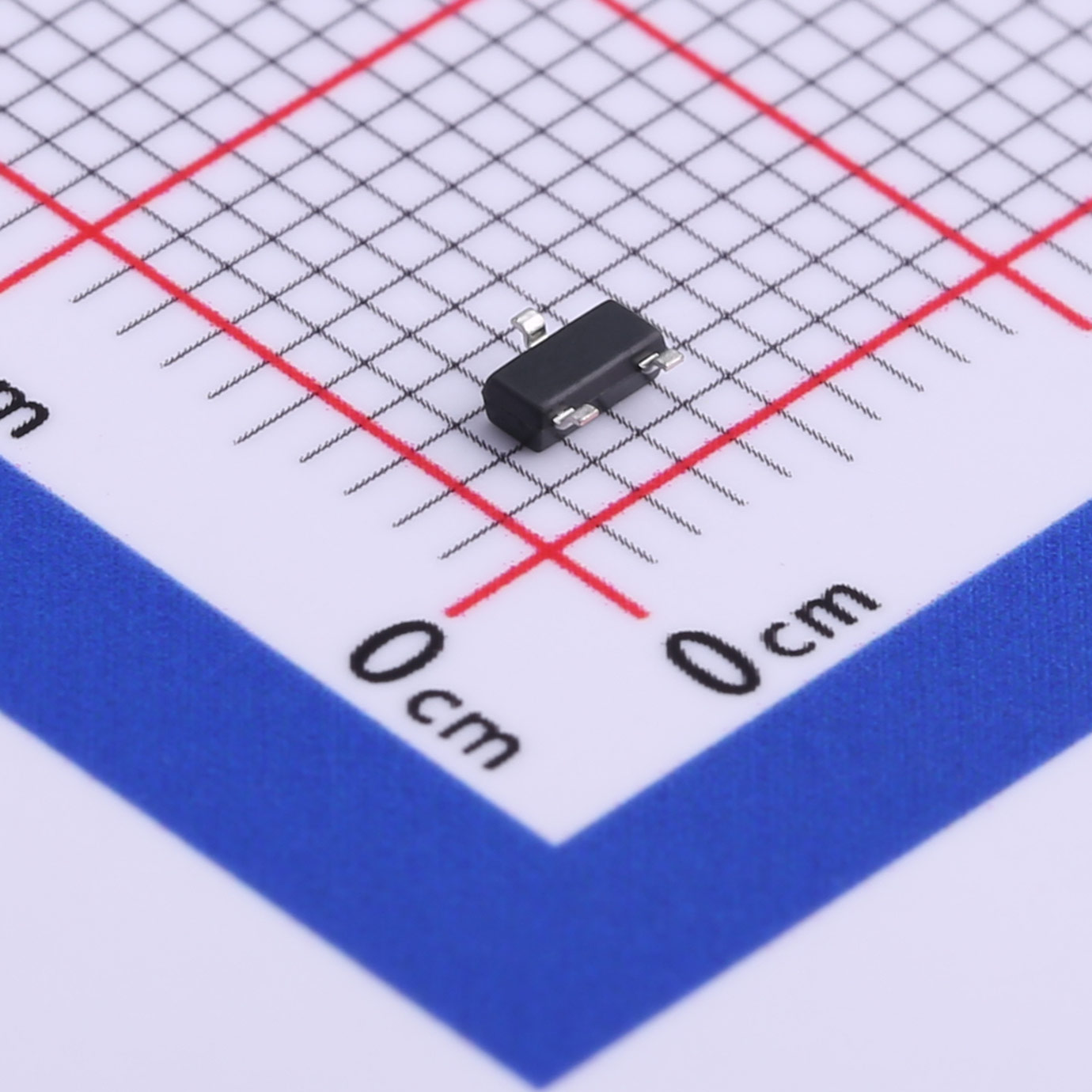

65 V, 100 mA NPN general-purpose transistors in a small SOT23 Surface-Mounted Device (SMD) plastic package.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
NPN general-purpose transistors in a small SOT-23 Surface-Mounted Device (SMD) plastic package.
Features
● General-purpose transistors
● SMD plastic package
● Two different gain selections
Applications
● General-purpose switching and amplification
Quick reference data
|
Symbol |
Parameter |
Conditions |
Max |
Unit |
|
VCEO |
collector-emitter voltage |
open base |
65 |
V |
|
IC |
collector current |
0.1 |
A |
|
|
VCEsat |
collector-emitter saturation voltage |
IC = 100mA; IB = 5mA |
0.6 |
V |
| File Name | Title | Description |
|---|---|---|

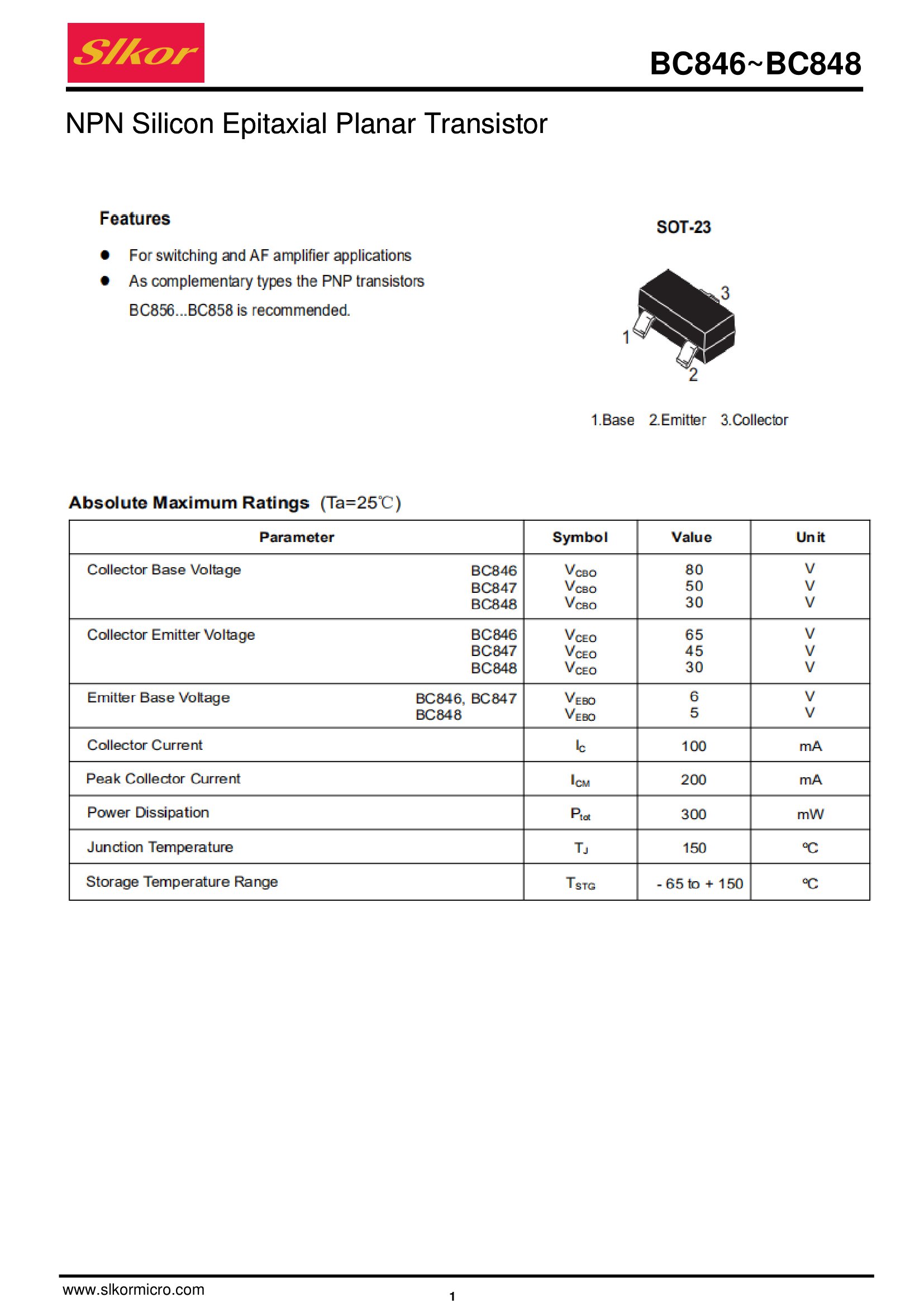

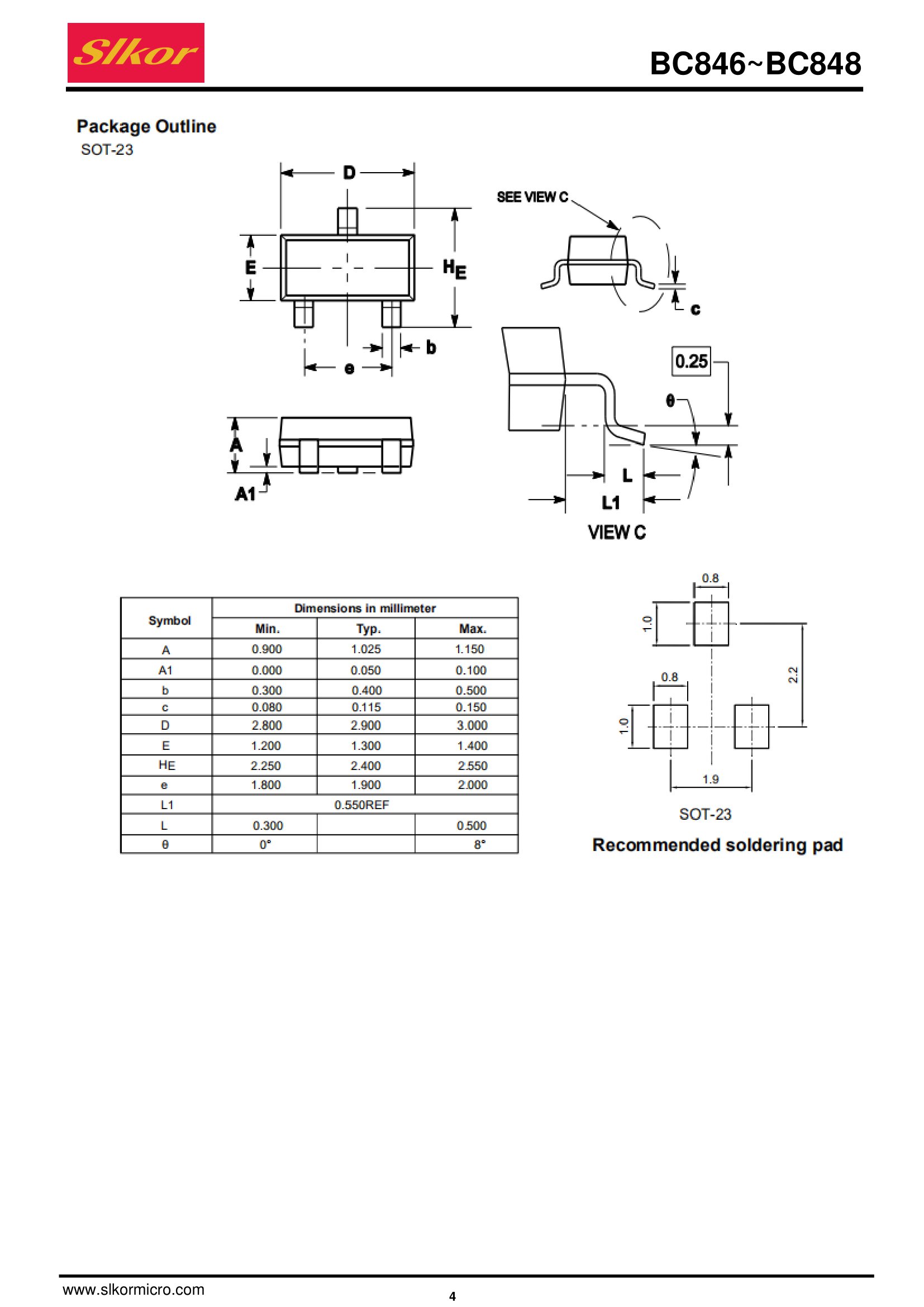

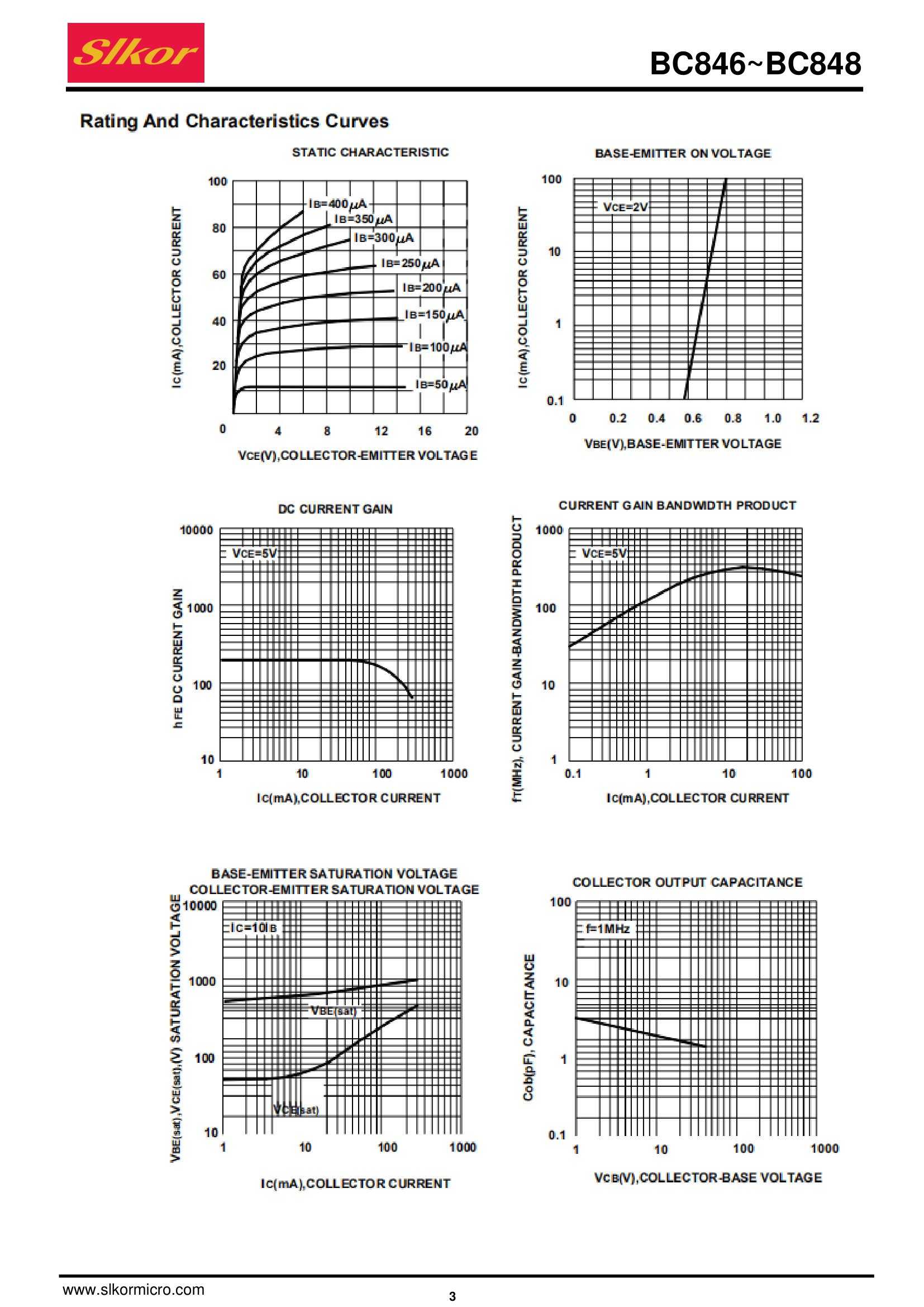

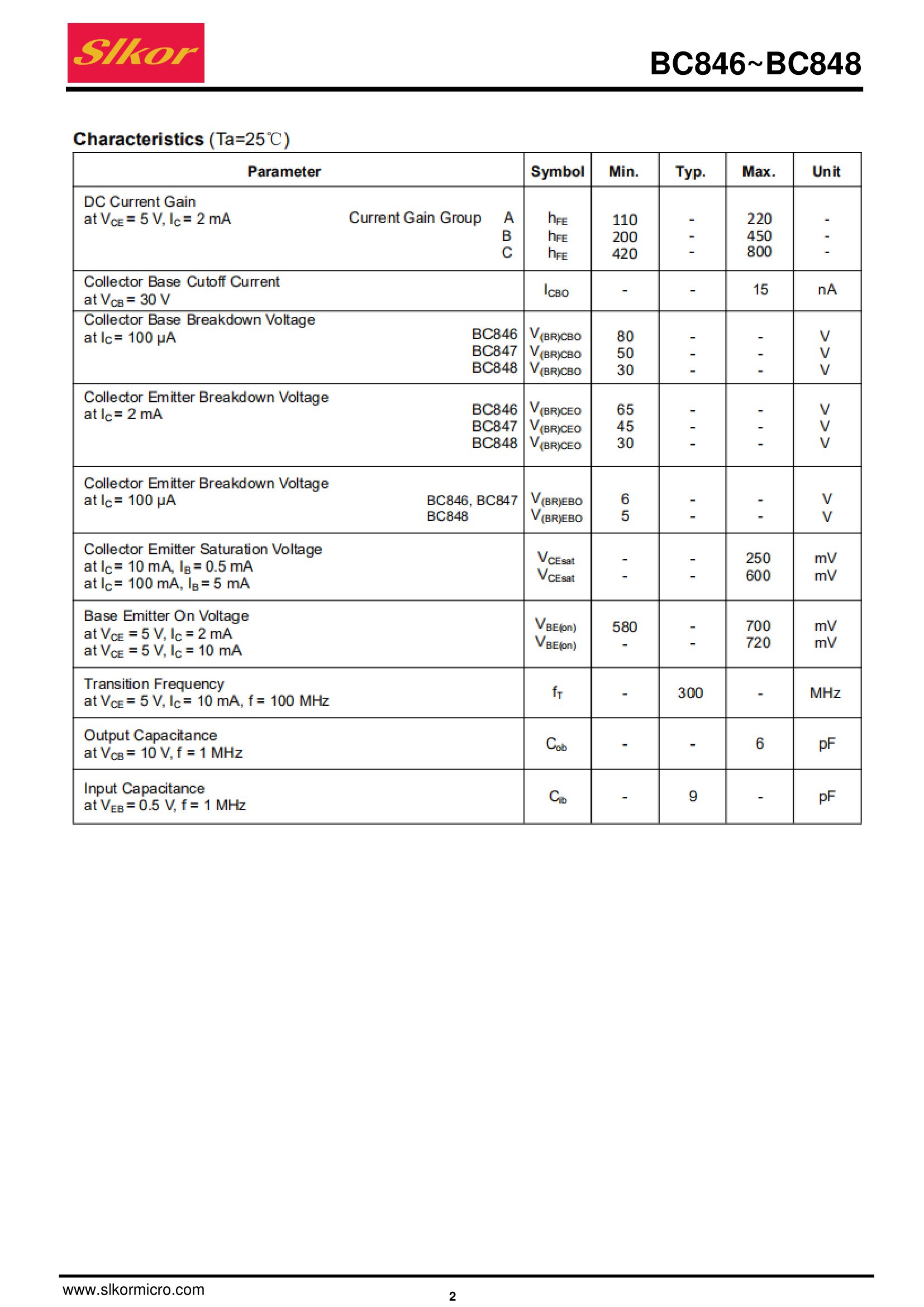

| BC846B.pdf | BC846B | - |
