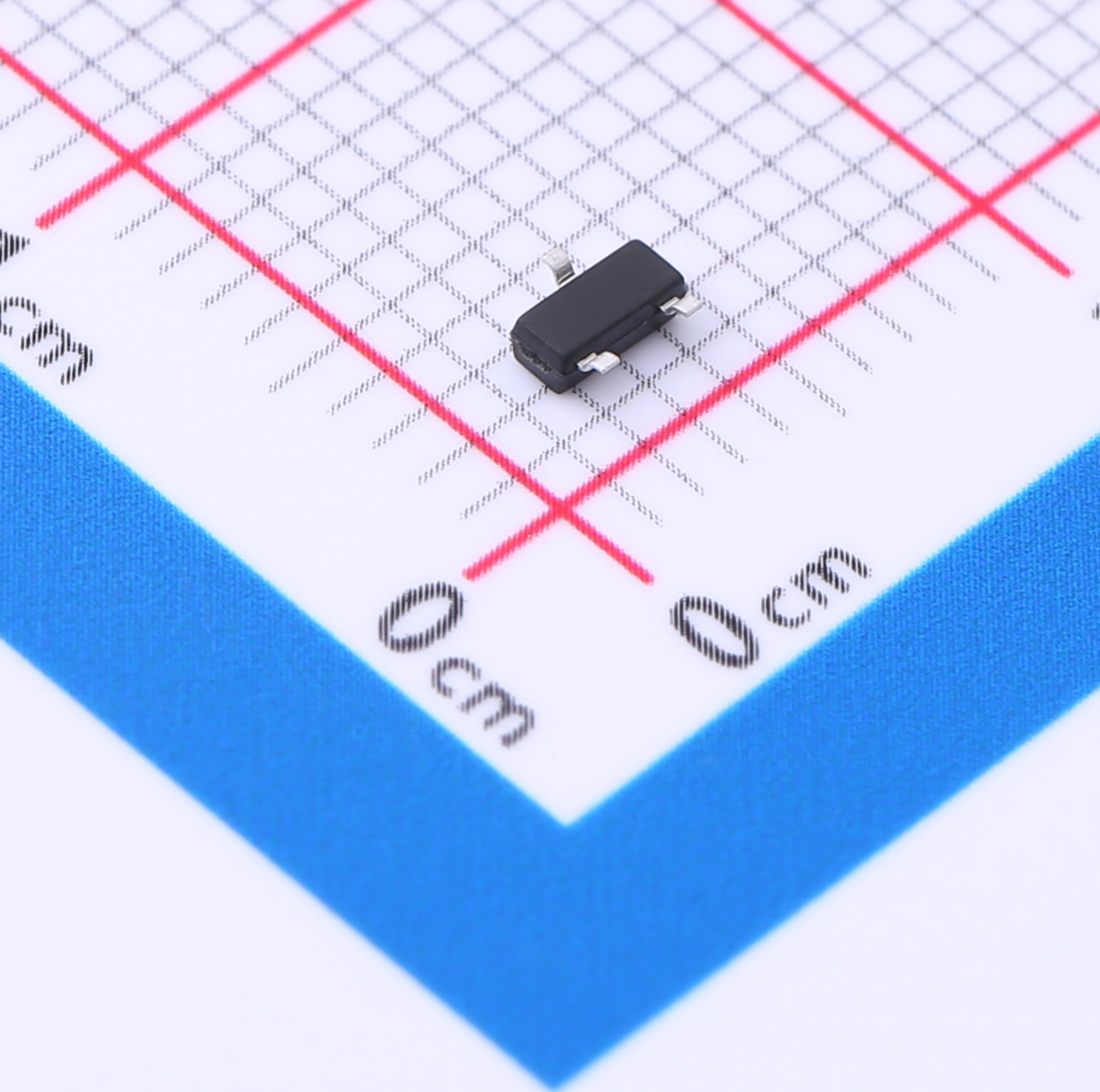

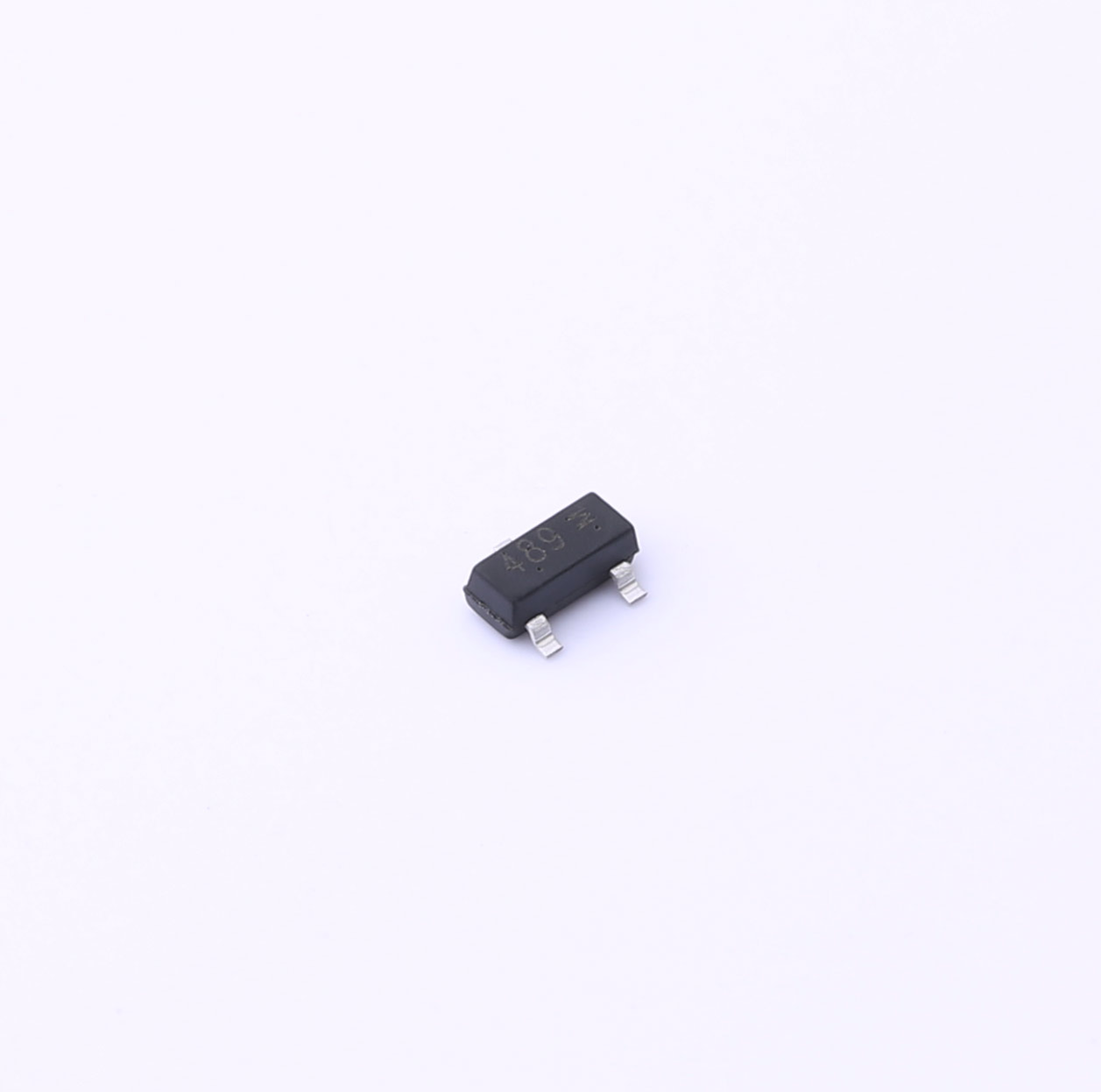

The FMMT489 is an epitaxial silicon transistor designed for high-performance applications requiring robustness and efficiency in small electronic circuits. Encapsulated in a compact SOT-23 package, this transistor offers a maximum collector-emitter voltage (Vceo) of 30V and can handle a continuous collector current (Ic) of up to 1A. With a power dissipation (Pd) rating of 500mW, it effectively manages heat dissipation in various operational conditions. The FMMT489 features a low saturation voltage (VCE(sat)) of 300mV at 1A collector current and 100mA base current, ensuring minimal power loss during switching operations. It boasts a high DC current gain (hFE) of 100 at 1A collector current and 2V collector-emitter voltage (Vce), facilitating reliable signal amplification and control.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The FMMT489 is an epitaxial silicon transistor designed for high-performance applications requiring robustness and efficiency in small electronic circuits. Encapsulated in a compact SOT-23 package, this transistor offers a maximum collector-emitter voltage (Vceo) of 30V and can handle a continuous collector current (Ic) of up to 1A. With a power dissipation (Pd) rating of 500mW, it effectively manages heat dissipation in various operational conditions. The FMMT489 features a low saturation voltage (VCE(sat)) of 300mV at 1A collector current and 100mA base current, ensuring minimal power loss during switching operations. It boasts a high DC current gain (hFE) of 100 at 1A collector current and 2V collector-emitter voltage (Vce), facilitating reliable signal amplification and control.
Features
● Very low equivalent on-resistance
Applications:
The FMMT489 transistor is well-suited for a variety of high-performance applications:
● Switching Power Supplies: Efficiently switches high currents in power supply circuits.
● Audio Amplification: Provides clear and precise amplification in audio circuits.
● Signal Processing: Ideal for signal amplification and control in telecommunications equipment.
● Motor Control: Drives small motors and actuators in automotive and industrial applications.
● Temperature Regulation: Operates reliably in temperature sensing and control circuits due to its wide temperature range of -55°C to +150°C.
| File Name | Title | Description |
|---|---|---|

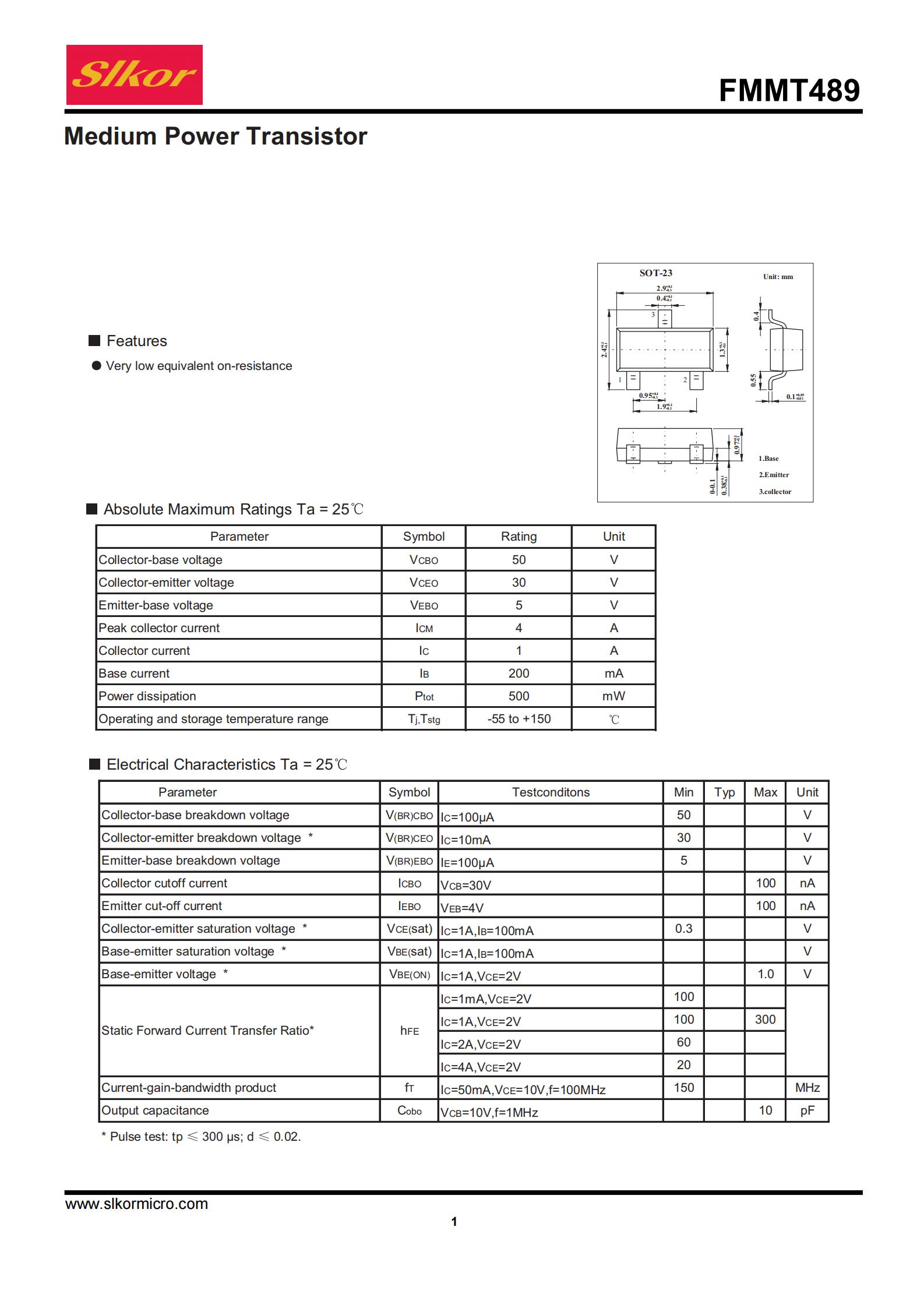

| FMMT489 SOT-23.pdf | FMMT489 SOT-23 | - |
