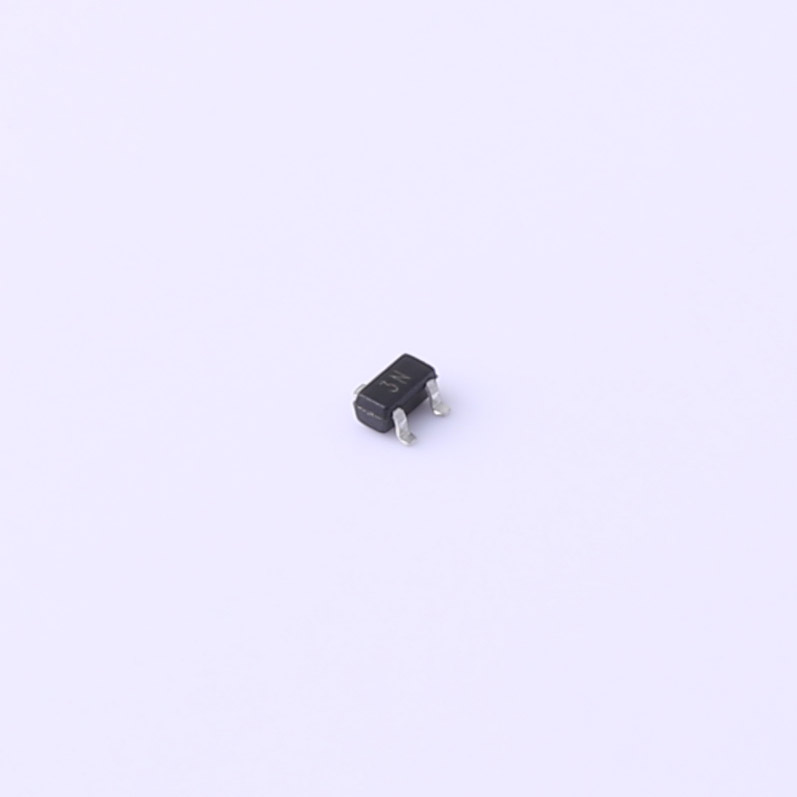

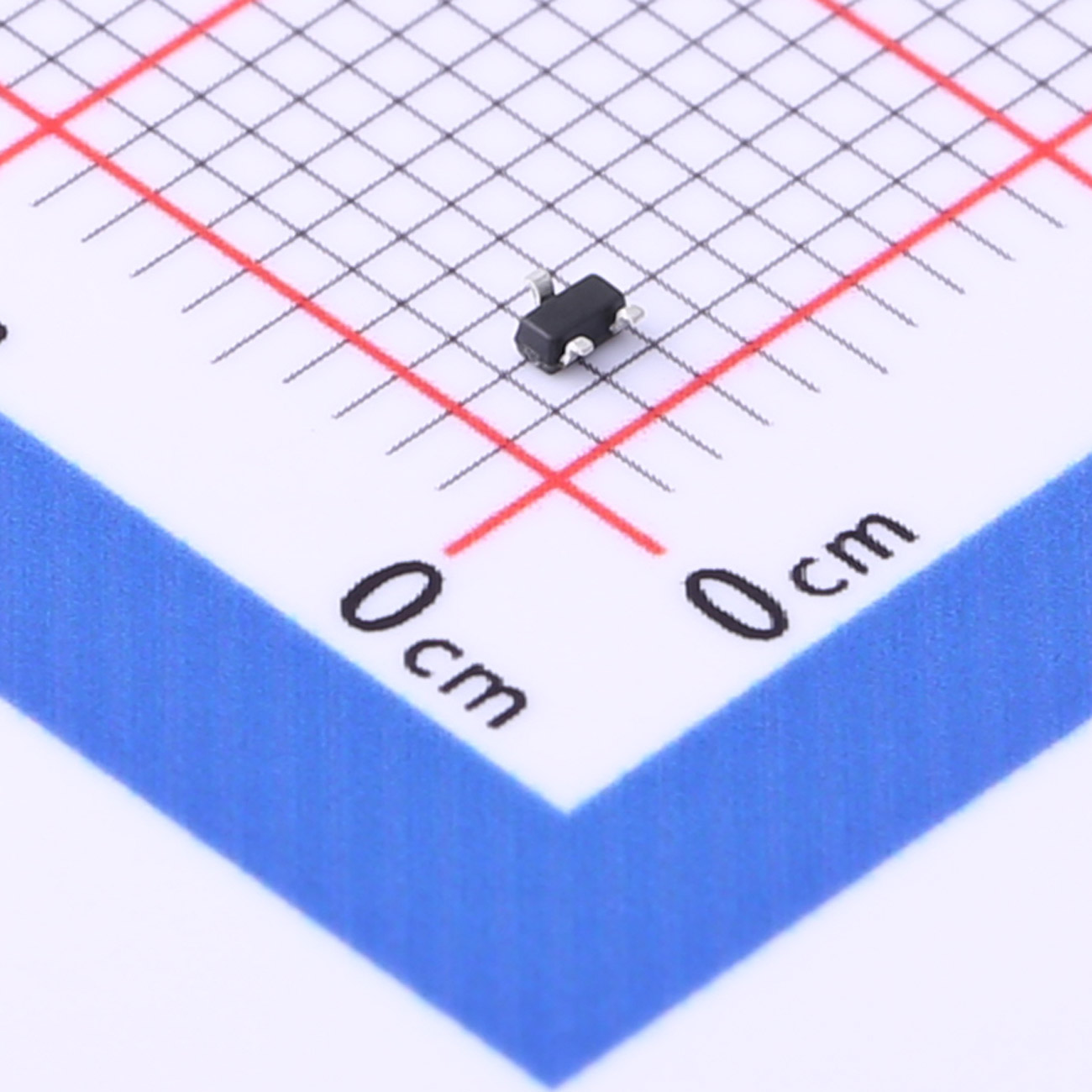

The SL3906T is a PNP bipolar junction transistor designed for precise switching and amplification in low-power applications where efficiency and reliability are crucial. With a collector-emitter voltage rating (Vceo) of 40V and a maximum collector current (Ic) of 200mA, it offers robust performance in a compact package. This transistor is engineered to handle up to 150mW of power dissipation, making it suitable for a variety of electronic circuits.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The SL3906T is a PNP bipolar junction transistor designed for precise switching and amplification in low-power applications where efficiency and reliability are crucial. With a collector-emitter voltage rating (Vceo) of 40V and a maximum collector current (Ic) of 200mA, it offers robust performance in a compact package. This transistor is engineered to handle up to 150mW of power dissipation, making it suitable for a variety of electronic circuits.
Features
● Epitaxial Planar Die Construction
● Also Available in Lead Free Version
● Complementary to SL3904T
Applications:
The SL3906T transistor is ideal for a range of applications, including:
● Switching Circuits: Efficiently controls moderate currents in switching applications due to its low saturation voltage and high current gain.
● Amplification: Suitable for amplifying signals in audio and RF circuits up to 250MHz.
● Signal Processing: Used in oscillators, modulators, and other signal processing circuits.
● Temperature-Sensitive Environments: Its high operating temperature tolerance makes it suitable for environments where temperature fluctuations occur.
● Battery Management: Effective in low-power devices and battery-operated equipment due to its low power dissipation characteristics.
| File Name | Title | Description |
|---|---|---|

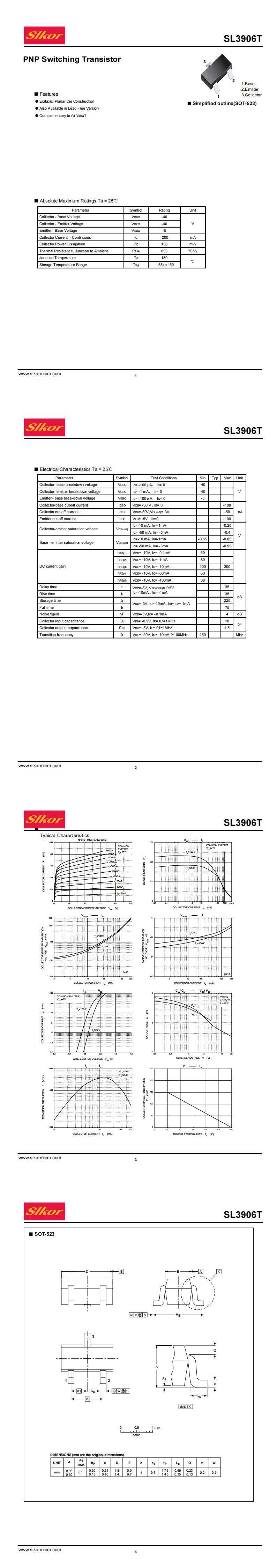

| SL3906T SOT-523.pdf | SL3906T SOT-523 | - |
