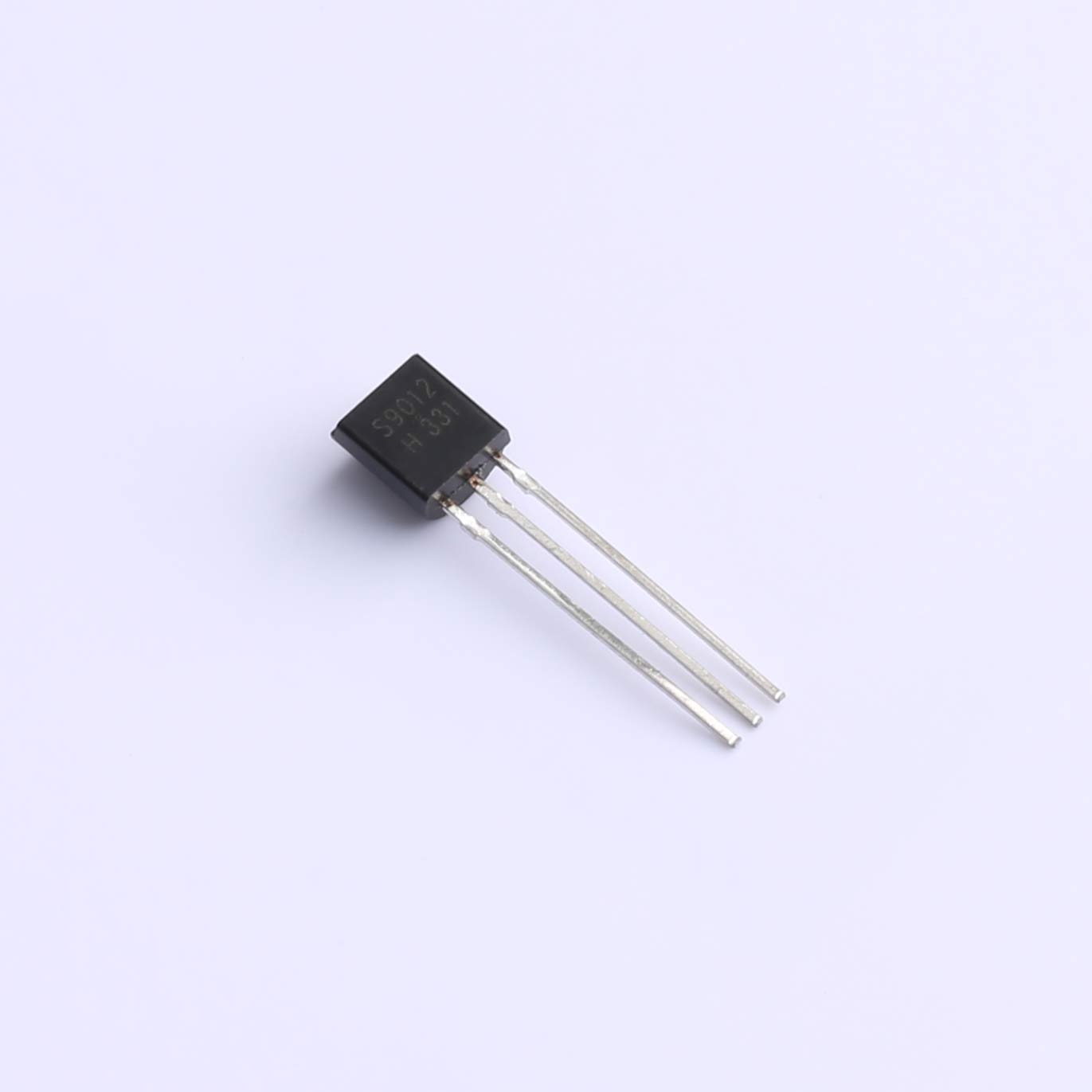

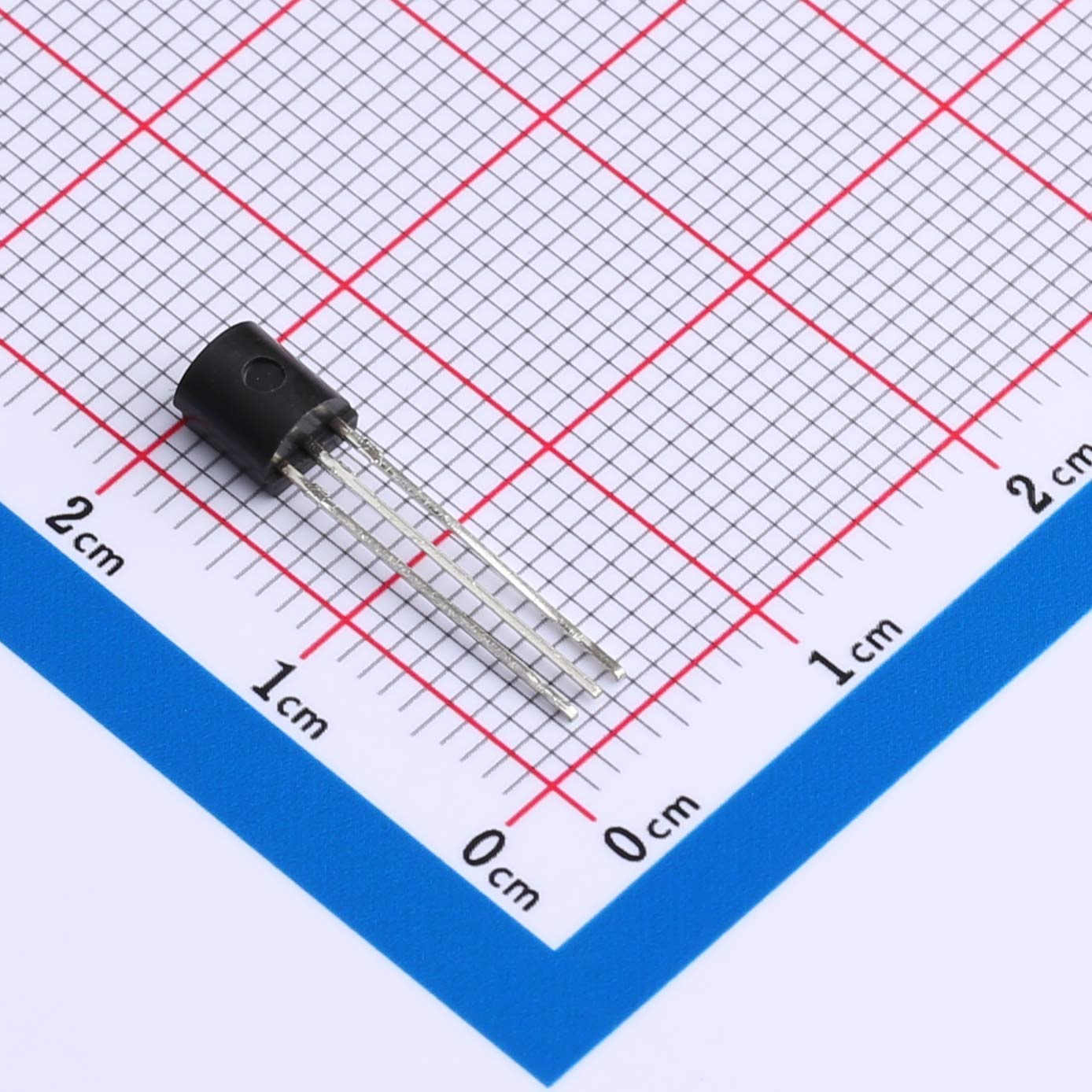

S9012 PNP Bipolar Transistor
Download datasheet InquiryFeatures
lComplementary to S9013
lExcellent hFE linearity
| File Name | Title | Description |
|---|---|---|

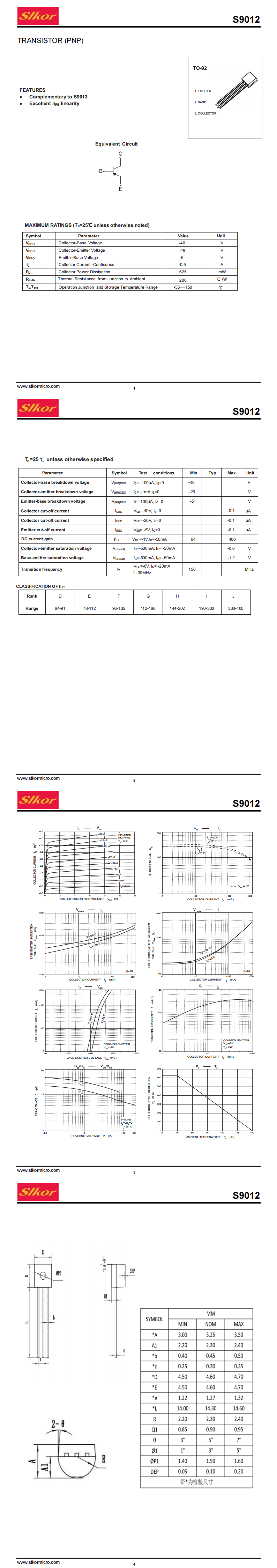

| S9012 TO-92.pdf | S9012 TO-92 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The S9012 is a versatile PNP bipolar junction transistor (BJT) designed for applications where moderate voltage and current requirements are necessary. Encapsulated in the SOT-23 package, it offers compact size without compromising on performance. With a maximum collector-emitter voltage (VCEO) of -25V and a collector current (IC) rating of -500mA, the S9012 is suitable for low-power circuit designs. It can handle power dissipation (PD) up to 300mW and features a low collector-emitter saturation voltage (VCE(sat)) of -0.6V, ensuring minimal voltage drop during operation. The transistor exhibits a transition frequency (fT) of 150MHz, making it ideal for applications requiring high-frequency response and efficient switching. ?
