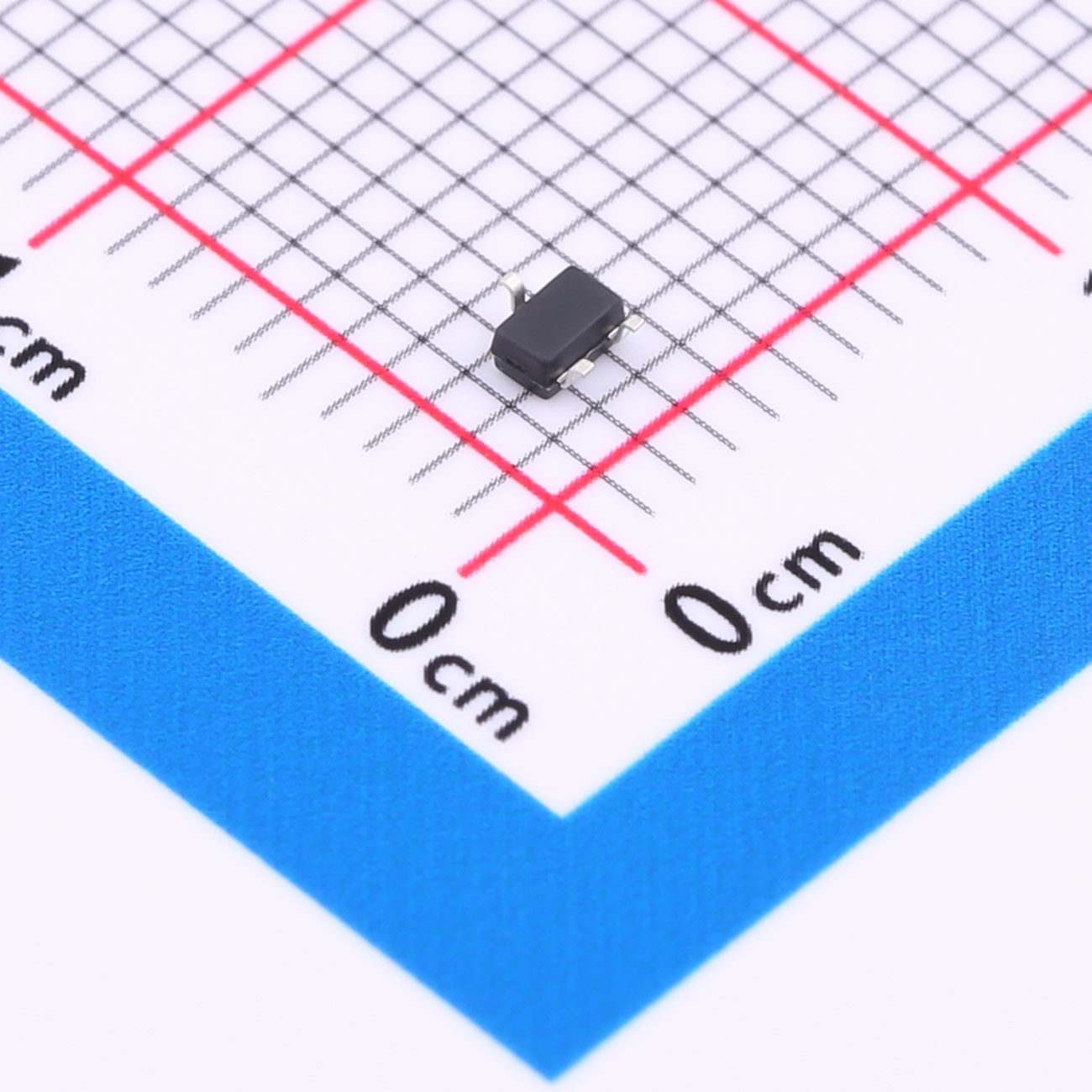

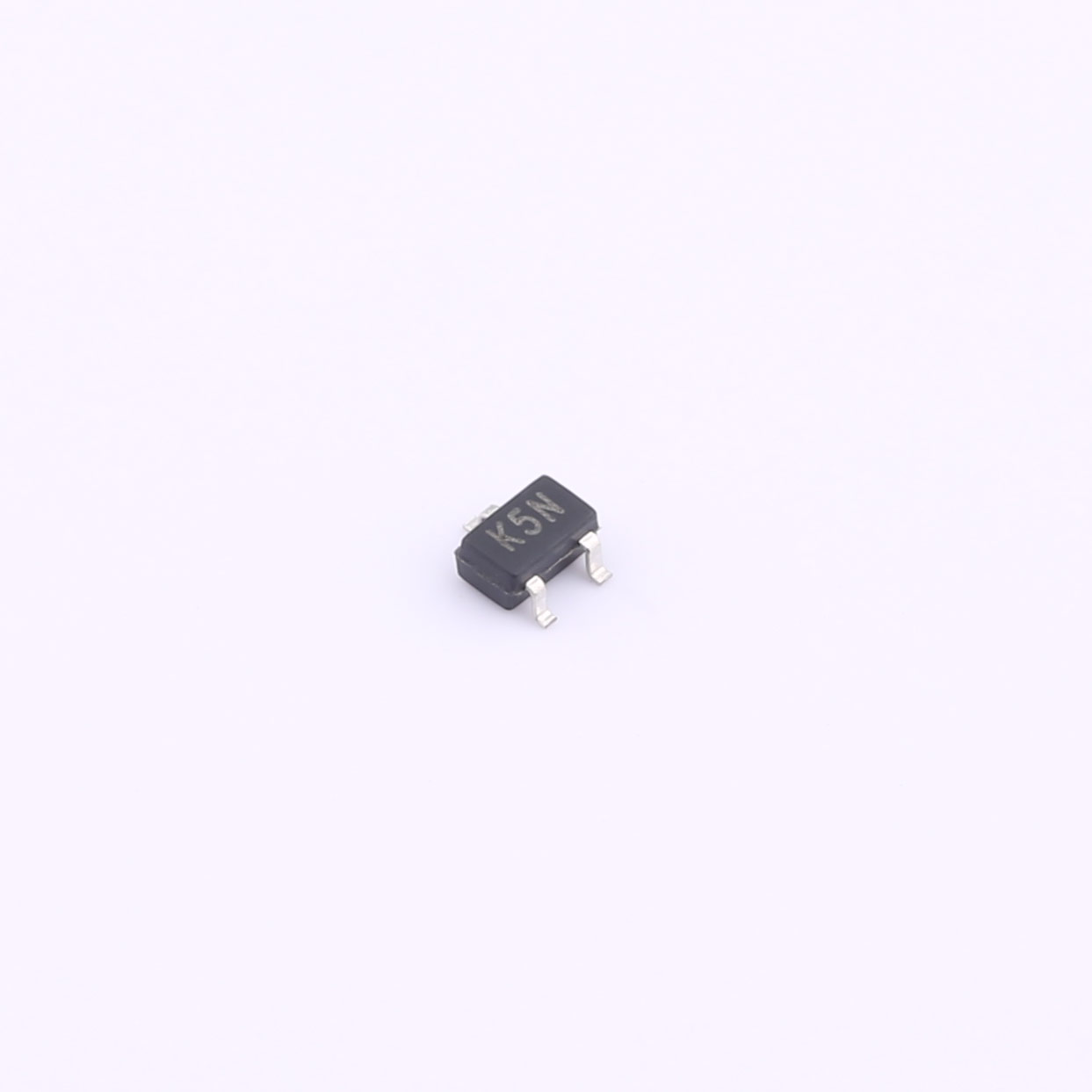

MMST3906 PNP Bipolar Transistor SOT-323

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description:

MMST3906 PNP Digital Transistor engineered to deliver exceptional performance in a wide range of electronic applications. With a collector-emitter voltage (V_ceo) of 40V and a maximum collector current (I_c) of 200mA, this transistor is designed to handle moderate power levels with reliability. It features a maximum power dissipation (P_d) of 200mW and a low collector-emitter saturation voltage (V_CE(sat)) of 0.2V at an Ic of 10mA and Ib of 1mA, ensuring efficient operation in switching and amplification tasks.

FEATURES

● Collector Current Capability I_C=-0.2A

● Collector Emitter Voltage V_CEO=-40V

Application:

The MMST3906 PNP Digital Transistor is perfectly suited for a variety of electronic applications, including:

● Signal Amplification: Effective in amplifying low-level signals due to its high transition frequency.

● Switching Circuits: Reliable for use in switching circuits with its low V_CE(sat) ensuring efficient operation.

● Power Management: Suitable for moderate power applications with its 200mW power dissipation capability.

● High-Temperature Environments: Can be used in applications where high operating temperatures are a factor, thanks to its 150°C maximum junction temperature.
