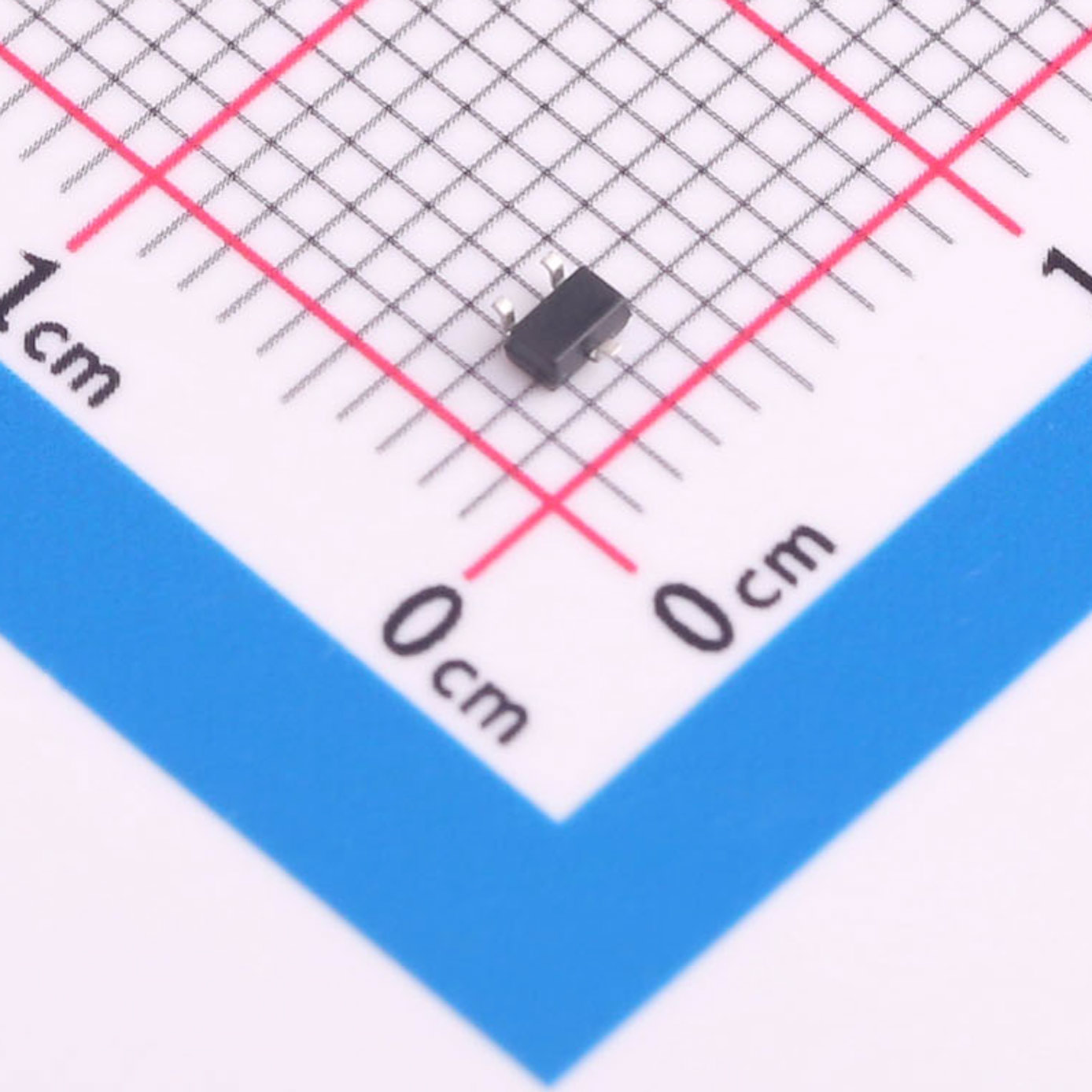

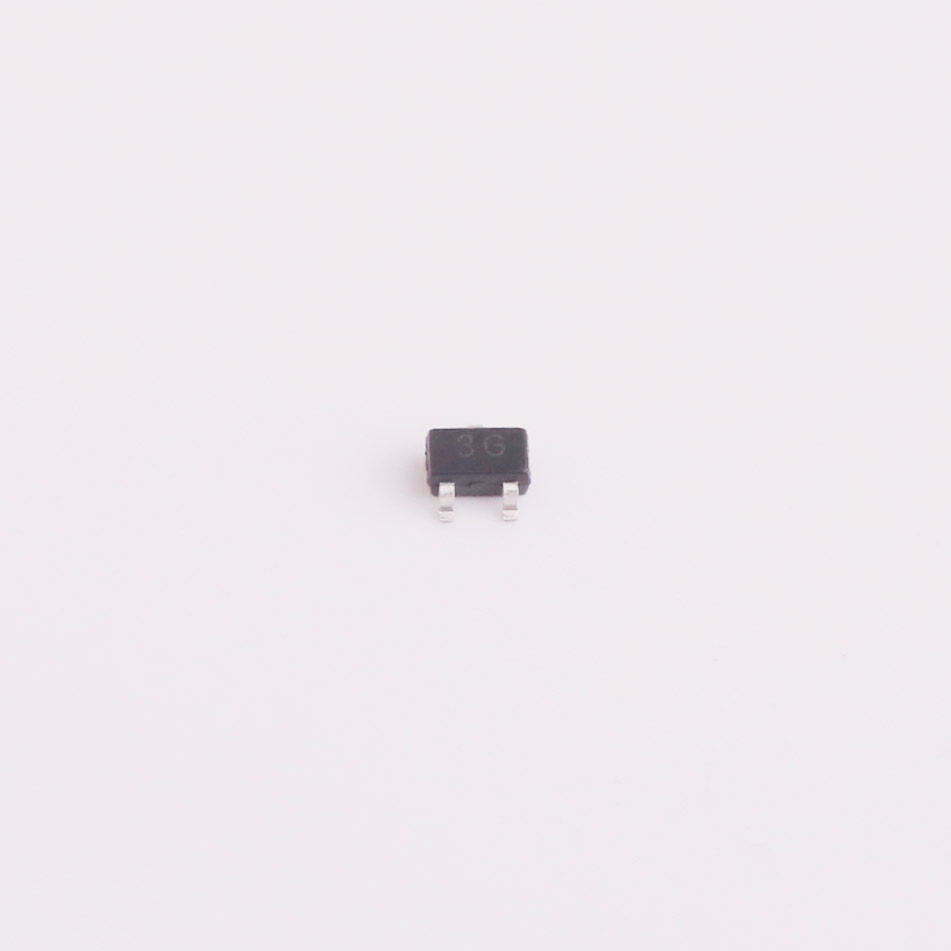

The BC857CW is a versatile PNP digital transistor housed in a compact SOT-323 package. Designed for high-frequency switching applications, this transistor combines reliable performance with space-saving features. Its robust construction and efficient operation make it an ideal choice for various electronic circuits and systems.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The BC857CW is a versatile PNP digital transistor housed in a compact SOT-323 package. Designed for high-frequency switching applications, this transistor combines reliable performance with space-saving features. Its robust construction and efficient operation make it an ideal choice for various electronic circuits and systems.
FEATURES
● Ideally suited for automatic insertion
● For Switching and AF Amplifier Applications
Application:
The BC857CW PNP digital transistor is ideal for a range of applications including:
● Switching Circuits: Used in digital circuits for switching operations due to its fast transition frequency and low saturation voltage.
● Amplifiers: Suitable for use in small signal amplification circuits where high frequency and temperature stability are essential.
● Signal Processing: Effective in high-speed signal processing and low-power electronic devices.
● Consumer Electronics: Used in various consumer electronics for efficient switching and amplification tasks.
| File Name | Title | Description |
|---|---|---|

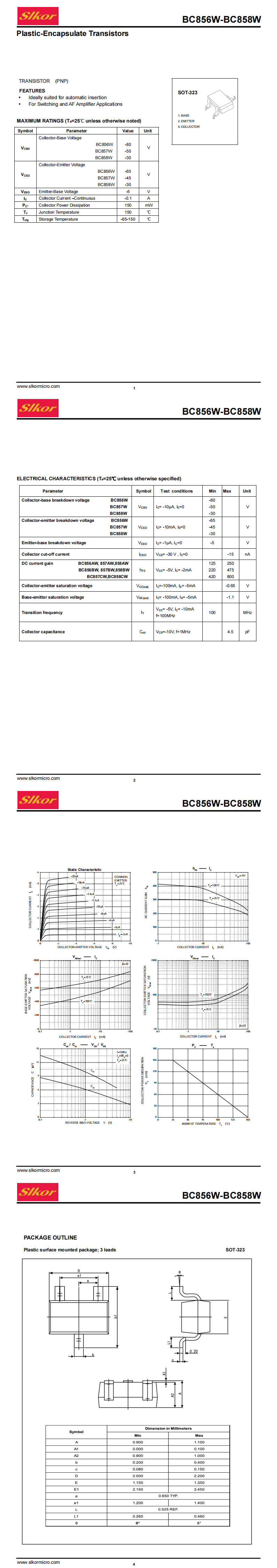

| BC857BW SOT-323.pdf | BC857BW SOT-323 | - |
