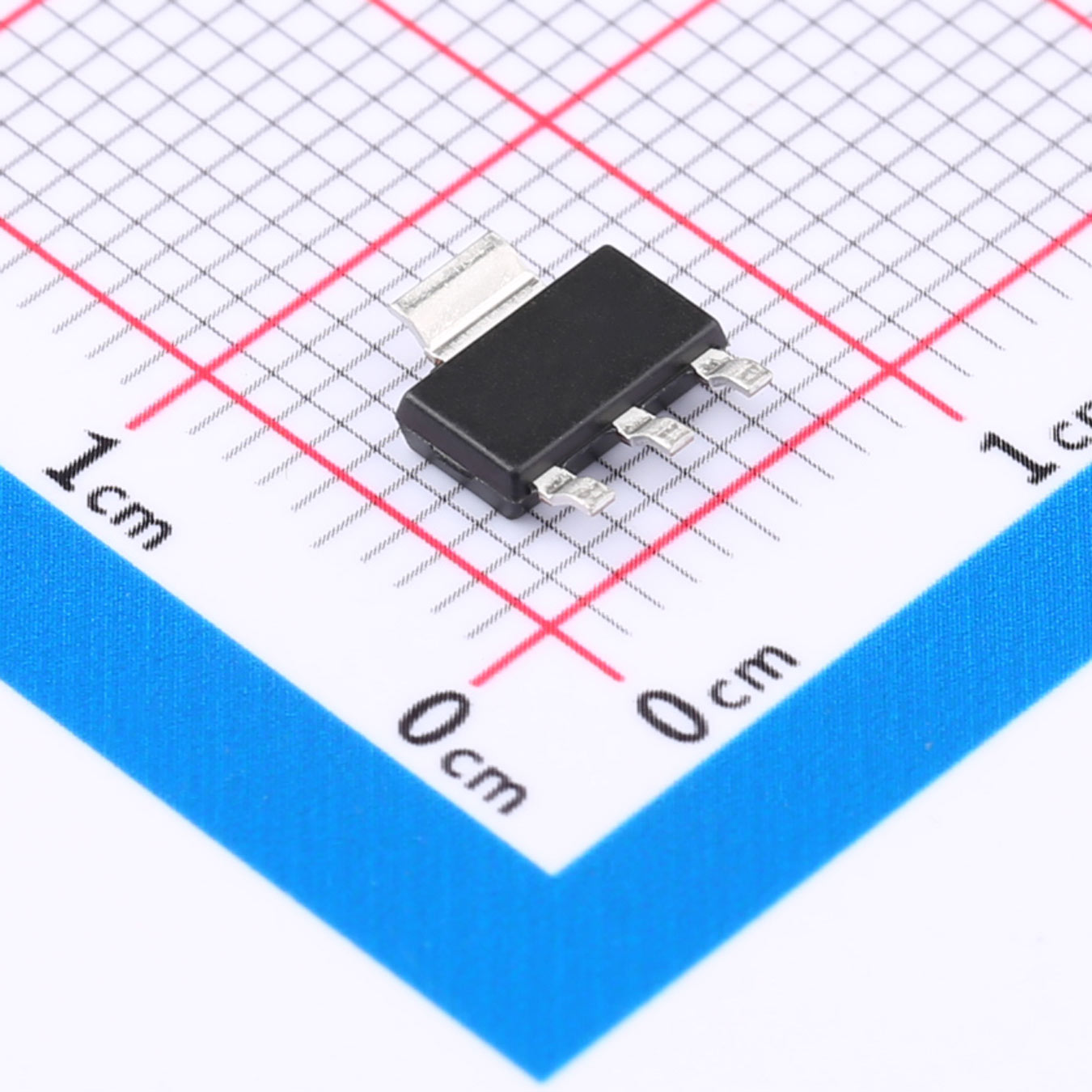

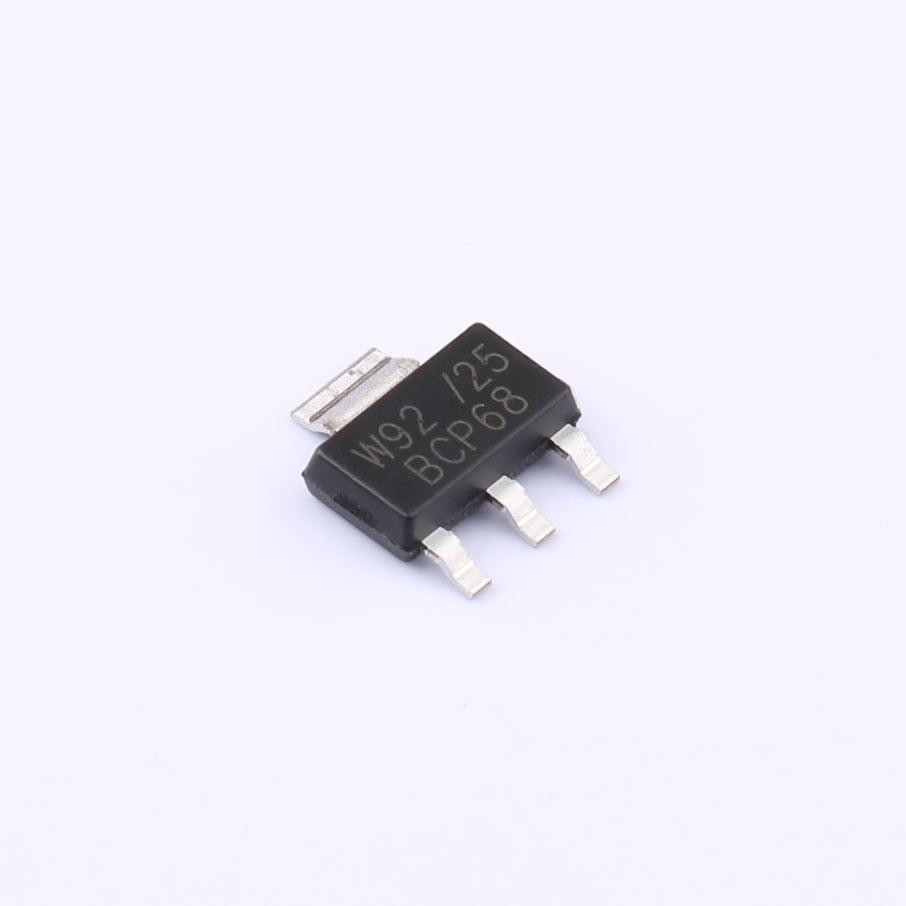

The BCP68-25 is a high-performance NPN bipolar junction transistor designed for efficient switching and amplification in electronic circuits. It features a maximum collector-emitter voltage (Vceo) of 20V and a collector current (Ic) rating of 1A, making it suitable for low to medium power applications. With a power dissipation (Pd) of 1.35W and a low collector-emitter saturation voltage (VCE(sat)) of 500mV @ 1A, 100mA, the BCP68-25 ensures minimal power loss and efficient operation in compact designs. Its transition frequency (fT) of 100MHz enables reliable high-frequency signal processing.
Download datasheet InquiryOur advantages:
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The BCP68-25 is a high-performance NPN bipolar junction transistor designed for efficient switching and amplification in electronic circuits. It features a maximum collector-emitter voltage (Vceo) of 20V and a collector current (Ic) rating of 1A, making it suitable for low to medium power applications. With a power dissipation (Pd) of 1.35W and a low collector-emitter saturation voltage (VCE(sat)) of 500mV @ 1A, 100mA, the BCP68-25 ensures minimal power loss and efficient operation in compact designs. Its transition frequency (fT) of 100MHz enables reliable high-frequency signal processing.
Features:
lLow voltage (max.20 V).
lHigh current(max.1 A).
Applications:
lGeneral purpose switching and amplification under high current conditions.

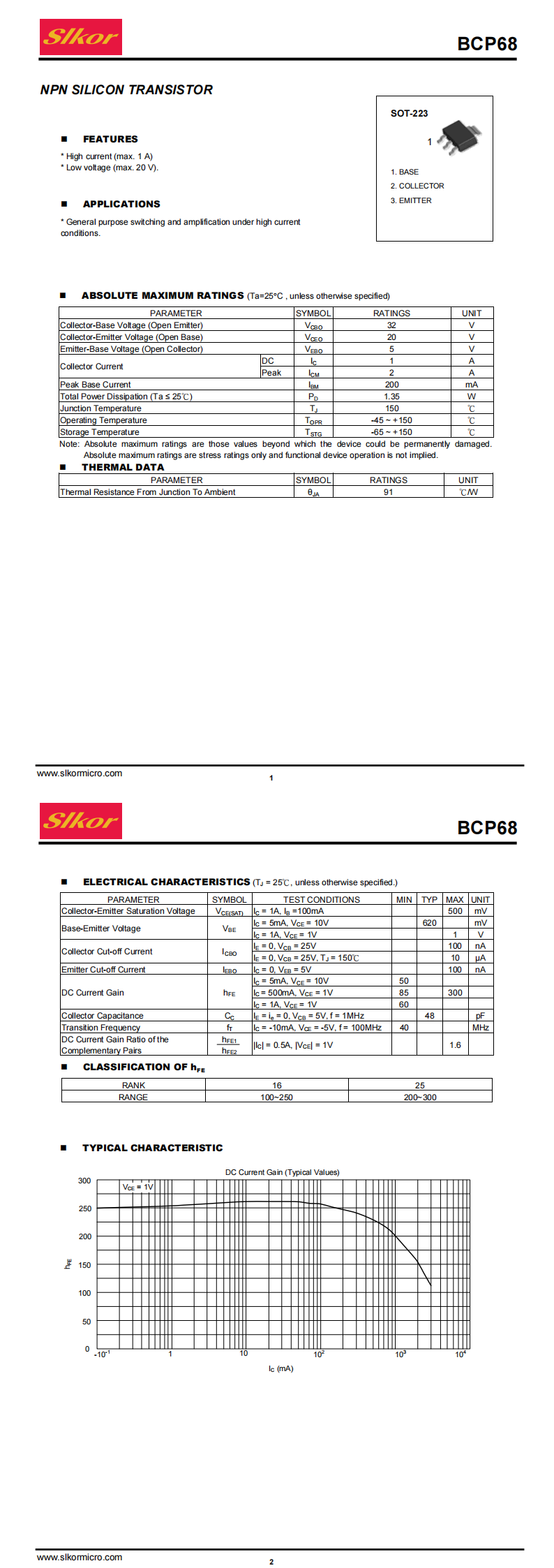

| File Name | Title | Description |
|---|---|---|
| BCP68-25_SOT-223.PDF | BCP68-25_SOT-223 | - |
