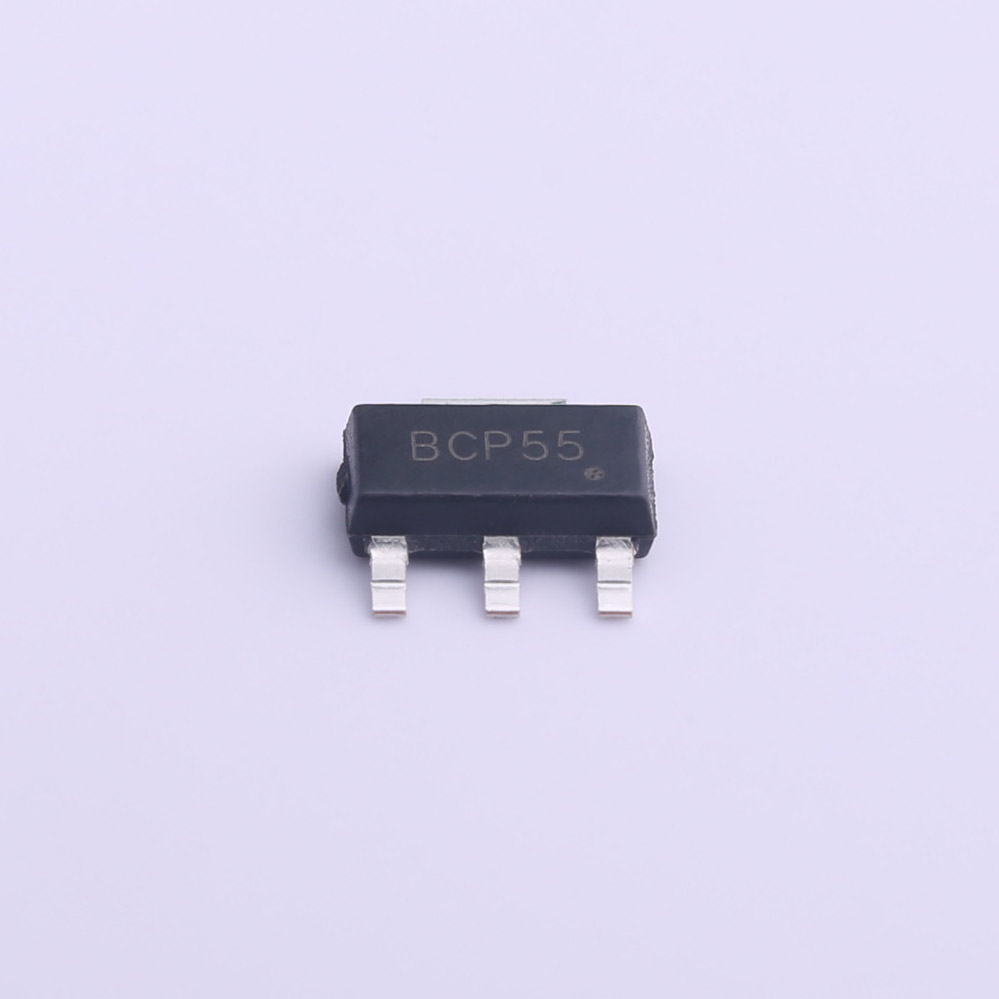

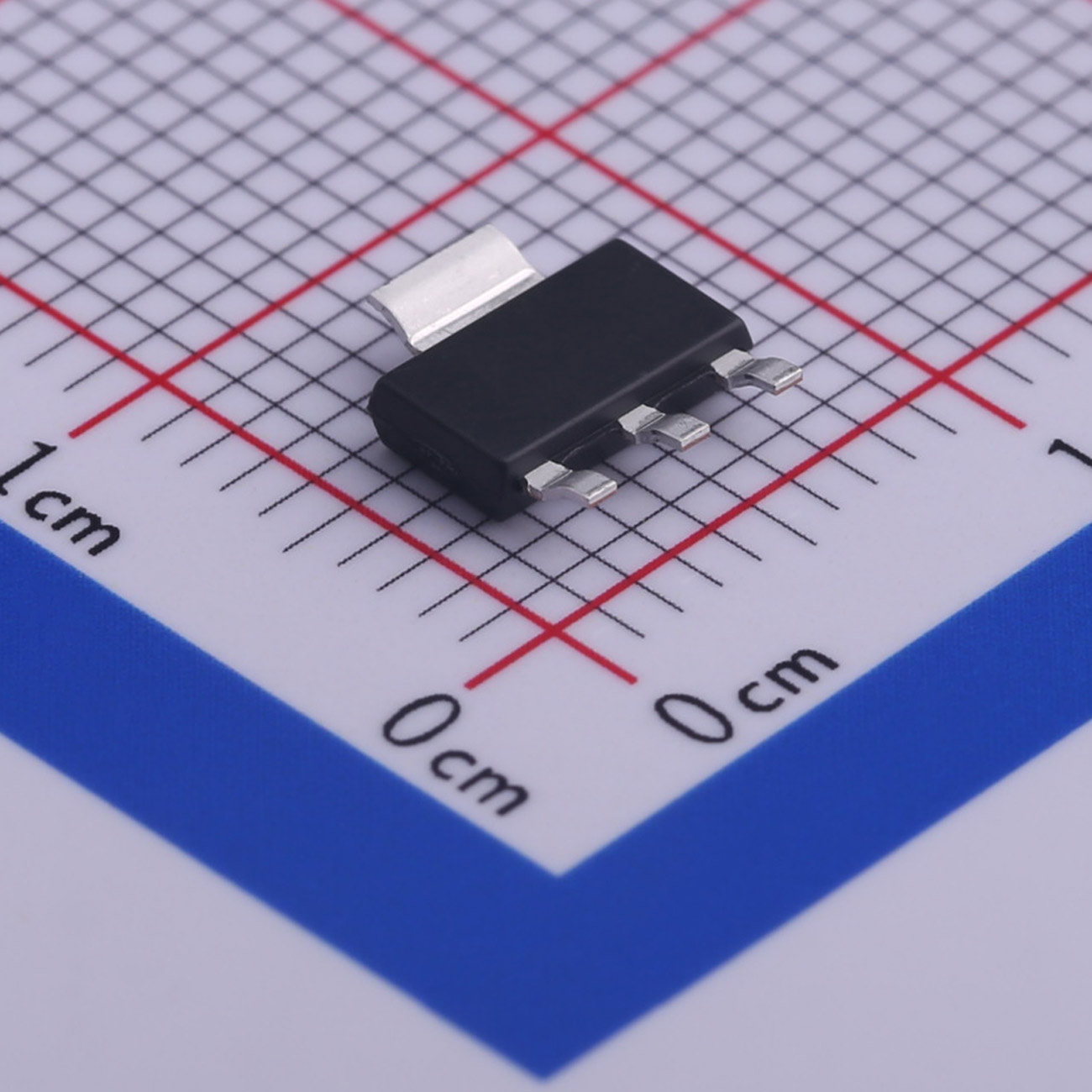

BCP55-16 NPN Bipolar Transistor SOT-223

Our advantages:

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description:
The BCP55-16 is a high-performance NPN bipolar junction transistor known for its robust design and efficient operation in various electronic circuits. It features a maximum collector-emitter voltage (Vceo) of 60V and a collector current (Ic) rating of 1A, making it suitable for applications that require moderate voltage and current handling capabilities. With a power dissipation (Pd) of 1.5W and a low collector-emitter saturation voltage (VCE(sat)) of 500mV @ 500mA, 50mA, the BCP55-16 ensures reliable switching and amplification in compact designs.

Features:

● For AF driver and output stages

● High collector current

● Low collector-emitter saturation voltage

● Complementary types: BCP51...BCP53(PNP)

Applications:
The BCP55-16 transistor is ideal for a wide range of electronic applications, including:

● Switching Circuits: Used in various switching applications such as relay drivers, LED drivers, and logic-level shifting due to its low saturation voltage and high current handling capabilities.
● Amplification: Suitable for audio amplifiers, signal amplification stages in communication equipment, and instrumentation circuits where reliable and efficient signal processing is required.
● Power Management: Employed in voltage regulators, power supplies, and DC-DC converters to regulate and control power efficiently.
● Automotive Electronics: Used in automotive applications for motor control, lighting systems, and electronic ignition circuits due to its robustness and reliability under varying temperatures and conditions.
