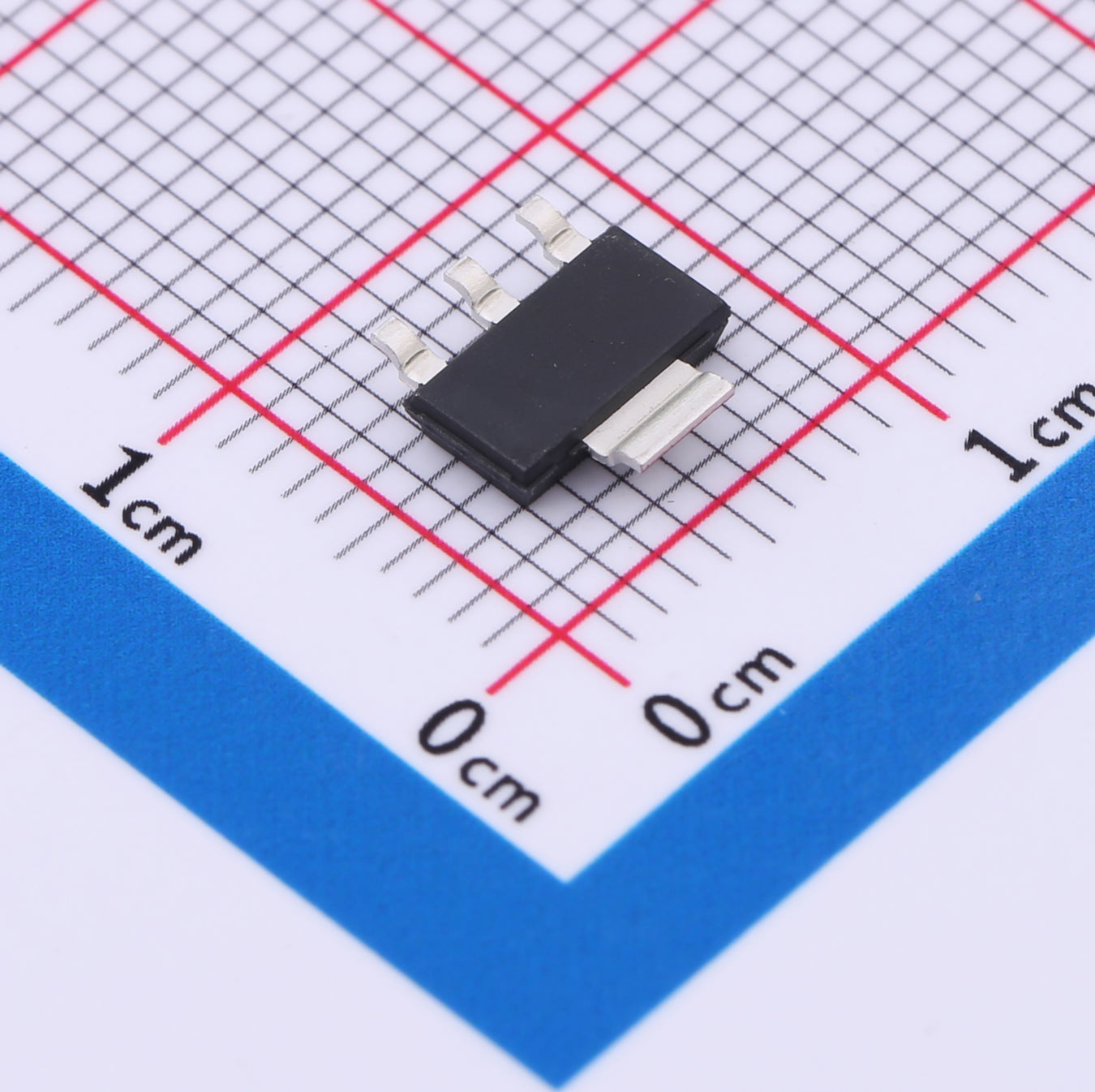

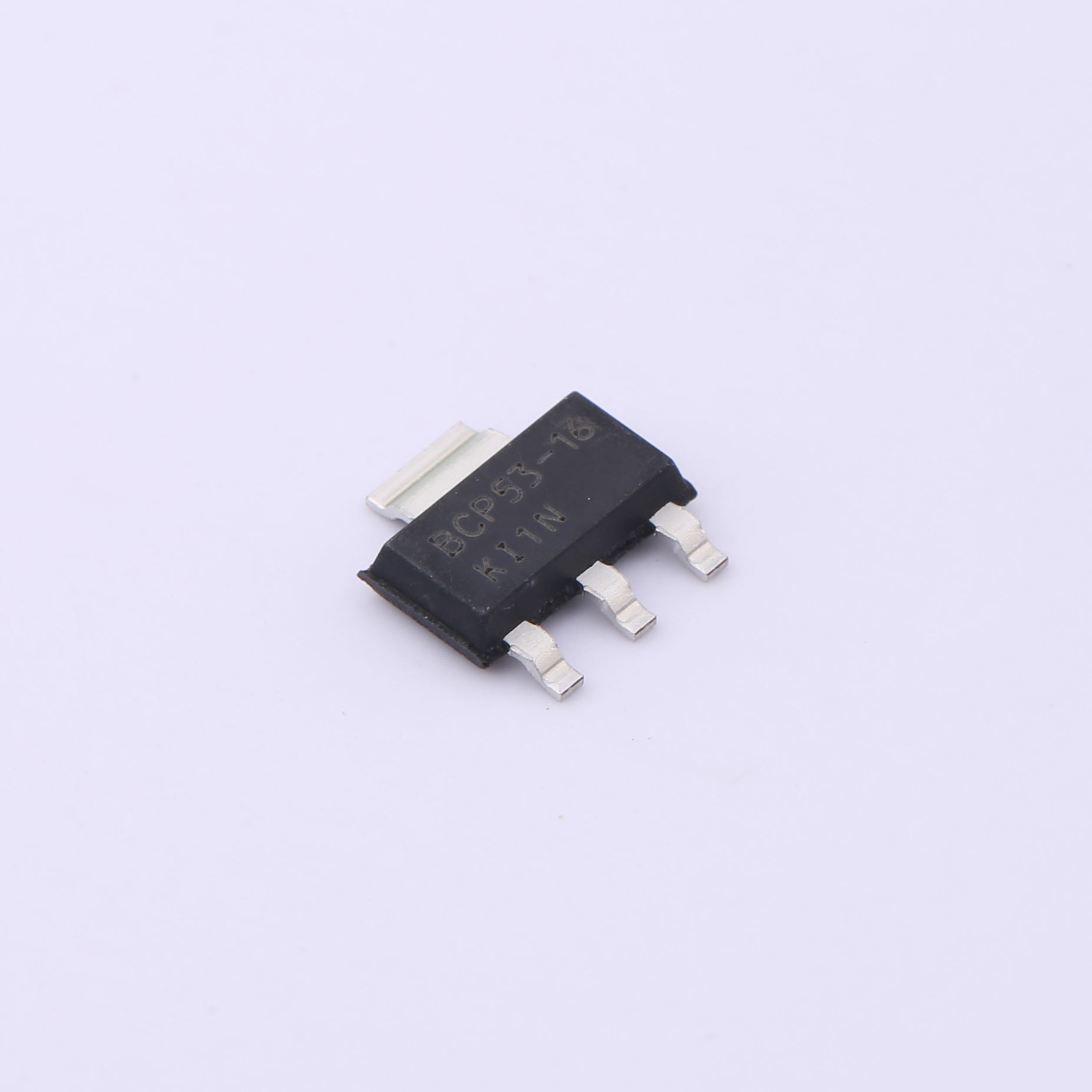

The BCP53-16 is a versatile PNP bipolar junction transistor renowned for its robustness and efficient performance in various electronic applications. With a maximum collector-emitter voltage (Vceo) of -80V and a collector current (Ic) rating of -1A, it offers reliable operation in circuits requiring substantial current handling capabilities. The transistor's power dissipation (Pd) of 1.5W and low collector-emitter saturation voltage (VCE(sat)) of -0.5V @ -500mA, -50mA ensure efficient switching and amplification.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The BCP53-16 is a versatile PNP bipolar junction transistor renowned for its robustness and efficient performance in various electronic applications. With a maximum collector-emitter voltage (Vceo) of -80V and a collector current (Ic) rating of -1A, it offers reliable operation in circuits requiring substantial current handling capabilities. The transistor's power dissipation (Pd) of 1.5W and low collector-emitter saturation voltage (VCE(sat)) of -0.5V @ -500mA, -50mA ensure efficient switching and amplification.
Features:
● For AF driver and output stages
● High collector current
● Low collector-emitter saturation voltage
● Complementary types: BCP54...BCP56 (NPN)
Applications:
The BCP53-16 transistor finds application in a wide range of electronic circuits, including:
| File Name | Title | Description |
|---|---|---|

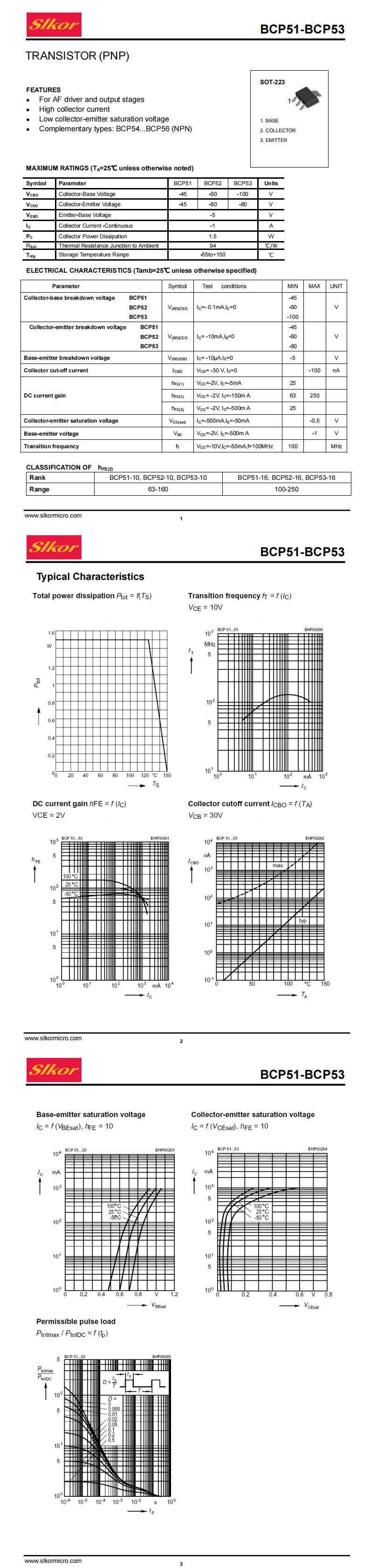

| BCP53-16_SOT-223.PDF | BCP53-16_SOT-223 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
