● Trench Power LV MOSFET technology
● High Density Cell Design for Low RosoN
● High Speed switching

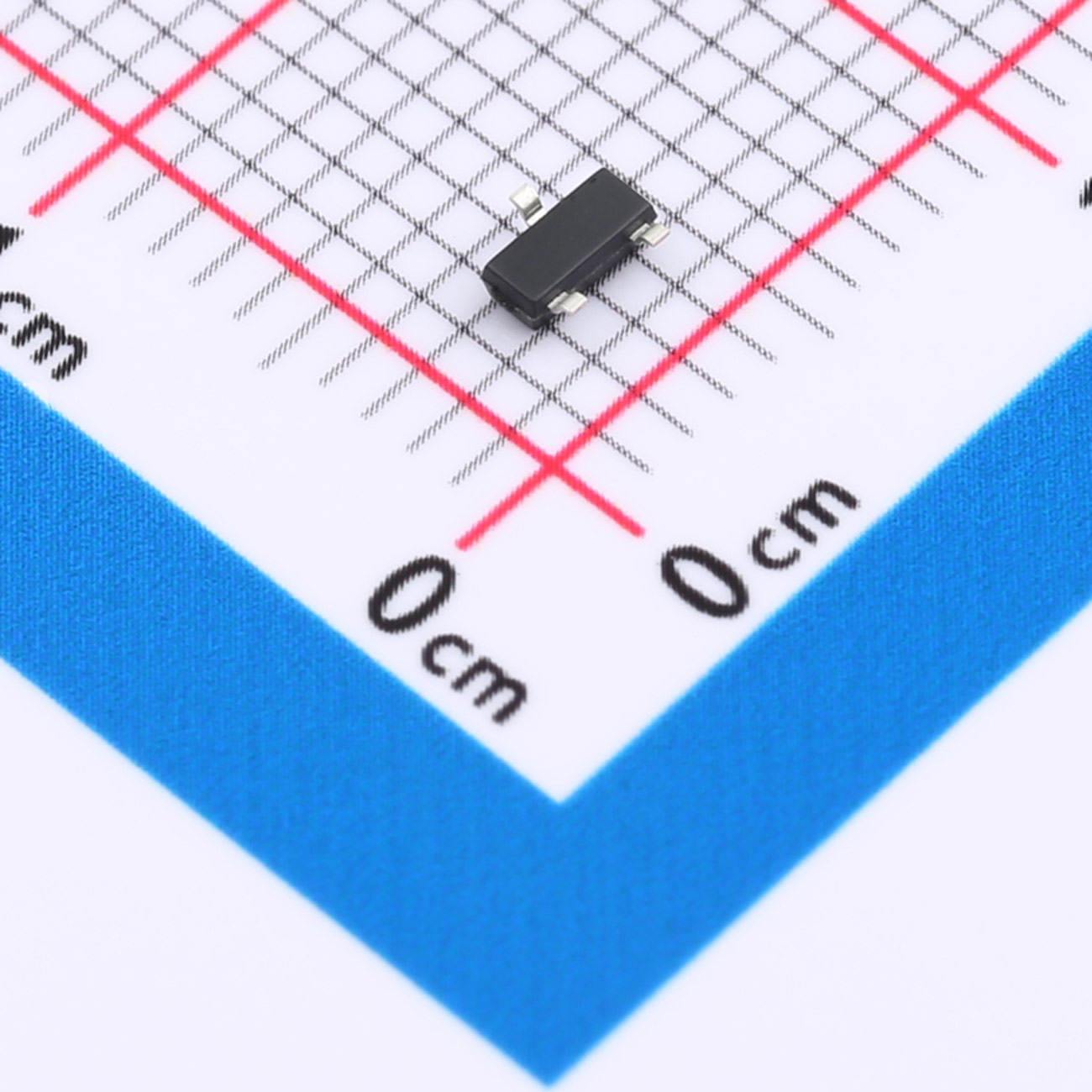

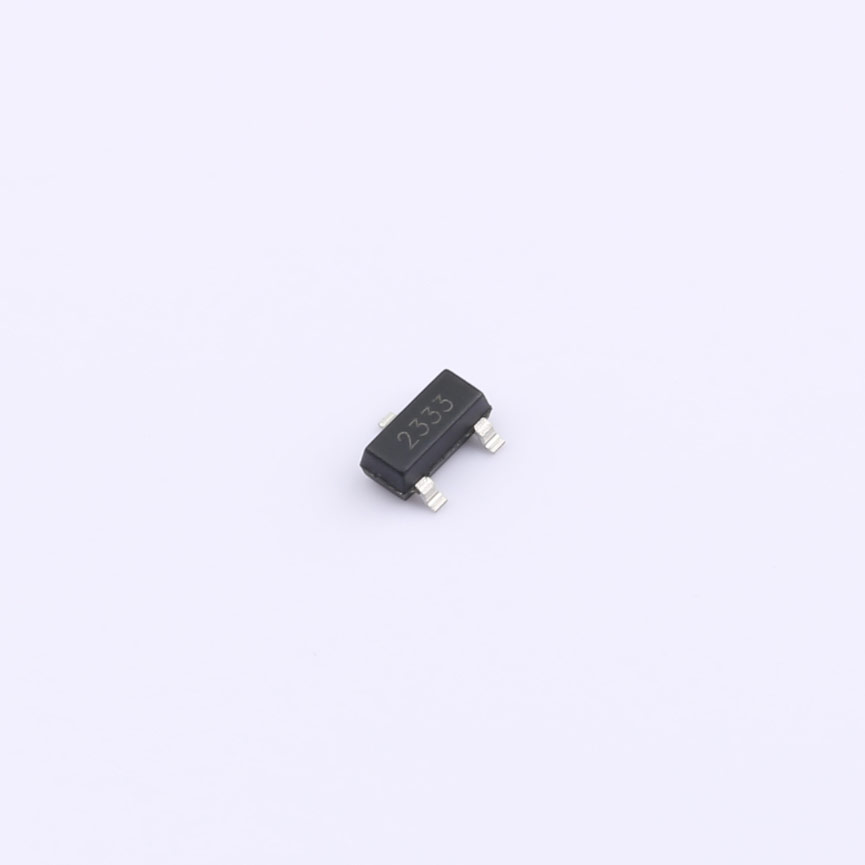

P-Channel Enhancement Mode Field Effect Transistor
Product Summary
● VDS -12V
● lD -6A
● RDSON(at VGS=-4.5V) <40 mohm
● RDSON(at VGS=-2.5V) <50 mohm
● RDSON(at VGS=-1.8V) <70 mohm
General Description
● Trench Power LV MOSFET technology
● High Density Cell Design for Low RosoN
● High Speed switching
Applications
● Battery protection
● Load switch
● Power management
| File Name | Title | Description |
|---|---|---|
| SL2333A SOT-23.pdf | SL2333A SOT-23 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
