● Trench Power LV MOSFET technology
● High density cell design for low RDS(ON)
● High Speed switching
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
General Description

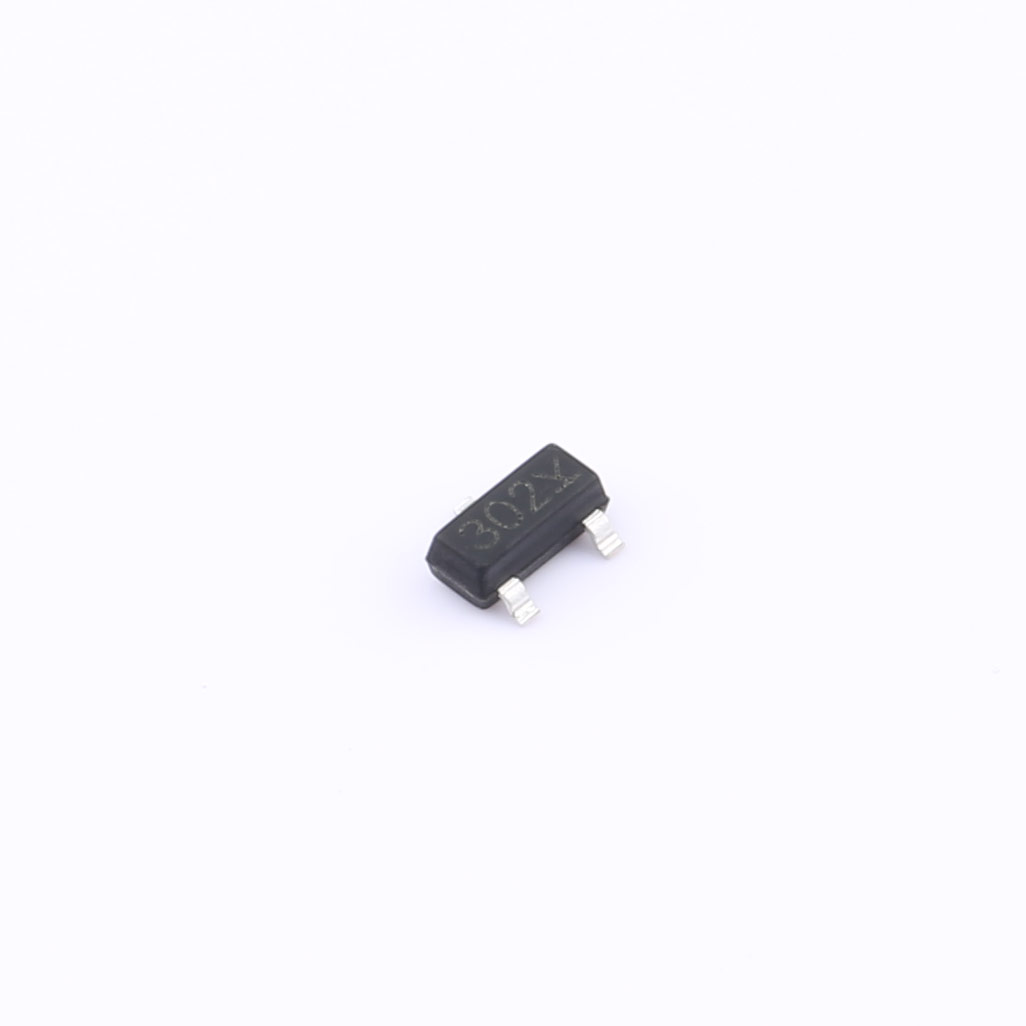

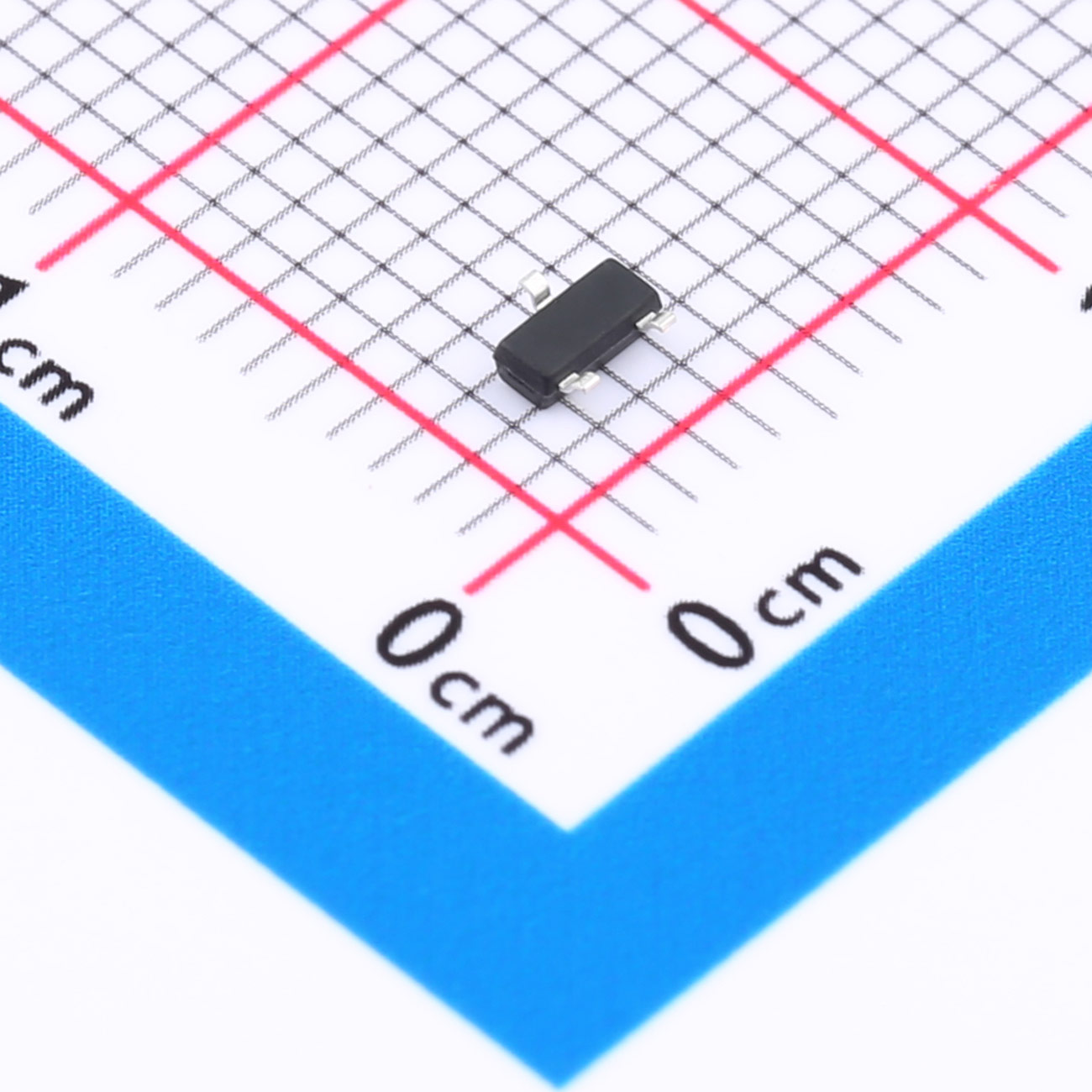

The FDN302P P-Channel Enhancement MOSFET is engineered for optimal performance in negative voltage applications. Presented in a compact SOT-23 package, this MOSFET is designed to offer efficient switching and low on-resistance, making it ideal for power management and control in electronic circuits that operate with negative voltages.
Features
● Trench Power LV MOSFET technology
● High density cell design for low RDS(ON)
● High Speed switching
Applications
● Battery protection
● Load switch
● Power management
| File Name | Title | Description |
|---|---|---|
| FDN302P SOT-23.pdf | FDN302P SOT-23 | - |
| RoHS-1.pdf | RoHS | - |
| REACH.pdf | REACH | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
