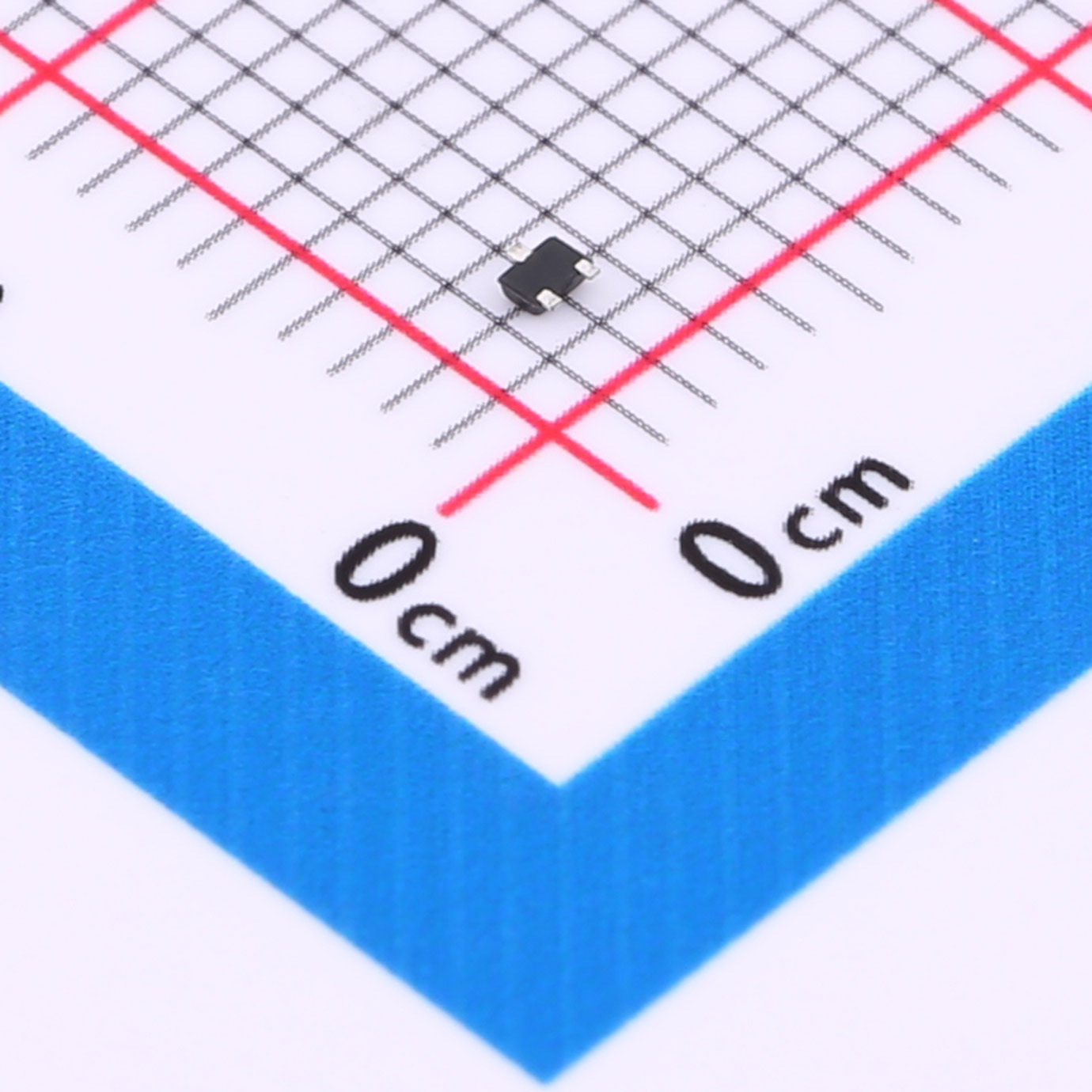

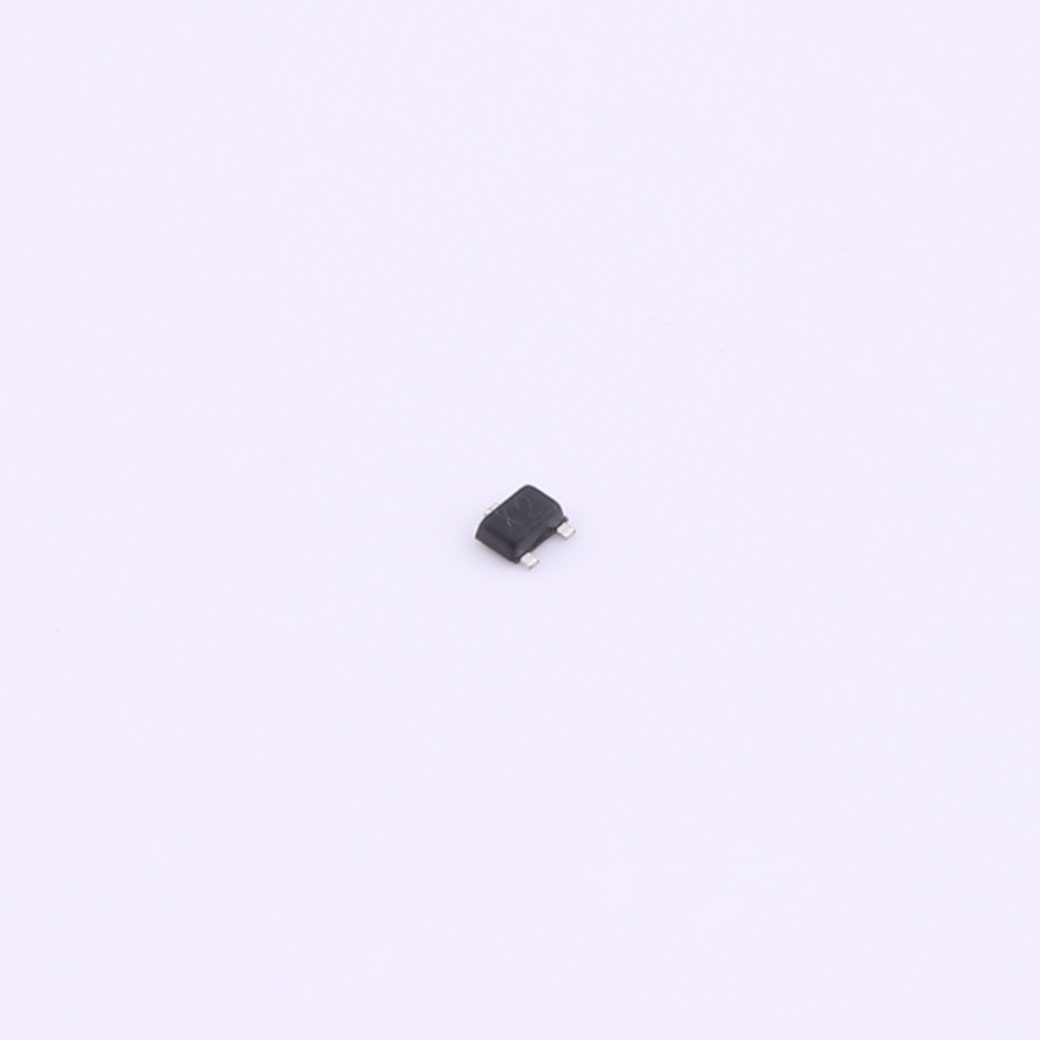

This N-Channel MOSFET features ultra-low voltage drive (1.2V), comes in a small SOT723 package, and is Pb-free and RoHS compliant for efficient, reliable performance.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
General Description
This N-Channel MOSFET uses advanced trench technology and design to provide excellent RDS(on) with low gatecharge. It can be used in a wide variety of applications.
Features
● Small Package (SOT723).
● Ultra Low voltage drive (1.2V drive).
● Pb-free lead plating ; RoHS compliant.
● Halogen Free.
Applications
Switching
| File Name | Title | Description |
|---|---|---|
| SL002N02K SOT-723.pdf | SL002N02K SOT-723 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
