High voltage, low on-resistance
High-speed, low parasitic capacitance
High operating junction temperature
Description:

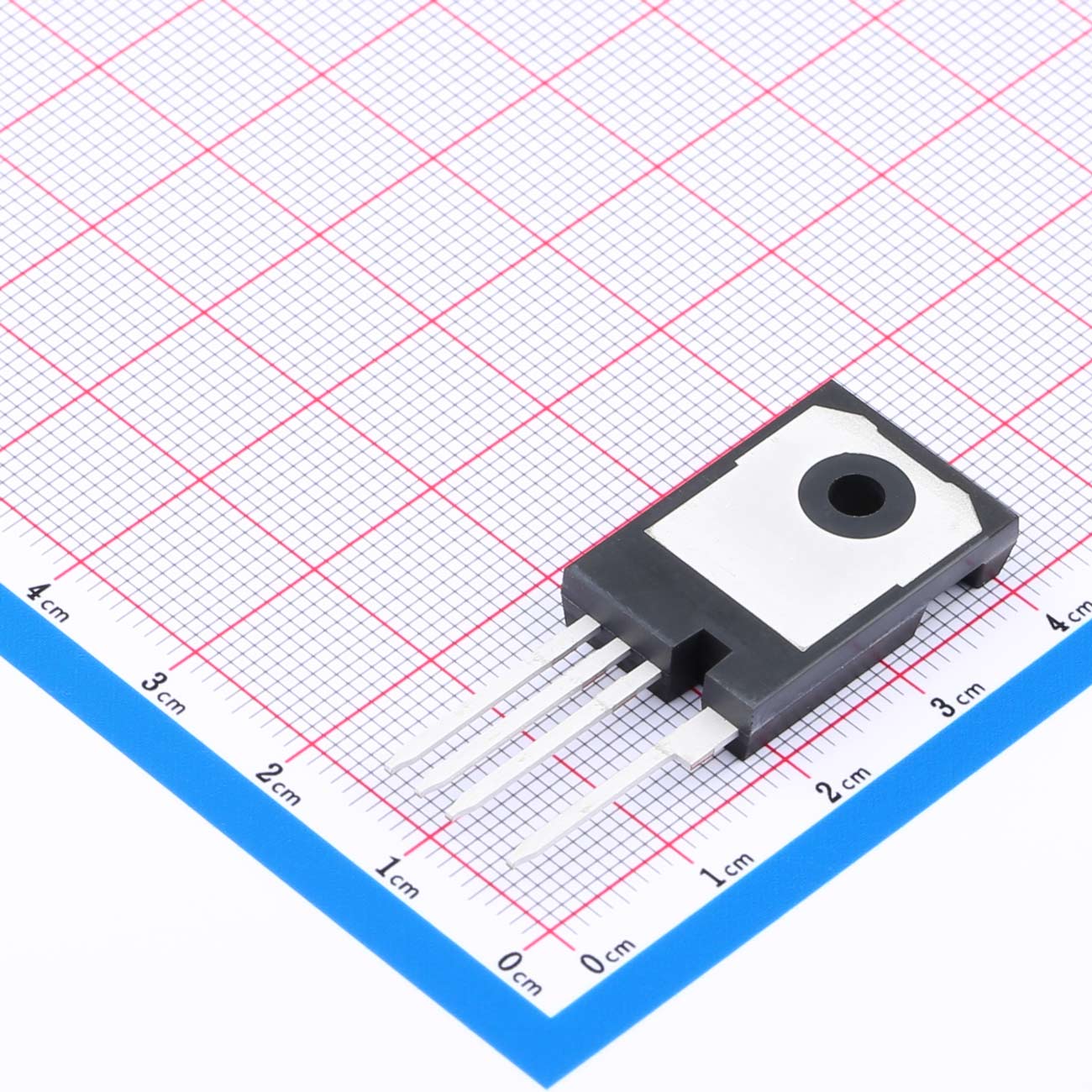

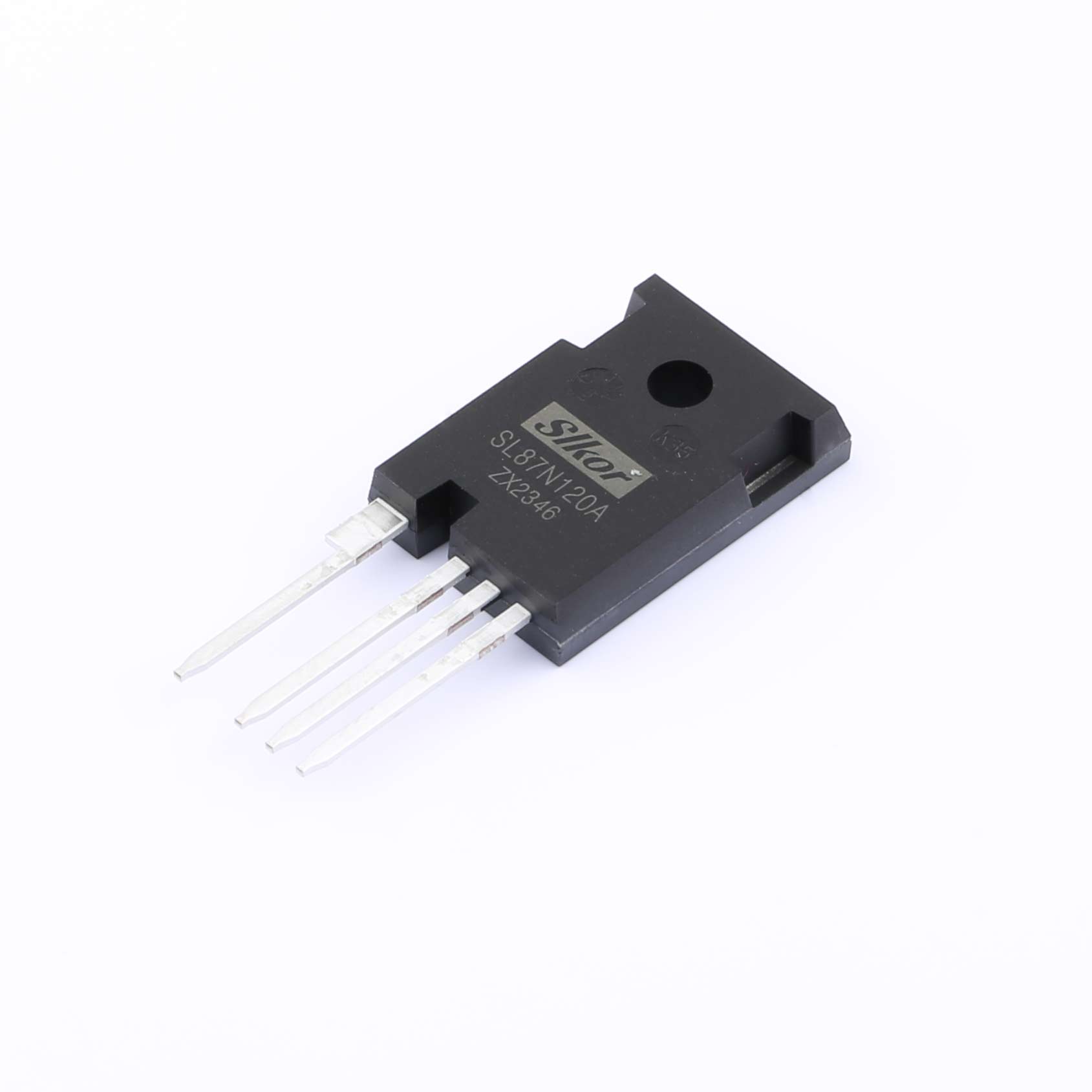

The SL87N120A MOSFET Transistors TO-247-4 is designed to deliver exceptional efficiency and reliability in high-voltage applications. With a maximum drain-source voltage of 1200V and a continuous drain current capability of 87A, this MOSFET is engineered for demanding environments requiring robust power handling. Its low on-resistance and high power dissipation make it an ideal choice for advanced electronic systems and power management solutions.
Features:
● Recommended use: 18V gate drive
● High voltage, low on-resistance
● High-speed, low parasitic capacitance
● High operating junction temperature
● Fast recovery body diode
● Kelvin connection drive
Application:
● EV main drive inverter
● Photovoltaic inverter
● Motor drive
● High-voltage DC/DC converter
● Switching power supply
| File Name | Title | Description |
|---|---|---|
| SL87N120A.pdf | SL87N120A | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
