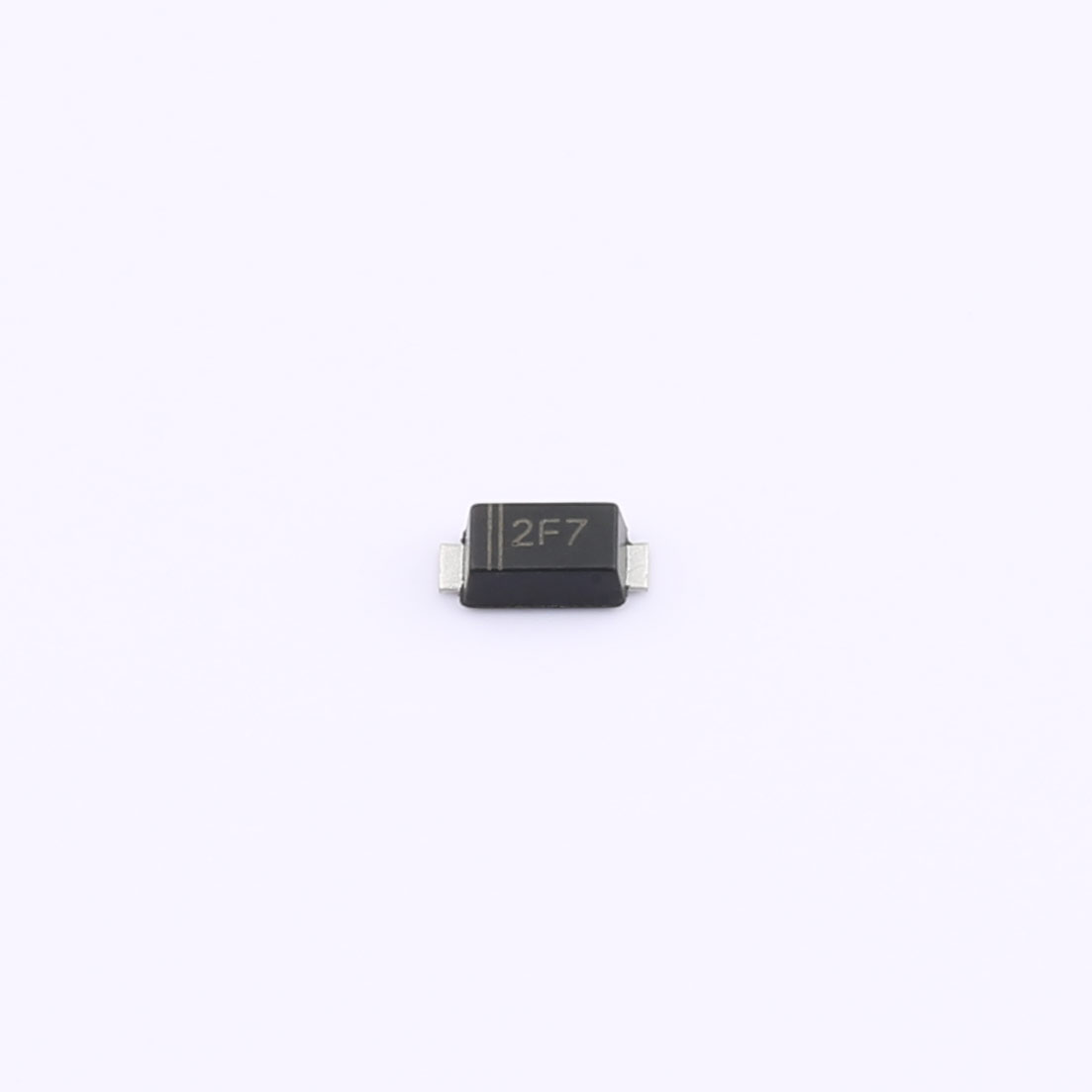

RS2MW Fast Recovery Rectifier Diode
Download datasheet InquirySurface Mount Fast Recovery Rectifiers
Reverse Voltage-50 to 1000 V
Forward Current-2A
FEATURES
For surface mounted applications
Low profile package
Glass Passivated Chip Junction
ldeal for automated placement
Fast reverse recovery time
Lead free in comply with EU RoHS 2011/65/EU directives
MECHANICAL DATA

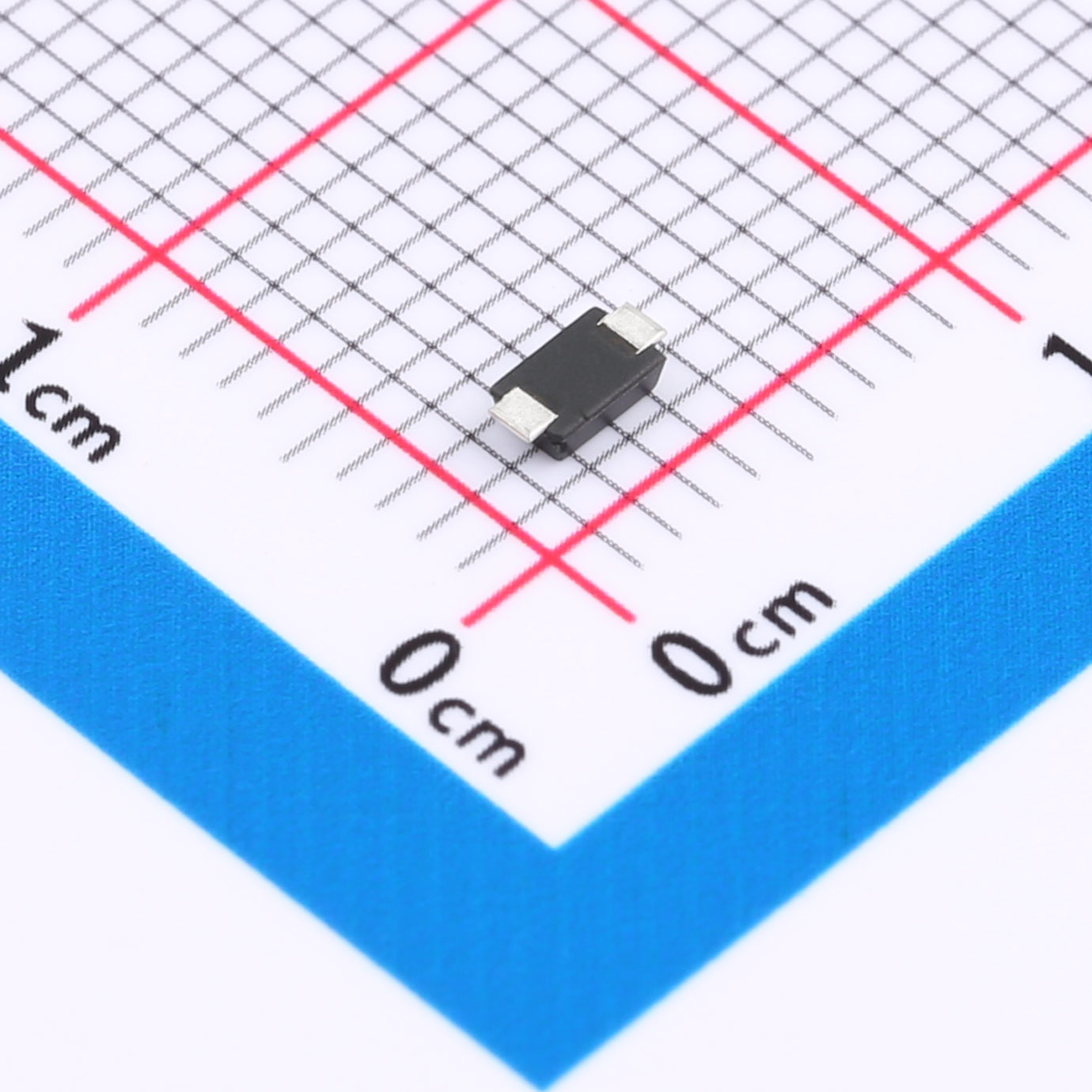

Case: SOD-123FL
Terminals: Solderable per MIL-STD-750,Method 2026
Approx.Weight: 15mg 0.00053oz
| File Name | Title | Description |
|---|---|---|

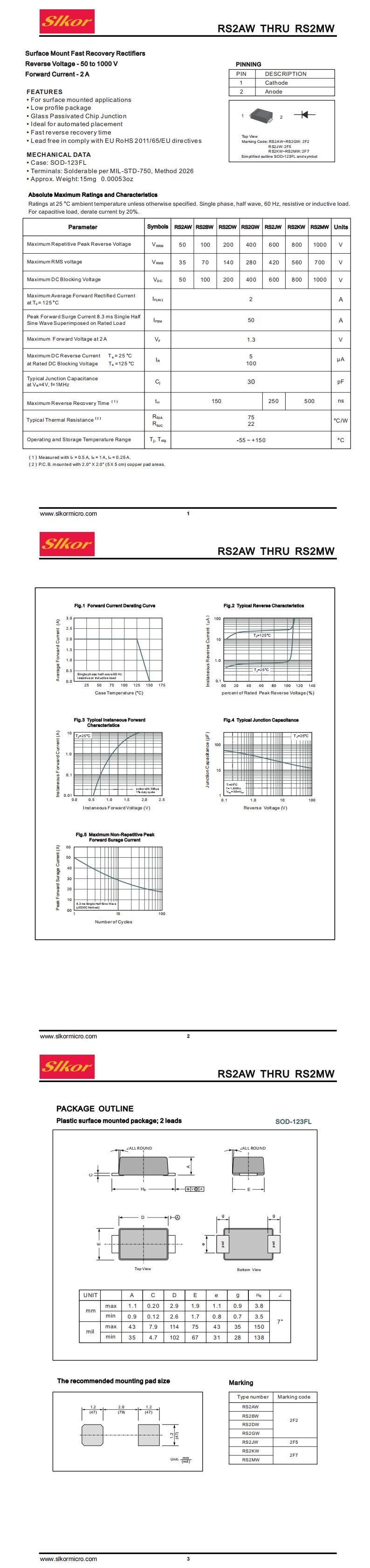

| RS2MW SOD-123FL.pdf | RS2MW SOD-123FL | - |
