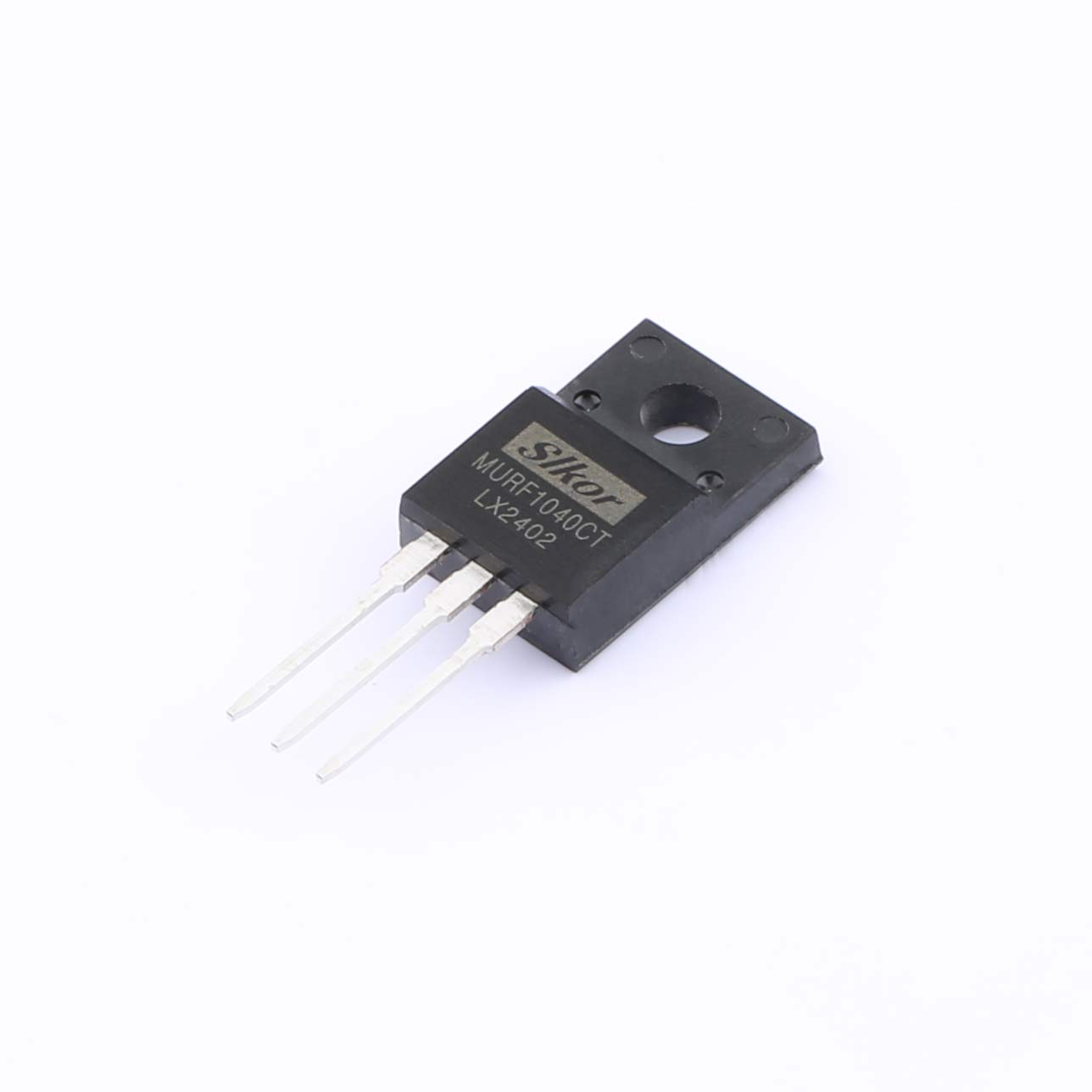

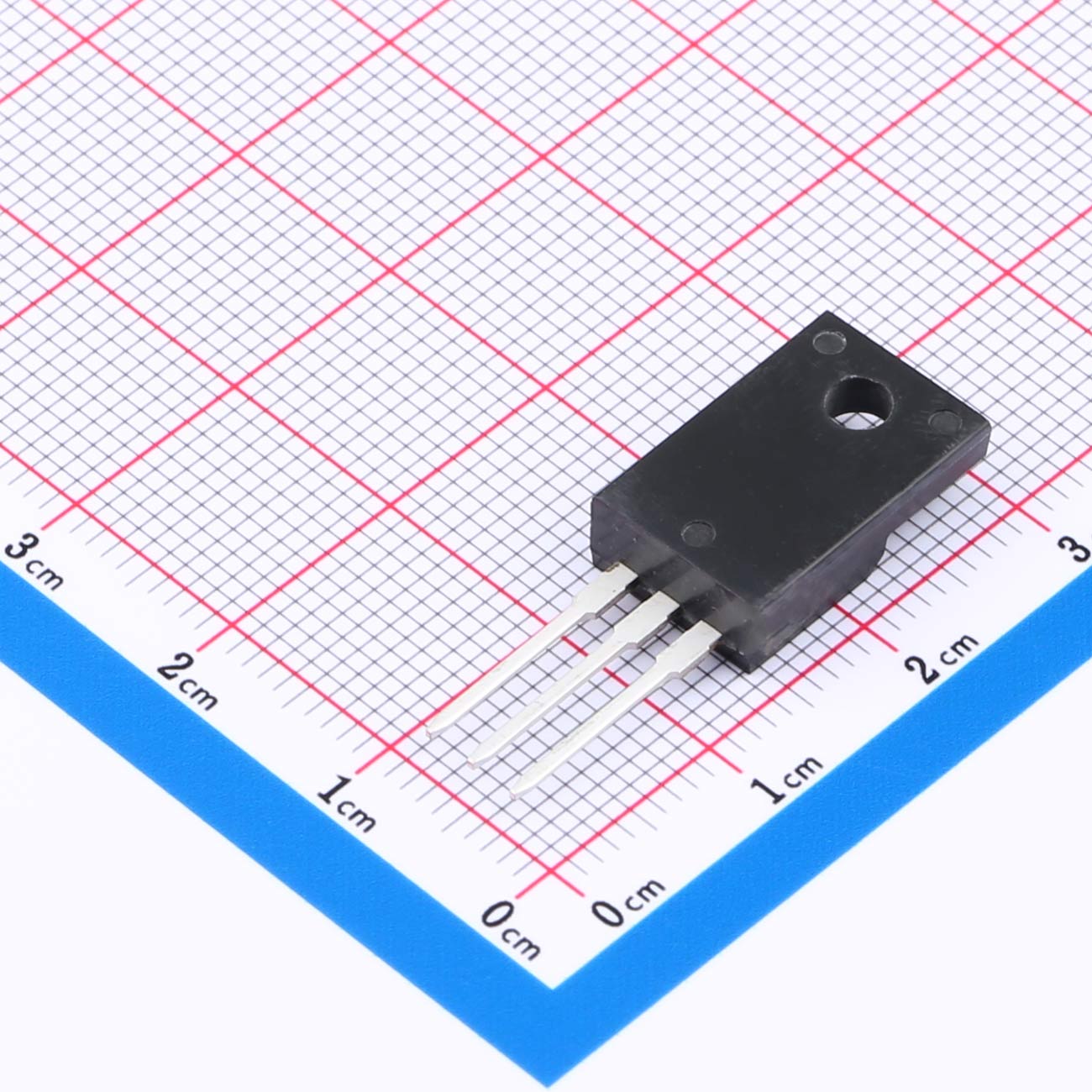

The MURF1040CT Fast Recovery Rectifier Diode TO-220F is designed to deliver superior efficiency and reliability in various electronic applications. This diode is engineered with advanced technology to ensure optimal performance in high-voltage and high-speed circuits. With its robust specifications and compact TO-220F package, this component is ideal for applications where space and efficiency are critical.
Download datasheet Inquiry
OUR ADVANTAGE
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
DESCRIPTION
The MURF1040CT Fast Recovery Rectifier Diode TO-220F is designed to deliver superior efficiency and reliability in various electronic applications. This diode is engineered with advanced technology to ensure optimal performance in high-voltage and high-speed circuits. With its robust specifications and compact TO-220F package, this component is ideal for applications where space and efficiency are critical.
FEATURES
● High speed switching capability
● High current capability
● High forward surge capability
● Low power losses，High efficiency
● High reliability
● For use in low voltage, high frequency inverters
APPLICATIONS
● Power Supply Circuits: Efficiently handles high voltages and currents, making it suitable for use in power supplies and converters.
● Switching Power Supplies: Its fast reverse recovery time makes it perfect for high-speed switching applications.
● Motor Drives: Reliable performance in motor drive circuits ensures stable operation and efficiency.
● Inductive Load Protection: Protects circuits from voltage spikes and transient surges, enhancing overall system reliability.

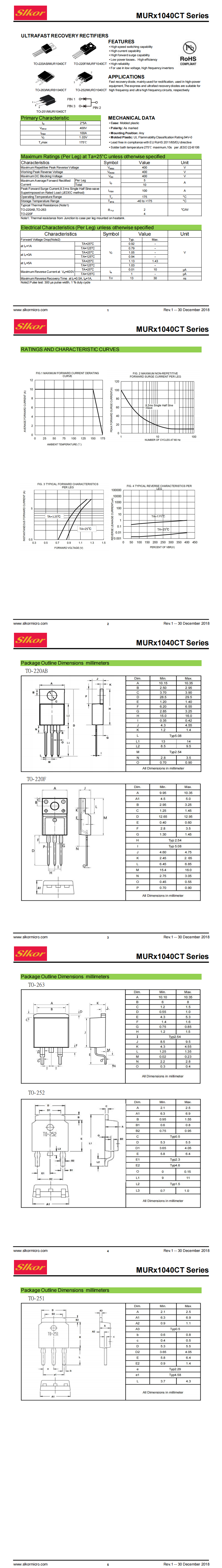

| File Name | Title | Description |
|---|---|---|
| MURF1040FCT TO-220F.pdf | MURF1040FCT TO-220F | - |
