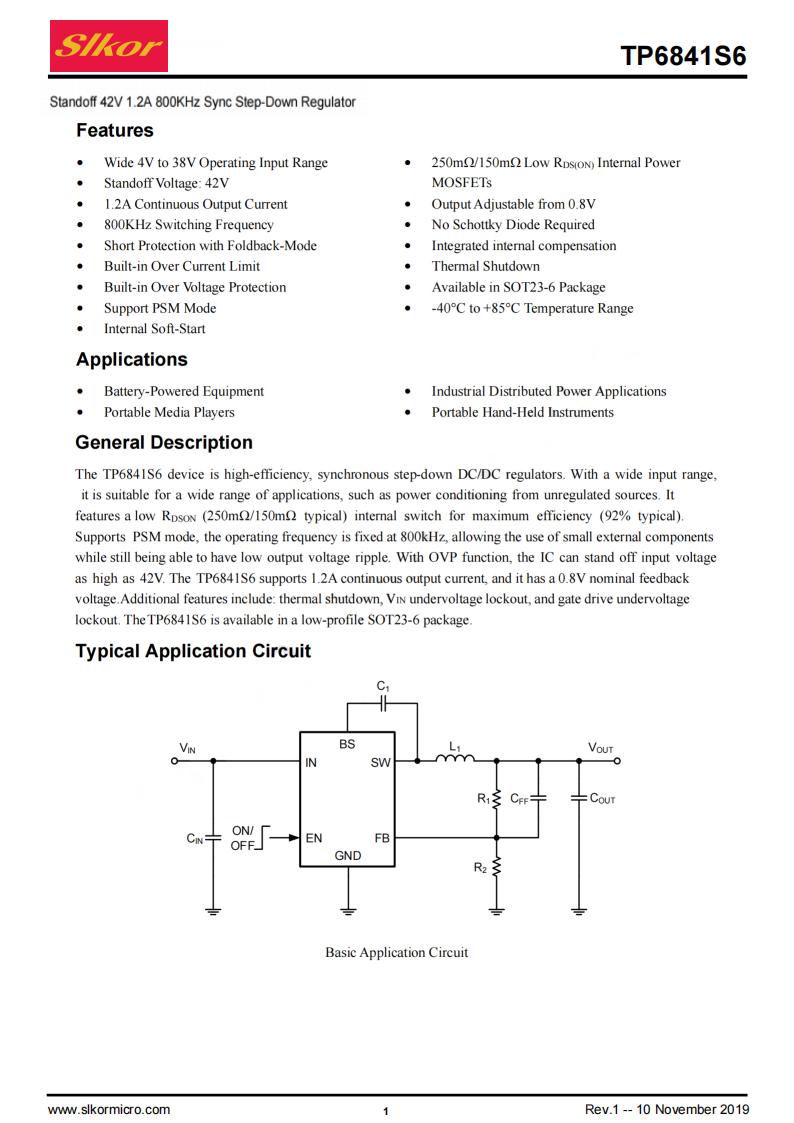

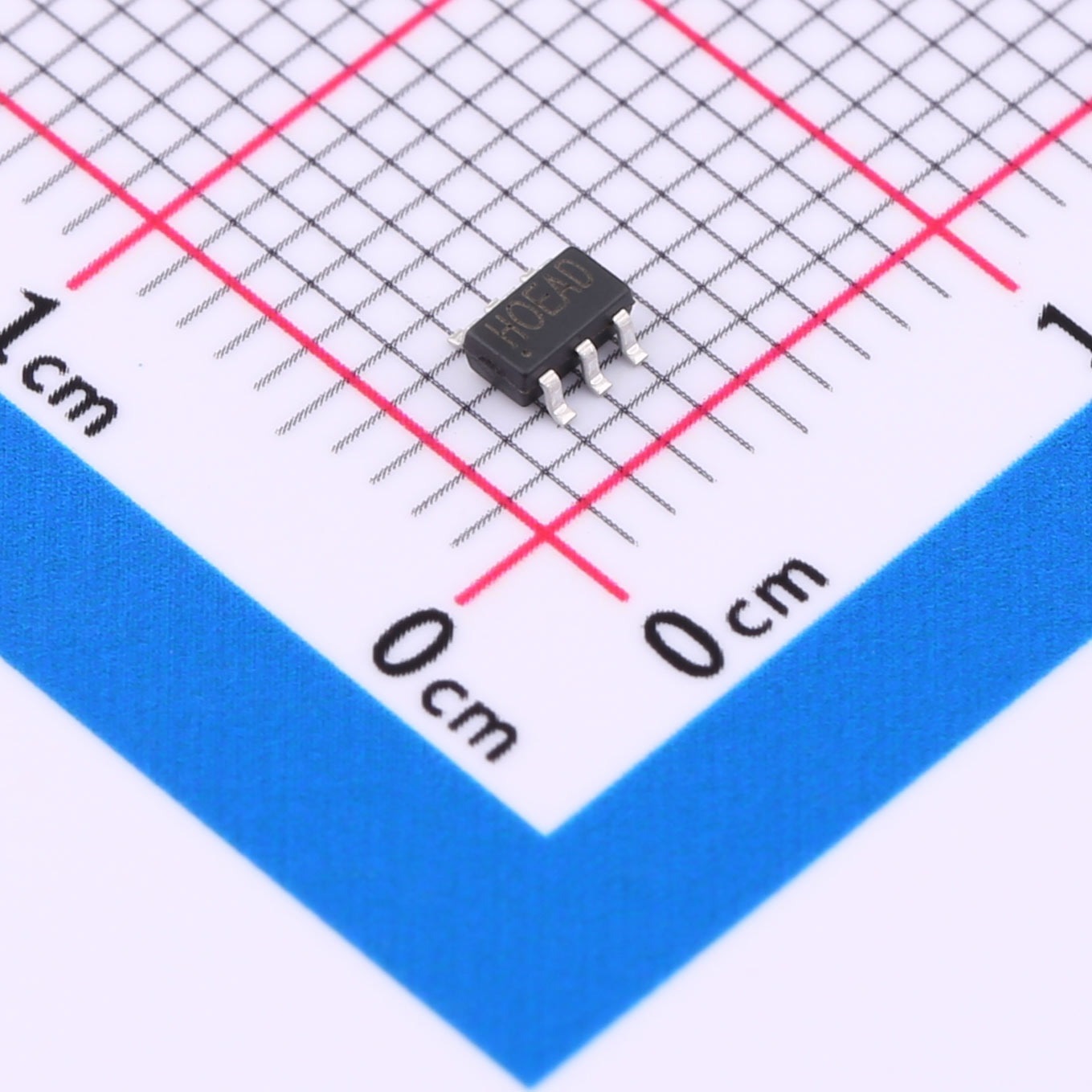

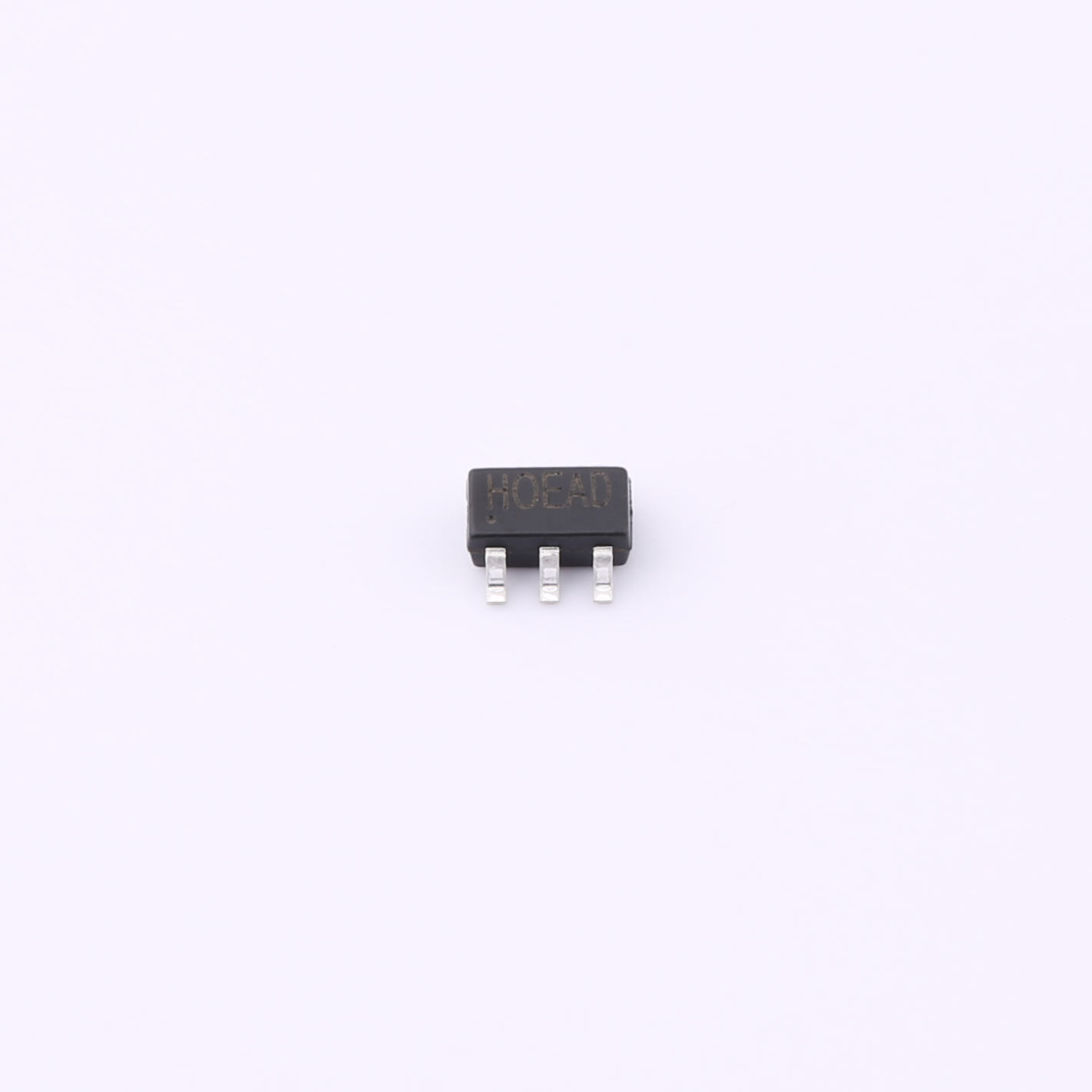

The TP6841S6 device is high-eficiency, synchronous step-down DC/DC regulators. With a wide input range.it is suitable for a wide range of applications, such as power conditioning from unregulated sources. It features a low RDSON (250m(2/150m typical) internal switch for maximum efficiency (92% typical). Supports PSM mode, the operating frequency is fixed at 800kHz, allowing the use of small external components while still being able to have low output voltage ripple. With OVP function, the IC can stand off input voltageas high as 42V. The TP6841S6 supports 1.2A continuous output current, and it has a 0.8V nominal feedback voltage. Additional features include: thermal shutdown, Vin undervoltage lockout, and gate drive undervoltagelockout. The TP6841S6 is available in a low-profile SOT23-6 package.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

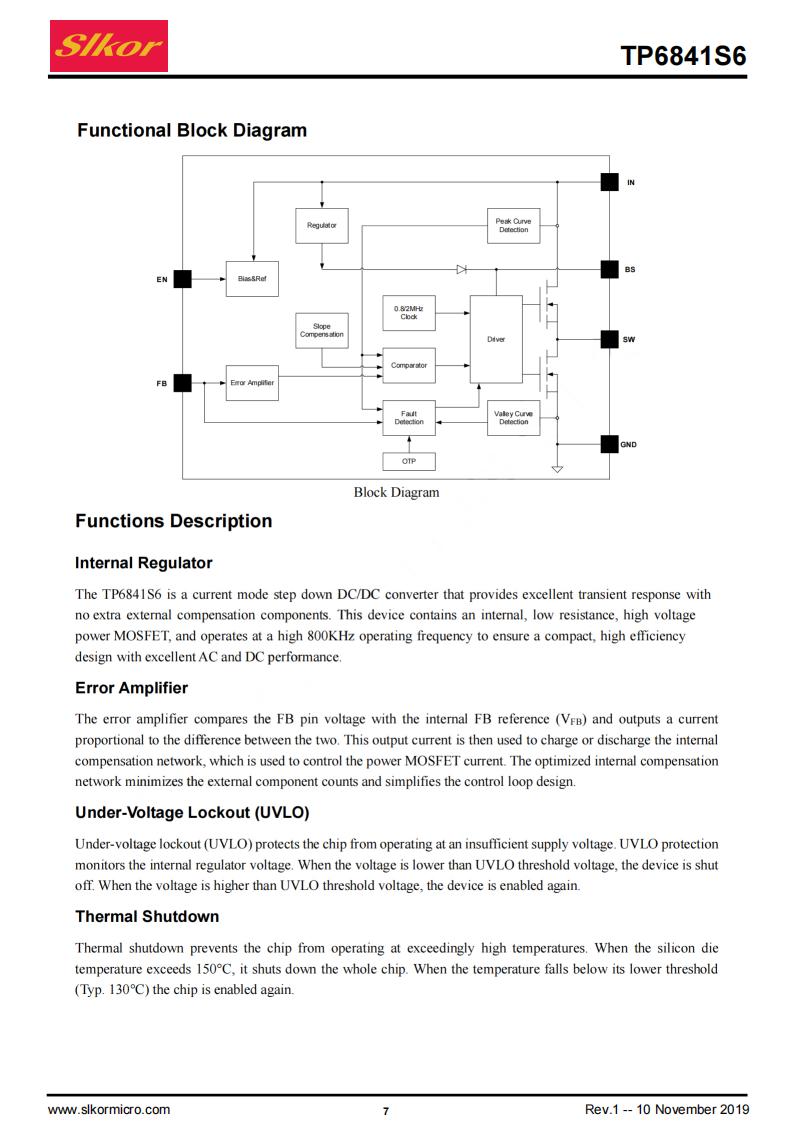

Description
The TP6841S6 device is high-eficiency, synchronous step-down DC/DC regulators. With a wide input range.it is suitable for a wide range of applications, such as power conditioning from unregulated sources. It features a low RDSON (250m(2/150m typical) internal switch for maximum efficiency (92% typical). Supports PSM mode, the operating frequency is fixed at 800kHz, allowing the use of small external components while still being able to have low output voltage ripple. With OVP function, the IC can stand off input voltageas high as 42V. The TP6841S6 supports 1.2A continuous output current, and it has a 0.8V nominal feedback voltage. Additional features include: thermal shutdown, Vin undervoltage lockout, and gate drive undervoltagelockout. The TP6841S6 is available in a low-profile SOT23-6 package.

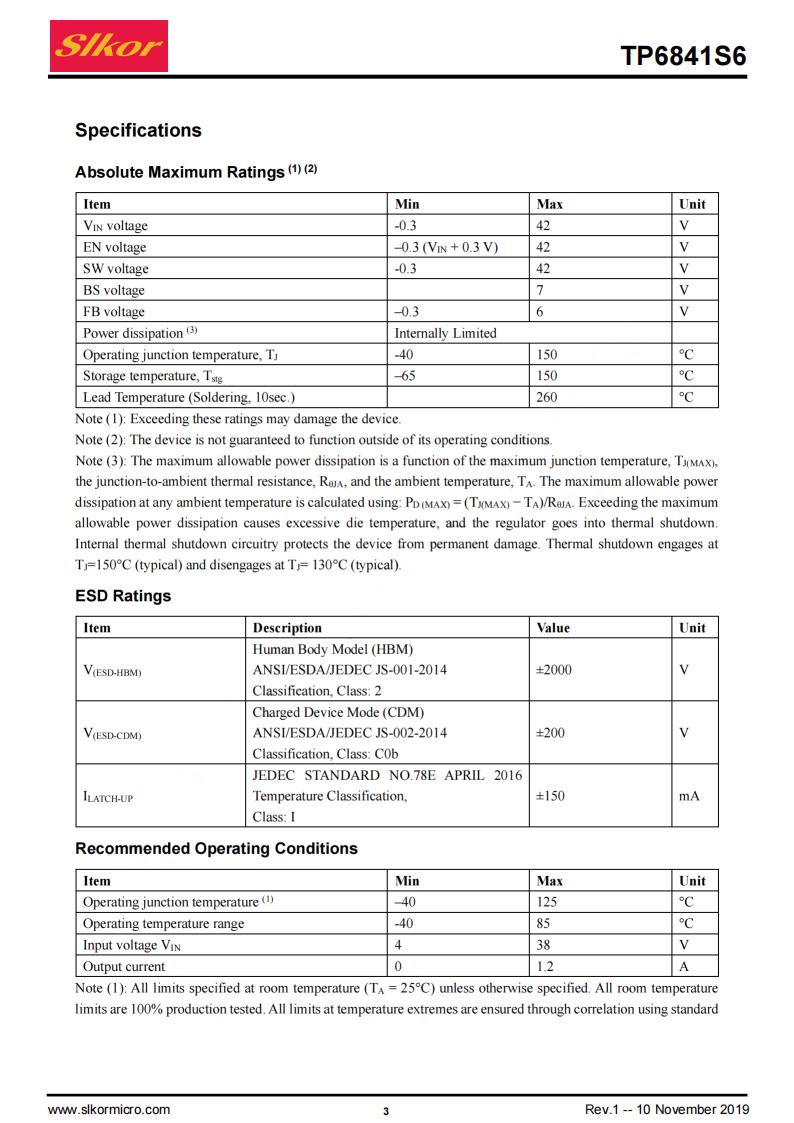

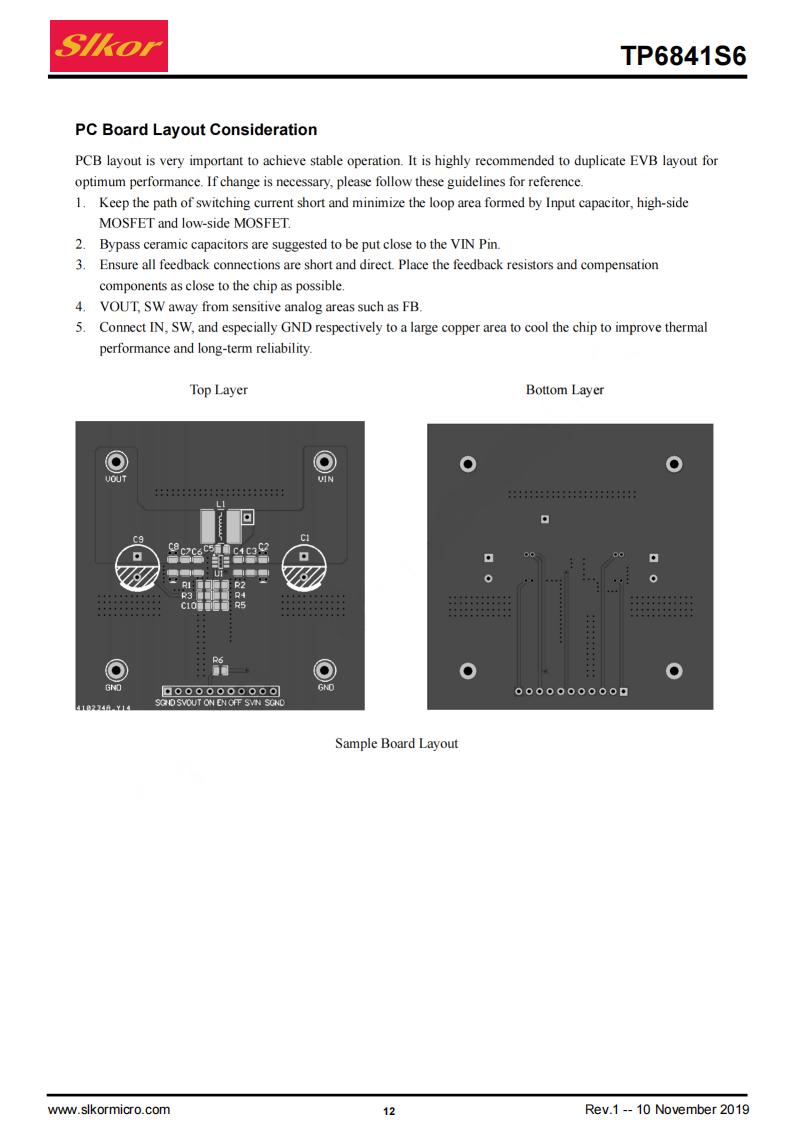

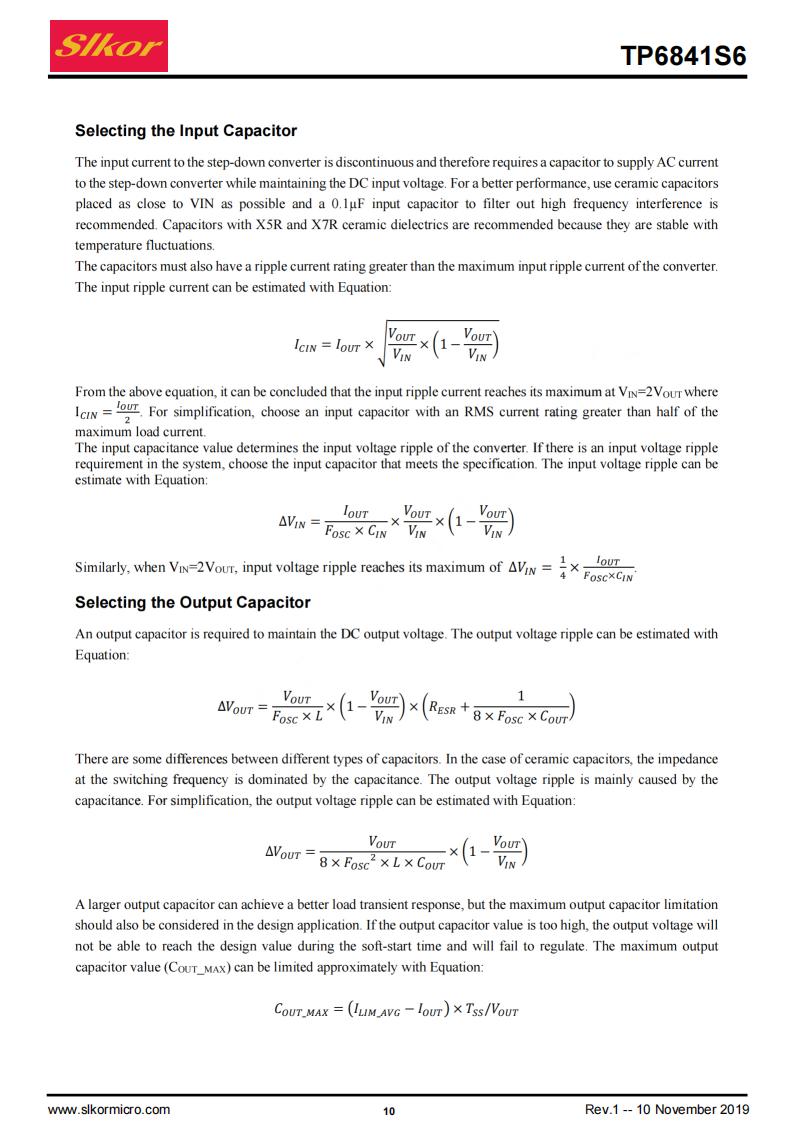

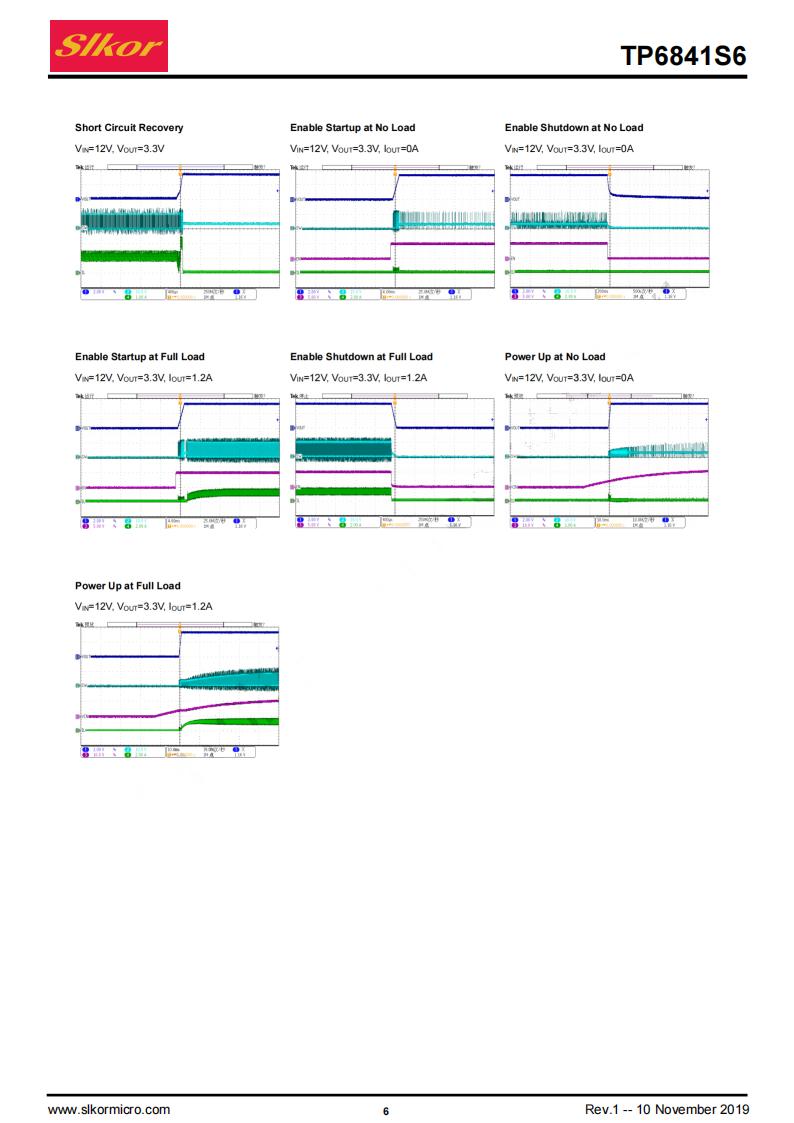

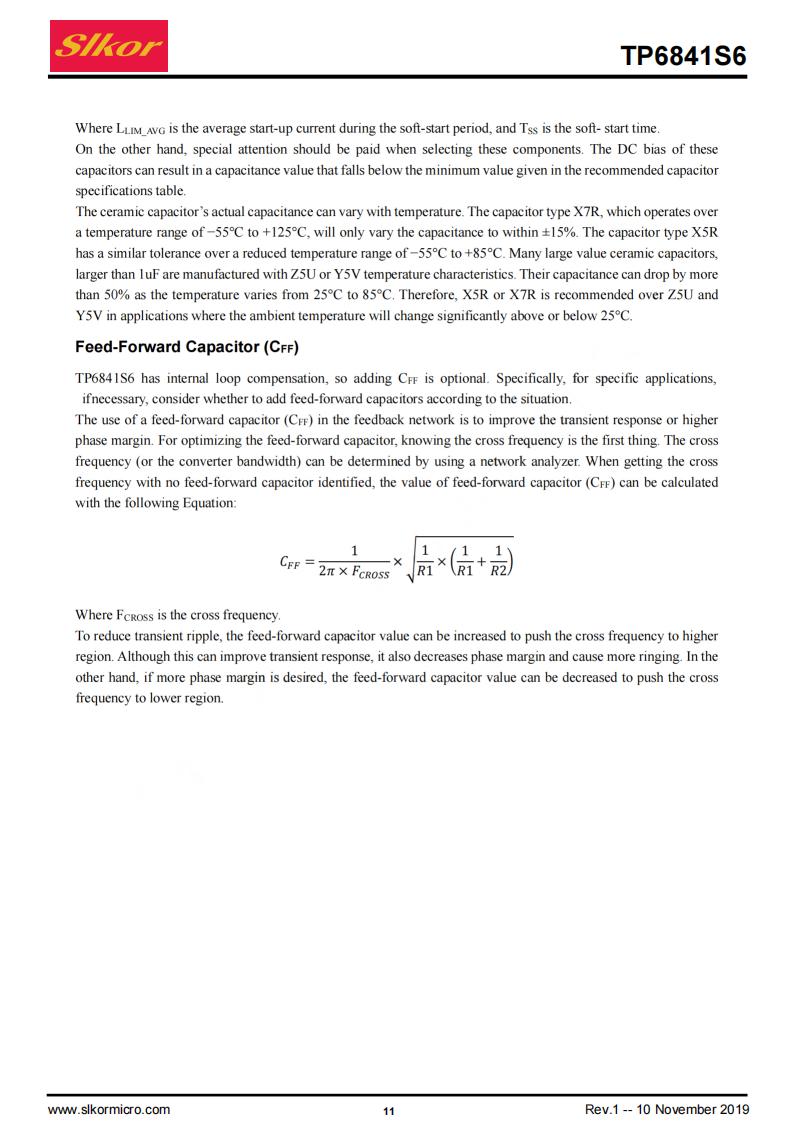

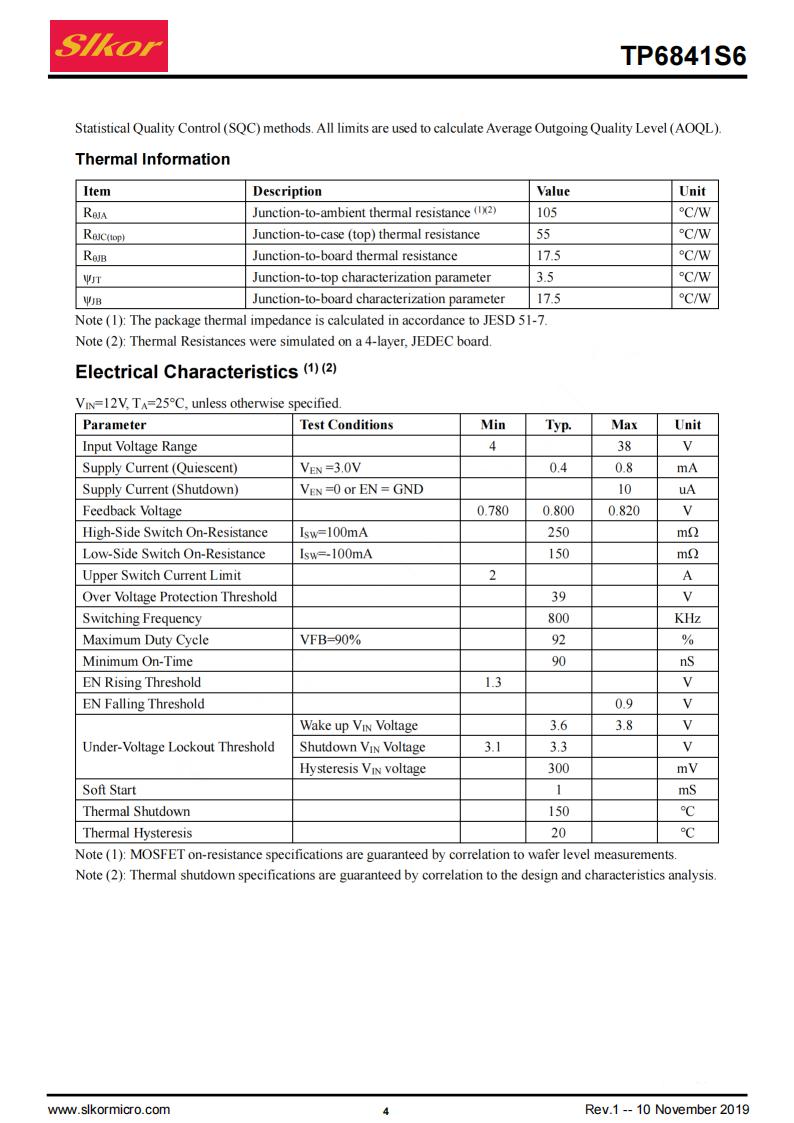

Features
● Wide 4V to 38V Operating Input Range
● Standoff Voltage: 42V
● 1.2A Continuous Output Current
● 800KHz Switching Frequency

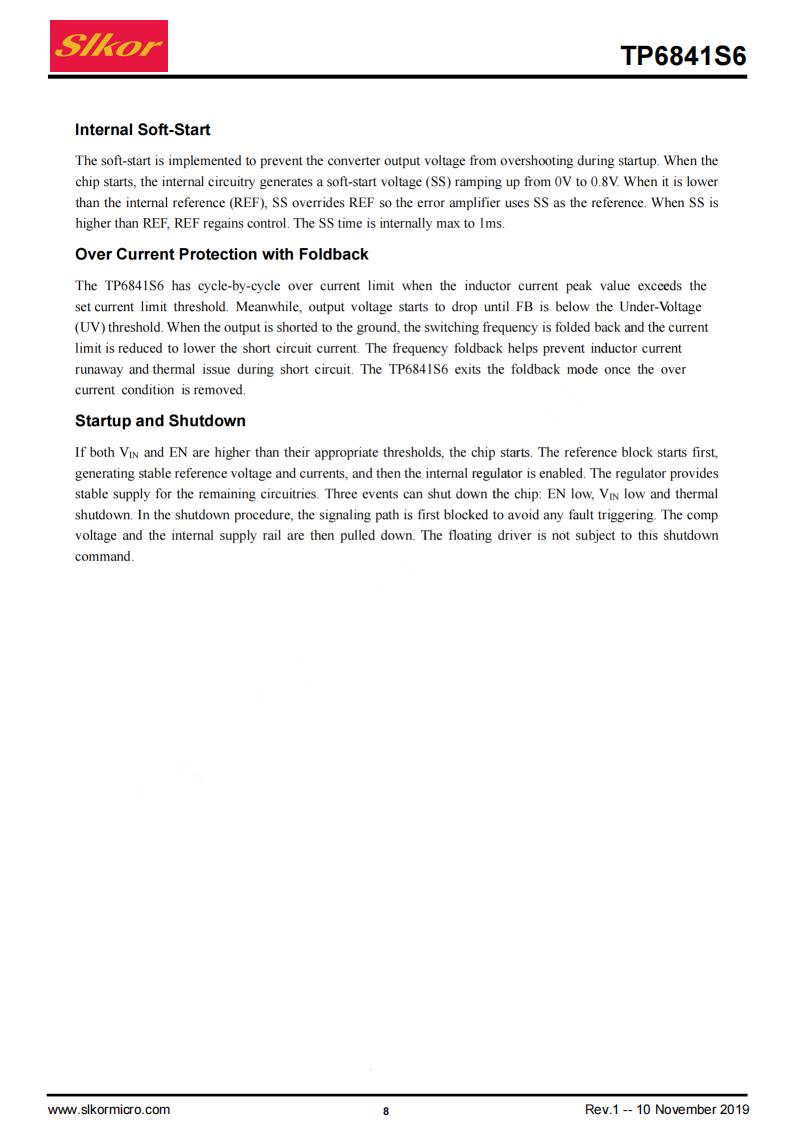

● Short Protection with Foldback-Mode
● Built-in Over Current Limit
● Built-in Over Voltage Protection
● Support PSM ModeInternal Soft-Start
● 250m2/150m92 Low Rps(oN) Internal Power MOSFETS

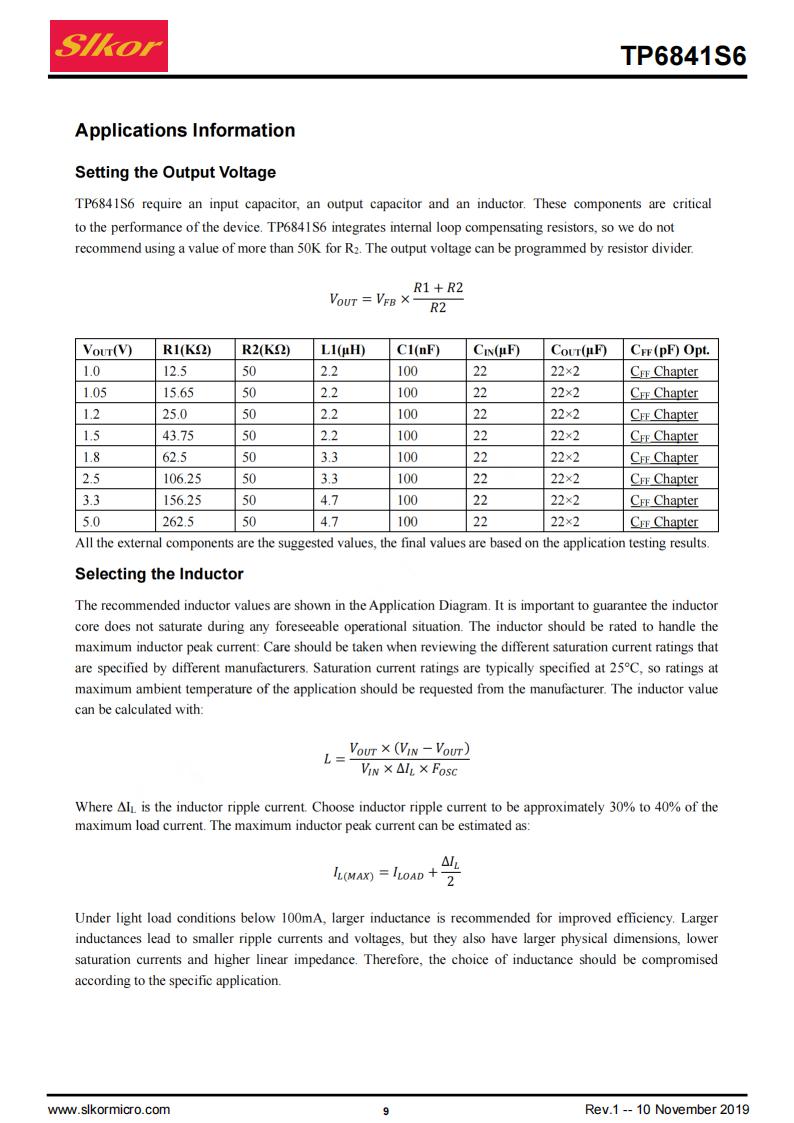

● Output Adjustable from 0.8 V
● No Schottky Diode Required
● Integrated internal compensation
● Thermal Shutdown

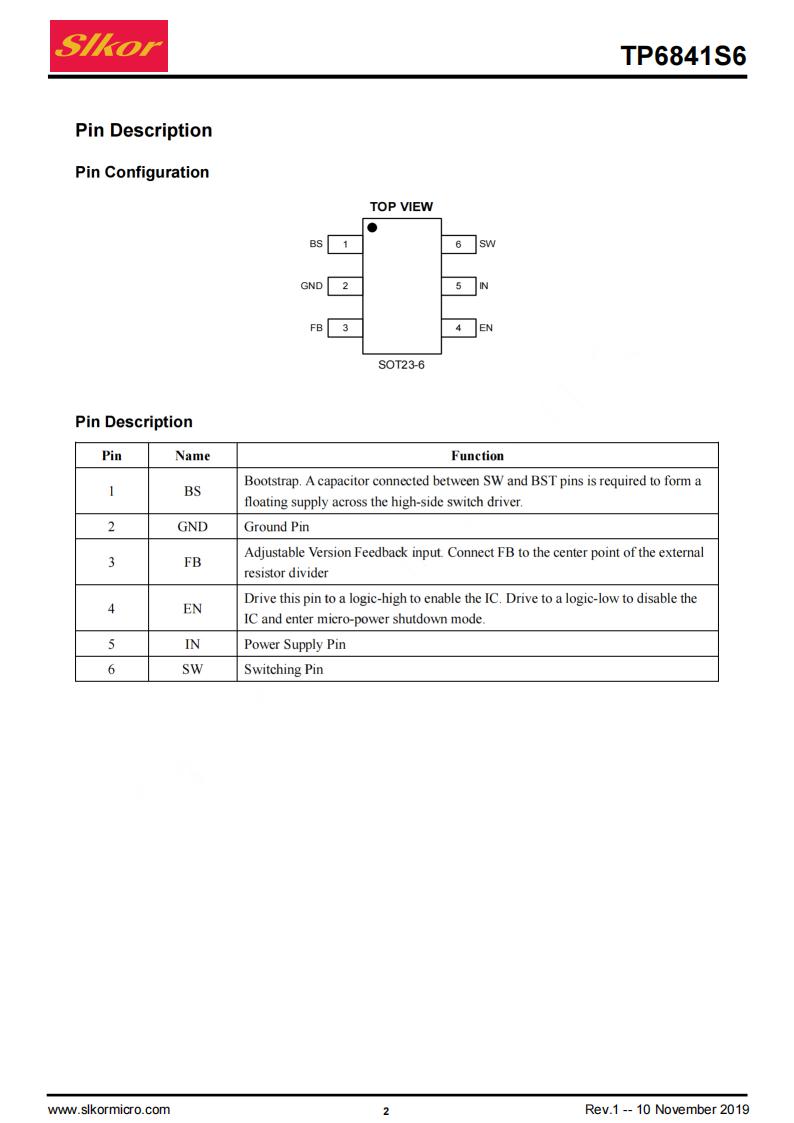

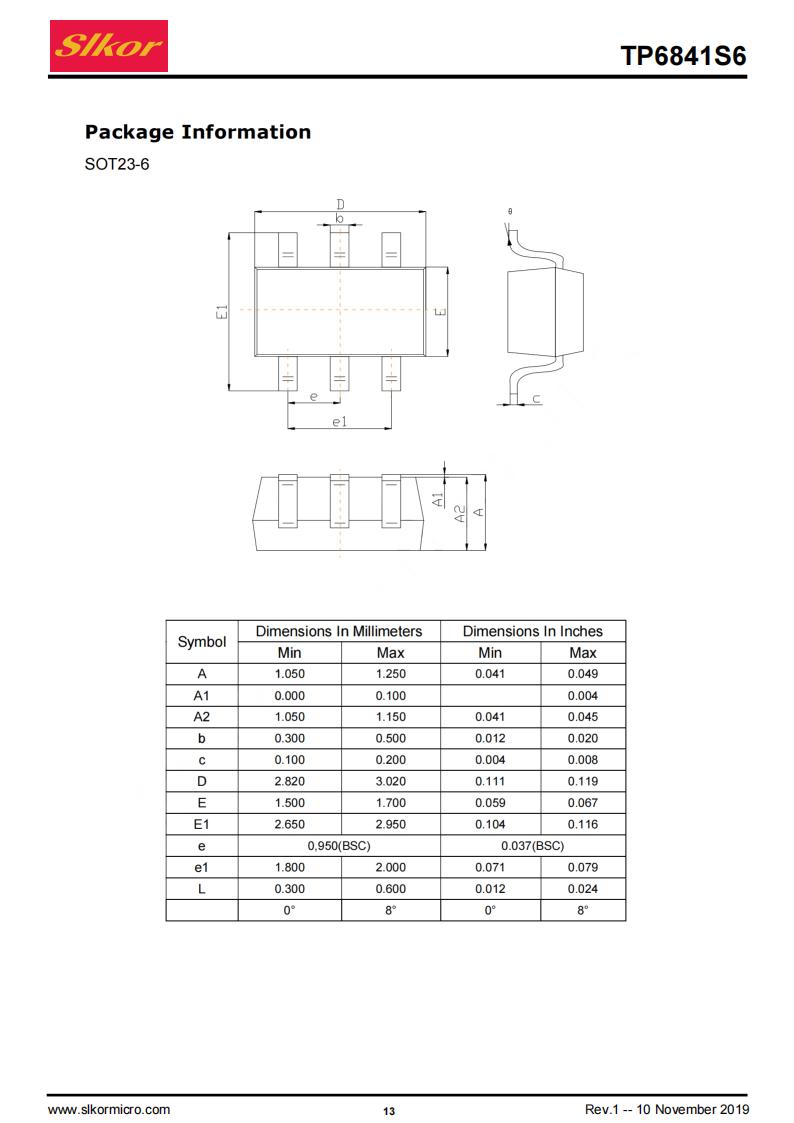

● Available in SOT23-6 Package
● -40°C to +85°C Temperature Range
