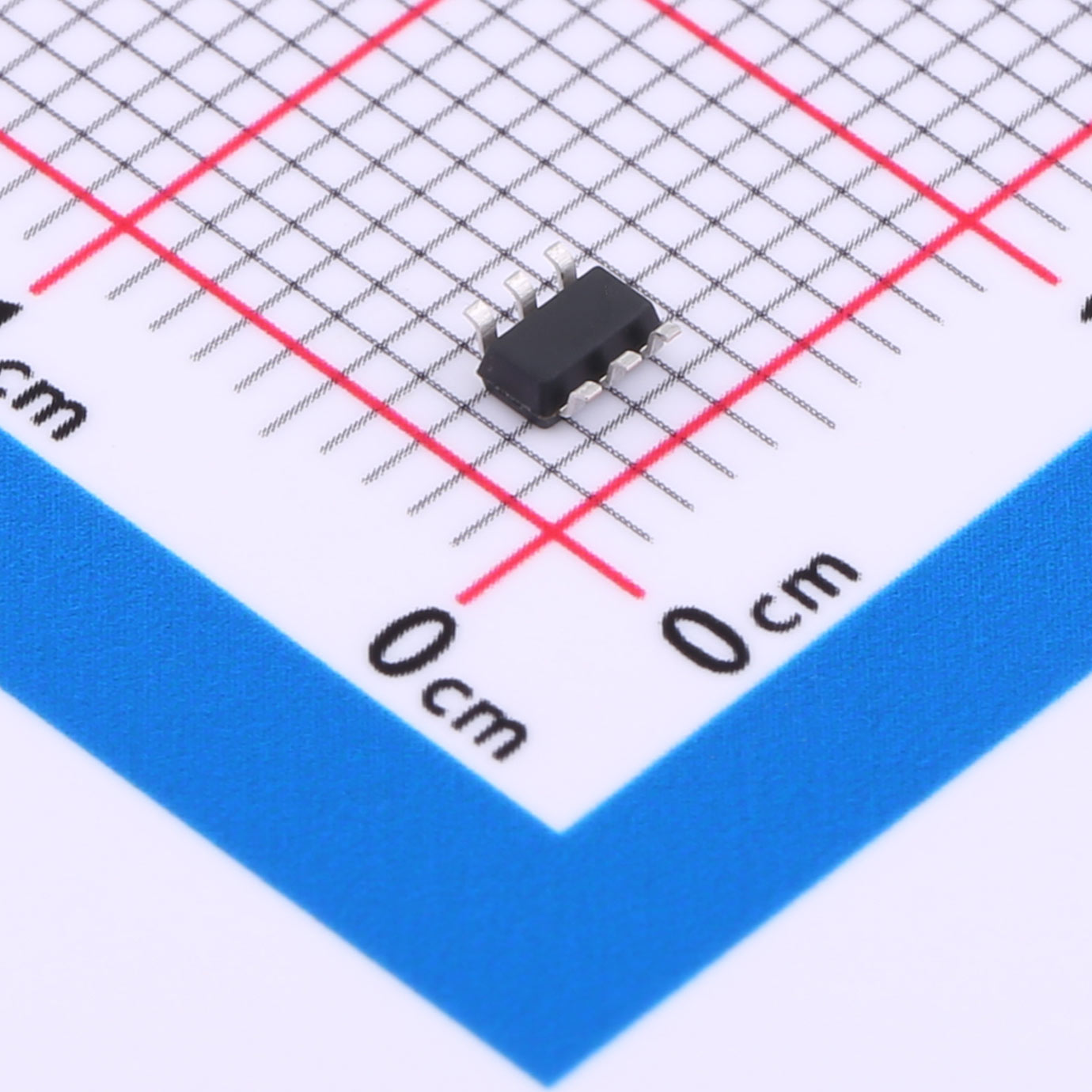

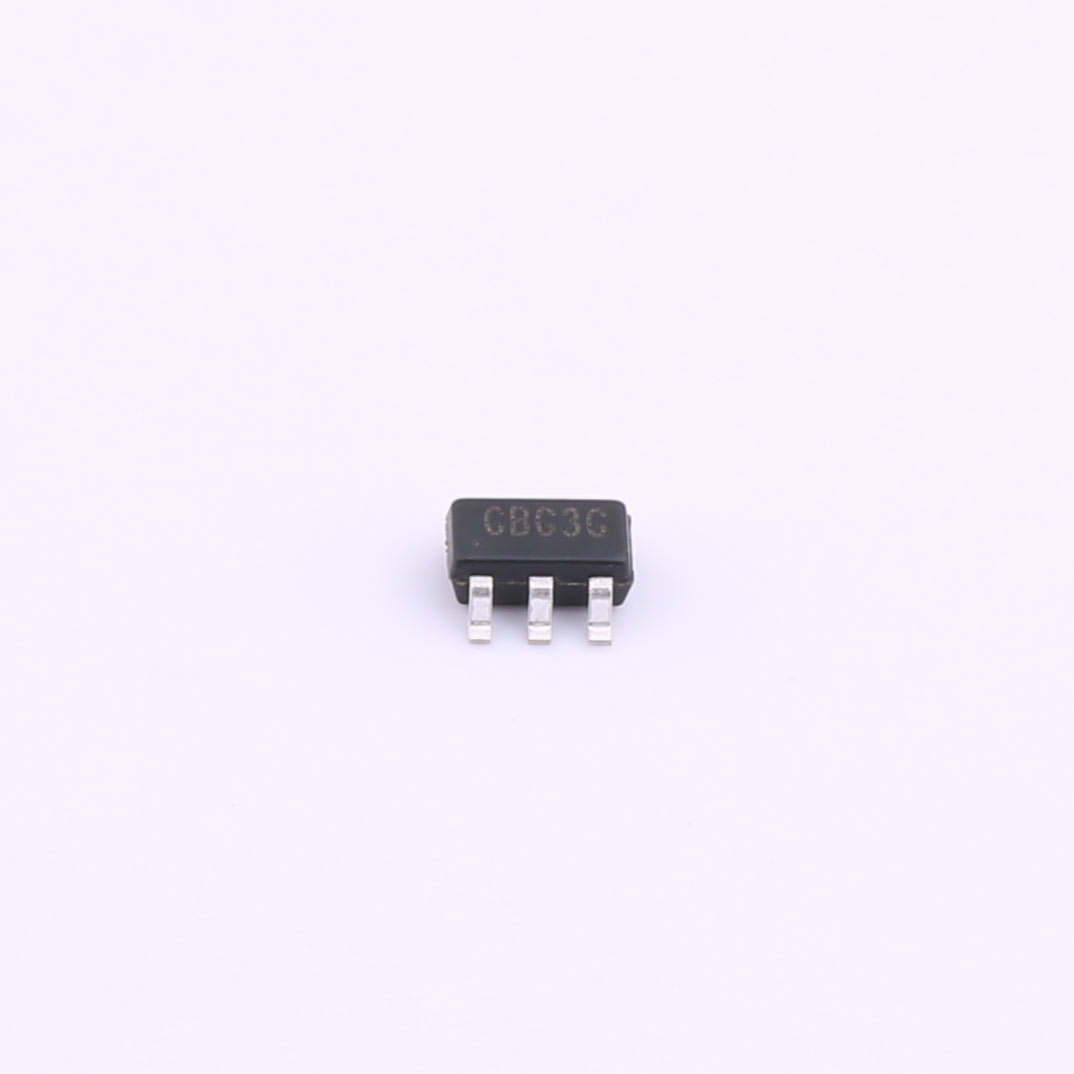

Display 3D model
Service hotline
+86 0755-83044319
The SL2359 is a high efficiency 1.5MHz,synchronous step-down DC-DC converter capableof delivering up to 1.2Acurrent with force PWM operation and adopts COT control with fasttransient response performance. SL2359integrates both high and low side switch with lowRDS(ON) to minimize the conduction loss.Low output voltage ripple and small external inductor andfrequency.capacitor size are achieved with1.5MHzswitching.The SL2359 requires a minimum number of readily available standard external components and is available in a 6-pin SOT23-6 RoHScompliant package.
Download datasheet Inquiry
1.5MHz,30V,1.2A FPWM Synchronous Step-Down Converter
Description
l The SL2359 is a high efficiency 1.5MHz,synchronous step-down DC-DC converter capableof delivering up to 1.2Acurrent with force PWM operation and adopts COT control with fasttransient response performance. SL2359integrates both high and low side switch with lowRDS(ON) to minimize the conduction loss.Low output voltage ripple and small external inductor andfrequency.capacitor size are achieved with1.5MHzswitching
l The SL2359 requires a minimum number of readily available standard external components and is available in a 6-pin SOT23-6 RoHScompliant package.
Features
l Wide InputRange:4.5Vto 30V
l Feedback Voltage: 0.8V±2%
l 1.5MHz Switch Frequency
l Up to1.2AOutput Current
l Force Constant Current PWM Operation
l COT control to achieve fast transient responses
l Integrated internal compensation
l Stable with Low ESR Ceramic Output Capacitors
l Over Current Protection with Hiccup Mode
l Thermal Shutdown
l Inrush Current Limit and Soft Start
l Build in Input Over Voltage Protection
l Available inSOT23-6Package
