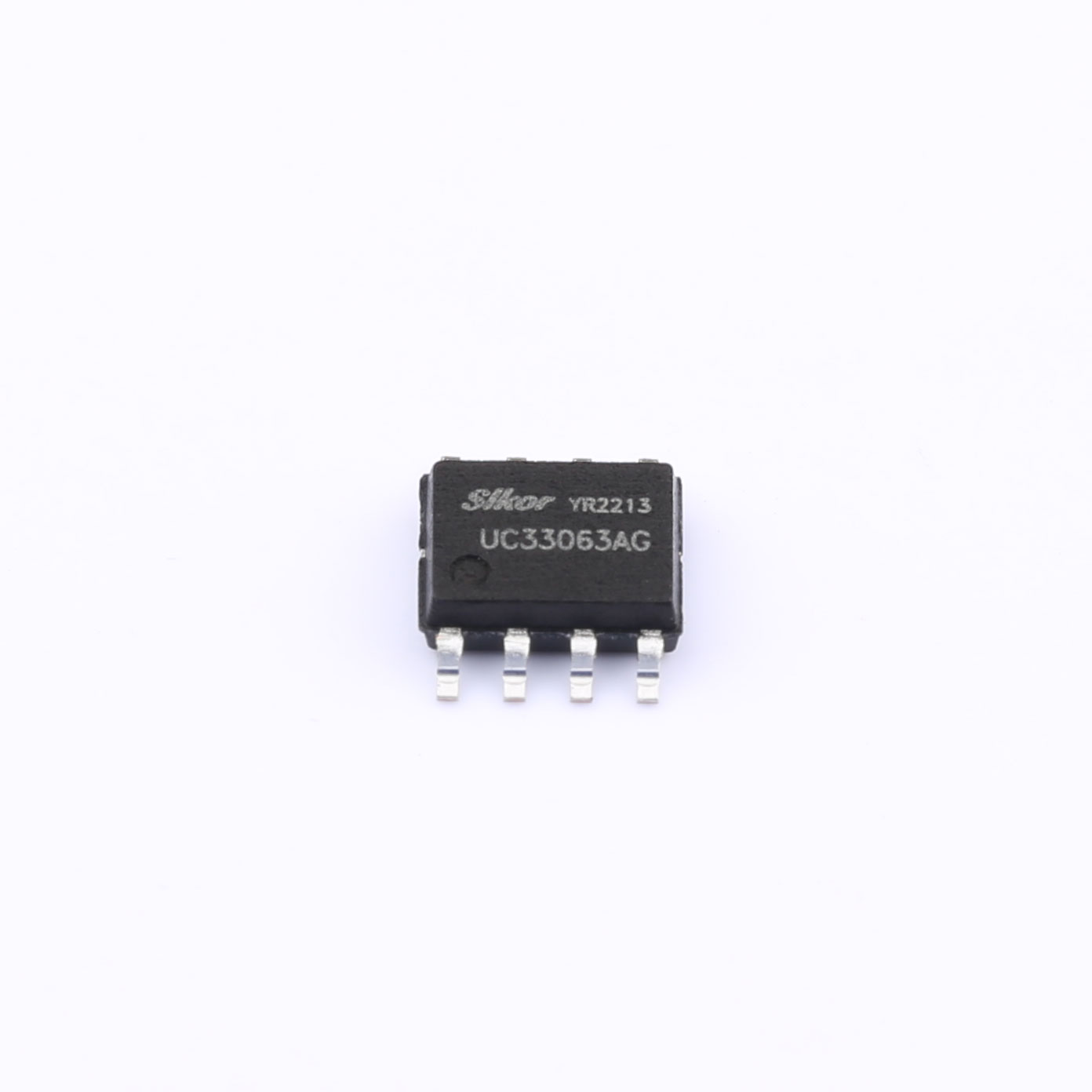

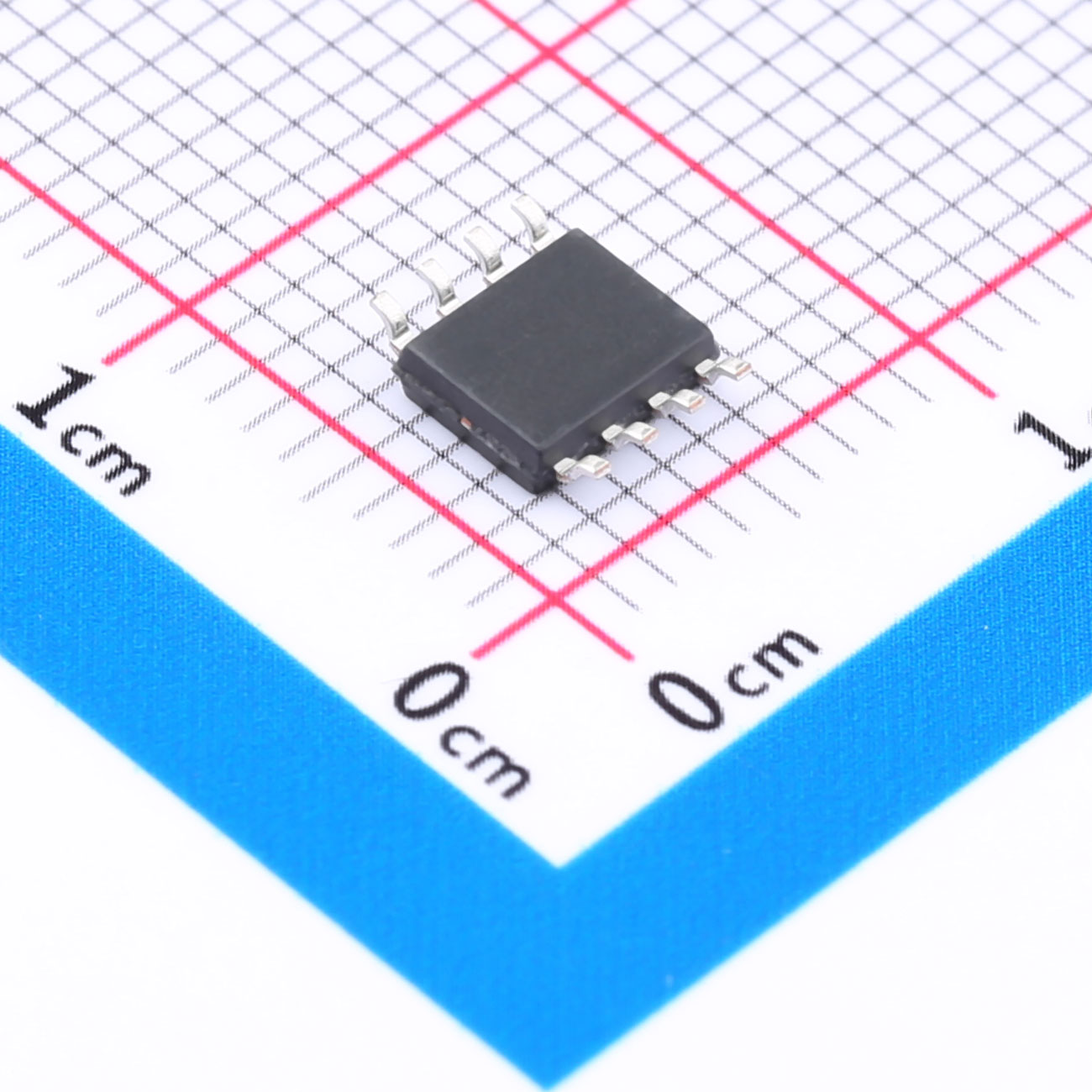

UC33063AG DC-DC Voltage Regulator SOP-8
Download datasheet Inquiry
DC To DC Converter Controller
Features
l Operation from 3.0V to 40V.
l Short Circuit Current Limiting.
l Low Standby Current.
l Output Switch Current of 1.5A without External Transistors.
l Frequency of Operation from 100Hz to 100kHz.
l Step-up, Step-down or Inverting Switch Regulators.
| File Name | Title | Description |
|---|---|---|
| UC33063AG SOP-8.pdf | UC33063AG SOP-8 | - |
