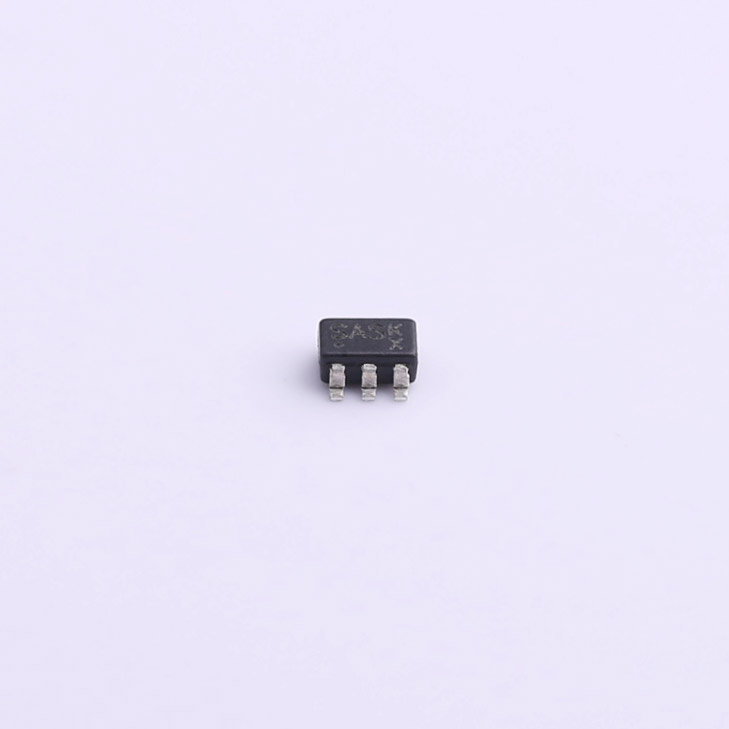

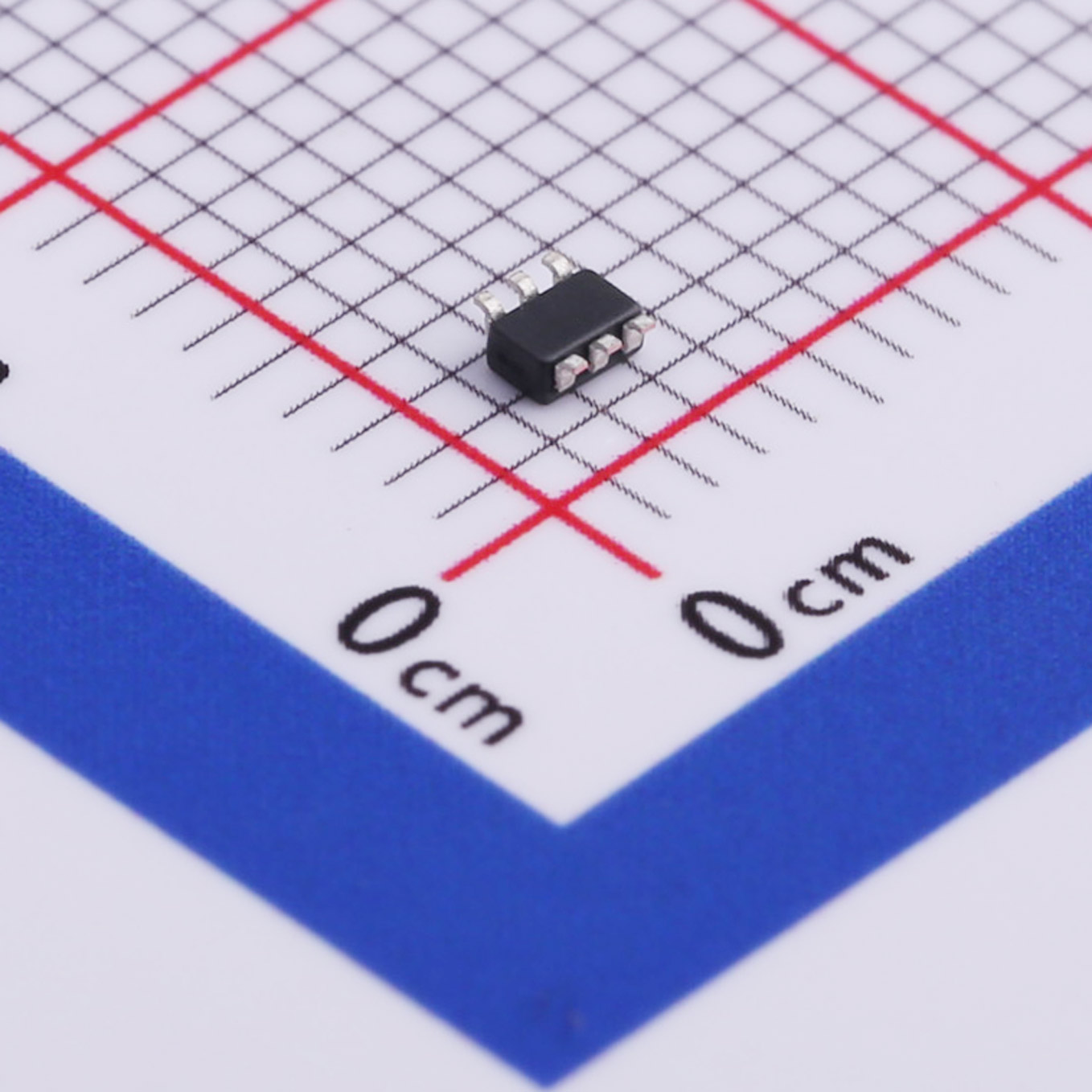

The Polar TVS (Transient Voltage Suppression) Diode is a state-of-the-art semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes. It provides robust clamping and transient voltage suppression capabilities to ensure the reliability and longevity of electronic systems.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar TVS (Transient Voltage Suppression) Diode is a state-of-the-art semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes. It provides robust clamping and transient voltage suppression capabilities to ensure the reliability and longevity of electronic systems.
Features
● Vrwm (Working Peak Reverse Voltage): 5V
● VBR (Minimum Breakdown Voltage): 6V
● Ipp @ 10/1000μs (Peak Pulse Current): 9A with an 80/20μs waveform
● VC (Clamping Voltage): 12V
APPLICATIONS
● Notebook Computers
● Cellular Phone Base Stations
● Personnal Digital Assistant (PDA)
● Digital Cameras
IEC COMPATIBILITY (EN61000-4)
● 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
● 61000-4-4 (EFT): 40A - 5/50ns
FEATURES
● 100 Watts Peak Pulse Power per Line (tp=8/20μs)
● Monolithic Design
● Available in Multiple Voltage Types Ranging From 5V to 24V
● Protect 4 Lines Bidirectional and 5 Lines Unidirectional
● ESD Protection > 25 kilovolts
● Low Clamping Voltage
● RoHS Compliant in Lead-Free Versions

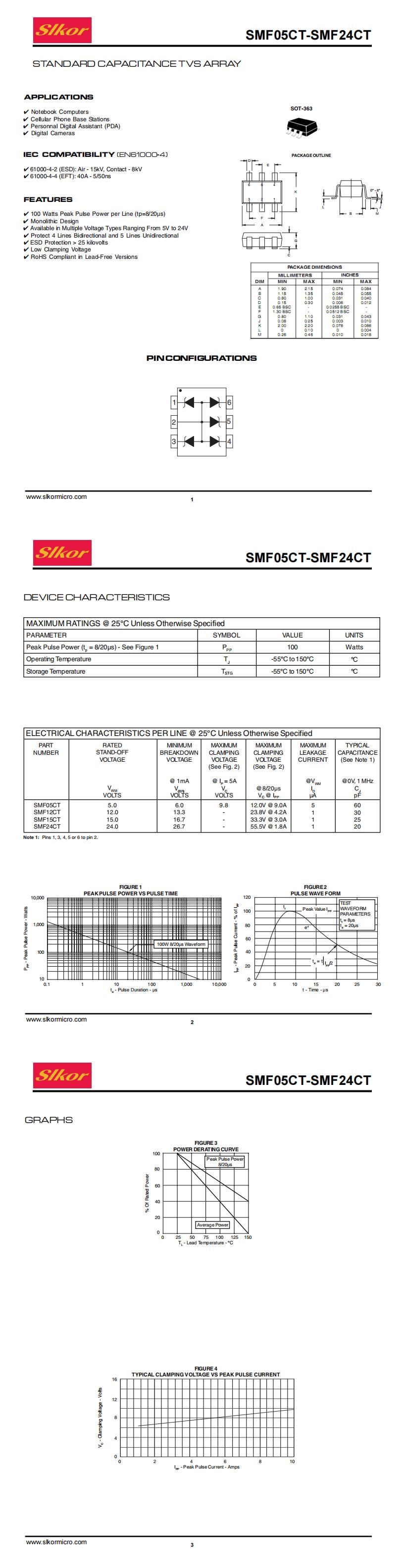

| File Name | Title | Description |
|---|---|---|
