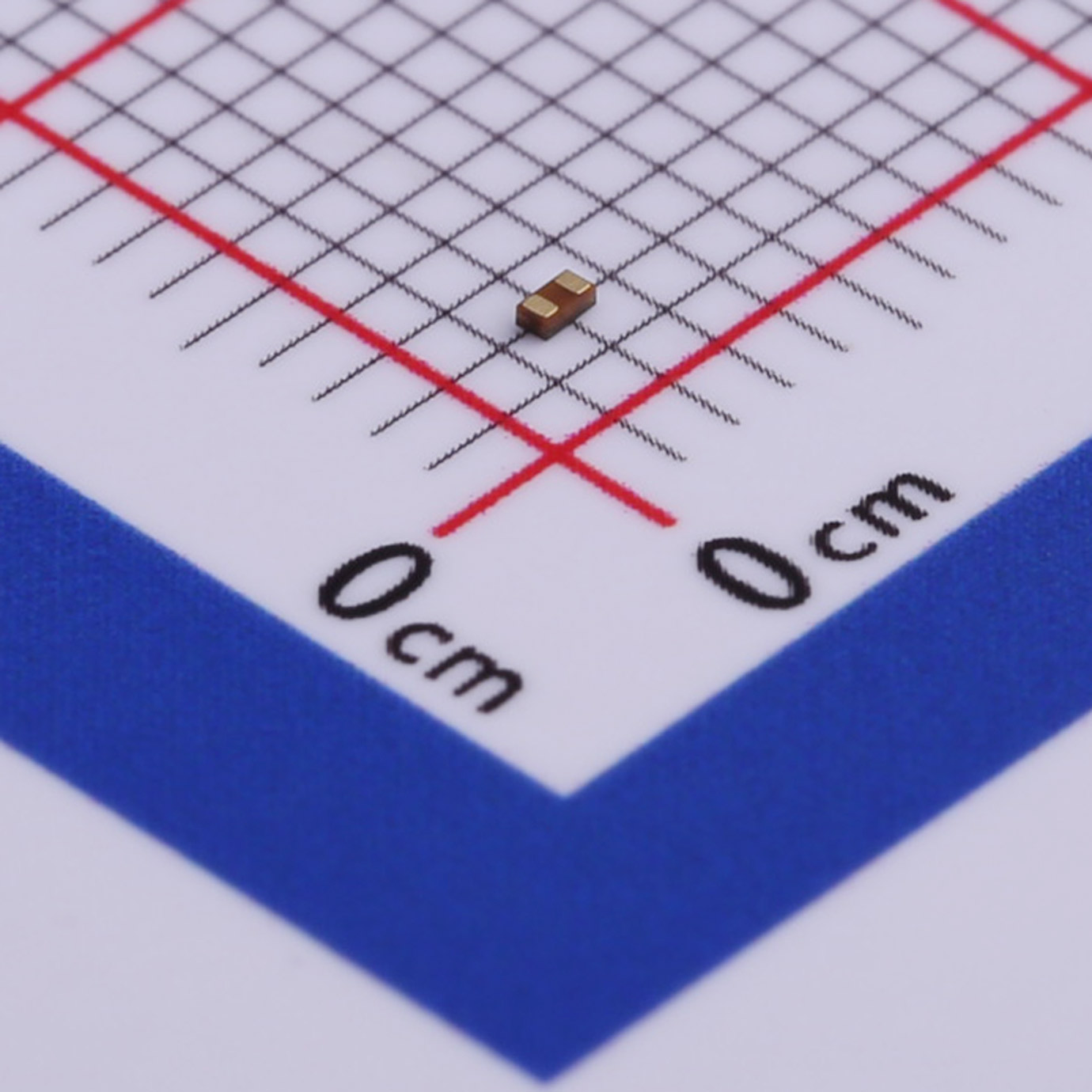

The Polar TVS (Transient Voltage Suppression) Diode is a high-performance semiconductor device designed to safeguard sensitive electronic circuits from voltage transients and spikes. It is built to provide robust protection and reliability in various electronic applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar TVS (Transient Voltage Suppression) Diode is a high-performance semiconductor device designed to safeguard sensitive electronic circuits from voltage transients and spikes. It is built to provide robust protection and reliability in various electronic applications.
Features
● Ultra-Low capacitance:0.05pF(typ.)
● Low leakage current(<10nA)
● Fast response time(<1ns)
● Bi-directional,single line protection
● IEC 61000-4-2 (ESD Air): 15kV IEC 61000-4-2 (ESD Contact): 8kV
Applications
● USB 3.0/3.1
● HDMI 1.3/1.4/2.0
● RF Antenna
● SATA and eSATA Interface
| File Name | Title | Description |
|---|---|---|

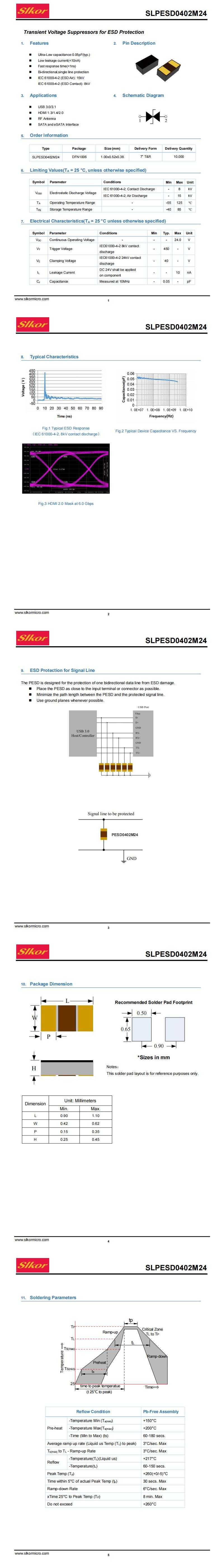

| SLPESD0402M24.pdf | SLPESD0402M24 | - |
