The BTRD04A15 is a 15V bi-directional TVS diode, utilizingleading monolithic silicon technology to provide fastresponse time and low ESD clamping voltage, making thisdevice an ideal solution for protecting voltage sensitive data and power line. The complies with the IEC 61000-4-2 (ESD) with ±30 kV air and ±30 kV contact discharge. It is assembled into an ultra-small 1.0x0.6mm lead-free DFN package. The small size and high ESD surge protection make an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BTRD04A15 is a 15V bi-directional TVS diode, utilizingleading monolithic silicon technology to provide fastresponse time and low ESD clamping voltage, making thisdevice an ideal solution for protecting voltage sensitive data and power line. The complies with the IEC 61000-4-2 (ESD) with ±30 kV air and ±30 kV contact discharge. It is assembled into an ultra-small 1.0x0.6mm lead-free DFN package. The small size and high ESD surge protection make an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
Features
● Ultra small package: 1.0x0.6x0.5mm
● Protects one date or power line
● Working voltage: 15V
● 2-pin leadless package
● Complies with following standards: – IEC 61000-4-2 (ESD) immunity test
● Air discharge: ±30kV
● Contact discharge: ±30kV
● – IEC61000-4-5 (Lightning) 5A (8/20ns)
● RoHS Compliant
Applications
● Cellular Handsets and Accessories
● Personal Digital Assistants
● Notebooks and Handhelds
● Portable Instrumentation
● Digital Cameras
● Peripherals
● Audio Players
● Industrial Equipment
| File Name | Title | Description |
|---|---|---|
| BTRD04A15 DFN1006-2L.pdf | BTRD04A15 DFN1006-2L | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The BTRD04A15 is a 15V bi-directional TVS diode, utilizingleading monolithic silicon technology to provide fastresponse time and low ESD clamping voltage, making thisdevice an ideal solution for protecting voltage sensitive data and power line. The complies with the IEC 61000-4-2 (ESD) with ±30 kV air and ±30 kV contact discharge. It is assembled into an ultra-small 1.0x0.6mm lead-free DFN package. The small size and high ESD surge protection make an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
Vrwm:9.4V VBR(min):10.5V VBR(max):11.6V Ir:5μA VC:15.6V Ppp@10/1000μs:600W

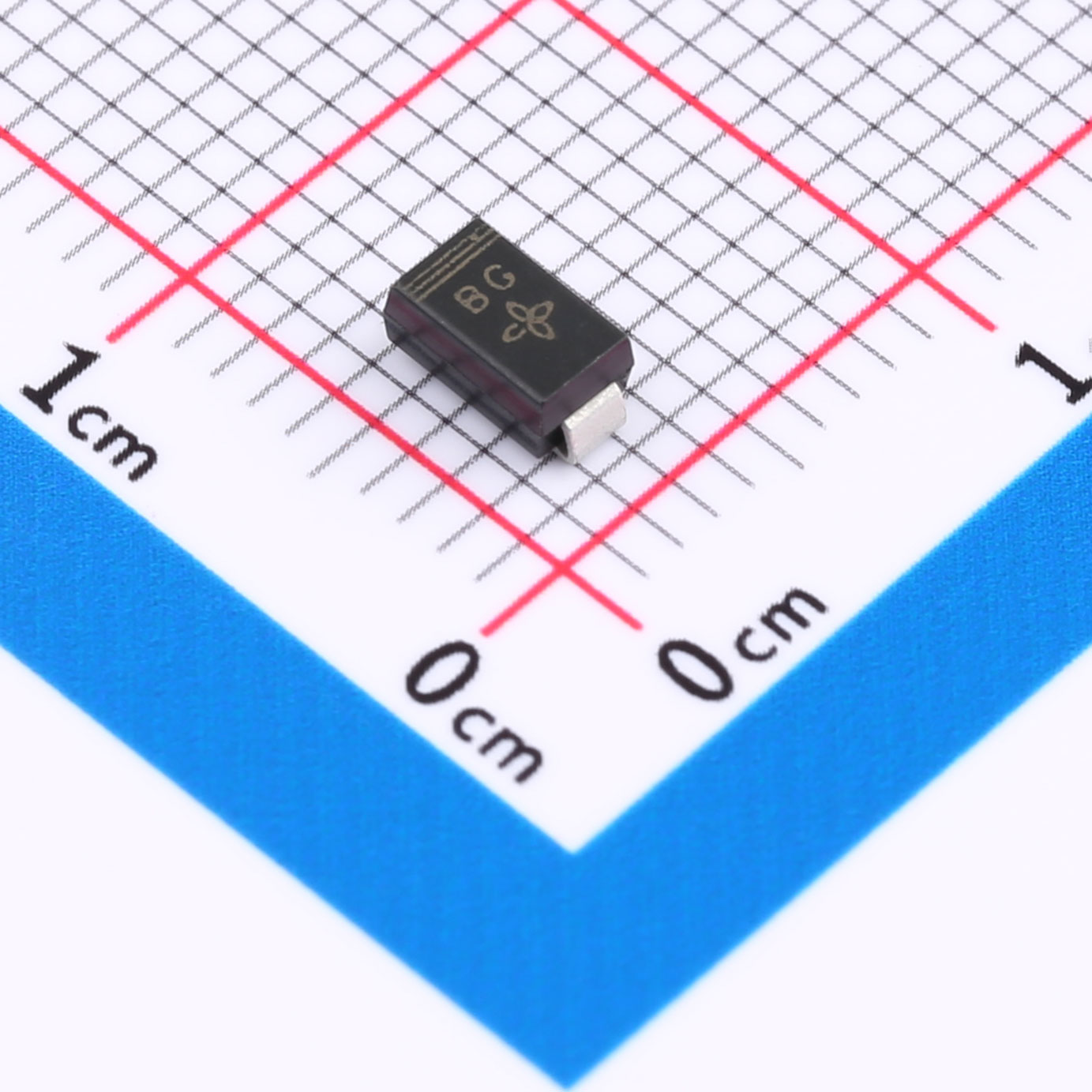

VRWM (max): 13V VBR(min): 14.4V VBR(max): 15.9V IR(max): 5µA VC(max): 21.5V Package: SMA
