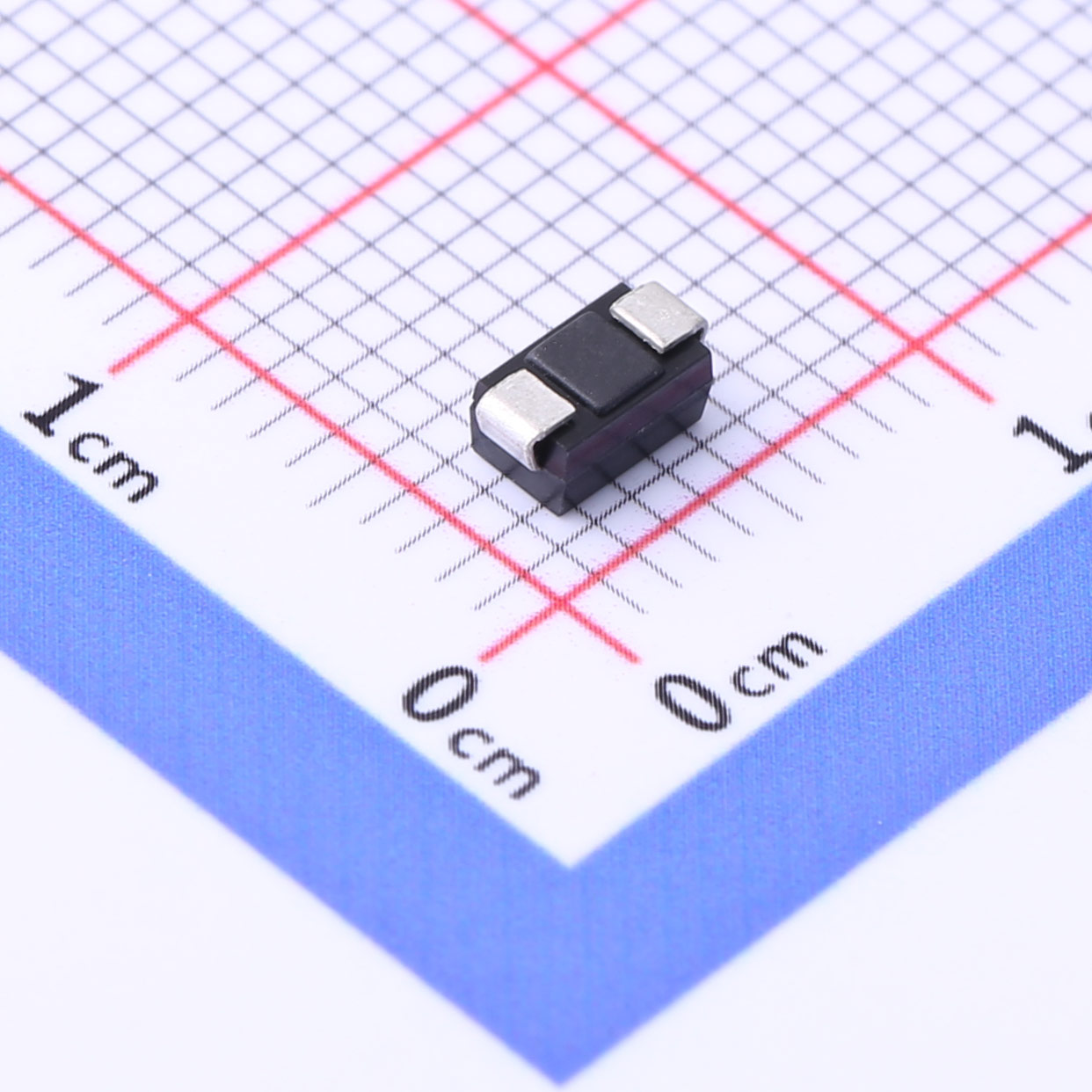

SS5150 Schottky Diodes SMA
Download datasheet Inquiry
FEATURES
Metal-Semiconductor junction with gard ring
Epitaxial construction
Low forward voltage drop
High current capability
The plastic material carries UL recognition 94V-0
For use in low vlotage,high frequency inverters, free wheeling,and polarity protection applications
MECHANICAL DATA
Case: Molded Plastic

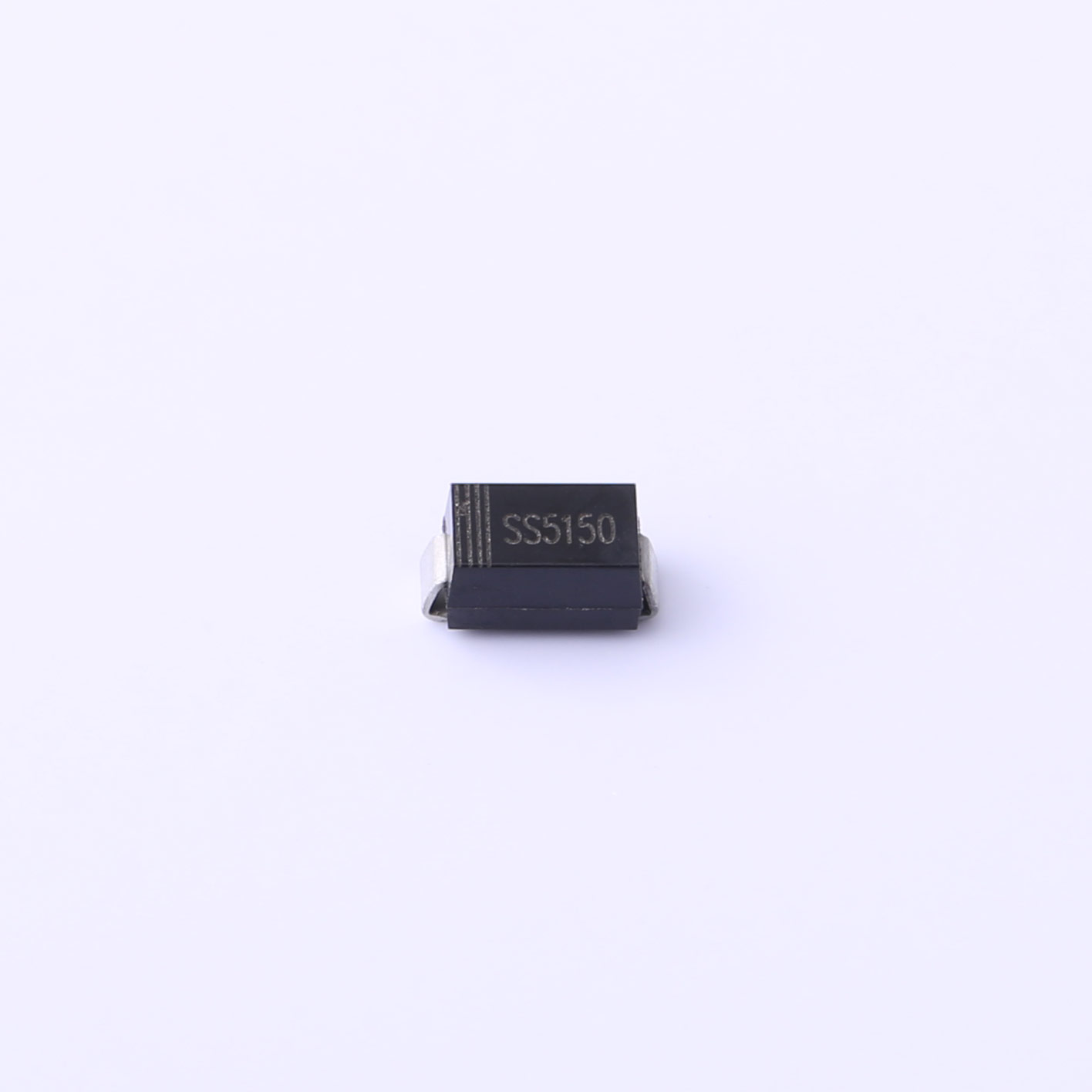

Polarity: Color band denotes cathode
Weight: 0.058 grams
| File Name | Title | Description |
|---|---|---|

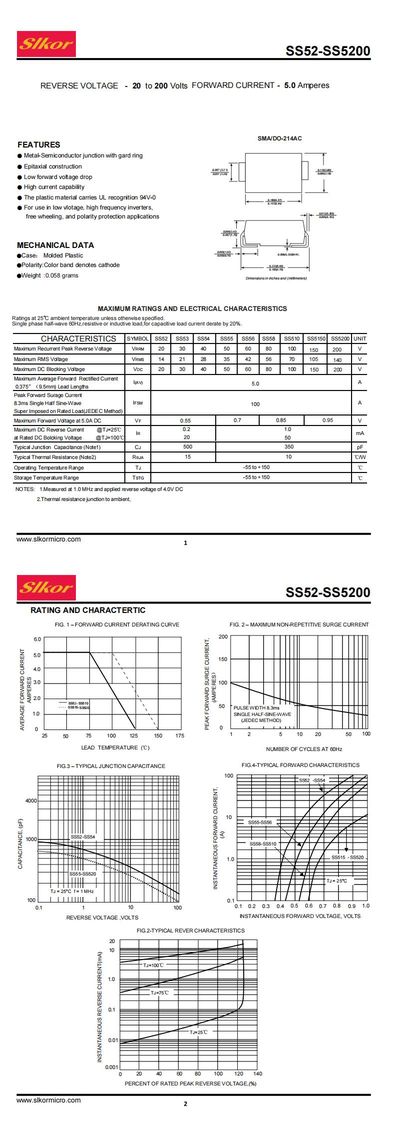

| SS5150 SMA.pdf | SS5150 SMA | - |
