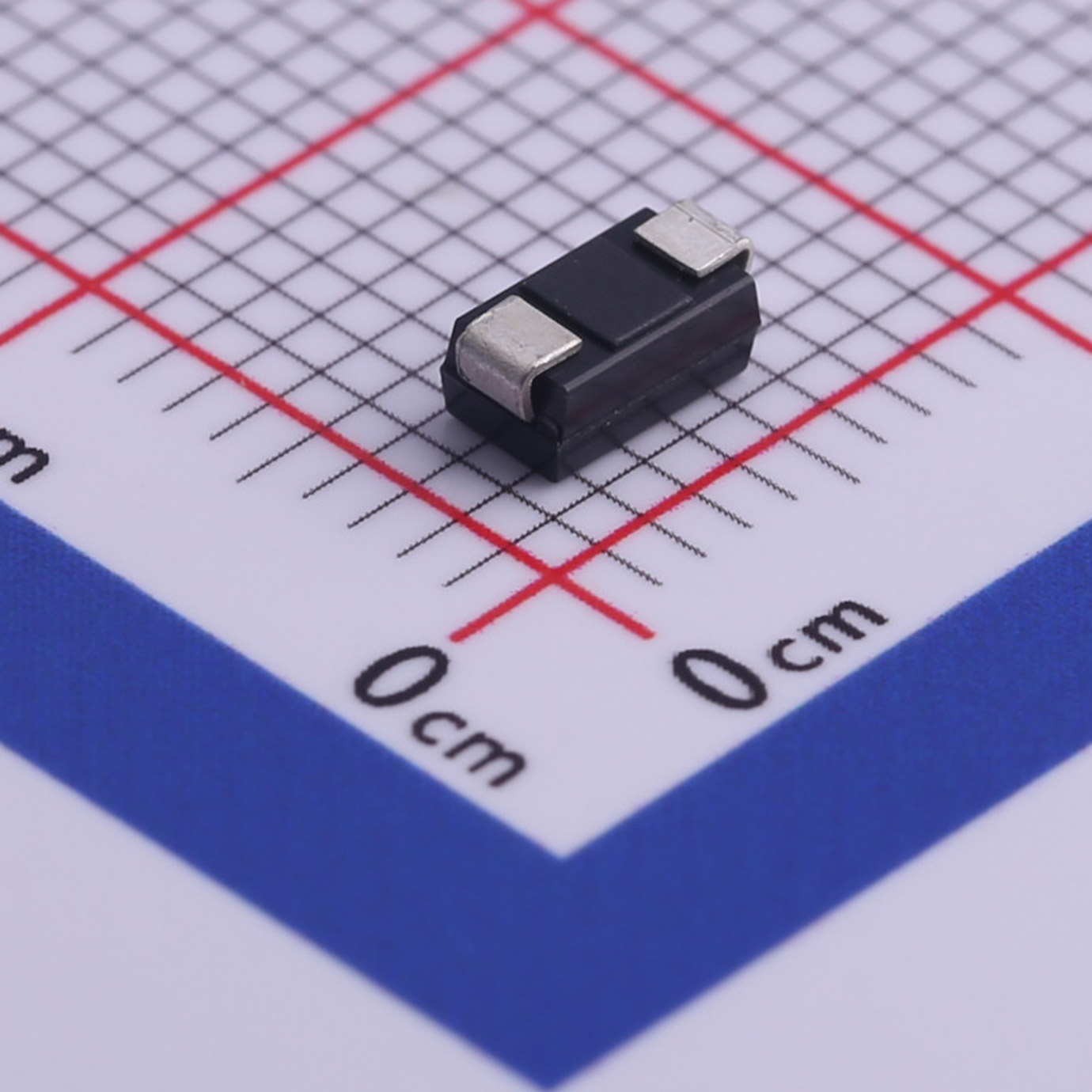

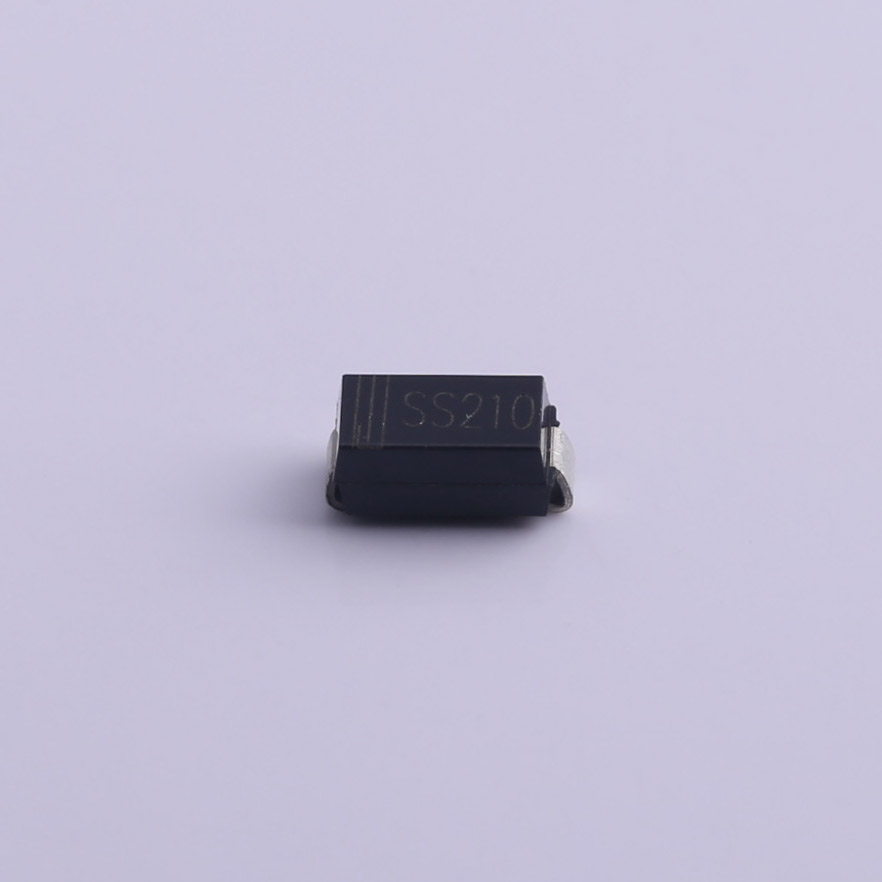

SS210 Power Schottky Diodes SMA

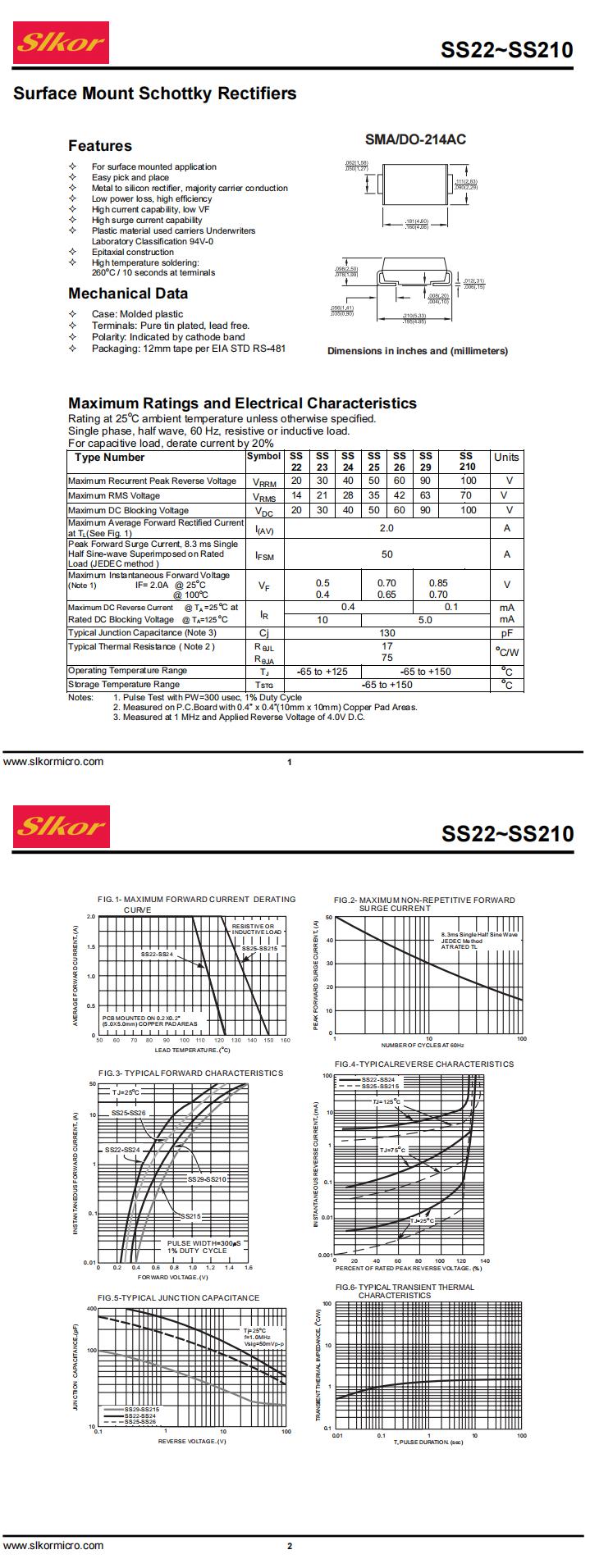

Download datasheet InquirySurface Mount Schottky Rectifiers
Features
For surface mounted application
Easy pick and plaoe
Metal to silicon rectifier, majorty carrer conduction
Low power loss, high efficiency
High currert capability low VF
High surge current capabilty
Plastic material used camriers Underwriters Laboratory Classification 94V-0
Epitaxial construction
Hig h temperature soldering: 260C/10 seconds at temminals
Mechanical Data
Case: Molded plastic
Terminals: Pure tin plated,lead free.
Polarity: Indicated by cathode band
Packaging: 12mm tape per EIA STD RS-481
| File Name | Title | Description |
|---|---|---|
| SS210.pdf | SS210 | - |
