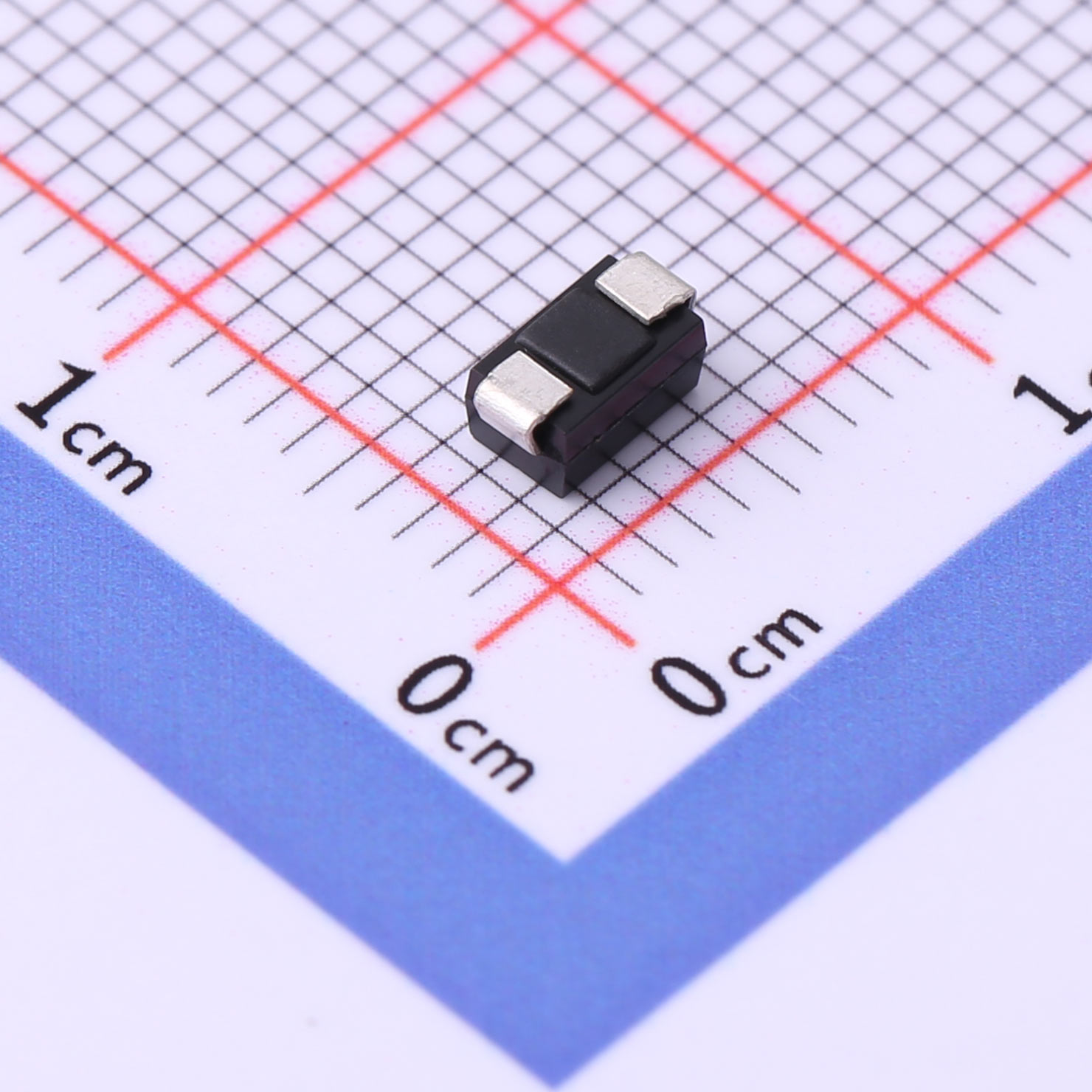

SS52 Power Schottky Diodes SMA
Download datasheet Inquiry
FEATURES
? Metal-Semiconductor junction with gardring
? Epitaxial construction
? Low forward voltage drop
? High current capability
? The plastic material carries UL recognition 94V-0
? For use in low vlotage, high frequency inverters,free wheeling, and polarity protection applications
MECHANICAL DATA
? Case: MoldedPlastic
? Polarity:Colorbanddenotescathode
? Weight:0.058grams
| File Name | Title | Description |
|---|---|---|

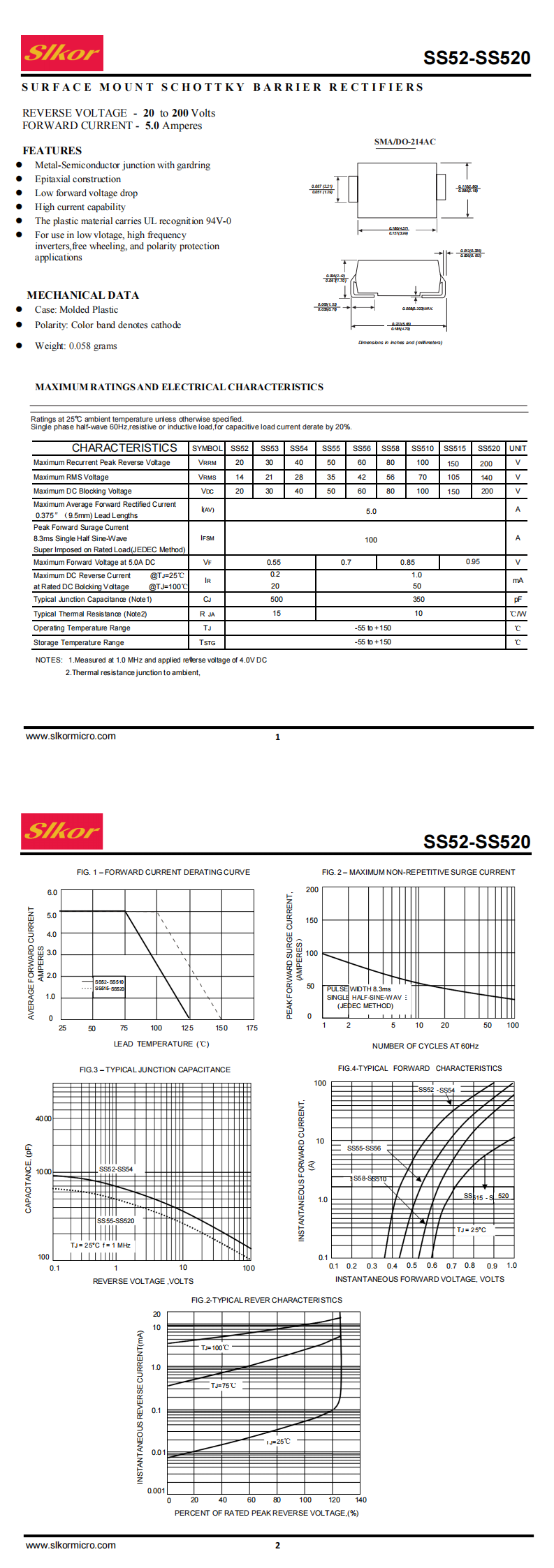

| SS52 SMA.pdf | SS52 SMA | - |
