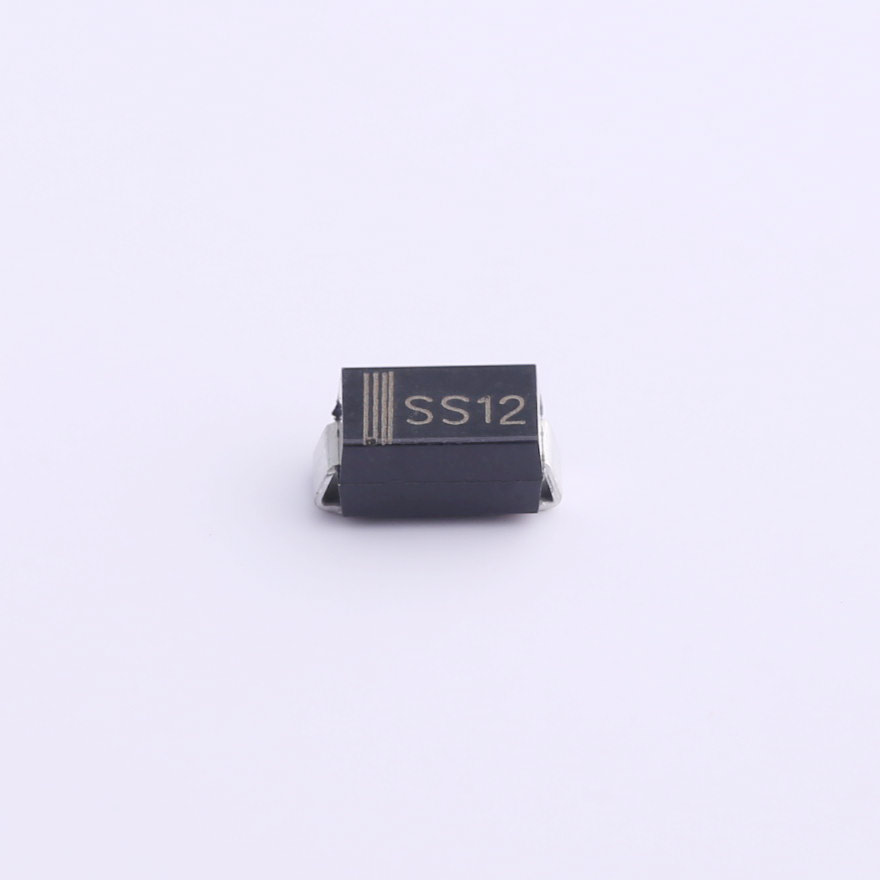

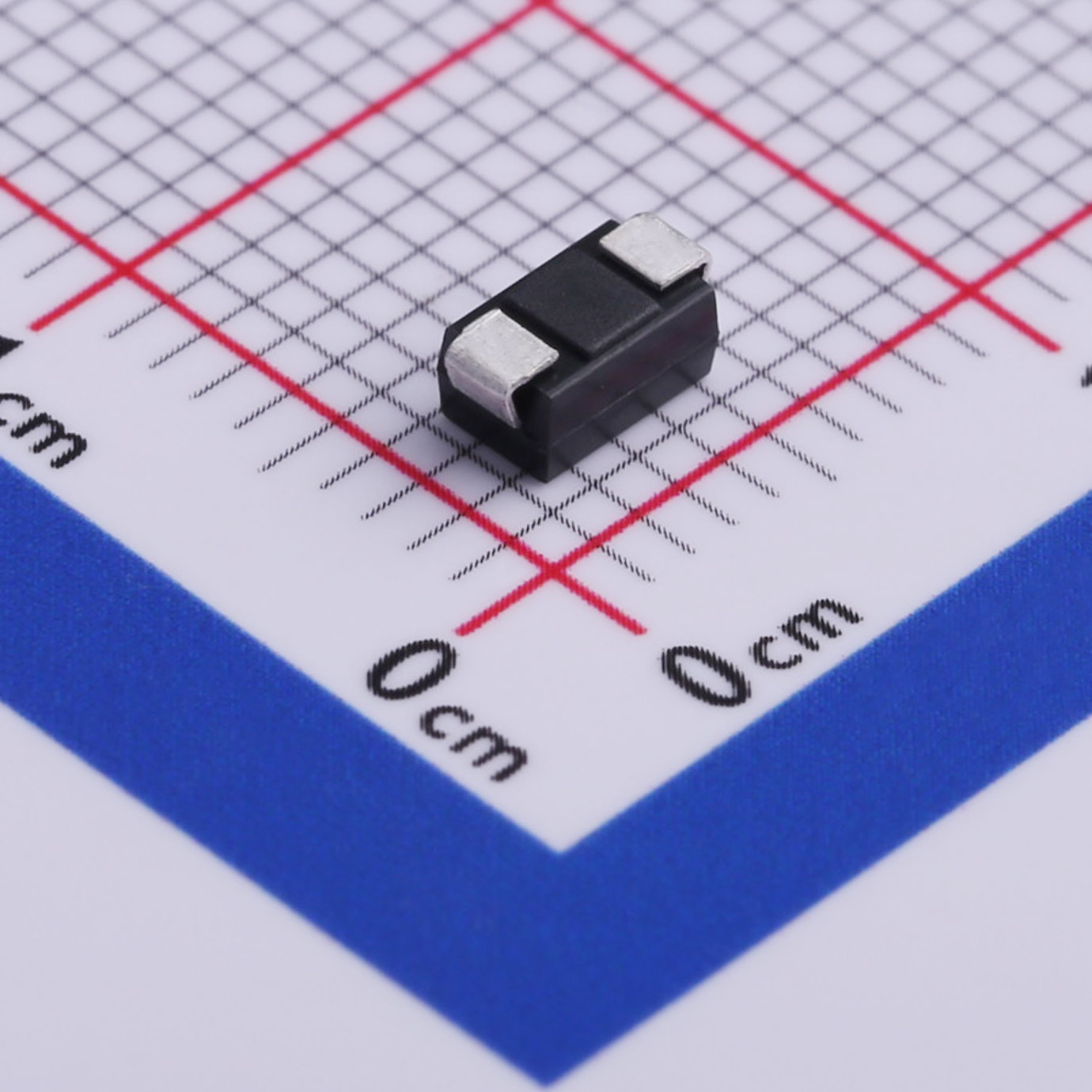

SS12 Schottky Barrier Diodes SMA
Download datasheet Inquiry
Surface Mount Schottky Rectifiers
Features
Low profile package.
Ideal for automated placement.
Ultrafast reverse recovery time.
Low power losses.high efficiency.
Low forward voltage drop.
High surge capability.
High temperature soldering: 260C/10 seconds at terminals.
Mechanical Data
Case: JEDEC DO-214AC molded plastic body over glass passivated chip.
Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D.

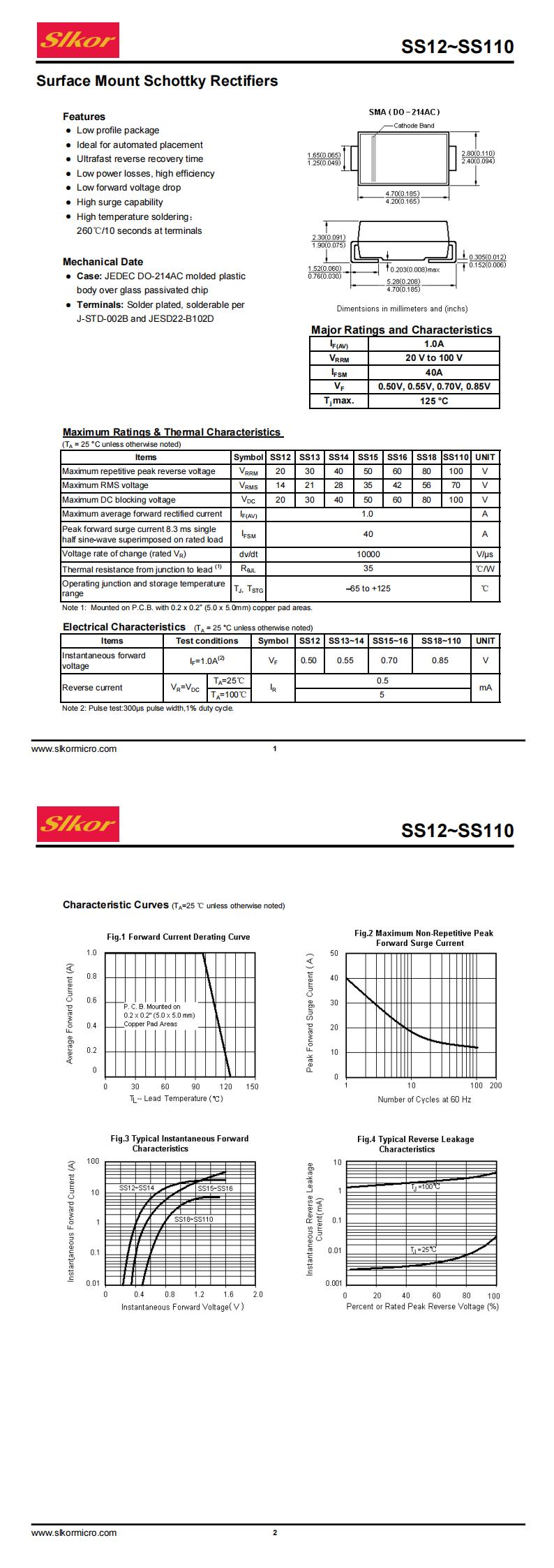

| File Name | Title | Description |
|---|---|---|
| SS12.pdf | SS12 | - |
