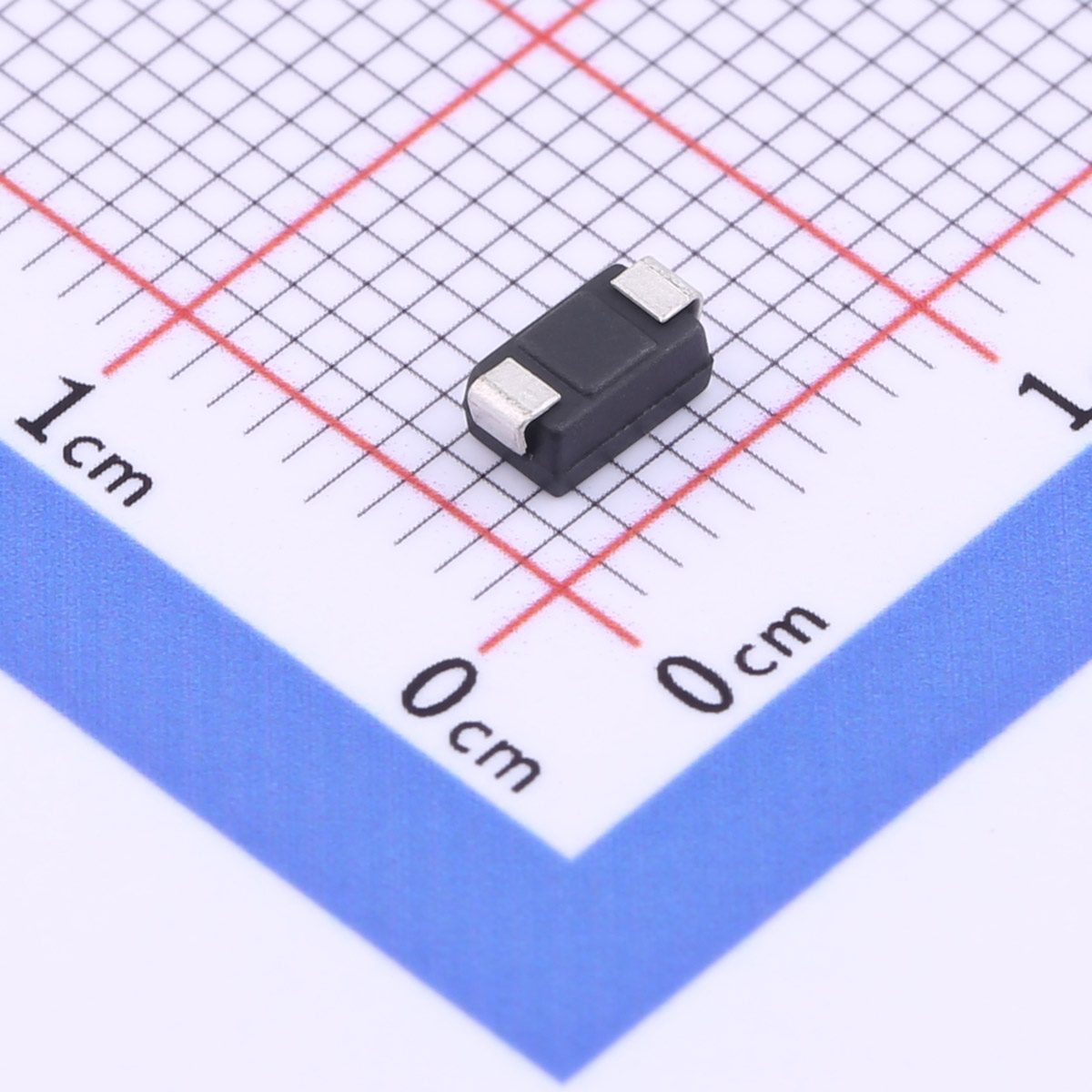

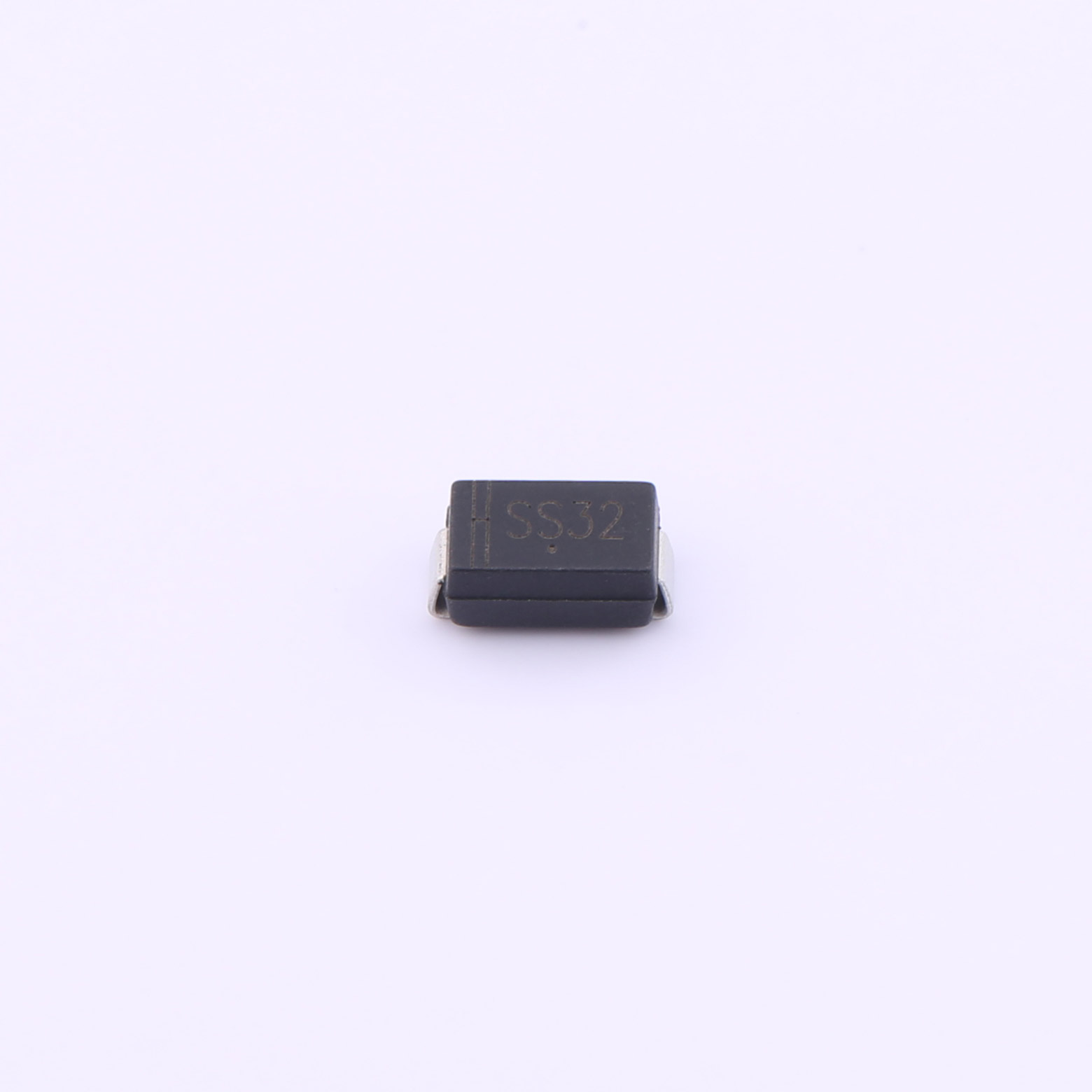

SS32 Schottky Barrier Diodes SMA
Download datasheet Inquiry
FEATURES
? Metal silicon junction, majority carrier conduction
? For surface mounted applications
? Low power loss, high efficiency
? High forward surge current capability
? For use in low voltage, high frequency inverters,free wheeling, and polarity protection applications
MECHANICAL DATA
? Case: SMA
? Terminals: Solderable per MIL-STD-750, Method 2026
? Approx. Weight: 60mg / 0.0021oz
| File Name | Title | Description |
|---|---|---|
| SS32 SMA.pdf | SS32 SMA | - |
